S5731S-H24T4XC-A

S5731S-H24T4XC-A

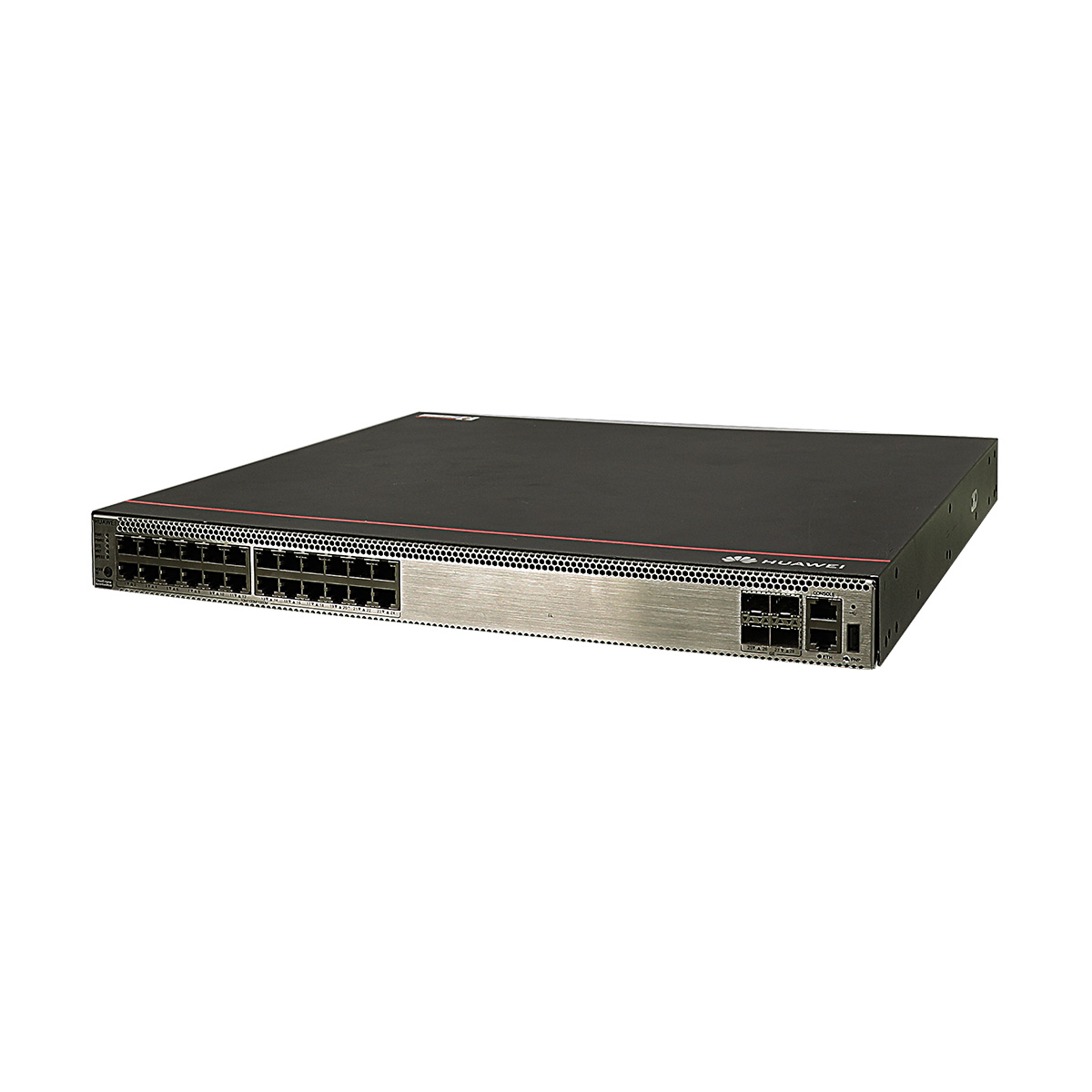

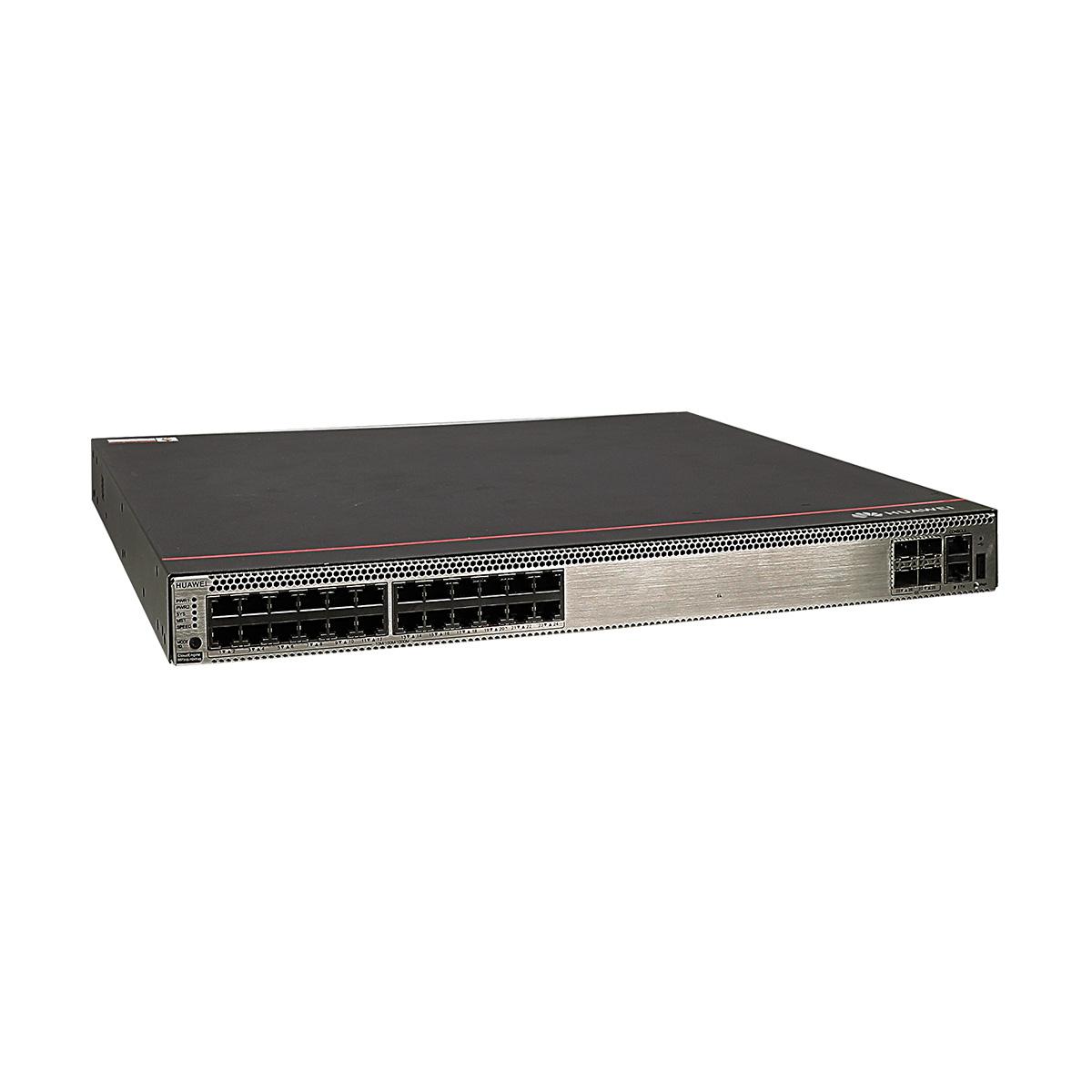

Huawei S5731S-H24T4XC-A switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports

Huawei

3-5 days

Hongkong Warehouse

SKU: 02352YRG Category:

Description

S5731S-H24T4XC-A Overview

Huawei S5731S-H24T4XC-A switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports

The S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features. For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization, and built-in security probes support abnormal traffic detection, and threat analysis even in encrypted traffic, and network-wide threat deception.



S5731S-H24T4XC-A Quick Spec

24 10/100/1000BASE-T ports

4 10GE SFP+ ports

Forwarding Performance:  216/426 Mpps

Switching capacity: 758 Tbps/7.58Tbps

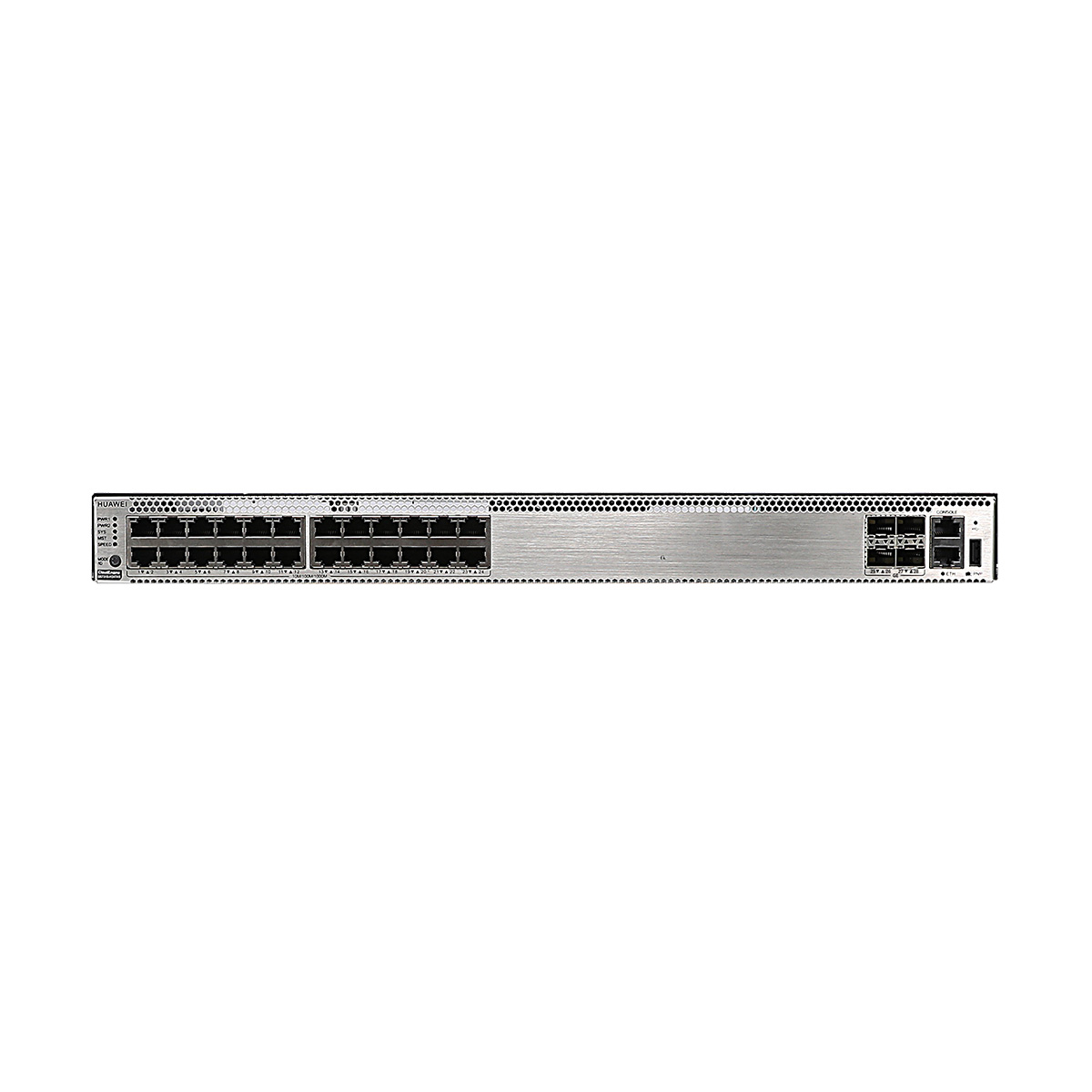

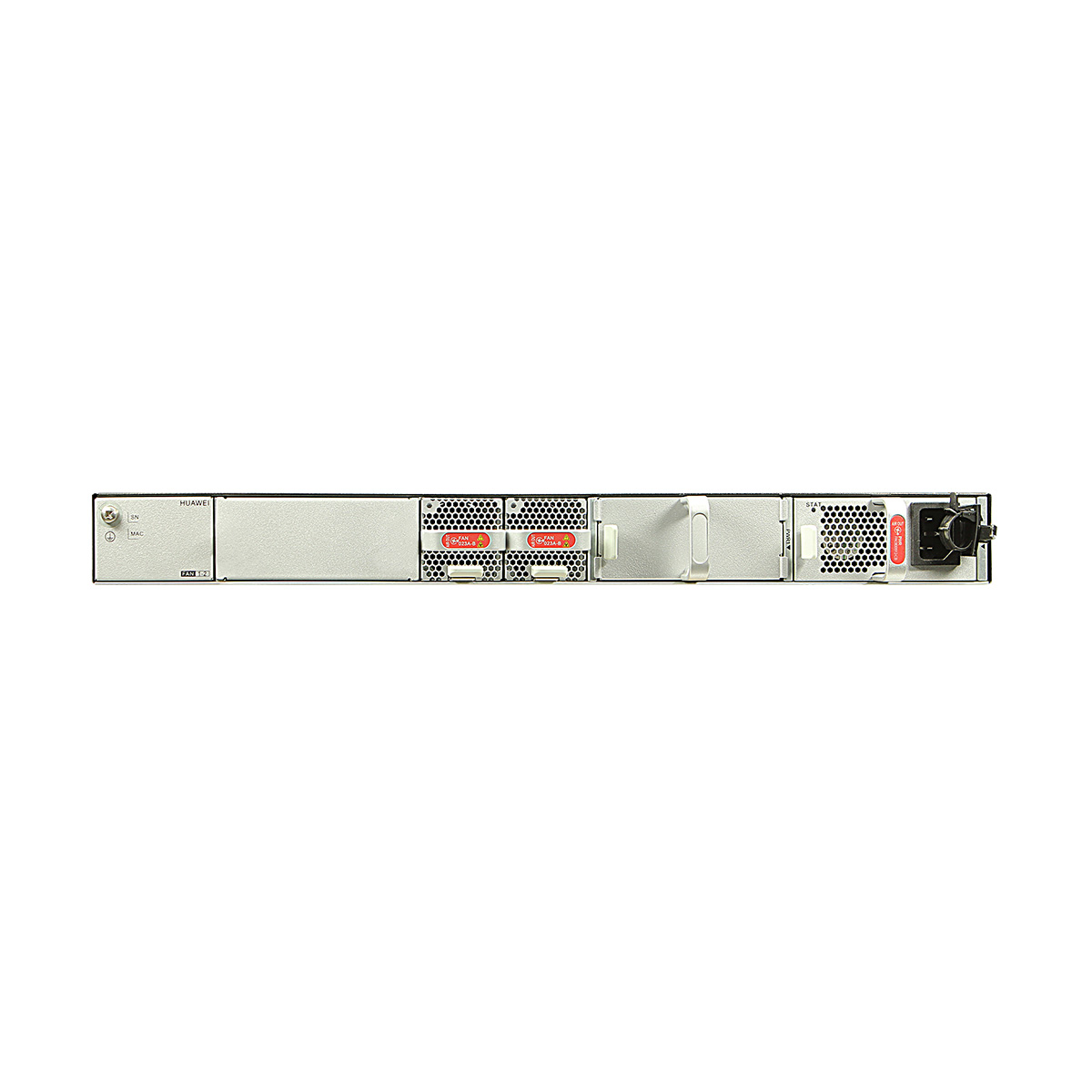

S5731S-H24T4XC-A appearance and structure

S5731S-H24T4XC-A appearance and structure

1 Twenty-four 10/100/1000BASE-T ports

SFP-1000Base-T

7 Ground screw
2 Four 10GE SFP+ ports

SFP-10G-USR SFP-10G-ZR

OSX040N01 OSX010000 OMXD30000

8 Fan module slot 1
3 One console port 9 Fan module slot 2
4 One ETH management port 10 Power module slot 1
5 One USB port 11  Power module slot 2
6 One PNP button  12 Rear card slot
S5731S-H24T4XC-A Datasheet
Item S5731S-H24T4XC-A
Mean time between failures (MTBF) 57.73 years
Fixed port 24 10/100/1000BASE-T (PoE+) ports, 4 10GE SFP+ ports
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode; Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz; High-Voltage DC input: 240 V DC; DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz; High-Voltage DC input: 190 V DC to 290 V DC; DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 114 W (without card)
Typical power consumption (30% of traffic load, tested according to ATIS standard) 88 W (without card)
Operating temperature -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% to 95% (non- condensing)
Service port surge protection Common mode: ±6 kV
Dimensions (H x W x D) 43.6 mm x 442 mm x 420 mm
Weight (with packaging) 9.4kg

Additional information

Weight 10.0000 kg
Dimensions 43.6000 × 44.2000 × 42.0000 cm

2 reviews for S5731S-H24T4XC-A

  1. 5 out of 5

    Alexandro

    La serie S5731S-A es una nueva serie. Necesito puertos eléctricos de 24 Gigabit y 4 puertos ópticos de 10 Gigabit. Simplemente satisface mis necesidades.

  2. 5 out of 5

    Andy

    The tag function helps me find the right one more easily
