S5735-L12P4S-A

S5735-L12P4S-A

Huawei S5735-L12P4S-A switch with 12 10/100/1000BASE-T ports, 4 GE SFP ports, PoE+, fixed AC power

Huawei

3-5 days

Hongkong Warehouse

Description

S5735-L12P4S-A overview

This switch is one of  the Huawei S5735-L switch with 12 x 10/100/1000Base-T ports, 4 x GE SFP ports, and PoE+. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.



S5735-L12P4S-A quick spec

12 10/100/1000Base-T ports

4 GE SFP ports

Forwarding performance: 24 Mpps

Switching capacity: 32 Mbps/ 336Mbps

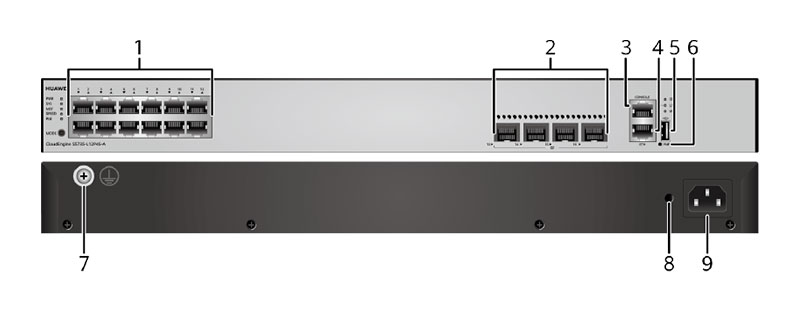

S5735-L12P4S-A appearance and structure

S5735-L12P4S-A appearance and structure

1 Twelve PoE+ 10/100/1000BASE-T ports

SFP-1000Base-T

6 One PNP button
2 Four 1000BASE-X ports

OMXD30000 OSX010000

7 Ground screw
3 One console port 8 Jack for AC power cable locking strap
4 One ETH management port  9 AC socket
5 One USB port
Item S5735-L12P4S-A
Memory (RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Meantime between failures (MTBF) 85.52 years
Meantime to repair (MTtr) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±7 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Weight (with packaging) 4.24 kg (9.35 lb)
Stack ports Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions)
RTC Not supported
RPS Not supported
PoE Supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
Maximum voltage range AC input: 90 VAC to 290 VAC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput, full speed of fans) Not providing the PoE function: 49 W
100% PoE loads: 441 W (PoE: 360 W)
Typical power consumption (30% of traffic load) 38 W
Operating temperature -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 57.7 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 98010922
