Description
SPUF provides one out-of-band management (MGMT) interface, one maintenance serial interface (Console), one Environmental detection serial interface (Monitor, supporting 3 digital input interfaces and 1 digital output interface) and one line card debugging serial interface (ODB).

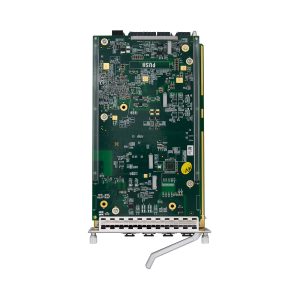

ZXA10 C620 SPUF switching and control card
Supports four 10GE/GE Ethernet optical interfaces
Supports hot swapping
Item | SPUF |
Forwarding capability | 40 Gbit/s |
MAC number | 128K |
Maximum frame size | 2052 bytes
9216 bytes (jumbo frame enabled) |
VLAN forwarding | VLAN+MAC |
Shaping in outband management | Supported |
L3 forwarding | IPv4/IPv6 ARP table supported
IPv4/IPv6 routing supported |
Clock synchronization | 1588V2, 1588ACR, SyncE |
Y.1731 | Supported |
Link aggregation | Supported at Inter-board and Intra-board |
MSTP ring network protection | Supported |
G.8032 ring network protection | Supported |
Operating temperature | -40°C to +65°C |
Power consumption | GE mode:
10GE mode:
4*GE+4*10GE mode:
|
Dimensions (mm) | 128.9 × 36.5 × 225.7 |
Weight(kg) | 0.77 |
