SSN1SL6401

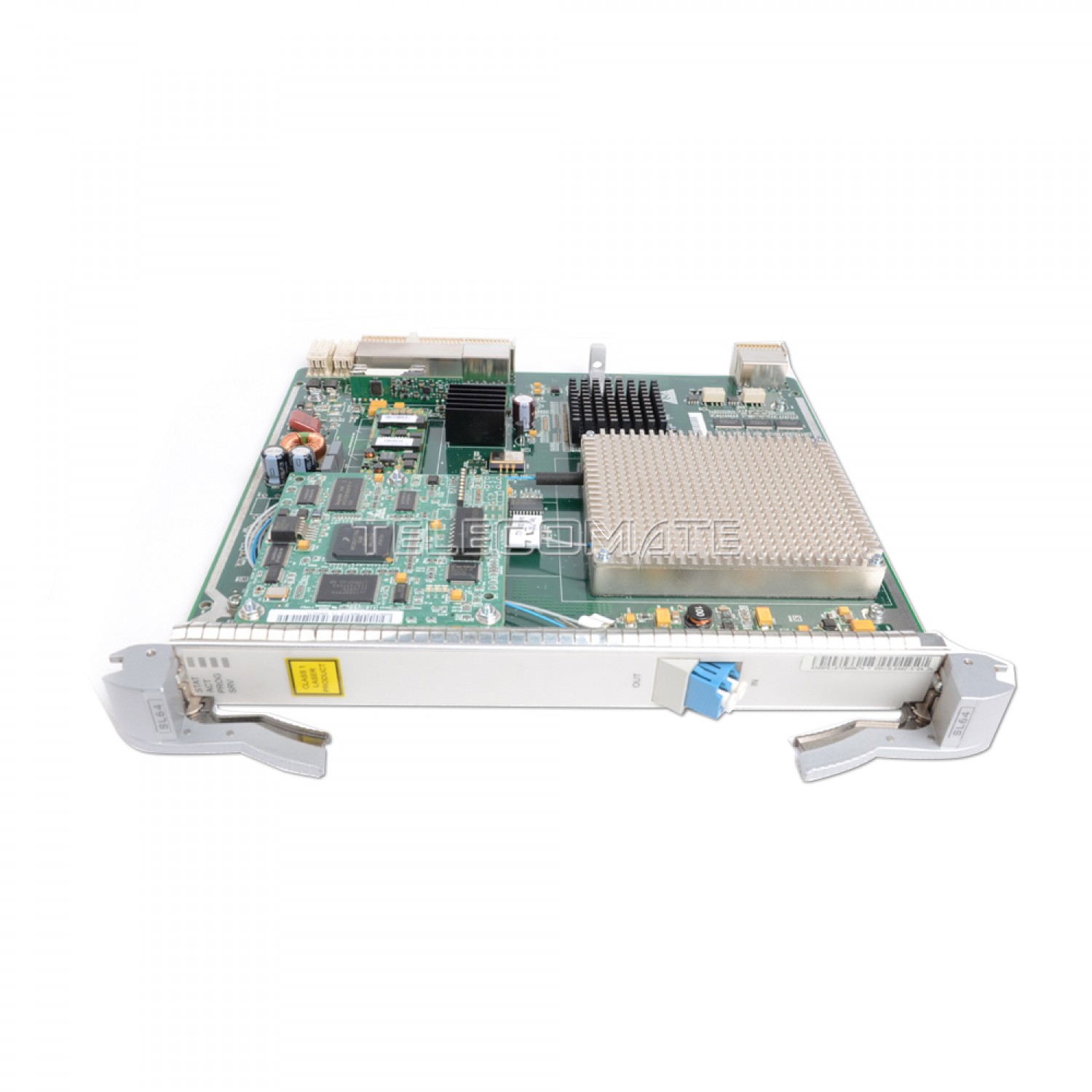

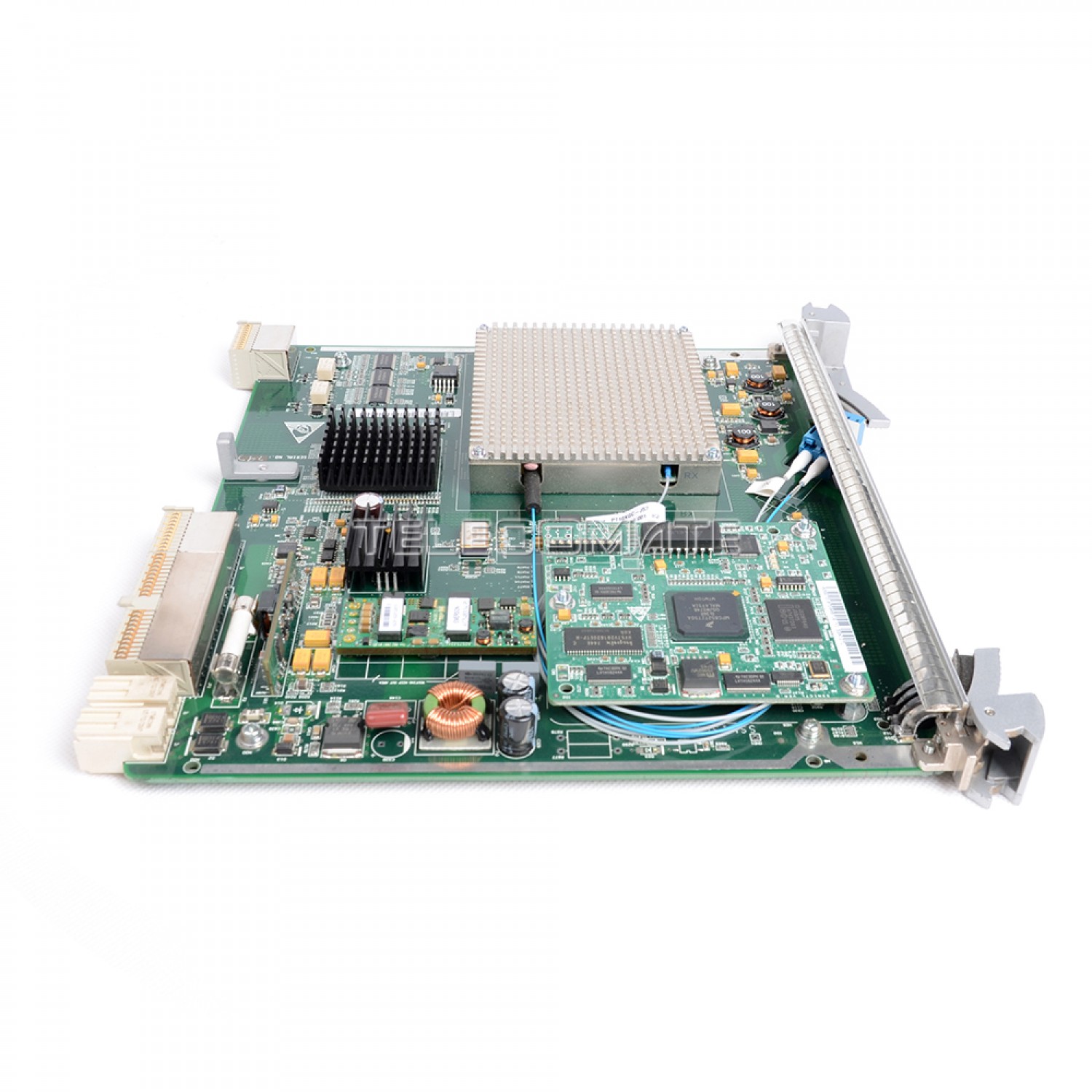

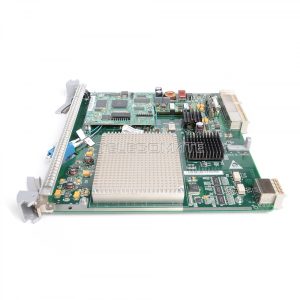

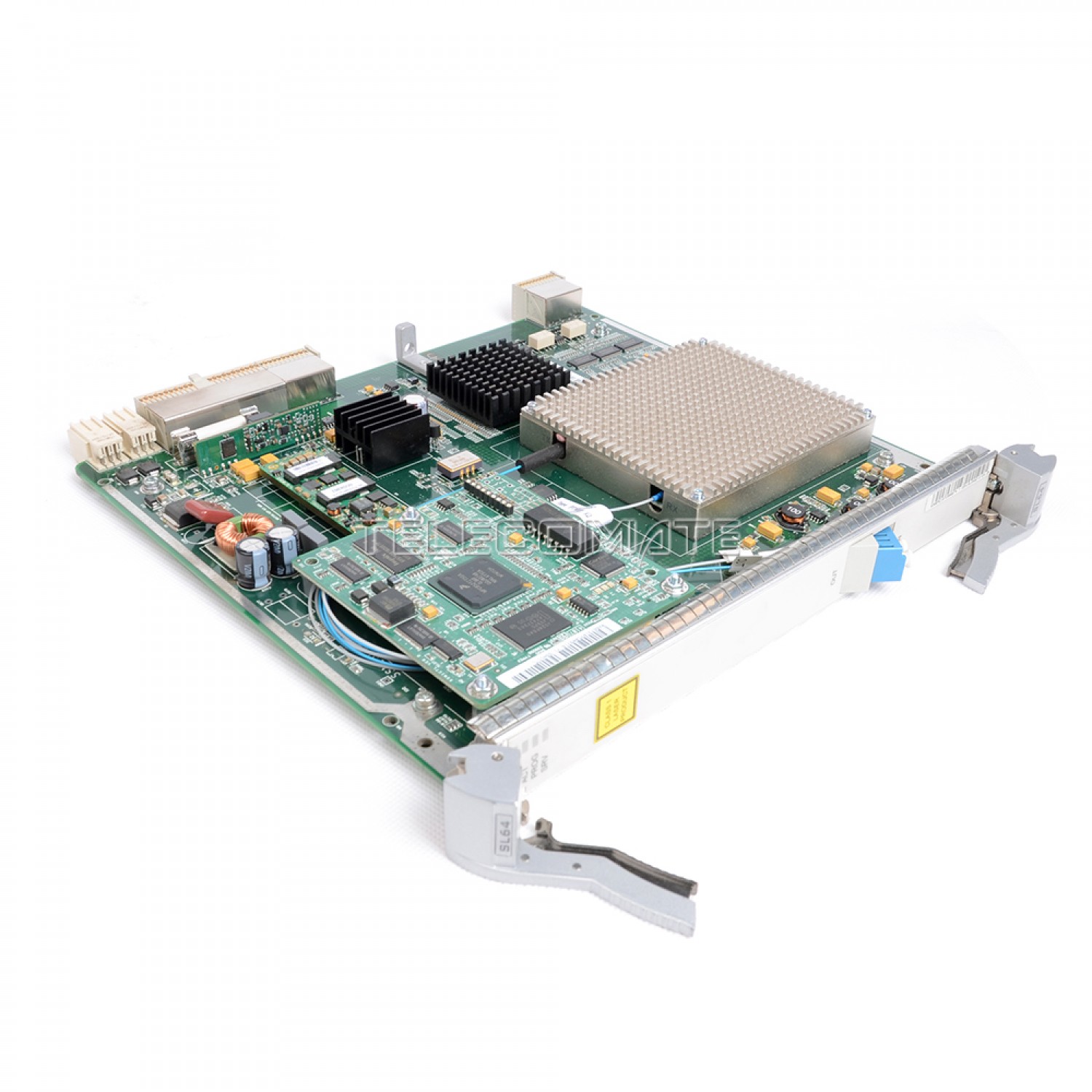

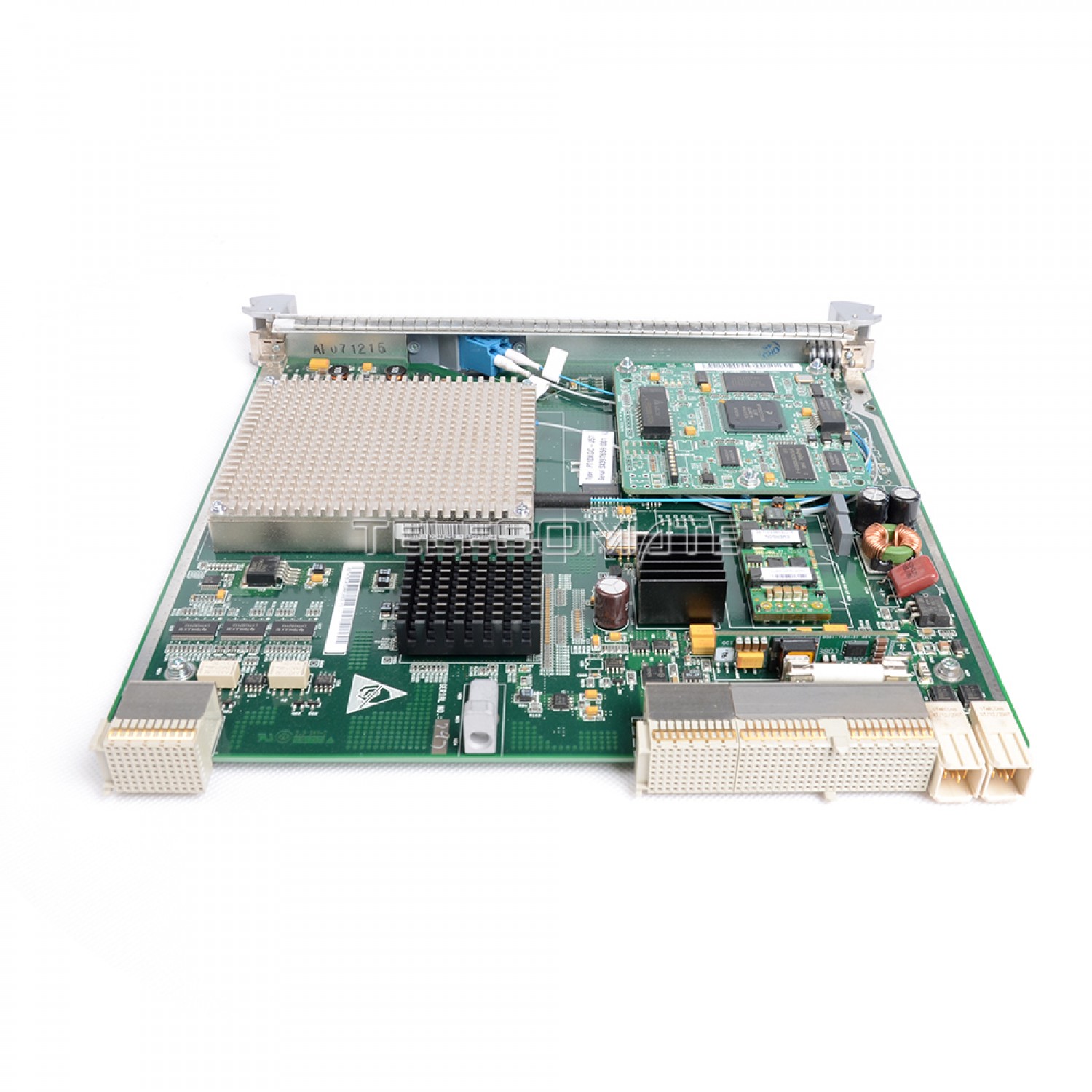

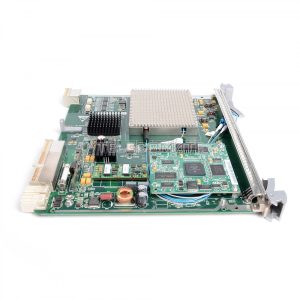

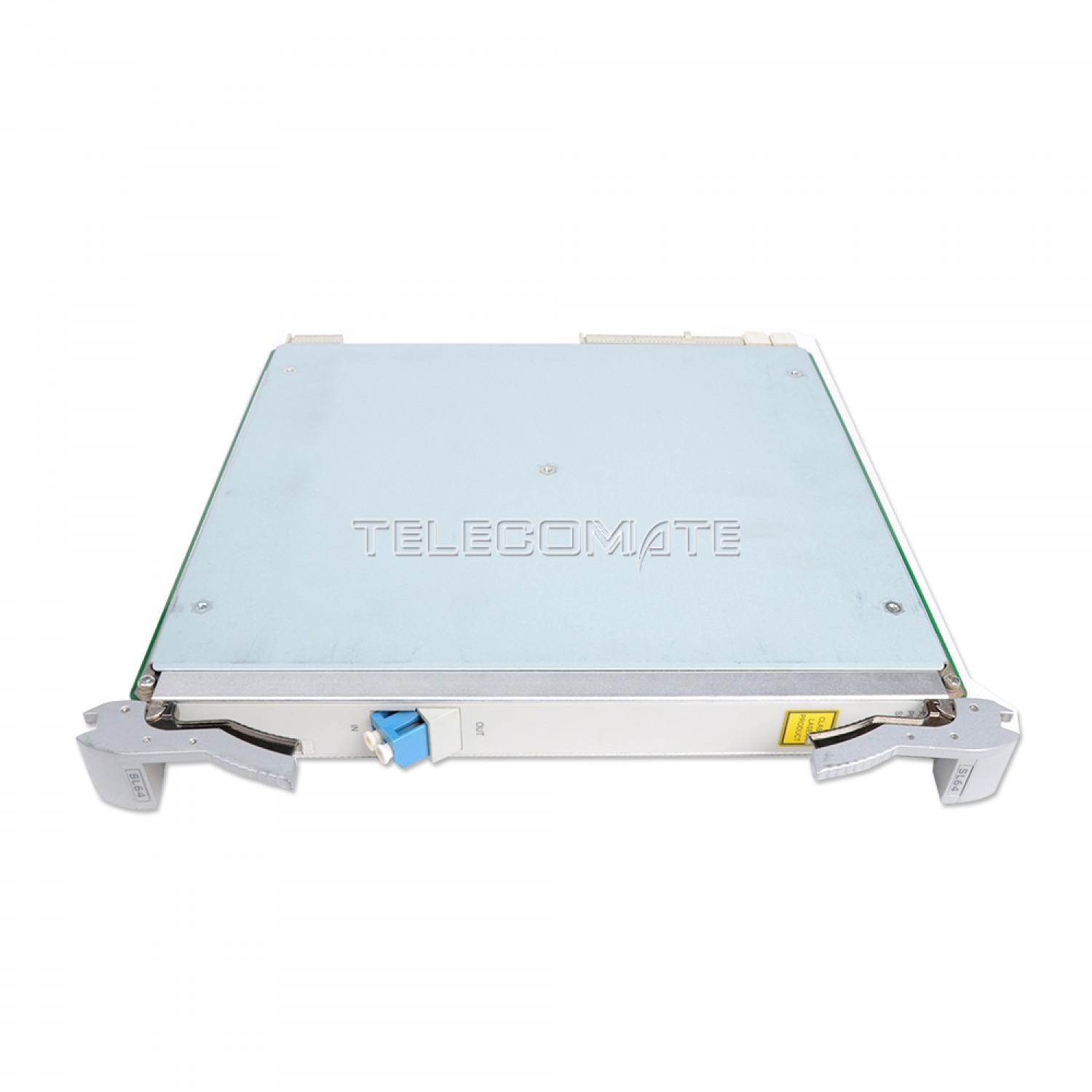

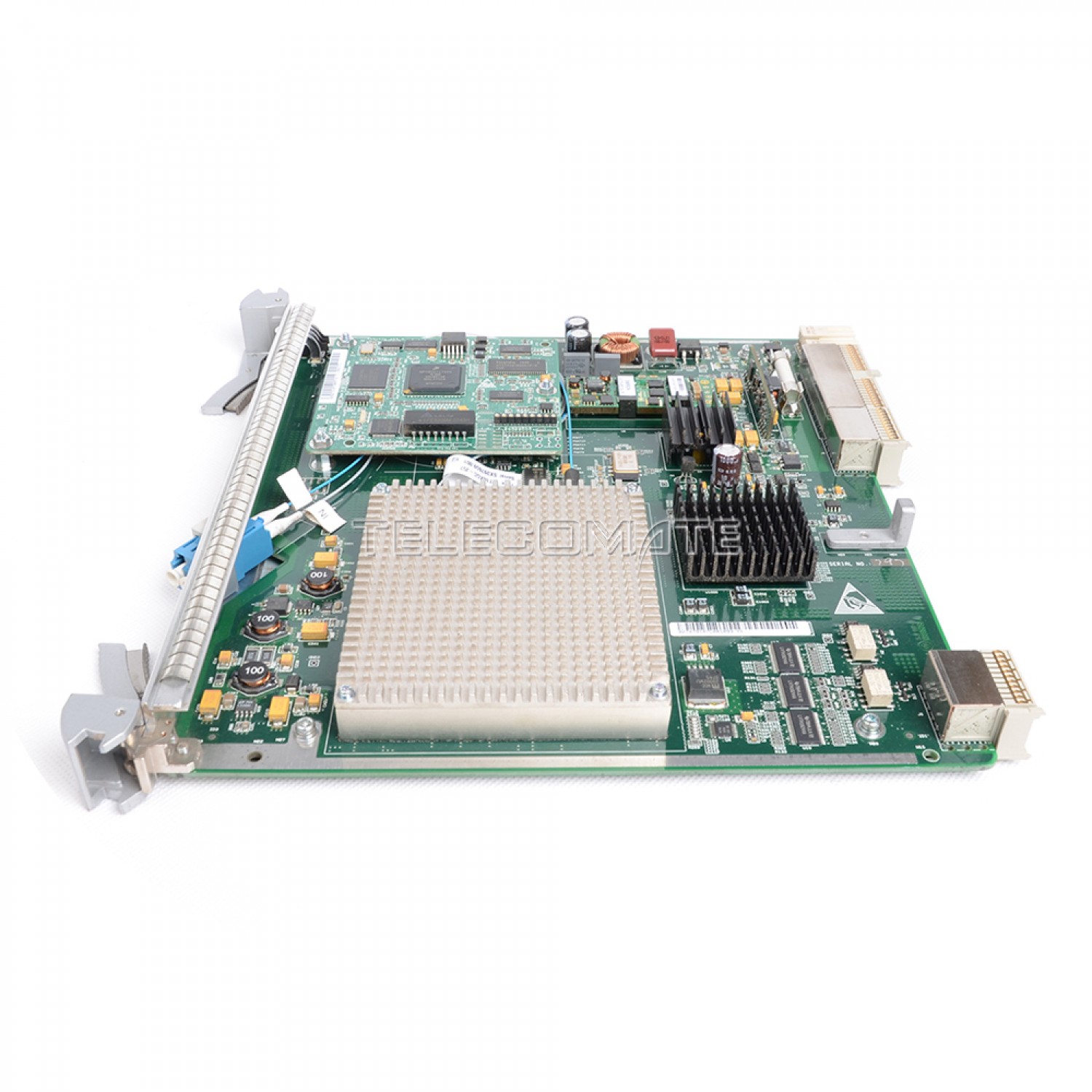

Huawei OSN3500 7500 series universal service board, 1 STM-64 Optical Interface Board with 1 I-64.2 40km SFP module

Huawei

3-5 days

Shenzhen Warehouse

SKU: 3957 Category:

Description

SSN1SL6401 overview

The SL64 is a line board. The SL64 can be used on the OptiX OSN equipment series to transmit and receive STM-64 optical signals. The SL64 converts the received optical signals into electrical signals and sends the electrical signals to the cross-connect side. In addition, the SL64 converts the electrical signals sent from the cross-connect side into optical signals and transmits the optical signals.

The SL64 must be installed in a valid slot in the subrack. Otherwise, the SL64 fails to work normally.

The N1SL64 can be installed in slots 4-8, 11-16, and 26-31 in the subrack.

The N4SL64 can be installed in slots 1-8, 11-18, and 26-31 in the subrack.

The slots valid for the T2SL64 vary with the cross-connect capacity of the subrack. The slots valid for the T2SL64 are as follows:

  • When the cross-connect capacity is 360 Gbit/s, the SL64 can be installed in slots 1-8, 11-18, and 26-31.

The SL64 is available in the following functional versions: N1, N4 and T2.

Item Description
Functional versions The SL64 is available in the following functional versions: N1, N4 and T2.
Differences
  • The T2SL64 does not support the board version replacement function, but supports the TCM function and AU-3 services, the TCM function and AU-3 services cannot be available at the same time.
  • The N1SL64/N4SL64 supports the board version replacement function, but does not support the TCM function or AU-3 services.
  • The N4SL64 supports pluggable XFP optical modules.
  • The N4SL64 detects and reports voltage performance.
  • SL64 boards of different versions support different loopback functions. For details, see Functions and Features.
Substitution When the TCM function and AU-3 services are not required, the N1SL64 can substitute for the T2SL64.

When the TCM function and AU-3 services are not required, the N4SL64 can substitute for the T2SL64.

The N4SL64 supports the board version replacement function to substitute for the N1SL64.

Relationship between the feature code of the SL64 and the type of optical interface
Board Feature Code Type of Optical Interface
SSN1SL6400 and SST2SL6400 00 Fixed-wavelength optical interface
SSN1SL6401 and SST2SL6401 01 I-64.2
SSN4SL6402, SSN1SL6402 and SST2SL6402 02 S-64.2b
SSN1SL6403 and SST2SL6403 03 Le-64.2
SSN1SL6404 and SST2SL6404 04 Ls-64.2
SSN1SL6405 and SST2SL6405 05 L-64.2b
SSN1SL6406 and SST2SL6406 06 V-64.2b
SSN4SL6401 01 I-64.1
SSN4SL6403 03 P1L1-2D2
SSN4SL6404 04 V-64.2b
SSN4SL6405 05 Le-64.2



Function and Feature
SSN1SL6401
Basic functions Transmits and receives 1xSTM-64 optical signals.
Specifications of the optical interface
  • The N1SL64/T2SL64 supports different types of standard optical interfaces, namely, the I-64.1, I-64.2, S-64.2b, L-64.2b (BA), Le-64.2, Ls-64.2, and V-64.2b (BA + PA + dispersion compensation unit (DCU)). The characteristics of the optical interfaces of the S-64.2b, L-64.2b, Ls-64.2, and V-64.2b types comply with ITU-T G.691 and ITU-T G.692. The characteristics of the optical interface of the Le-64.2 type comply with the standards defined by Huawei.
  • The N4SL64 supports different types of standard optical interfaces, namely, the I-64.1, S-64.2b, Le-64.2, P1L1-2D2, and V-64.2b (BA + PA + DCU). The characteristics of the optical interfaces of the I-64.1, S-64.2b, Le-64.2, and V-64.2b types comply with ITU-T G.691. The characteristics of the optical interface of the P1L1-2D2 type comply with ITU-T G.959.
  • The N1SL64 supports the DWDM colored optical interfaces, which use LC connectors. The DWDM optical interface supports the transmission distance of 40 km.
  • The N4SL64 supports the CWDM and DWDM colored optical interfaces. The optical interface uses the LC connector. The CWDM optical interface supports the transmission distance of 70 km, and the DWDM optical interface supports the transmission distance of 40 km and 80 km.
  • The T2SL64 supports the DWDM colored optical interfaces. The optical interface uses the LC connector. The DWDM optical interface supports the transmission distance of 40 km.
  • N4SL64 supports one-fiber bidirectional optical modules.
  • Supports the output of the standard wavelengths that comply with ITU-T G.692 and can be directly connected to the WDM equipment.
Specifications of the optical module
  • Supports the detection and query of the information about the optical module.
  • Provides the ALS function. The optical interface supports the setting of the on/off state of a laser.
  • The N4SL64 supports the usage and detection of the pluggable XFP optical module, which facilitates the maintenance and upgrading of the optical module.
Service processing
  • Supports the VC-12 services, VC-3 services, and VC-4 services.
  • The N1SL64 and N4SL64 support the VC-4-4c concatenation services, VC-4-8c concatenation services, Vc-4-16c concatenation services, and VC-4-64c concatenation services.
  • The T2SL64 supports the AU-3 services.
Overhead processing
  • Processes the section overheads of the STM-64 signals.
  • Supports the transparent transmission and termination of the path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports one channel of ECC communication.
Alarms and performance events
  • Reports various alarms and performance events.
Specifications of the REG
  • Supports the setting and query of the REG working mode.
  • With the REG function enabled, the board is in RS loopback mode and processes only the regeneration section overhead.
Protection schemes
Maintenance features
  • Supports inloops and outloops at optical interfaces.
  • The N1SL64/N4SL64 supports inloops and outloops on VC-4 paths.
  • Supports warm resets and cold resets. The warm reset does not affect services.
  • Supports the query of the manufacturing information of the board.
  • Supports the in-service loading of the FPGA.
  • The T2SL64 supports the TCM function.
  • Supports the upgrade of the board software without affecting services.
  • Supports the press-to-collect function in fault data collection.
  • The N4SL64 detects and reports voltage performance.
  • Supports the PRBS function. For details, see Availability.

Additional information

Weight 3.0000 kg
Dimensions 37.5000 × 34.0000 × 7.5000 cm
