Introduction: The Architectural Heart of Modern Fiber Networks
For network architects, systems integrators, and ISP decision-makers, the selection of a GPON OLT (Gigabit Passive Optical Network Optical Line Terminal) is a foundational decision that defines network performance, scalability, and operational expenditure for the next decade. The OLT is not merely a switch; it is a sophisticated aggregation and control point that bridges the core network to the last mile, managing data, voice, and video services across thousands of endpoints . As bandwidth demands surge, driven by 4K video, cloud services, and the proliferation of IoT devices, selecting an OLT that aligns with both current requirements and future growth is paramount. This guide provides a comprehensive, data-driven analysis for navigating the complex landscape of GPON OLT selection, covering core architecture, key performance metrics, and strategic deployment considerations.
Understanding GPON OLT Architecture and Core Hardware Components
The GPON OLT serves as the central intelligence of the PON, managing upstream and downstream traffic and maintaining service-level agreements (SLAs). Its internal architecture typically comprises several key hardware modules. The core component is the backplane, which can be a centralized switch fabric or a distributed architecture, dictating the device’s overall switching capacity and forwarding performance. Critical sub-systems include the PON interface modules, which house the SFP transceivers, and the uplink modules that connect to the aggregation or core network. High-end carrier-grade platforms feature a modular chassis design, while box-type OLTs offer a compact, fixed-configuration approach for space-constrained or distributed deployments .
The Data Plane and Control Plane
A critical architectural distinction lies in the separation of the data plane and control plane. The data plane handles the high-speed forwarding of packets through the ASIC (Application-Specific Integrated Circuit), while the control plane manages routing protocols, network management, and configuration. Modern platforms leverage powerful CPU complexes, such as Broadcom chipsets, to manage the control plane and ensure robust Layer 3 capabilities (OSPF, RIP, static routing) without impacting data forwarding performance .
| Key Parameter | Technical Specification / Industry Standard | Impact on Deployment |
|---|---|---|
| Switching Capacity (Backplane) | Typically 104 Gbps to 240+ Gbps (e.g., 240 Gbps for 16-port platforms) | Determines aggregate throughput and ability to handle high-density traffic without congestion. |
| Port Density | 1 to 16 PON ports in box OLTs; modular chassis support 64 to 256+ ports | Directly correlates with supported subscriber count; crucial for scaling from SMB to large ISP networks. |
| Uplink Interface Speed | 10G SFP+ (standard) to 40G QSFP+ (high-density models) | Prevents bottlenecks between access and core; 40G uplinks are essential for high-throughput IPTV/4K services. |
| Max Split Ratio | 1:64 (cost-effective/SOHO) to 1:128 (carrier-grade/professional) | Defines the number of ONTs per PON port; 1:128 is critical for high-density FTTH deployments. |
| Redundancy & Reliability | Dual Hot-Swappable Power Supplies (AC/DC), Type B/C Link Protection | Ensures carrier-grade uptime and meets strict SLA requirements for mission-critical networks. |
| Environmental & Compliance | Operating Temp: 0°C to 70°C; Certifications: CE, RoHS; ITU-T G.984/G.988 Standards | Ensures hardware reliability in diverse environments and compliance with global regulatory and environmental standards. |
Critical Performance Metrics and Technical Specifications
Evaluating an GPON OLT requires a deep dive into a matrix of technical specifications that directly impact network capacity and reliability. The following table outlines the essential parameters that should be rigorously assessed during the selection process.
Detailed Technical Specifications Matrix
| Key Parameter | Technical Specification / Industry Standard | Impact on Deployment |
|---|---|---|
| Switching Capacity (Backplane) | Typically 104 Gbps to 240+ Gbps (e.g., 240 Gbps for 16-port platforms) | Determines aggregate throughput and ability to handle high-density traffic without congestion. |
| Port Density | 1 to 16 PON ports in box OLTs; modular chassis support 64 to 256+ ports | Directly correlates with supported subscriber count; crucial for scaling from SMB to large ISP networks. |
| Uplink Interface Speed | 10G SFP+ (standard) to 40G QSFP+ (high-density models) | Prevents bottlenecks between access and core; 40G uplinks are essential for high-throughput IPTV/4K services. |
| Max Split Ratio | 1:64 (cost-effective/SOHO) to 1:128 (carrier-grade/professional) | Defines the number of ONTs per PON port; 1:128 is critical for high-density FTTH deployments. |
| Redundancy & Reliability | Dual Hot-Swappable Power Supplies (AC/DC), Type B/C Link Protection | Ensures carrier-grade uptime and meets strict SLA requirements for mission-critical networks. |
| Environmental & Compliance | Operating Temp: 0°C to 70°C; Certifications: CE, RoHS; ITU-T G.984/G.988 Standards | Ensures hardware reliability in diverse environments and compliance with global regulatory and environmental standards. |

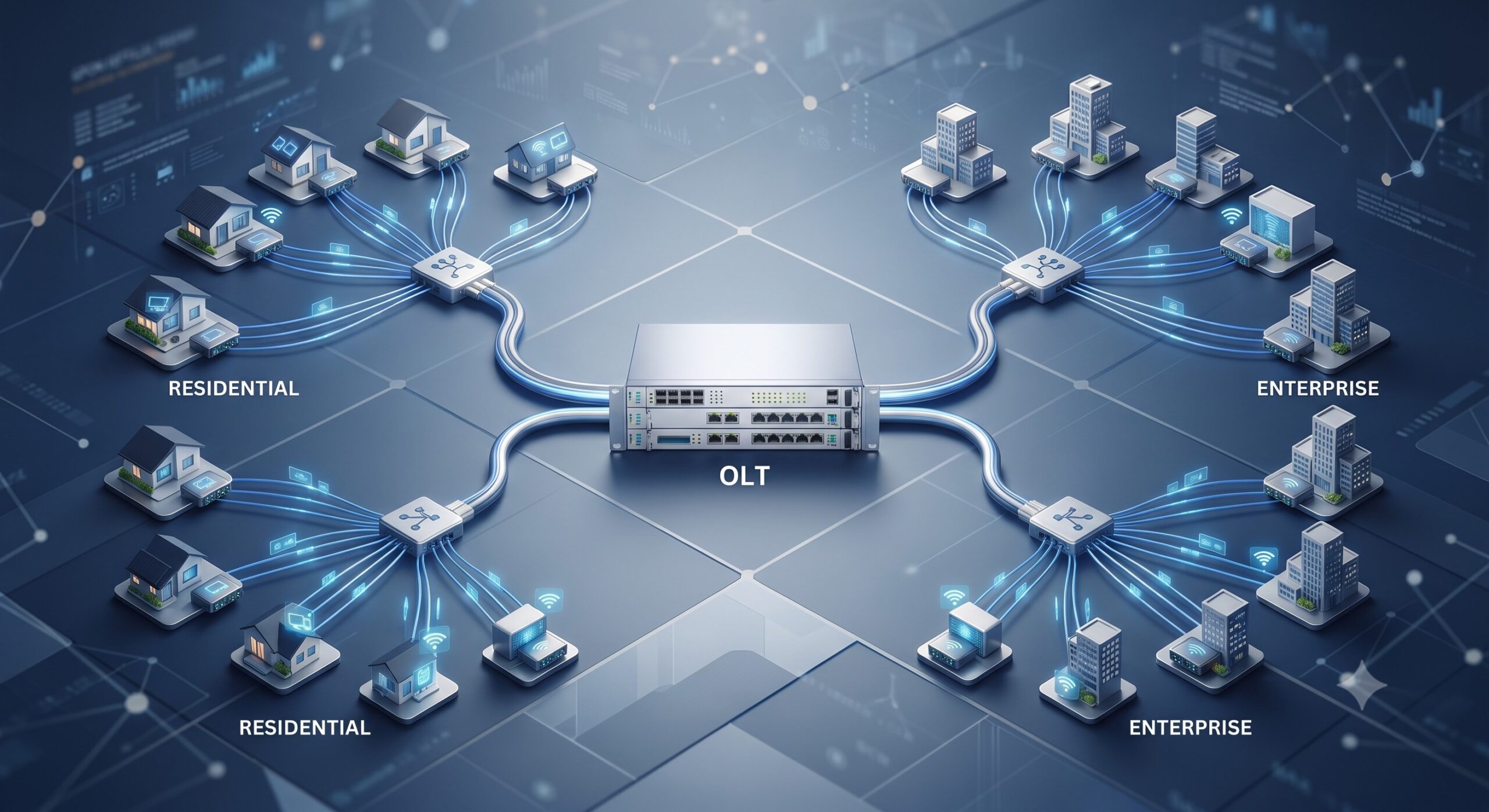

Deployment Strategies: Matching OLT Form Factor to Network Scale
Selecting the right GPON OLT form factor is a strategic decision that balances initial capital expenditure (CAPEX) against long-term operational expenditure (OPEX) and scalability. The market offers three primary tiers of deployment .
1. Edge/Compact Deployments
For pilot projects, small offices, boutique hotels, or remote edge locations, a mini or single-port OLT (e.g., OLT3000-1GP, VSOL V1600GS-R) is optimal. These units are often fanless, silent, and consume minimal power (e.g., 5W to 15W), allowing them to be deployed in non-rack environments . They typically support up to 64 ONTs, offering a low-risk entry point for network expansion.
2. Mid-Range Aggregation (SMB and Campus)
These 1U rack-mountable OLTs (e.g., 4 to 8 ports) represent the sweet spot for small to medium ISPs and enterprise campus networks. Platforms like the FS OLT3610-08GP4S or the Maipu PT4000 series support 512 to 1,024 ONTs and provide a robust balance of performance, cost, and manageability. They often feature Broadcom chipsets for high stability and support unified management via EMS platforms such as AmpCon .
3. High-Density Core Platforms
Large ISPs and high-traffic backbones require 16-port or modular chassis OLTs. These platforms (e.g., FS OLT3611-16GP2Q, TP-Link P1201-16) are designed for maximum density and reliability. They feature high-speed 40G uplinks, dual hot-swappable power supplies, and advanced protection mechanisms to ensure zero downtime for thousands of users .
Protocol Compliance and Interoperability
Adherence to industry standards is non-negotiable for ensuring a stable and interoperable network. A compliant GPON OLT must strictly follow ITU-T G.984 and G.988 standards, which define the physical layer, transmission convergence layer, and OMCI (ONT Management and Control Interface) . OMCI is the master control protocol that allows the OLT to manage, configure, and upgrade ONTs from multiple vendors. Selecting an OLT with robust OMCI support prevents vendor lock-in, allowing network operators to source ONTs from a competitive ecosystem. Additionally, features like AES-128 encryption on the PON interface ensure data security across the optical distribution network .
Conclusion: A Strategic Investment in Network Capacity and Reliability
Choosing the right GPON OLT transcends a simple hardware purchase; it is a strategic investment in the capacity, reliability, and profitability of a network. The ideal solution is determined by a precise analysis of subscriber density, bandwidth requirements, and the necessary level of carrier-grade reliability. By carefully evaluating the architecture, performance metrics, and deployment model—as outlined in this guide—network professionals can ensure their fiber infrastructure is optimized for current service delivery and resilient enough to adapt to the evolving demands of next-generation broadband. Whether the goal is minimizing CAPEX for a pilot project or maximizing uptime for a national ISP, the data-driven framework provided here serves as a definitive blueprint for selecting a platform that delivers quantifiable operational gains.
