Introduction: The High-Density Fiber Pivot
The exponential growth in global IP traffic—projected by Cisco’s Visual Networking Index to reach nearly 5 zettabytes annually—mandates a parallel evolution in physical layer infrastructure. At the heart of this data center and carrier network densification lies the MPO/MTP fiber connector. This guide provides a comprehensive technical deep dive into the architecture, performance specifications, and deployment strategies for these multi-fiber connectors, which are integral to achieving 400G and 800G Ethernet transmission speeds.
Core Architecture & Hardware Topology of MPO/MTP Connectors
Unlike traditional duplex connectors, the MPO (Multi-fiber Push-On) / MTP (an enhanced branded version of MPO) connector is engineered for high-density parallel optics. The fundamental architecture is a precision-molded ferrule—typically 6.4mm by 2.5mm—that houses a linear array of up to 24 fibers, although 12-fiber and 16-fiber arrays are most common for current high-speed transceivers (e.g., QSFP-DD, OSFP).
Mechanical & Optical Design
The connector’s body features a spring-loaded mechanical push-pull coupling mechanism that ensures robust physical contact and consistent insertion loss (IL) of 60dB for APC (Angled Physical Contact) polish grades, per IEC 61754-7 standards. The defining feature of the MTP variant—manufactured by US Conec—is its floating, thermoplastic ferrule that allows for better mechanical tolerance and reduced IL in high-vibration environments. The pin-clip alignment system, utilizing stainless steel guide pins, ensures a physical contact repeatability of under 0.1dB across 500 mating cycles.
Logic Layer, Fiber Mapping & Polarity Methods
Beyond the physical interface, the intelligence of an MPO/MTP deployment lies in its fiber mapping and polarity. For duplex applications over parallel fiber, three standard polarity methods (A, B, C) are defined by the TIA-568.3-D standard to manage the transmit-receive pairs.
- Method A (Straight-Through): Uses a key-up to key-down (Type A) adapter and a straight-through MPO trunk, relying on the patch cord to flip polarity. This is standard for single-fiber duplex applications.
- Method B (Reversed Pair): Uses a key-up to key-up adapter and a reverse pair array, flipping the entire fiber position 1 to position 12. Preferred for many parallel optics (SR4) applications to simplify end-to-end channel mapping.
- Method C (Pairwise Reversal): Flips adjacent pairs (1-2, 3-4, etc.), optimizing for specific legacy systems.
With the advent of 400G-SR8 and 800G-SR8, maintaining correct polarity and managing skew across the 16 or 24 fibers is critical. Intra-pair skew is typically less than 0.5ps/m, with channel skew below 100ps for efficient parallel processing.
| Key Parameter | Technical Specification |
|---|---|
| Connector Type | MPO / MTP (IEC 61754-7, TIA-604-5) |
| Ferrule Material | Polymer Thermoplastic (Zirconia-coated guides) |
| Max Fiber Count | Up to 24 fibers (standardized arrays: 8, 12, 16, 24) |
| Insertion Loss (IL) | ≤ 0.35 dB (Standard), ≤ 0.15 dB (Ultra-Low) |
| Return Loss (RL) | ≥ 60 dB (APC), ≥ 55 dB (UPC) |
| Durability (Mating Cycles) | > 500 cycles (IL change |
| Operating Temperature | -40°C to +75°C |
| Applicable Standards | RoHS, IEEE 802.3 (400G/800G), ITU-T G.652 |
Benchmark: MPO/MTP vs. Legacy Duplex Connectivity
When evaluating a migration strategy from discrete LC/SC connectors, the operational gains are quantifiable. A legacy 40G Ethernet link using four LC duplex pairs requires eight physical terminations and consumes 4-8 RU (Rack Units) of patch panel space. In contrast, a single 12-fiber MPO/MTP connector achieves the same 40G-SR4 or 100G-SR4 connectivity with a single termination, reducing patch field complexity by over 70%. For 400G-SR16, which requires 16 lanes of 25G or 50G PAM4, the deployment of a 24-fiber MPO connector is not just an optimization—it is a prerequisite.
The MTBF (Mean Time Between Failures) for a high-quality MTP connector assembly, rated under Telcordia GR-326-CORE, exceeds 1,000,000 hours, significantly outperforming the mechanical durability of standard LC connectors, which often rate lower due to smaller ferrule surface area wear. This translates to a lower TCO (Total Cost of Ownership) in high-density spine-leaf architectures.

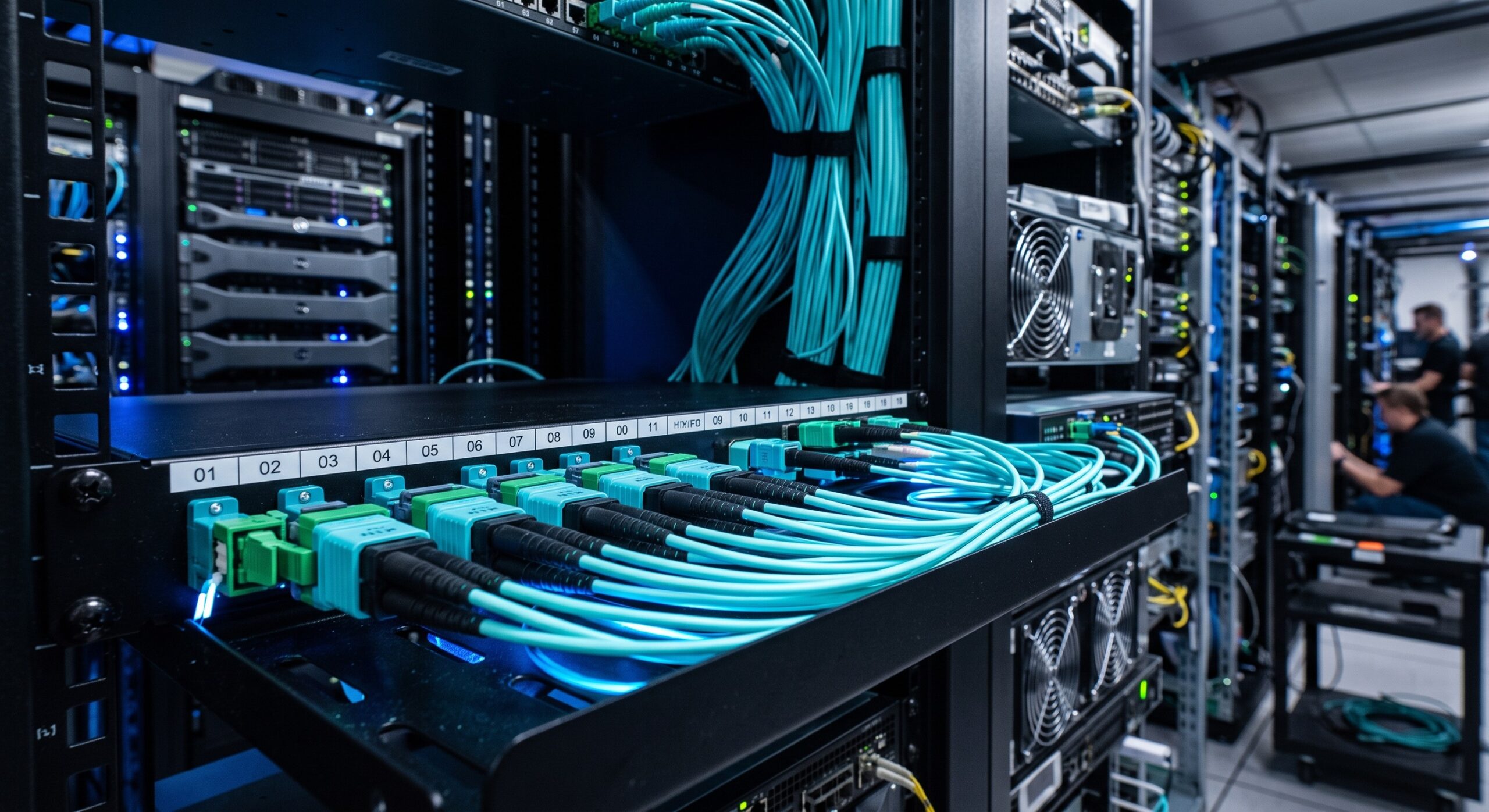

ISP Case Study: MPO/MTP in High-Density Datacenter Scaling
To illustrate real-world deployment, consider a Tier-2 ISP upgrading a legacy 10G ToR (Top of Rack) architecture to a 100G spine. By deploying 12-fiber MTP-based breakout cables (MTP to 4x LC duplex), the ISP reduced cable tray congestion by 58% and improved airflow, resulting in a 2.5°C reduction in average chassis inlet temperatures. Furthermore, the use of a pre-terminated MPO cassette system reduced deployment time per rack from 6 man-hours to under 45 minutes, eliminating 90% of on-site field terminations and their associated high failure rates.
Conclusion: The Strategic Imperative of MPO/MTP
The MPO/MTP fiber connector ecosystem is the foundational cornerstone for modern high-speed optical networking. Its application spans beyond data centers into FTTA (Fiber to the Antenna) for 5G transport networks and high-performance computing (HPC) clusters. As the industry pivots toward 800G and 1.6T optics, the inherent scalability of the MTP multifiber interface ensures it will remain the conduit of choice for network architects prioritizing density, reliability, and cost-efficient lifecycle management. For organizations planning a network overhaul, the adoption of MPO/MTP is a strategic decision that future-proofs the physical layer for the next decade of bandwidth demands.
