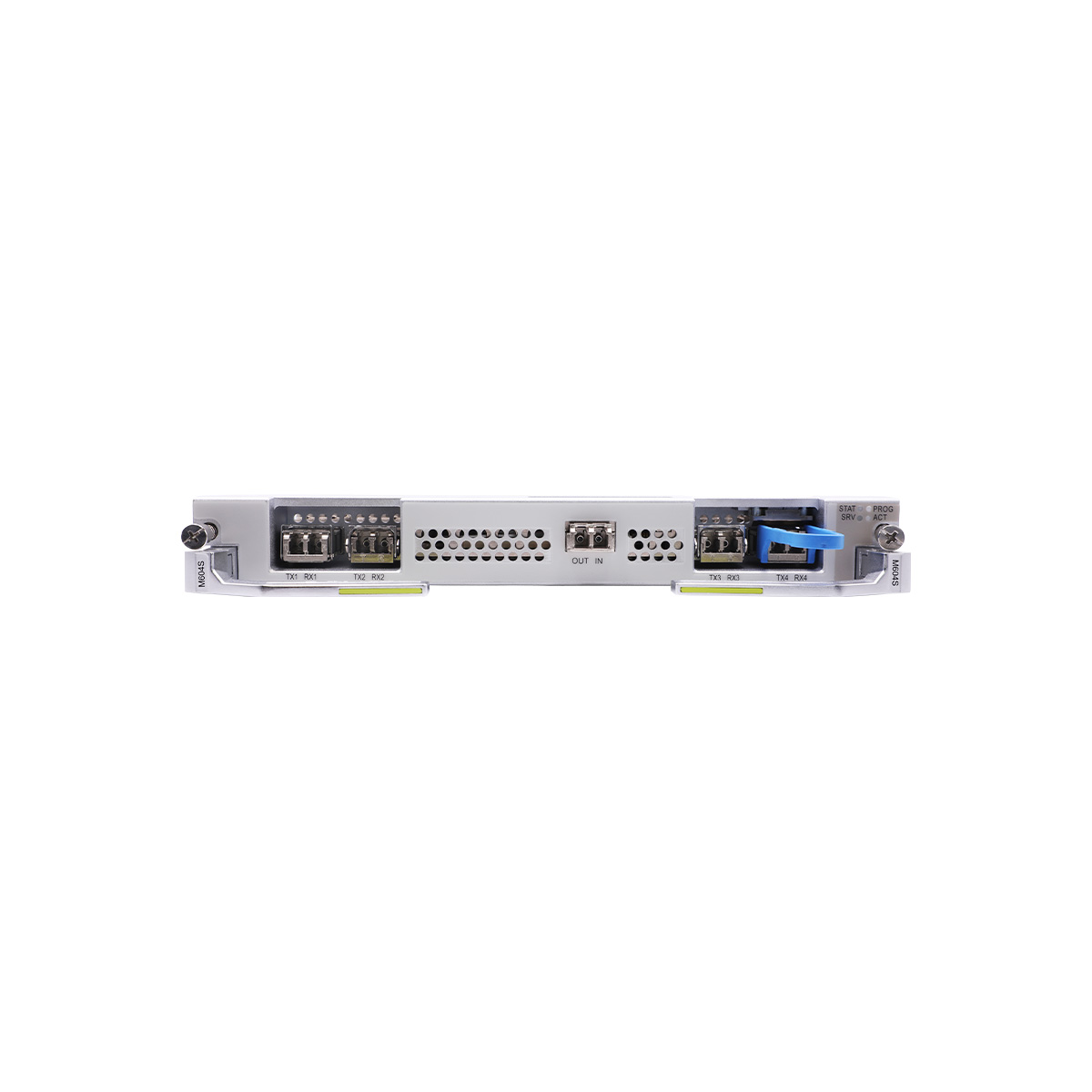

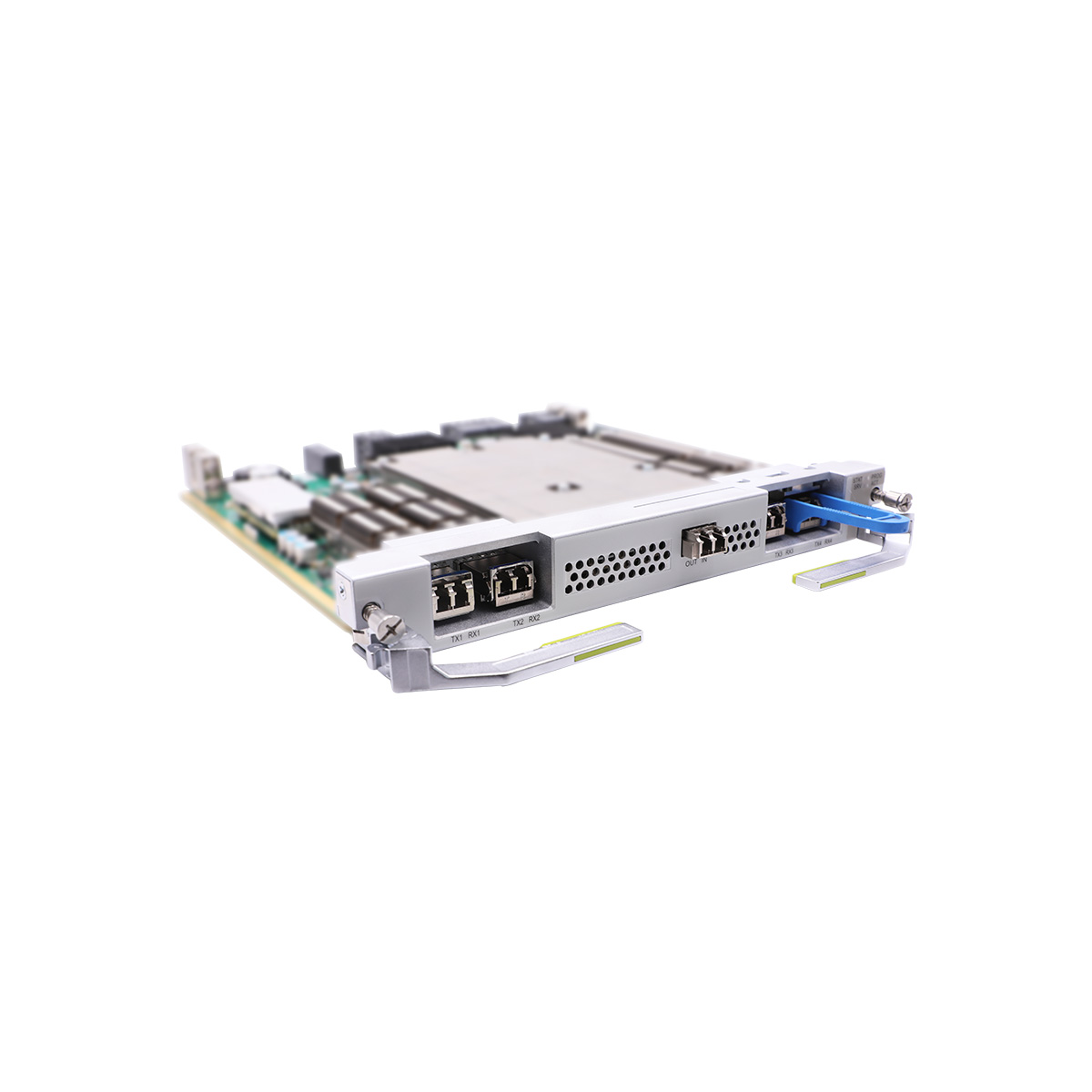

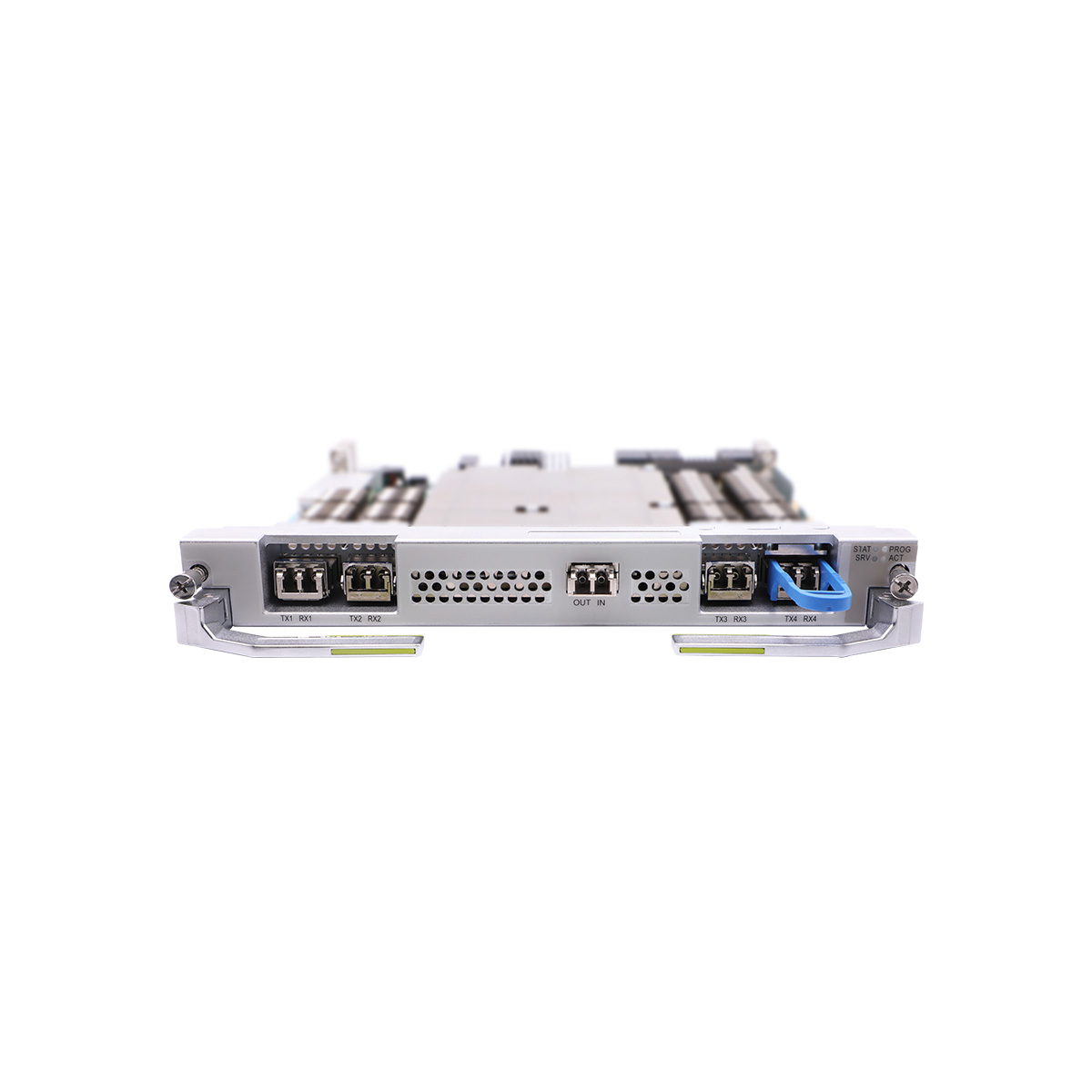

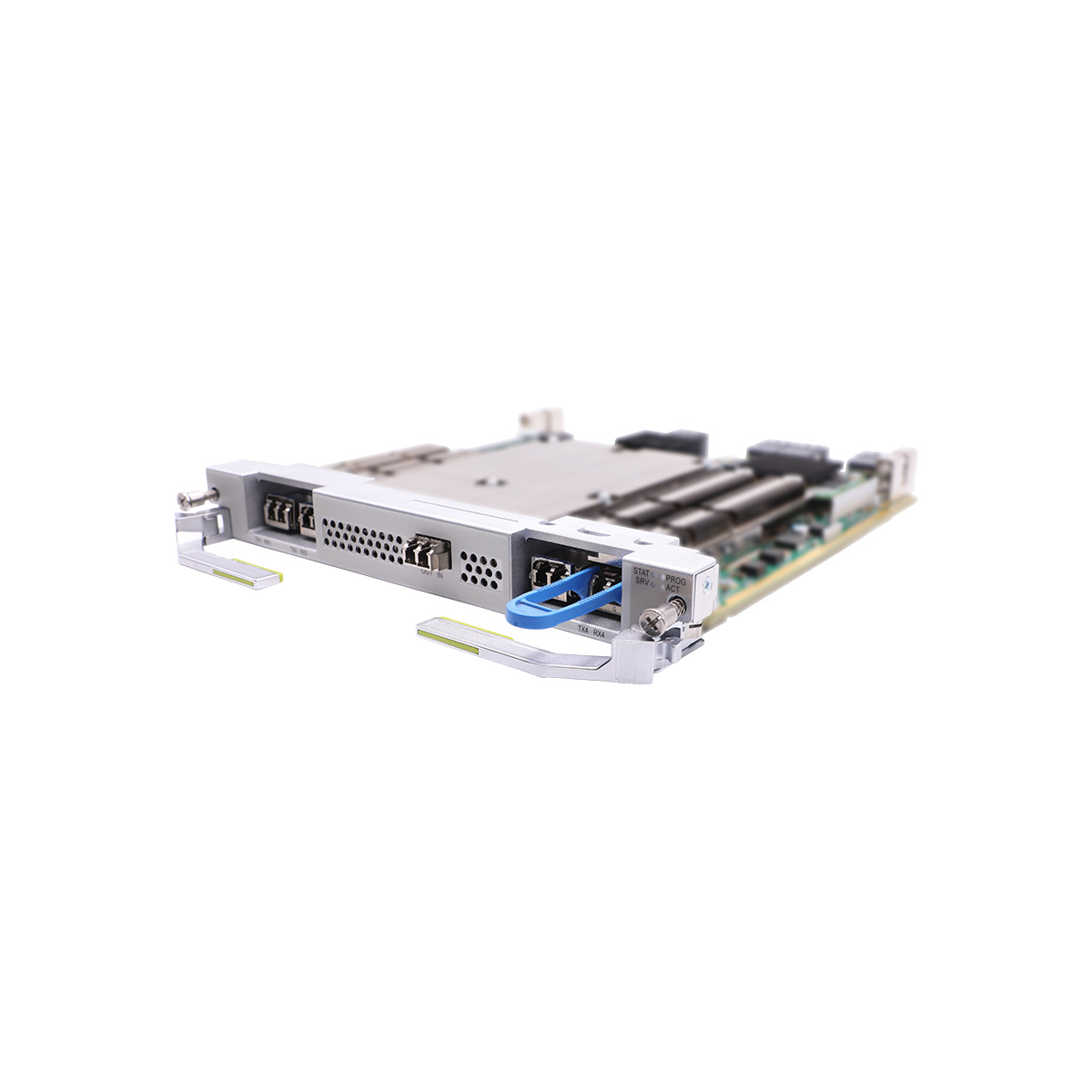

Huawei OptiX OSN 9800 TNG1M604S 1 x 400Gbit/s or 4 x 100Gbit/s Service Multiplexing Into 1 x 200G/400G Programmable Wavelength Conversion Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNG1M604S Overview

TNG1M604S 1 x 400Gbit/s or 4 x 100Gbit/s Service Multiplexing Into 1 x 200G/400G Programmable Wavelength Conversion Board, applied to Huawei OptiX OSN 9800 M05/M12/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG1M604S board has two variants: TNG1M604ST32, TNG1M604ST33.



Valid slots for the TNG1M604S board in a M05/M12/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 1 IU1, IU2, IU3, IU4, IU5 IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12 1 IU1 to IU13 IU1 to IU13
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24
Item TNG1M604S
Functions and Features of the TNG1M604S Board (OTU)
Basic function The board can convert client-side services into OTU signals,the client-side service supports hybrid transmission of different services, for details about the service types, number of channels, and mapping paths supported by different ports, see Applications.
Client-side service type
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s
  • 400GE: Ethernet service at a rate of 425 Gbit/s
Service mapping mode
  • 100GE service: Supports Bit Transparent Mapping ODU4 and MACB2B Mapping.
  • 400GE service: Supports Bit Transparent Mapping(BMP) mapping.
WDM specification Supports the DWDM specifications.
Tunable wavelength TNG1M604S supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • Client side: Supports RSFEC coding when the client-side service type are ethernet services.
  • WDM side: Supports SDFEC2 coding.
Line modulation format 400G 16QAM, 200G QPSK, 200G QPSK wDCM
Typical channel spacing
  • 200G QPSK wDCM: 100GHz+n*6.25GHz(n=0,1,2...)
  • 200G QPSK/400G 16QAM: 75GHz+n*6.25GHz(n=0,1,2...)
OTN overhead
  • ODUCn (n = 2, 4) layer: supports PM overhead processing.
  • ODU4 layer: Supports PM overhead processing when 100GE services are received on the client side.
  • ODUflex layer: supports PM overhead processing.
  • ODUCn (n = 2, 4) layer: supports SM overhead processing on the WDM side.
LPT Not supported
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
Client 1+1 protection Supported
NOTE:
  • Client 1+1 protection is supported only when 100GE ports are used.
  • When 100GE services are received on the client side, client 1+1 protection supports bidirectional switching rather than unidirectional switching.
ODUk SNCP Not supported
Tributary SNCP Not supported
Optical-layer ASON Supported
L1 service encryption Not supported
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Supports the ALS function on the client side when client services are non-OTN services.
LLDP Supports the LLDP function when the client-side service is ethernet.
Physical clock Not supported
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports ESC communication.
Test frame Supported when the client-side service type is 100GE/400GE.
NOTE:
For Ethernet test frames, only one interface can be used to send them at a time.
PRBS
  • Supports the PRBS function on the WDM side.
  • Supports the PRBS function on the client-side.
    • PRBS signals can be sent from the client-side optical port to the system side.
Latency measurement Supports PM latency measurement.
  • Supports PM latency measurement for upstream higher-order ODU channels.
  • Supports PM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
NOTE:
In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
Port loopback
  • Supports inloops and outloops on the WDM side.
  • Supports inloops and outloops on the client side.
NOTE:
If the client-side service rate of the same service is the same as that of the WDM-side service, the WDM-side optical interface loopback is not supported.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the remote monitoring (RMON) of Ethernet services.
  • Supports the monitoring of the bias current of the laser.
  • Supports the monitoring of the temperature of the laser.
  • Supports the monitoring of the optical power.
  • Supports the monitoring of CD and PMD performance.
Functions and Features of the TNG1M604S Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTUC2
  • OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength TNG1M604S supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
Line modulation format 400G 16QAM, 200G QPSK, 200G QPSK wDCM
Typical channel spacing
  • 200G QPSK wDCM: 100GHz+n*6.25GHz(n=0,1,2...)
  • 200G QPSK/400G 16QAM: 75GHz+n*6.25GHz(n=0,1,2...)
OTN overhead
  • Supports OTUCn (n = 2, 4) interfaces on the WDM side.
  • ODUCn (n = 2, 4) layer: supports PM overhead processing.
  • OTUCn (n = 2, 4) layer: supports SM overhead processing.
Optical-layer ASON Supported
ALS Supported
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports CD and PMD performance monitoring.
