Huawei OptiX OSN 9800 TNG3N402  2*100G Line Service Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

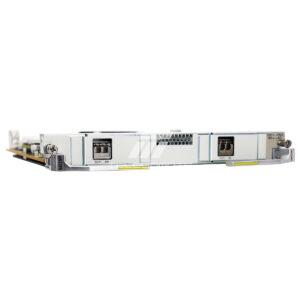

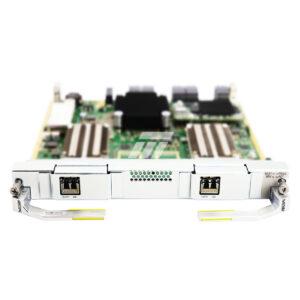

TNG3N402 overview

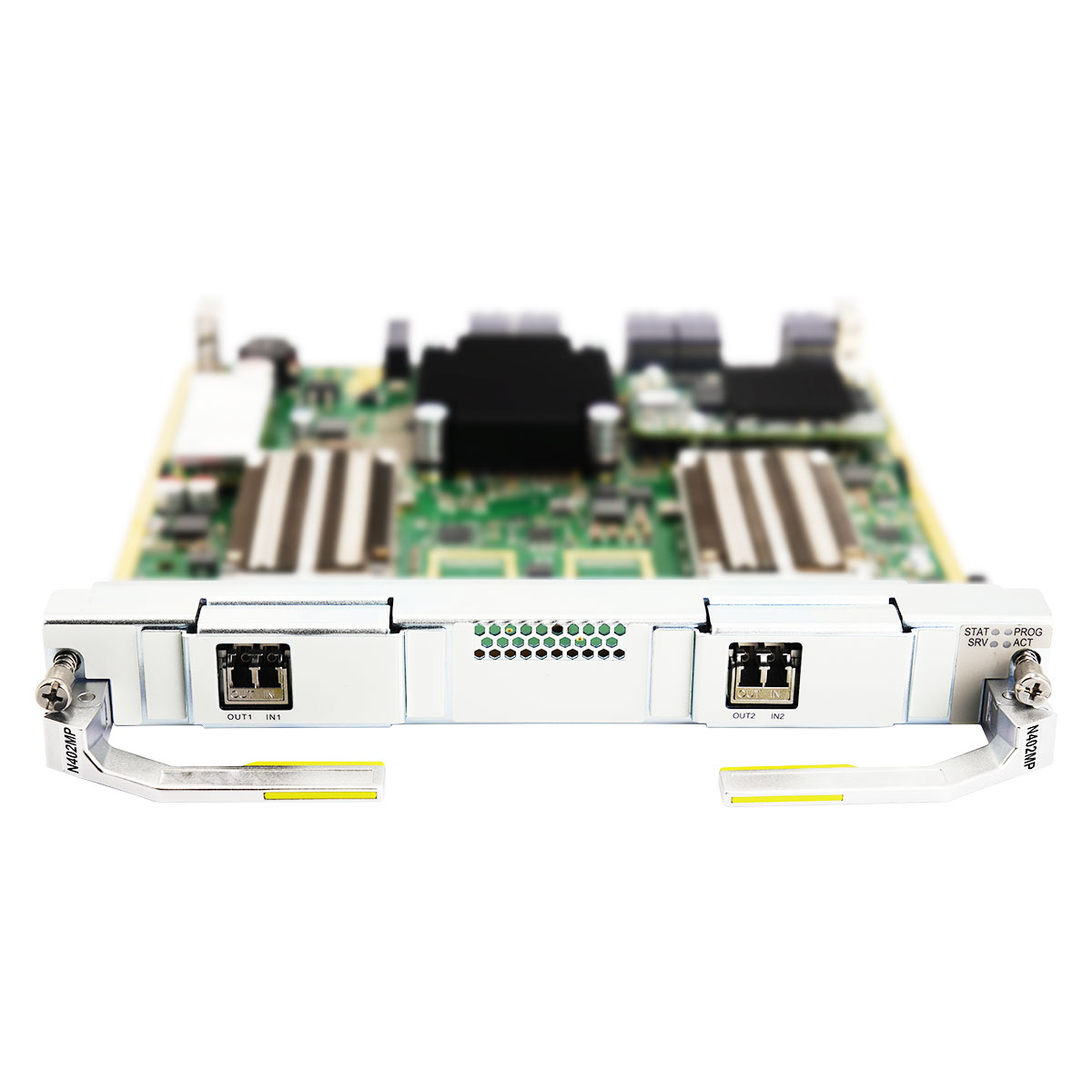

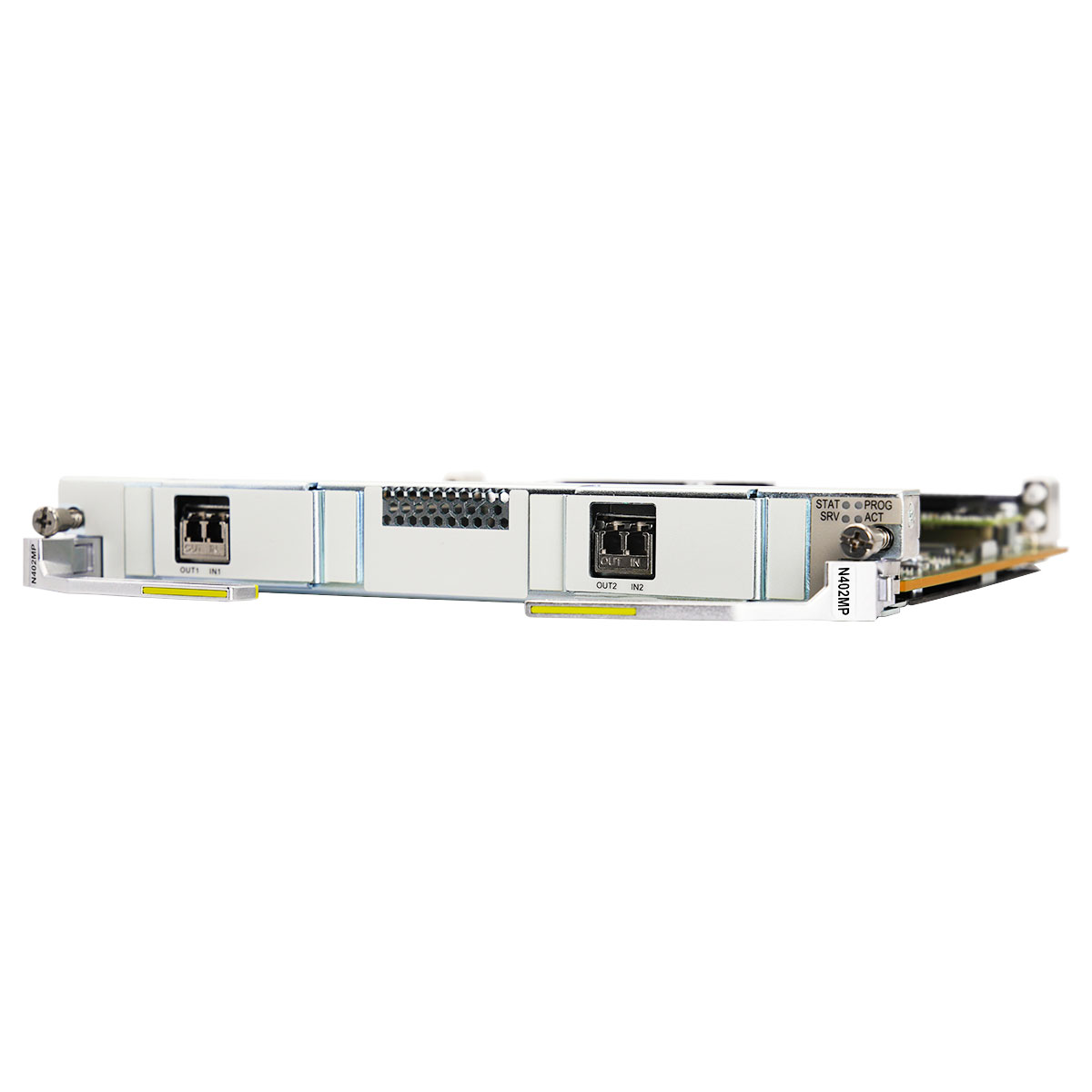

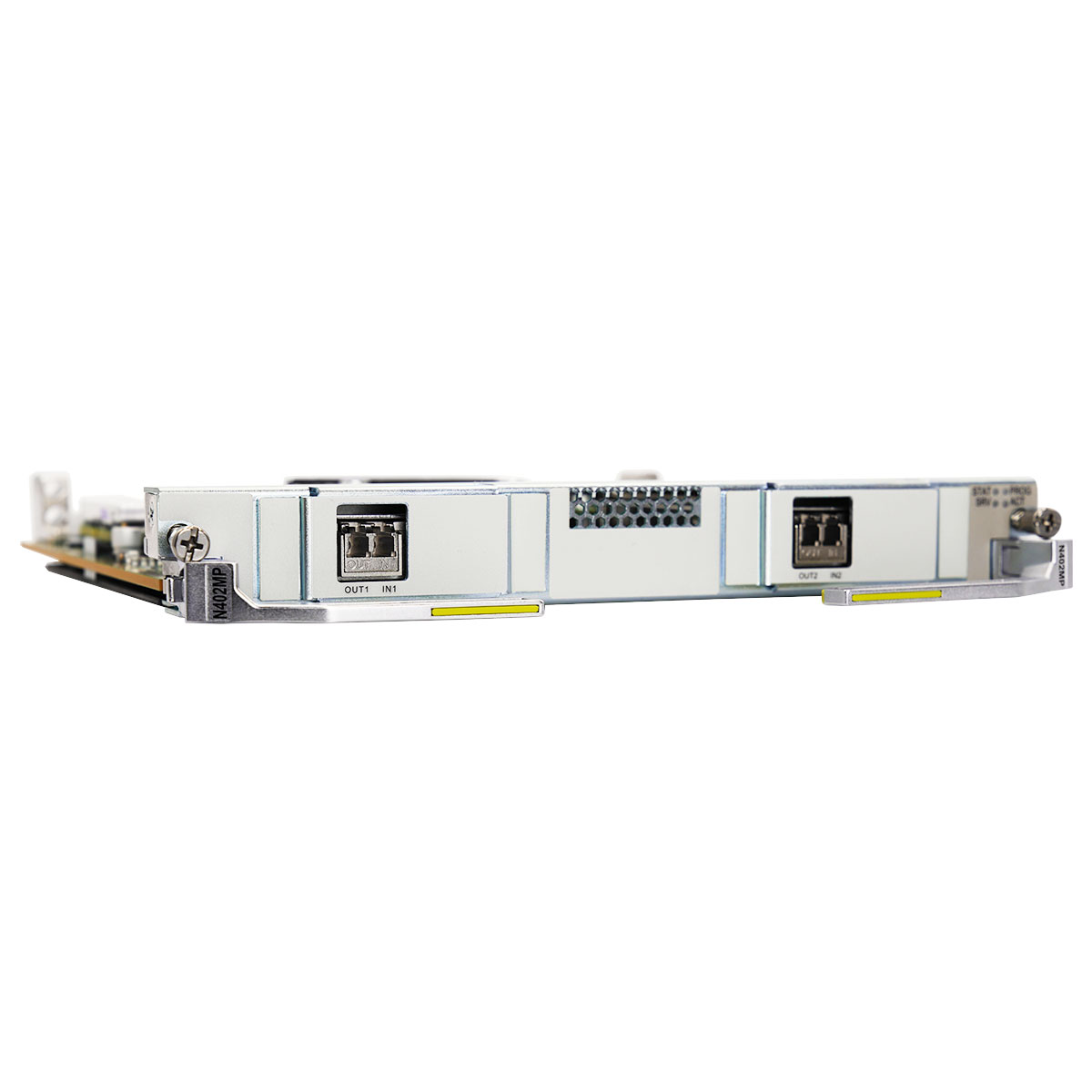

TNG3N402 2*100G Line Service Processing Board applied to Huawei OptiX OSN 9800 M05/M12/M24.

The new generation of “M” series subracks have the characteristics of ultra-large capacity, optoelectronic integration, and compact size. They are suitable for comprehensive carrying application scenarios such as broadband video, mobile backhaul, government and enterprise dedicated lines, and DCI interconnection, providing end-to-end optimal transmission solutions from backbone, aggregation to access. The M24 subrack supports two cross-connection modes, 1:1 and 1:3, which differ in the number of cross-connection board configurations, the number of available service board slots, cross-connection capacity, and application scenarios.

The TNG3N402 board has only one variant: TNG3N402C01.

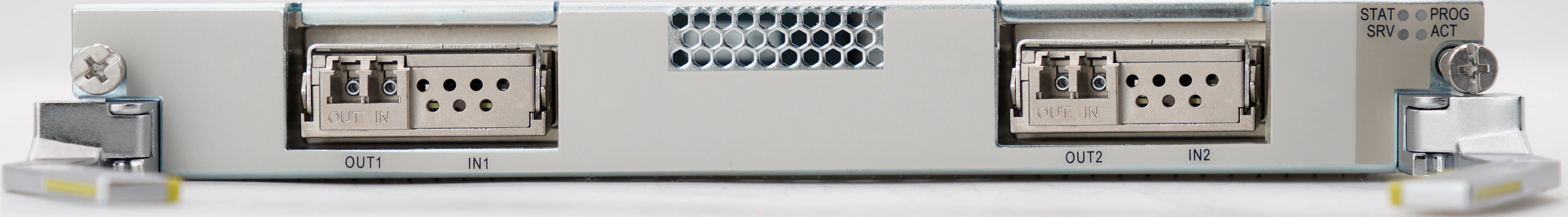

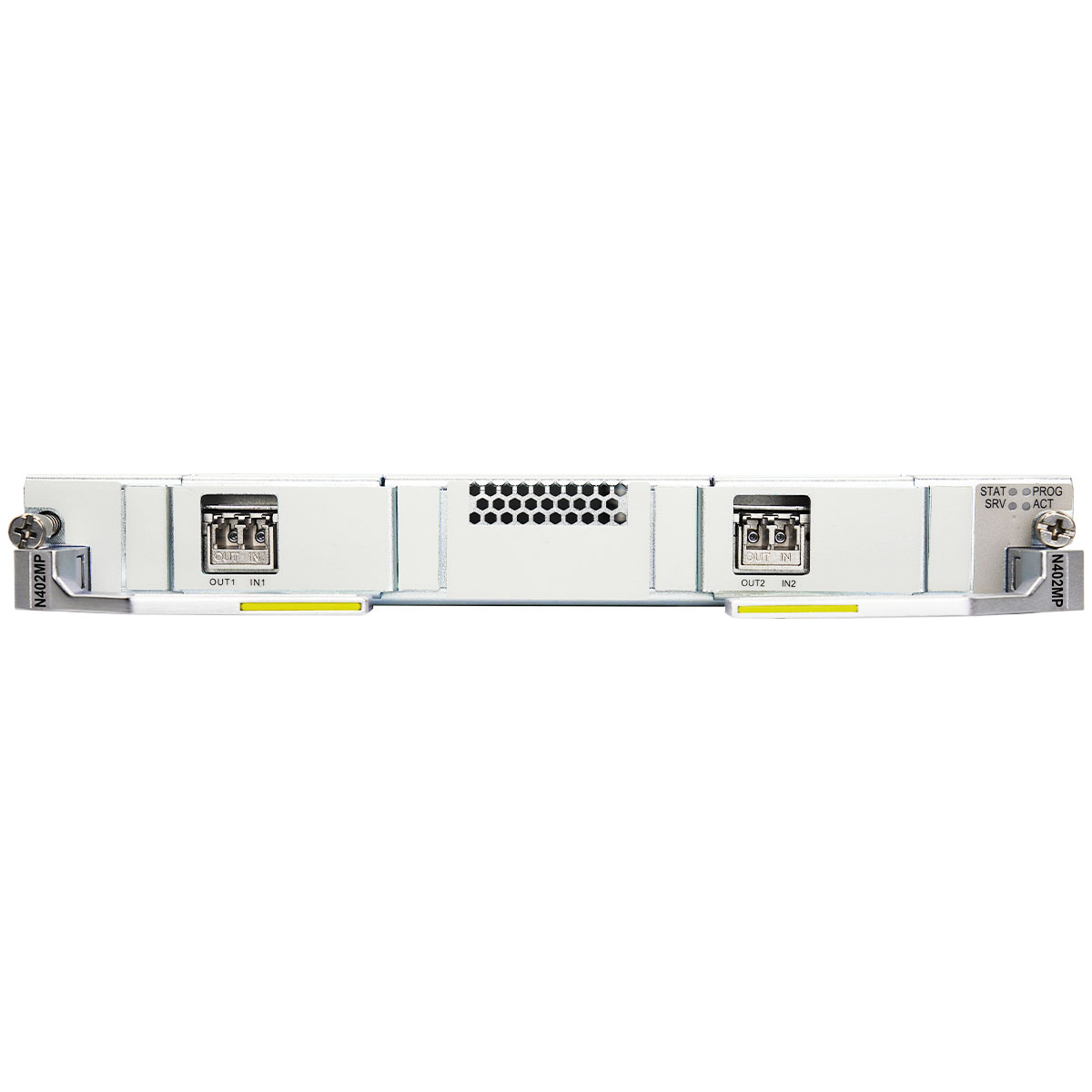

Front panel of the TNG3N402 board

TNG3N402

Front panel of the TNG3N402 board



Valid slots for the TNG3N402 board in a  M05/M12/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 1 IU1, IU2, IU3, IU4, IU5 IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12 1 IU1 to IU13 IU1 to IU13
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24
Item TNG3N402
Basic function Provides two line ports to convert a maximum of 160 channels of ODU0, 80 channels of ODU1, 20 channels of ODU2(e), 4 channels of ODU3, 2 channels of ODU4, 160 channels of ODUflex or 2000 channels of OSUflex signals to 2 channel of OTU4. For details about the service mapping path, see Application.
Backplane capacity The maximum capacity is 200 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 100G QPSK: SDFEC2, HFEC PLUS
  • 100G QPSK wDCM/100G mDQPSK: SDFEC2
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
  • 100G mDQPSK
Typical channel spacing 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
  • OSUflex layer: supports PM and TCM overhead processing.
  • OSUflex layer: supports non-intrusive monitoring of PM and TCM overheads.
OSU Supported
NOTE:
The OSU function requires a license.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
OSUflex SNCP Supported
NOTE:
  • When working with a TNG1CXP board, the TNG3N402 board supports a maximum of 1024 OSUflex SNCP protection groups.
  • When working with a TNG3CXP/TNG4CXP board, the TNG3N402 board supports a maximum of 2000 OSUflex SNCP protection groups.
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement Supports latency measurement in the WDM-side optical port direction (upstream direction).
  • When only one ODUk granularity level exists in the mapping path, ODUk channels support only TCM latency measurement.
  • When multiple ODUk granularity levels exist in the mapping path, ODUk channels with the smallest granularity support only TCM latency measurement, and other ODUk channels support PM and TCM latency measurement.
  • Supports PM and TCM latency measurement at the OSUflex layer.
NOTE:
In the OSU application scenario, unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
Channel loopback
  • OSUflex channel loopbacks
  • ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
NOTE:
The board supports a maximum of eight OSUflex channel loopbacks.
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.

Functions and Features of the TNG3N402 Board (SDH)
Basic function Provides two line ports and supports conversions between SDH signals from the backplane and ODUk signals. For details about the service mapping path, see Application.
Backplane capacity The total backplane bandwidth is 40 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
ALS Not supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC channel loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.

Functions and Features of the TNG3N402 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Bidirectional regeneration
Regeneration rate OTU4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 100G QPSK: SDFEC2, HFEC PLUS
  • 100G QPSK wDCM/100G mDQPSK: SDFEC2
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
  • 100G mDQPSK
Typical channel spacing 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Uses the frame format and overhead processing compliant with ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • Only ASON without optical parameters is supported in high SOP mode.
  • For the WDM-side A51 or A62 optical module, the receive and transmit wavelengths must be the same. Both A51 and A62 modules do not support wavelength change by configuring regeneration boards.
ALS Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN Supports ESC communication.
Test frame Not supported
Port loopback Optical port outloop is supported in bidirectional relay mode.
NOTE:
Loopback of both ports is not supported.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.70 kg
  • 3.75 lb.

Additional information

Item TNG3N402
Basic function Provides two line ports to convert a maximum of 160 channels of ODU0, 80 channels of ODU1, 20 channels of ODU2(e), 4 channels of ODU3, 2 channels of ODU4, 160 channels of ODUflex or 2000 channels of OSUflex signals to 2 channel of OTU4. For details about the service mapping path, see Application.
Backplane capacity The maximum capacity is 200 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 100G QPSK: SDFEC2, HFEC PLUS
  • 100G QPSK wDCM/100G mDQPSK: SDFEC2
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
  • 100G mDQPSK
Typical channel spacing 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
  • OSUflex layer: supports PM and TCM overhead processing.
  • OSUflex layer: supports non-intrusive monitoring of PM and TCM overheads.
OSU Supported
NOTE:
The OSU function requires a license.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
OSUflex SNCP Supported
NOTE:
  • When working with a TNG1CXP board, the TNG3N402 board supports a maximum of 1024 OSUflex SNCP protection groups.
  • When working with a TNG3CXP/TNG4CXP board, the TNG3N402 board supports a maximum of 2000 OSUflex SNCP protection groups.
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement Supports latency measurement in the WDM-side optical port direction (upstream direction).
  • When only one ODUk granularity level exists in the mapping path, ODUk channels support only TCM latency measurement.
  • When multiple ODUk granularity levels exist in the mapping path, ODUk channels with the smallest granularity support only TCM latency measurement, and other ODUk channels support PM and TCM latency measurement.
  • Supports PM and TCM latency measurement at the OSUflex layer.
NOTE:
In the OSU application scenario, unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
Channel loopback
  • OSUflex channel loopbacks
  • ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
NOTE:
The board supports a maximum of eight OSUflex channel loopbacks.
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.

Functions and Features of the TNG3N402 Board (SDH)
Basic function Provides two line ports and supports conversions between SDH signals from the backplane and ODUk signals. For details about the service mapping path, see Application.
Backplane capacity The total backplane bandwidth is 40 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
ALS Not supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC channel loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.

Functions and Features of the TNG3N402 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Bidirectional regeneration
Regeneration rate OTU4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 100G QPSK: SDFEC2, HFEC PLUS
  • 100G QPSK wDCM/100G mDQPSK: SDFEC2
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
  • 100G mDQPSK
Typical channel spacing 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Uses the frame format and overhead processing compliant with ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • Only ASON without optical parameters is supported in high SOP mode.
  • For the WDM-side A51 or A62 optical module, the receive and transmit wavelengths must be the same. Both A51 and A62 modules do not support wavelength change by configuring regeneration boards.
ALS Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN Supports ESC communication.
Test frame Not supported
Port loopback Optical port outloop is supported in bidirectional relay mode.
NOTE:
Loopback of both ports is not supported.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.70 kg
  • 3.75 lb.
