Description

TNS3N801 overview



TNS3N801 1*400G QPSK,800G s16QAM-sp Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNS3N801 board has only one variant: TNS3N801AF3.

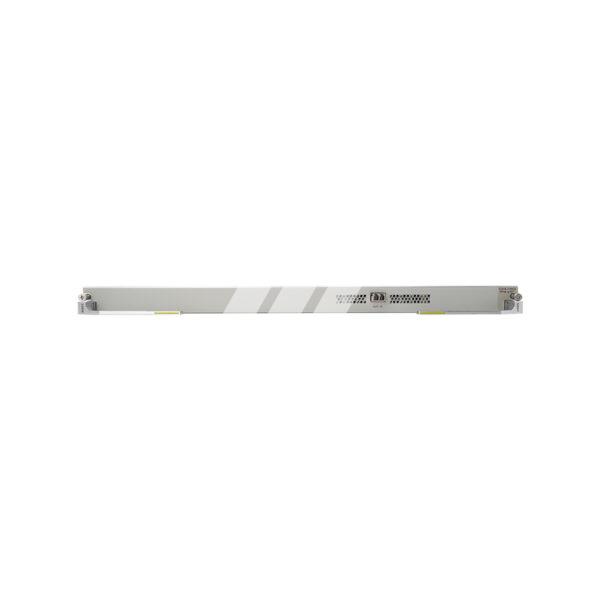

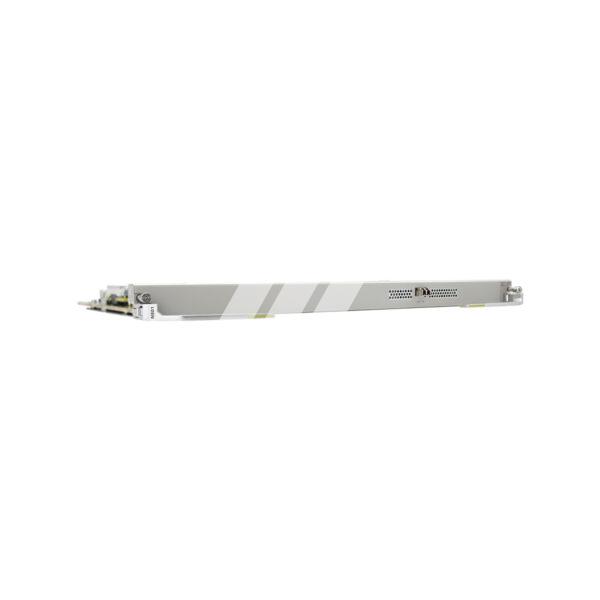

Front panel of the TNS3N801 board

TNS3N801

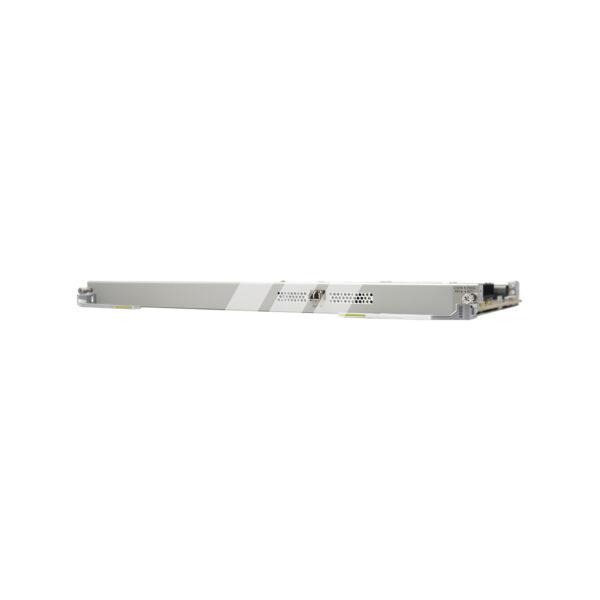

Front panel of the TNS3N801 board



Valid slots for the TNS3N801 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
Show More Show Less
Item TNS3N801
Basic function Implements mutual conversion between OTN signals and one OTUC4/OTUCn Group (OTUC4+OTUC4) signal.
Backplane capacity The maximum capacity is 800 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC5
Line modulation format
  • 400G QPSK
  • 800G s16QAM-sp
Typical channel spacing 150GHz+n*6.25GHz (n=0,1,2...)
NOTE:
  • Due to high filtering penalty, line modulation format supported by the board cannot be used with 100G optical-layer boards with fixed channel spacing, such as TNG2D60 and TNG2M60.
  • The optical layer corresponding to an electrical module with the minimum channel spacing greater than or equal to 150 GHz must be upgraded to V100R023C10 or later. Otherwise, the following functions will be affected:
    • Online optical power detection based on digital optical labels.
    • Fiber connection quality detection in the local wavelength add/drop directions based on digital optical labels.
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTUCn layer: supports SM overhead processing.
  • ODUCn layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
OSU Not supported
Intra-board 1+1 protection Supported
NOTE:
  • Supports intra-board 1+1 protection when working with the optical protection boards.
  • In stitching mode, an SF/SD alarm is reported and switching is triggered when any OTUCn/ODUCn is faulty.
ODUk SNCP Supported
OSUflex SNCP Not supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Not supported
Physical clock Supported
NOTE:
  • When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
  • Parameter Frame Format of Clock Message can be set to GFP but not HDLC.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
NOTE:
In splicing mode, DCN is supported only by the first OTUCn channel.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
NOTE:
In splicing mode, the PRBS function is enabled for both OTUCn channels.
Latency measurement Supports latency measurement in the WDM-side optical port direction (upstream direction).
  • The board supports PM and TCM latency measurement at the ODUCn layer.
  • When only one ODUk granularity level exists in the mapping path, ODUk channels support only TCM latency measurement.
  • When multiple ODUk granularity levels exist in the mapping path, ODUk channels with the smallest granularity support only TCM latency measurement, and other ODUk channels support PM and TCM latency measurement.
NOTE:
  • Each line-side port supports latency measurement for a maximum of eight channels concurrently.
  • In splicing mode, latency measurement is separately configured for two OTUCn channels.
Channel loopback Supports ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel inloops and outloops.
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.

Functions and Features of the TNS3N801 Board (SDH)
Basic function Implements mutual conversion between SDH signals and one OTUC4/OTUCn Group (OTUC4+OTUC4) signal.
Backplane capacity The total backplane bandwidth is 80 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC channel loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.

Functions and Features of the TNS3N801 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC5
Line modulation format 400G QPSK
Typical channel spacing 400G QPSK: 150GHz+n*6.25GHz (n=0,1,2...)
NOTE:
  • Due to high filtering penalty, line modulation format supported by the board cannot be used with 100G optical-layer boards with fixed channel spacing, such as TNG2D60 and TNG2M60.
  • The optical layer corresponding to an electrical module with the minimum channel spacing greater than or equal to 150 GHz must be upgraded to V100R023C10 or later. Otherwise, the following functions will be affected:
    • Online optical power detection based on digital optical labels.
    • Fiber connection quality detection in the local wavelength add/drop directions based on digital optical labels.
OTN overhead protocol Uses the frame format and overhead processing compliant with ITU-T G.709.
OTN overhead
  • The WDM side supports OTUCn interfaces.
  • OTUCn layer: supports SM overhead processing.
  • ODUCn layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN Supports ESC communication.
Test frame Not supported
PRBS Not supported
Port loopback Not supported
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 4.00 kg
  • 8.82 lb.

Additional information

Brand
Condition
Lead Time
Ship From
Warranty
Item TNS3N801
Basic function Implements mutual conversion between OTN signals and one OTUC4/OTUCn Group (OTUC4+OTUC4) signal.
Backplane capacity The maximum capacity is 800 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC5
Line modulation format
  • 400G QPSK
  • 800G s16QAM-sp
Typical channel spacing 150GHz+n*6.25GHz (n=0,1,2...)
NOTE:
  • Due to high filtering penalty, line modulation format supported by the board cannot be used with 100G optical-layer boards with fixed channel spacing, such as TNG2D60 and TNG2M60.
  • The optical layer corresponding to an electrical module with the minimum channel spacing greater than or equal to 150 GHz must be upgraded to V100R023C10 or later. Otherwise, the following functions will be affected:
    • Online optical power detection based on digital optical labels.
    • Fiber connection quality detection in the local wavelength add/drop directions based on digital optical labels.
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTUCn layer: supports SM overhead processing.
  • ODUCn layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
OSU Not supported
Intra-board 1+1 protection Supported
NOTE:
  • Supports intra-board 1+1 protection when working with the optical protection boards.
  • In stitching mode, an SF/SD alarm is reported and switching is triggered when any OTUCn/ODUCn is faulty.
ODUk SNCP Supported
OSUflex SNCP Not supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Not supported
Physical clock Supported
NOTE:
  • When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
  • Parameter Frame Format of Clock Message can be set to GFP but not HDLC.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
NOTE:
In splicing mode, DCN is supported only by the first OTUCn channel.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
NOTE:
In splicing mode, the PRBS function is enabled for both OTUCn channels.
Latency measurement Supports latency measurement in the WDM-side optical port direction (upstream direction).
  • The board supports PM and TCM latency measurement at the ODUCn layer.
  • When only one ODUk granularity level exists in the mapping path, ODUk channels support only TCM latency measurement.
  • When multiple ODUk granularity levels exist in the mapping path, ODUk channels with the smallest granularity support only TCM latency measurement, and other ODUk channels support PM and TCM latency measurement.
NOTE:
  • Each line-side port supports latency measurement for a maximum of eight channels concurrently.
  • In splicing mode, latency measurement is separately configured for two OTUCn channels.
Channel loopback Supports ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel inloops and outloops.
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.

Functions and Features of the TNS3N801 Board (SDH)
Basic function Implements mutual conversion between SDH signals and one OTUC4/OTUCn Group (OTUC4+OTUC4) signal.
Backplane capacity The total backplane bandwidth is 80 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC channel loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.

Functions and Features of the TNS3N801 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC5
Line modulation format 400G QPSK
Typical channel spacing 400G QPSK: 150GHz+n*6.25GHz (n=0,1,2...)
NOTE:
  • Due to high filtering penalty, line modulation format supported by the board cannot be used with 100G optical-layer boards with fixed channel spacing, such as TNG2D60 and TNG2M60.
  • The optical layer corresponding to an electrical module with the minimum channel spacing greater than or equal to 150 GHz must be upgraded to V100R023C10 or later. Otherwise, the following functions will be affected:
    • Online optical power detection based on digital optical labels.
    • Fiber connection quality detection in the local wavelength add/drop directions based on digital optical labels.
OTN overhead protocol Uses the frame format and overhead processing compliant with ITU-T G.709.
OTN overhead
  • The WDM side supports OTUCn interfaces.
  • OTUCn layer: supports SM overhead processing.
  • ODUCn layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN Supports ESC communication.
Test frame Not supported
PRBS Not supported
Port loopback Not supported
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 4.00 kg
  • 8.82 lb.
