Huawei OptiX OSN 9800 TNS7N404 4*100Gbit/s Universal Line Service Processing Board

Brand: Huawei

Lead Time: 3-5 days

Ship From: Shenzhen Warehouse

SKU: 2012844 Category: OSN9800 Series

Description
DATASHEET
FAQ
Reviews (0)

Description

TNS7N404 overview

TNS7N404 supports 4*100Gbit/s Universal Line Service Processing Board, applied to Huawei OptiX OSN 9800.

The TNS7N404 board is a hybrid line board and supports a mixture of OTN, SDH services. The TNS7N404 board processes and converts the received service signals into two OTU4 signals.

The TNS7N404 board processes and converts the received service signals into four OTU4 signals. The OTU4 signals are carried over ITU-T G.694.1-compliant DWDM wavelengths.

It uses coherent receiving technologies and applies to coherent systems.

Variants

The TNS7N404 board has two variants: TNS7N404C01 and TNS7N404C06. The two variants are interchangeable.

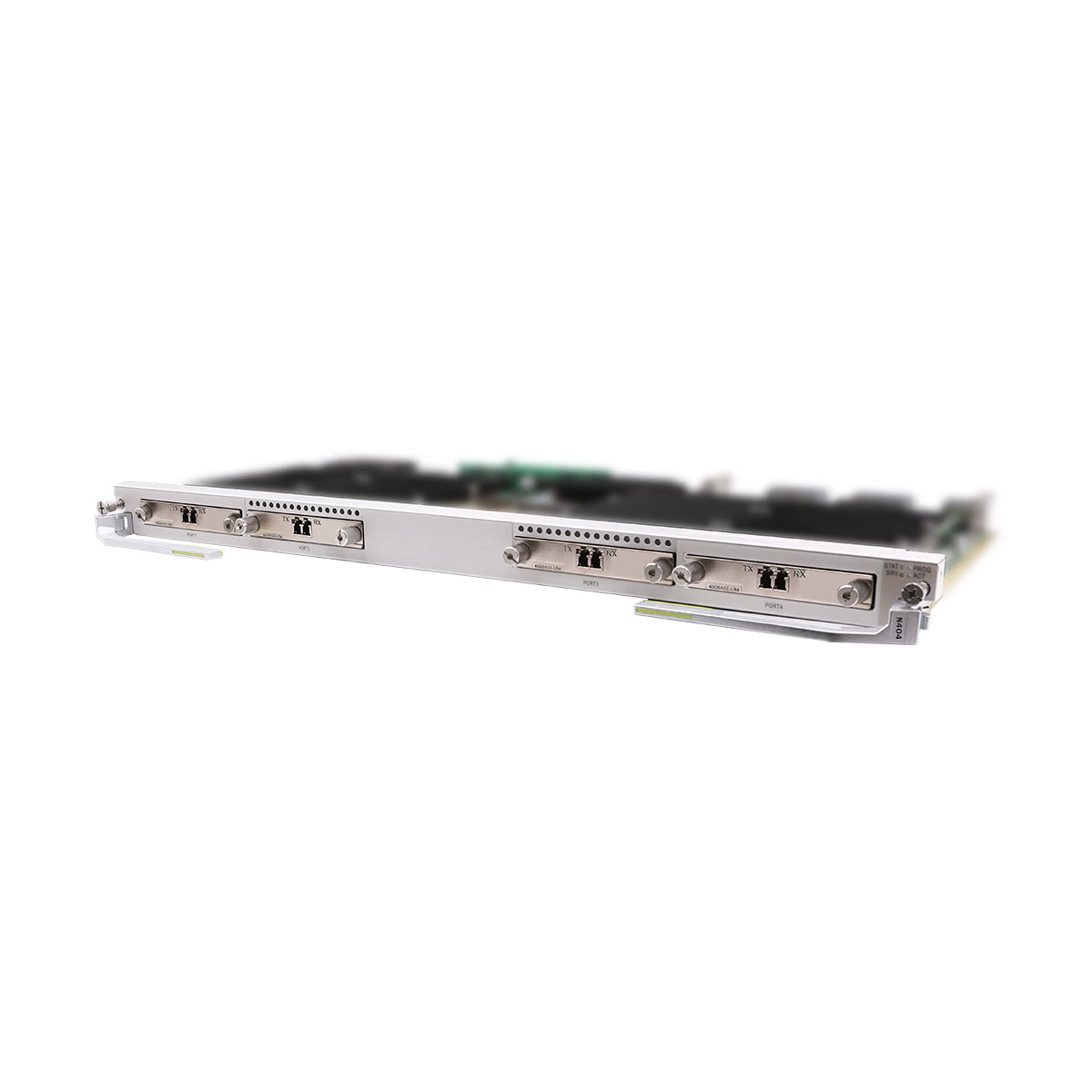

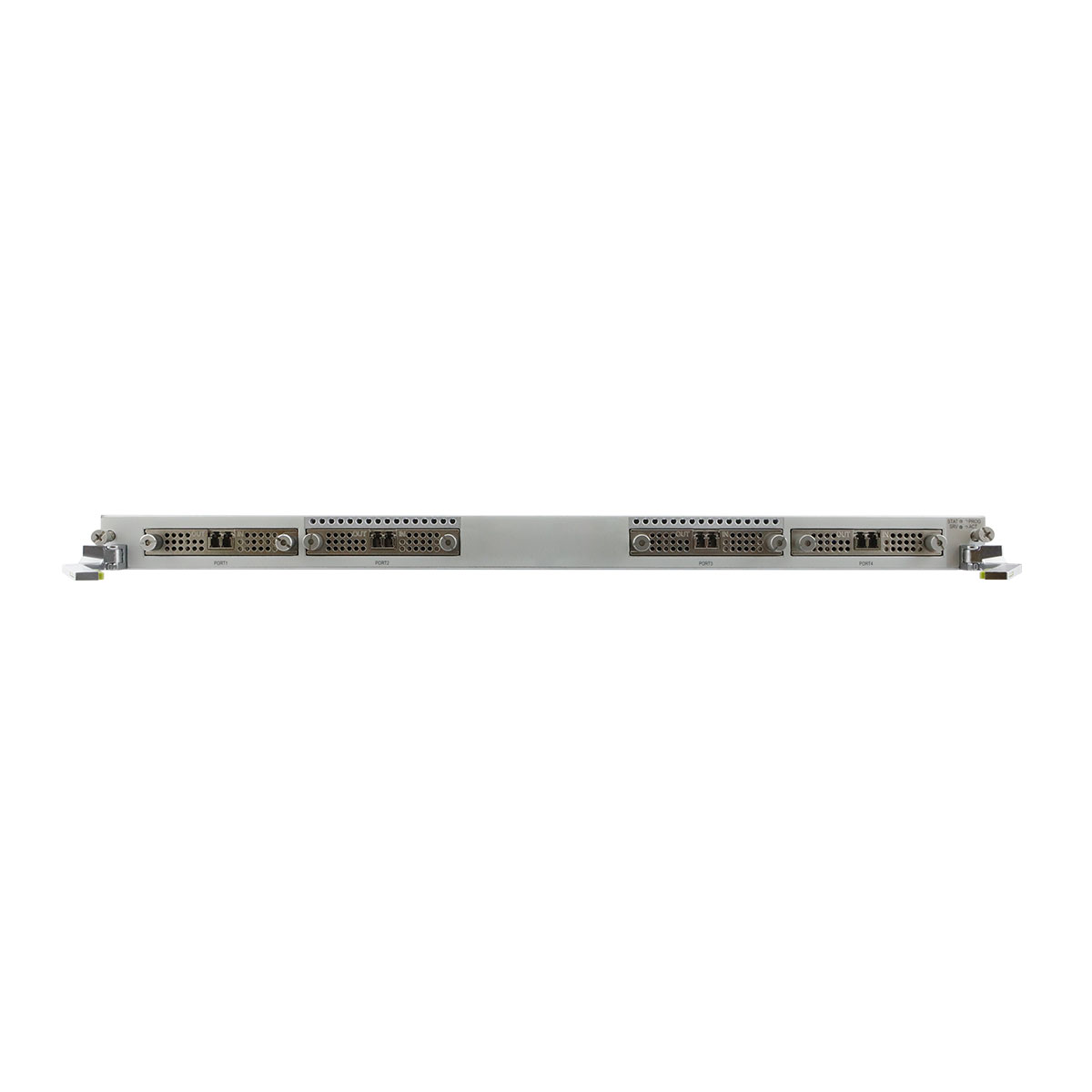

Appearance of the TNS7N404

Valid slots for the TNS7N404 board in a U64/U32/U16 subrack

Product	Valid Slots
OptiX OSN 9800 U32 Standard subrack	IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack	IU1-IU32
OptiX OSN 9800 U64 Standard subrack	IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack	IU1-IU64
OptiX OSN 9800 U16 Subrack	IU1-IU14

Functions and Features of the TNS7N404 Board (OTN Line)

Function and Feature	Description
Backplane capacity	The total backplane bandwidth is 400 Gbit/s.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	SDFEC2
Line modulation format	100G QPSK 100G QPSK wDCM 100G mDQPSK
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	WDM-side OTU4 layer: supports SM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP	Supported
Tributary SNCP	Supported NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Electrical-layer ASON	Supported
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode.
Digital optical label	When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock	Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex)
IEEE 1588v2	Not supported
ITU-T G.8275.1	Not supported
ITU-T G.8273.2	Not supported
Outband DCN	Supports communication over ESCs.
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction).When higher-order ODU4 cross-connections are created on the board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback	ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
Port loopback	Supports WDM Side Loopback
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.

Functions and Features of the TNS7N404 Board (SDH)

Function and Feature	Description
Basic function	Provides four line ports and supports conversions between SDH signals from the backplane and ODUk signals. For details about the service mapping path, see Application.
Backplane capacity	The total backplane bandwidth is 80 Gbit/s.
Service processing	VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing	Processes the section overheads of STM-16/STM-64 signals. Supports the transparent transmission and termination of path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports ECC communication. Supports transparent transmission of DCC channels.
SDH SNCP	Supported
Linear MSP	Supported
Ring MSP	Supports two-fiber bidirectional ring MSP
SDH ASON	Supported
Physical clock	Supports SDH clock synchronization.
Outband DCN	Supported
Channel loopback	Supports VC loopbacks.
Port loopback	Supports Virtual Port loopbacks.
2M ASON	Supported NOTE: Only supported when the 9800 M24 is used.
Alarm and performance event monitoring	Provides various alarms and performance events, facilitating equipment management and maintenance.

Functions and Features of the TNS7N404 Board (Regeneration)

Function and Feature	Description
Basic function	Electrically regenerates optical signals at an electrical REG station.
Regeneration mode	Unidirectional regeneration Bidirectional regeneration
Regeneration rate	OTU4
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	SDFEC2
Line modulation format	100G QPSK 100G QPSK wDCM 100G mDQPSK
OTN overhead	WDM-side OTU4 layer: supports SM overhead processing. ODU4 layer: supports PM and TCM overhead processing. ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON	Not supported
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode. In unidirectional regeneration scenarios, for the WDM-side A51 or A62 optical module, the receive and transmit wavelengths must be the same. Both A51 and A62 modules do not support wavelength change by configuring regeneration boards.
ALS	Supported NOTE: When using the WDM-side A51 or A62 optical module, the board does not support the regeneration ALS function in unidirectional relay mode.
Outband DCN	Supports ESC communication.
Loopback	In bidirectional regeneration mode, optical port outloop is supported. NOTE: Loopback of both ports is not supported.
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.

Mechanical Specifications

Board	Item	Unit	Value
TNS7N404	Dimensions (H x W x D)	mm	477.30×30.50×220.00
	Dimensions (H x W x D)	in.	18.81×1.20×8.67
	Weight	kg	3.1
	Weight	lb.	6.83
	Typical Power Consumption	W	212
	Maximum Power Consumption	W	225

Q: What is the difference between TNS7N404C01 and TNS7N404C06?

A：he TNS7N404 board has two variants: TNS7N404C01 and TNS7N404C06. The two variants are interchangeable.

Q: What are the applications of TNS7N404?
A: The N404 board is a hybrid line board and supports a mixture of OTN, SDH services. The N404 board processes and converts the received service signals into four OTU4 signals. The OTU4 signals are carried over ITU-T G.694.1-compliant DWDM wavelengths. The N404 board uses coherent receiving technologies and applies to coherent systems.
