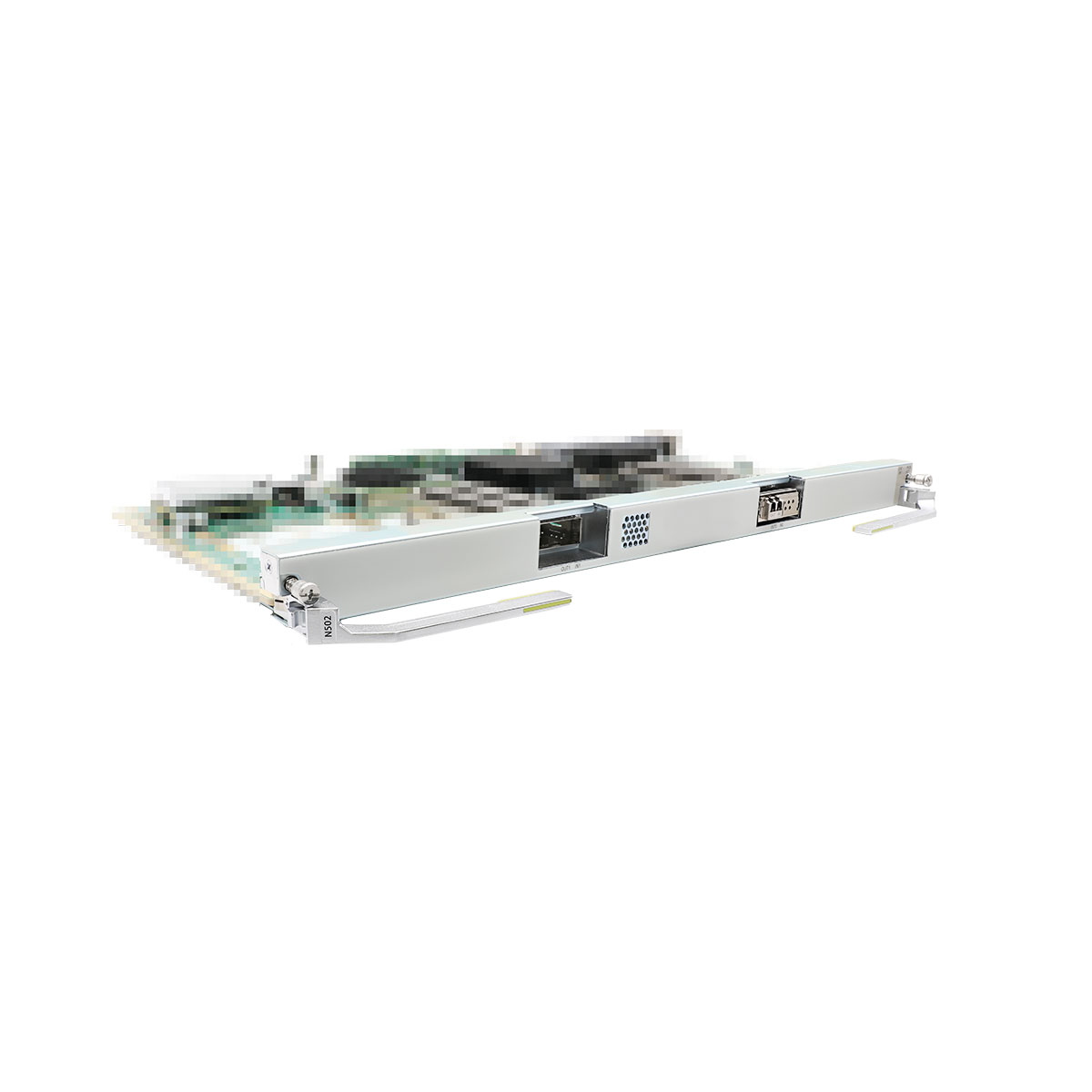

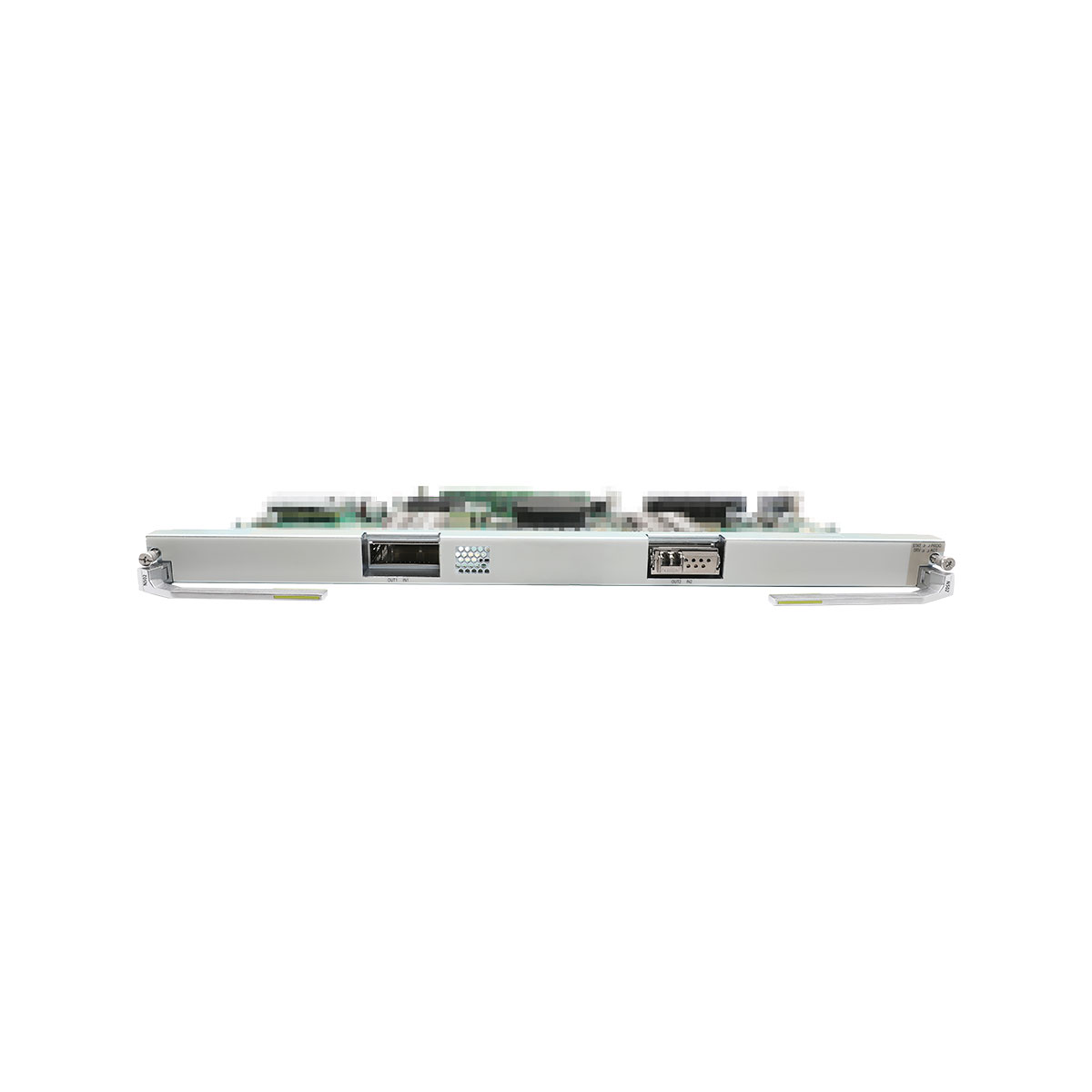

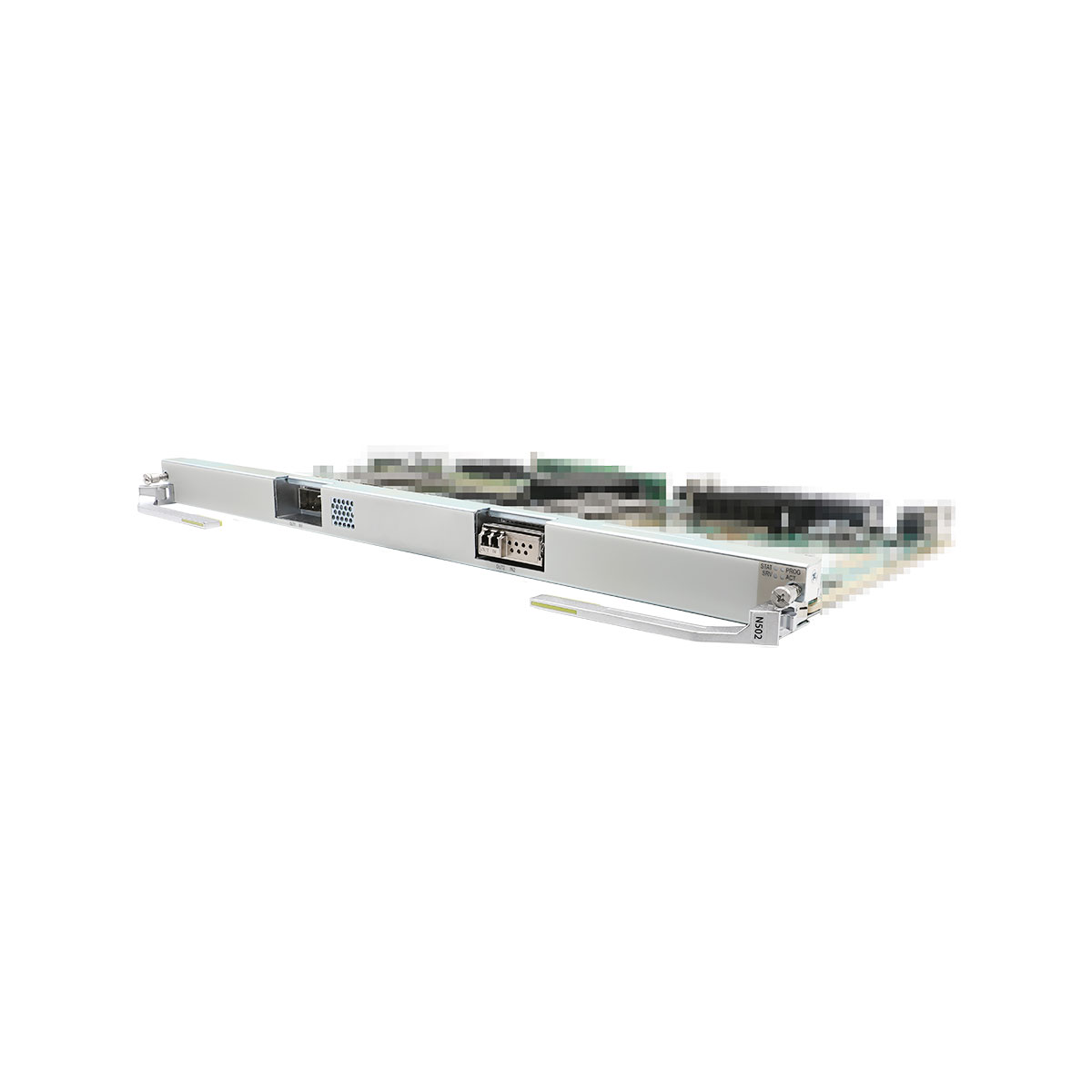

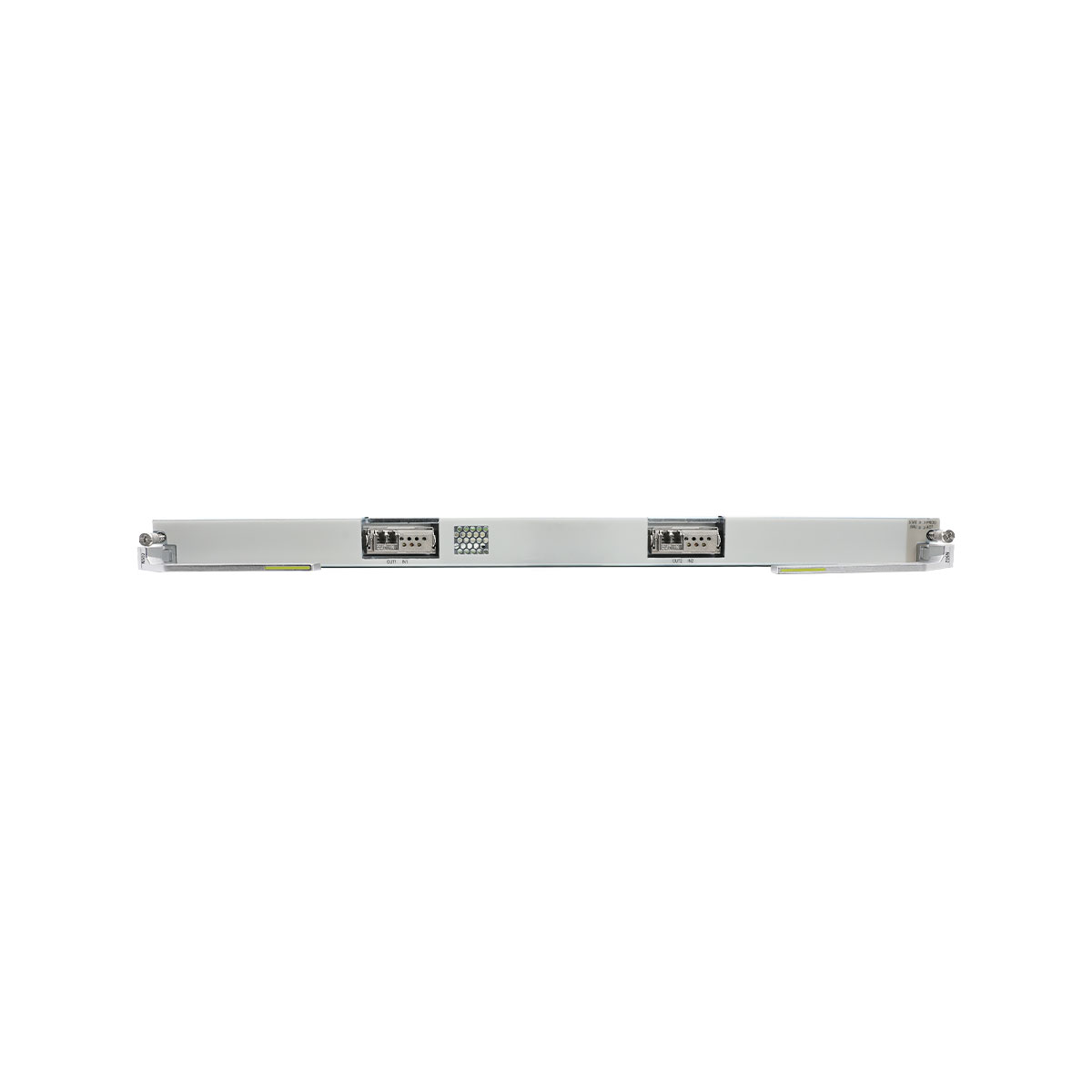

Huawei OptiX OSN 9800 TNSDN502 2*200G Programable Line Service Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNSDN502 Overview

TNSDN502 2*200G Programable Line Service Processing Board, applied to Huawei OptiX OSN 9800 M24/U32/U64.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNSDN502 board has only one variant: TNSDN502C21.



Valid slots for the TNSDN502 board in a M24/U64/U32 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64
Item TNSDN502
Functions and Features of the TNSDN502 Board (OTN Line)
Basic function Implements mutual conversion between OTN signals and two OTU4/OTUC2 signals. For details about the service mapping path, see Application.
Backplane capacity The maximum capacity is 400 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 100G QPSK wDCM: SDFEC2
  • 100G QPSK: SDFEC2
  • 200G QPSK: SDFEC-M
  • 200G QPSK: SDFEC4
  • 200G 16QAM: SDFEC
  • 200G 16QAM-H: SDFEC
  • 200G e16QAM: SDFEC2
Line modulation format
  • 100G QPSK wDCM
  • 100G QPSK
  • 200G QPSK
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 200G QPSK: 75GHz+n*6.25GHz(n=0,1,2...)
  • Other modulation format: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • ODUC2: Supports the PM and TCM functions.
  • OTU4/OTUC2: Supports SM overhead processing.
  • OSUflex layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OSU Supported
NOTE:
The OSU function requires a license.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
OSUflex SNCP Supported
NOTE:
  • When working with a TNU2CTU/TNG1CXP board, the TNSDN502 board supports a maximum of 1024 OSUflex SNCP protection groups.
  • When working with a TNU4CTU/TNU5CTU/TNG3CXP/TNG4CXP board, the TNSDN502 board supports a maximum of 2048 OSUflex SNCP protection groups.
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports ESC communication.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction):
  • When higher-order ODU4 cross-connections are created on the board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
  • The board supports PM and TCM latency measurement at the ODUCn layer.
  • The board supports PM and TCM latency measurement for the OSUflex channels.
NOTE:
In the OSU application scenario, unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
Channel loopback
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks
  • Supports OSUflex Channel Loopback
NOTE:
The board supports a maximum of eight OSUflex channel loopbacks.
Port loopback Supports WDM Side Loopback.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.
Functions and Features of the TNSDN502 Board (SDH)
Basic function Provides two line ports and supports conversions between SDH signals from the backplane and OTU4/ODUC2 signals. For details about the service mapping path, see Application.
Backplane capacity The maximum capacity is 2 x 40 Gbit/s.
NOTE:
The maximum SDH capacity of the N502 board is 2 x 40 Gbit/s, and each port supports 40 Gbit/s services. In addition, the SDH capacity of different ports on the board cannot be shared.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC channel loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring
  • Supports the monitoring of B1 bytes to help locate line faults.
  • Supports the monitoring of B2 bytes to help locate line faults.
Functions and Features of the TNSDN502 Board (Regeneration)
Basic function The board applies to electrical regeneration sites to provide the electrical regeneration function for optical signals.
Regeneration mode Unidirectional regeneration
Regeneration rate OTU4/OTUC2
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 100G QPSK wDCM: SDFEC2
  • 100G QPSK: SDFEC2
  • 200G QPSK: SDFEC-M
  • 200G QPSK: SDFEC4
  • 200G 16QAM: SDFEC
  • 200G 16QAM-H: SDFEC
  • 200G e16QAM: SDFEC2
Line modulation format
  • 100G QPSK wDCM
  • 100G QPSK
  • 200G QPSK
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 200G QPSK: 75GHz+n*6.25GHz(n=0,1,2...)
  • Other modulation format: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • ODUC2: Supports the PM and TCM functions.
  • OTU4/OTUC2: Supports SM overhead processing.
Optical-layer ASON Supported
NOTE:
The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Test frame Not Supported
PRBS Not supported
Port loopback Not supported
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.
