Huawei OptiXstar V175 support 4GE+1*POTS+1*USB2.0+1*downlink Optical port+2.4GHz&5GHz Wi-Fi6

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Huawei OptiXstar V175 support 4GE+1*POTS+1*USB2.0+1*downlink Optical port+2.4GHz&5GHz Wi-Fi6, is the main FTTR of Huawei FTTR All-Optical Home Starlight F30 Premium Edition, which realizes ultra-broadband access for users through XG-PON or asymmetric 10G EPON technology.

  • Smart security vault to protect your home network and privacy
  • Supports parental controls¹, thoughtfully safeguarding a healthy online environment
  • Smart antennas with 360-degree coverage, supporting Beamforming to ensure reliable IoT connectivity

Hardware specifications

Item Specifications
Power supply: 12V DC, 1.5 A
Working environment temperature: 0°C ~ +40°C，
Working environment humidity: 5% RH to 95% RH (non-condensing)
Power adapter rated input Range: 170 ~ 240 V AC, 50/60 Hz
Maximum power consumption: 18 W
Network side interface: XG-PON
User side interface: 4GE+1*POTS+1*USB2.0+1*downlink Optical port+2.4GHz&5GHz Wi-Fi6
Optical connector: Network side: SC/UPC User side: SC/UPC
Indicator Lights Power / Registration / Optical Signal / 1 / 2 / 3 / 4 / Telephone / USB / Wireless / Internet Access / Optical Network
Storage: 256MB Flash，512MB RAM
Installation Scenario： Desktop flat
Dimensions (H x W x D): 40mm x 190mm x 137mm (Without base)
Weight (excluding adapter) Approximately: 500 g


Interface parameters

Type Parameters
XG-PON/Asymmetric 10G EPON
  • XG-PON：Class N1/N2a
  • Receiver sensitivity:XG-PON: -28dBm;
  • Wavelength: Upstream 1260-1280nm; Downstream 1575-1580nm
  • Support band-stop filter (WBF)
  • Authentication: SN/LOID/LOID + Password/bidirectional authentication based on OMCI (XG-PON);
  • Uplink and downlink rates: Upstream 2.488Gbit/s, downstream 9.953Gbit/s
USB port
  • USB 2.0
Wi-Fi
  • IEEE 802.11 b/g/n/ax(2.4GHz)
  • IEEE 802.11 a/n/ac/ax(5GHz)
  • 2×2 MIMO（2.4GHz&5GHz）
  • WMM(Wi-Fi Multi Media)
  • 1024 QAM
  • 160MHz bandwidth
  • WPA3/WPA2/WPA1
  • Multi-SSID
  • WPS
  • MU-MIMO
  • Air interface rate: 574 Mbps (2.4GHz)，2402 Mbps (5GHz)
Network port 1~4
  • VLAN Tag/Tag stripping based on Ethernet port
  • 1:1 VLAN/N:1 VLAN/VLAN pass-through
  • QinQ VLAN
  • Limit on the number of learned MAC addresses
  • MAC address learning
  • Support 10/100/1000Mbps adaptive
Downstream optical interface
  • P2MP Optical Interface
  • From FTTR Plug and Play
  • Asymmetric 2.5G optical port
POTS port
  • Maximum ringer equivalence number (REN): 4
  • G.711A/u, G.729a/b, G.722 encoding/decoding
  • T.30/T.38/G.711 fax mode
  • DTMF
  • Emergency calls (with the SIP protocol)

Additional information

Brand

Huawei

Reviews

There are no reviews yet.

Be the first to review “V175”

Your email address will not be published. Required fields are marked *

5  +  5  =

Related products
Quick view
Categories1: , ,

V173

R.F.Q
(2)
SKU2025905

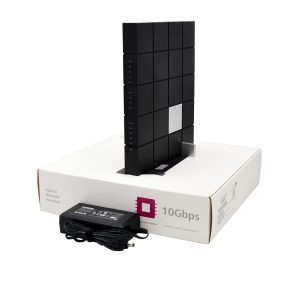

HN8245QHN8245Q-1
