ZTE ZXHN F670L V8.0
ZTE ZXHN F670L V8.0 GPON Optical Network Terminal with 4*GE+1*POTS+1*USB+2.4G/5G WIFI 5dBi
ZTE
Shenzhen Warehouse
3-5 days
- Description
- DATASHEET
- Packing info
- Comparison
- FAQ
- Reviews (4)
Description
ZTE ZXHN F670L V8.0 overview
The ZXHN F670L V8.0 is a dual-band Gigabit Premium triple-play GPON gateway. It comes with 4GE LAN ports, one phone port, and next-generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve performance.
ZTE ZXHN F670L V8.0 GPON Optical Network Terminal with 4*GE+1*POTS+1*USB+2.4G/5G WIFI 5dBi
Supporting OMCI, support TR069, support Web page data capture
ENG firmware, ENG indicators, ENG interface description
Connector type: SC/UPC
ZTE ZXHN F670L V8.0 Datasheet
Item | F670L V8.0 |
Connector | SC/UPC |

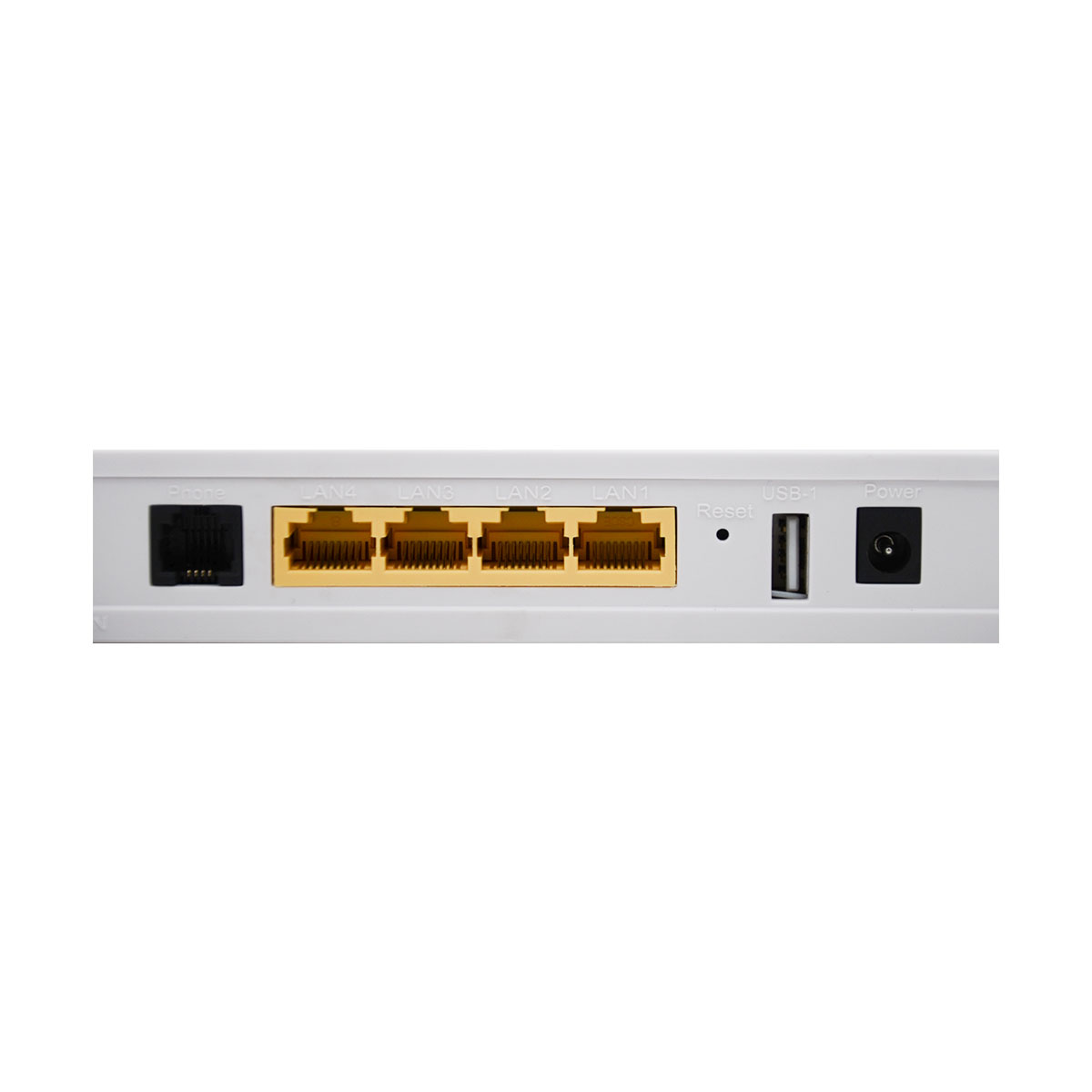

Ports | 4*GE+1*POTS+1*USB+2.4G/5G WIFI 5dBi |
Working environment | Operating temperature: 0ºC to 40ºC |
Environment humidity: 5% to 95% | |
System power supply | 12 V DC, 1.5 A |
Dimensions (length x width x height) |
245mm x 215mm x 40mm |
Weight | About 0.5kg |
Additional information
ual Band ONT Comparation
Model Name | EG8145V5 | EG8247W | F670L-V8.0 | HG6145D1 | G-140W-C |
Brand | Huawei | Huawei | ZTE | Fiberhome | Nokia |
UNI(User Network Interface) | 4*GE+1*POTS+2*USB+2.4G/5G WIFI | 4*GE+1*POTS+USB+2.4G/5G WIFI with 4 antennas | 4*GE+1*POTS+2*USB+2.4G/5G WIFI | 4*GE+1*POT+2*USB+2.4G/5G WIFI | 4*GE+1*POTS+2*USB+2.4G/5G WIFI |
Operating temperature | 0ºC to 40ºC | 0ºC to 40ºC | 0ºC to 40ºC | -5ºC to 45ºC | 0ºC to 40ºC |
Environment humidity | 5% to 95% (noncondensing) | 5% to 95% (noncondensing) | 5% to 95% (noncondensing) | 10% to 95% (noncondensing) | 5% to 95% (noncondensing) |
System power supply | 11–14 V DC, 1.5 A | 12V, 1.5 A | 12 V DC, 1.5 A | 12 V DC, 1.5 A | 12 VDC,1.5 A |
Antenna gain | 5dBi | 5dBi | 5dBi | 5dBi | 5dBi |
Weight | About 0.5 kg | About 0.5 kg | About 0.5 kg | About 0.5 kg | About 1 kg |
Q: Is F670L V8.0 compatible with ZTE OLT?
A: It is a solution based on ZTE regardless of PCB, chipset, or firmware, so it is not only compatible with ZTE OLT but also compatible with Huawei, Fiberhome, and Nokia OLT.
Q: Can I use OMCI to manage the F670L V8.0 via my ZTE C620?
A: Yes, this model supports ZTE OMCI protocol.
Q: What is the difference between the v9.0 version and this version?
A: F670L V9.0 is better than the old version of F670L in terms of chip performance, firmware stability, and WiFi performance.
Q: What is the default login address of the firmware WebUI? And the IP address of the PC?
A: IP for the firmware: 192.168.1.1; IP for the PC local: 192.168.1.2.
Q: Can I change the default admin password?
A: Yes, you can inform your assigned technical sales manager of your needs.
