ZTE ZXHN F670L
ZTE ZXHN F670L GPON Optical Network Terminal with 4*GE+1*POTS+2*USB+2.4G/5G WIFI 5dBi
ZTE
Shenzhen Warehouse
3-5 days
- Description
- DATASHEET
- Packing info
- Comparation
- FAQ
- Reviews (9)
Description

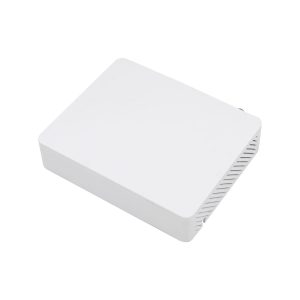

ZTE ZXHN F670L overview
The ZXHN F670L is a dual-band Gigabit Premium triple-play GPON gateway. It comes with 4GE LAN ports, one phone port, and next-generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance.
ZTE ZXHN F670L GPON Optical Network Terminal with 4*GE+1*POTS+2*USB+2.4G/5G WIFI 5dBi, supporting OMCI function.
Supporting OMCI function
ENG firmware, ENG indicators, ENG interface description
Connector type: SC/UPC
ZTE ZXHN F670L Datasheet
| Item | F670L |
| Connector | SC/UPC |
| Ports | 4*GE+1*POTS+2*USB+2.4G/5G WIFI 5dBi |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% | |
| System power supply | 12 V DC, 1.5 A |
| Dimensions (length x width x height) |
245mm x 215mm x 40mm |
| Weight | About 0.5kg |
Additional information
Dual Band ONT Comparation
| Model Name | EG8145V5 | EG8247W | F670L | HG6145D1 | G-140W-C |
| Brand | Huawei | Huawei | ZTE | Fiberhome | Nokia |
| UNI(User Network Interface) | 4*GE+1*POTS+2*USB+2.4G/5G WIFI | 4*GE+1*POTS+USB+2.4G/5G WIFI with 4 antennas | 4*GE+1*POTS+2*USB+2.4G/5G WIFI | 4*GE+1*POT+2*USB+2.4G/5G WIFI | 4*GE+1*POTS+2*USB+2.4G/5G WIFI |
| Operating temperature | 0ºC to 40ºC | 0ºC to 40ºC | 0ºC to 40ºC | -5ºC to 45ºC | 0ºC to 40ºC |
| Environment humidity | 5% to 95% (noncondensing) | 5% to 95% (noncondensing) | 5% to 95% (noncondensing) | 10% to 95% (noncondensing) | 5% to 95% (noncondensing) |
| System power supply | 11–14 V DC, 1.5 A | 12V, 1.5 A | 12 V DC, 1.5 A | 12 V DC, 1.5 A | 12 VDC,1.5 A |
| Antenna gain | 5dBi | 5dBi | 5dBi | 5dBi | 5dBi |
| Weight | About 0.5 kg | About 0.5 kg | About 0.5 kg | About 0.5 kg | About 1 kg |
Q: Is F670L compatible with ZTE OLT?
A: Yes, it is not only compatible with ZTE OLT but also compatible with Huawei, Fiberhome, and Nokia OLT.
Q: Can I use OMCI to manage the F670L via my ZTE C650?
A: Yes, this model supports ZTE OMCI protocol.
Q: What is the default login address of the firmware WebUI? And the IP address of the PC?
A: IP for the firmware: 192.168.1.1; IP for the PC local: 192.168.1.2.
Q: Can I change the default admin password?
A: Yes, you can inform your assigned technical sales manager of your needs.
Alexandro –
Muy bueno producto!!!
Mohamad –
I purchased 2*F670L for test, good condition, will bulk order later.
Javier Gonzales –
El rendimiento de las primeras 20 muestras es muy bueno.
Compré 1GE + 3FE de otros proveedores en China y Telecomate.com suministró 4GE. Estoy muy satisfecho con esto, pero el costo de envío es un poco costoso.
Andrés –
Estamos muy interesados en este modelo.
Samir –
English firmware, English indicator, English interface description. As good as Huawei brand.
Nermin –
Telecomate.com told me that F670L is their ZTE’s main model and it sells very well, so I bought a few and tried it.
Jakub –
ZTE ZXHN F670L is currently the most economical dual-band model of the ZTE brand supporting the OMCI protocol.
Carlos –
Un modelo con 4 puertos GE y wifi doble banda, me encanta.
Pablo –
Although the new version of the four-antenna has better circuits, firmware, and appearance, the old version is the most compatible.
