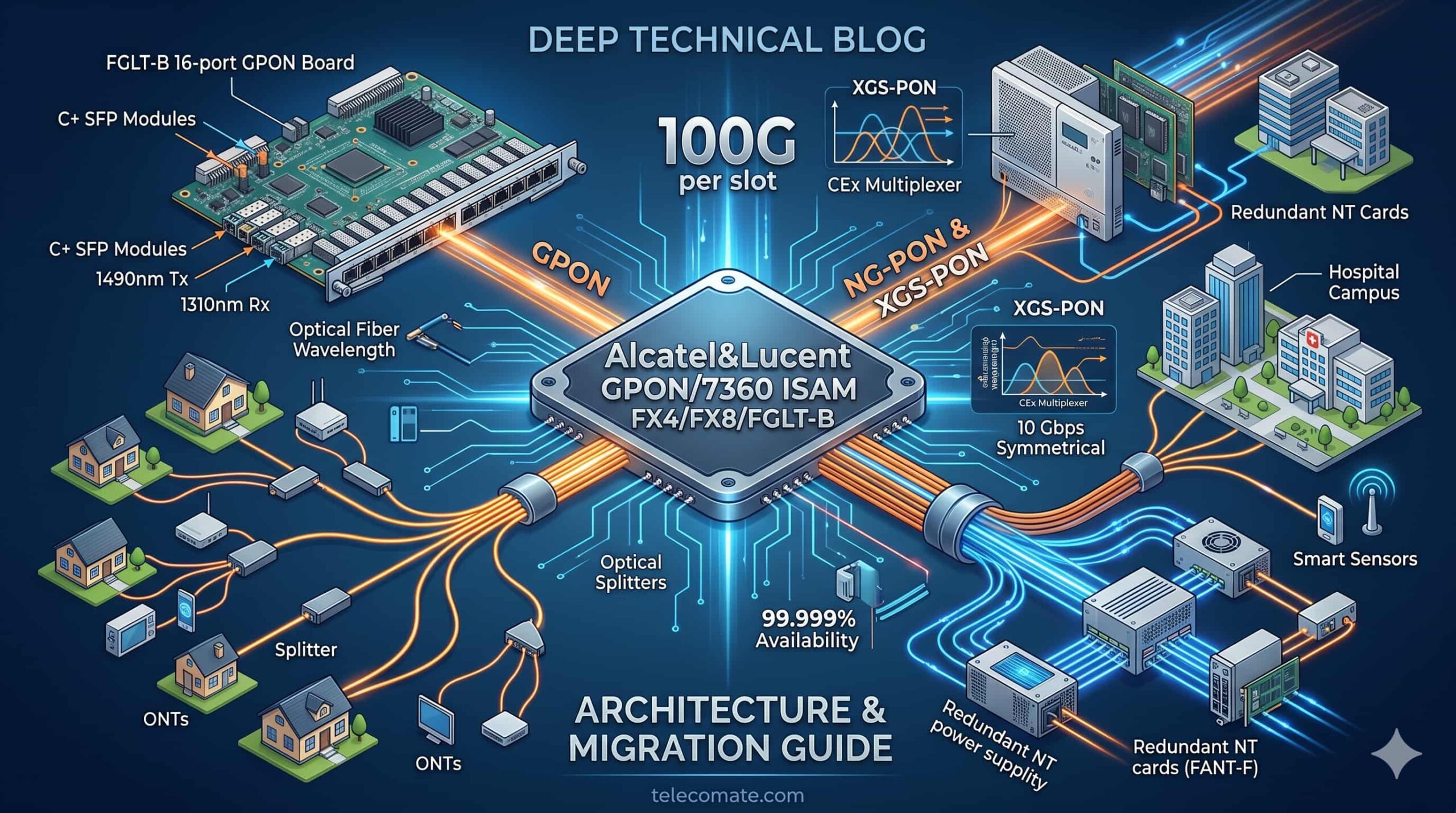

Ultimate Technical Architecture Guide: Alcatel&Lucent GPON/7360 ISAM FX4/FX8/FGLT-B

Abstract:

The evolution of modern fiber-to-the-home (FTTH) and enterprise Passive Optical LAN (POL) networks demands highly scalable, high-throughput Optical Line Terminals (OLTs). This definitive engineering whitepaper provides an exhaustive architectural analysis of the infrastructure (now operating under the Nokia brand). We will dissect the backplane switching mechanics, optical power budgets, and redundancy protocols that make this hardware stack a global standard.

Because bandwidth consumption is compounding at an unprecedented rate, telecom operators and enterprise architects must migrate to non-blocking architectures capable of supporting both GPON and next-generation XGS-PON simultaneously.

By reading this technical breakdown, network engineers will learn how to optimize chassis deployment, calculate exact optical attenuation limits for the FGLT-B 16-port board, and architect highly resilient, active-active redundancy topologies utilizing the FANT-F controller. Whether you are provisioning a smart campus or upgrading a central office, these actionable configurations will ensure a future-proof optical layer.

The Evolution of Fiber Access: Inside the Alcatel-Lucent 7360 ISAM FX Series

The transition from legacy copper networks to gigabit passive optical networks represents one of the most critical infrastructure shifts in modern telecommunications. At the heart of this transition is the Intelligent Services Access Manager (ISAM) platform. Originally engineered by Alcatel-Lucent and subsequently refined by Nokia, the 7360 ISAM FX series represents a cornerstone of carrier-grade optical broadband delivery. It acts as the centralized access node capable of delivering ultra-broadband services to residential, mobile backhaul, and business end-users with unparalleled reliability.

The core philosophy behind the 7360 ISAM FX architecture is non-blocking throughput. Traditional OLTs often suffered from uplink bottlenecks when heavily populated with multi-gigabit line cards. The 7360 ISAM FX mitigates this entirely by employing a highly advanced backplane topology. The system is designed to seamlessly manage the intersection of legacy POTS, VDSL2 with vectoring, standard GPON, and TWDM-PON (Time and Wavelength Division Multiplexed PON).

Recent industry analyses indicate that over 65% of global telecom operators are currently operating mixed-mode access nodes to bridge the gap between GPON and 10G-PON (Source: Dell’Oro Group, Broadband Access & Home Networking Report, 2025). The 7360 ISAM FX natively addresses this hybrid operational requirement, allowing ISPs to operate a single fiber infrastructure that supports multiple service tiers.

Architectural Deep Dive: Nokia 7360 ISAM FX-4 OLT for Edge Deployments

For remote node deployments, multi-dwelling units (MDUs), and medium-scale enterprise environments, minimizing the hardware footprint without sacrificing switching capacity is paramount. The Alcatel-Lucent 7360 ISAM FX-4 serves this specific market matrix.

FX-4 Chassis Structural Engineering and Backplane Throughput

The FX-4 is a highly compact, 5 Rack Unit (5RU) chassis designed for standard 19-inch rack mounting. Despite its minimized physical dimensions (223 mm height x 445 mm width x 280 mm depth), it operates on the exact same high-speed internal architecture as its larger counterparts. It supports four dedicated service slots, accommodating a diverse portfolio of line termination (LT) boards.

The true engineering marvel of the FX-4 lies in its backplane traces. It delivers an uncompromising 2 x 100 Gb/s per slot high-capacity backplane link. This means that even if all four slots are fully populated with highly dense 10G PON cards, the internal switching matrix will not become a bottleneck. The high-bandwidth throughput is guaranteed by dual 100Gb/s backplane connections linking every single line termination slot to the central controller unit.

Network Termination (NT) and Redundancy Protocols

The brain of the FX-4 chassis is typically powered by the FANT-F Network Termination (NT) controller card. The FANT-F provides a bidirectional switching matrix of 480 Gb/s. To ensure carrier-grade uptime—which demands 99.999% availability—the FX-4 supports full NT redundancy. When provisioned with dual FANT-F cards, the system operates in an Active/Active redundancy state with advanced load sharing capabilities.

Furthermore, uplink resilience is heavily fortified. The chassis supports standard Link Aggregation Groups (LAG) alongside complex MPLS (Multiprotocol Label Switching) and Ethernet Ring Protection Switching (ERPS) under the ITU-T G.8032 protocol. This allows the FX-4 to instantly reroute traffic in less than 50 milliseconds in the event of an upstream fiber cut, making it highly attractive for critical enterprise networks and hospital campuses.

Scaling Up: Nokia 7360 ISAM FX-8 OLT High-Density Aggregation

When network architects must provision entire metropolitan sectors or densely populated residential subdivisions, the hardware must scale accordingly. The Nokia 7360 ISAM FX-8 offers a structural upgrade, providing double the termination capacity while maintaining the robust architecture of the ISAM family.

FX-8 Physical Attributes and Port Densities

Operating within an 8 Rack Unit (8RU) envelope, the FX-8 expands the service slot count to eight. If an engineer fully populates this chassis with 16-port GPON cards (such as the FGLT-B), the FX-8 can natively output 128 GPON ports. Assuming a standard deployment utilizing a 1:64 optical split ratio, a single FX-8 chassis can provide gigabit fiber internet to 8,192 distinct subscriber locations.

Like the FX-4, the FX-8 retains the identical non-blocking backplane capability of 2 x 100 Gb/s per slot. This uniformity is highly beneficial for network maintenance and spare parts inventory, as the NT cards, uplink modules, and line termination boards are strictly cross-compatible between the two chassis models.

Thermal Management and Power Rectification

High-density data switching generates immense thermal load. The FX-8 is constructed with side-to-side airflow channels and features over-temperature sensors that autonomously trigger shutdown sequences to protect core optical components if ambient temperatures exceed operational thresholds. The system is rated to operate flawlessly in extreme environments ranging from -40°C to +65°C (-40°F to 149°F), making it highly suitable for un-airconditioned outdoor cabinet deployments.

Power is managed via fully redundant dual power feeds (Branch A and Branch B) operating on standard -48/60V DC nominal telecom power. This guarantees that isolated power supply unit (PSU) failures at the central office do not interrupt optical transmission to the end-users.

Dissecting the FGLT-B 16-Port GPON Line Termination Board

The line termination (LT) card is where the electrical switching matrix interfaces with the physical optical distribution network (ODN). The FGLT-B GPON Board is widely regarded as the industry workhorse for Alcatel-Lucent / Nokia ISAM deployments, providing extremely stable downstream and upstream laser multiplexing.

Core Interface Specifications and Bandwidth Capacity

The FGLT-B (Part Number: 3FE68954AB) is a dense 16-port GPON Line Termination card. Each of its 16 SC/PC ports adheres strictly to ITU-T G.984 GPON standards, operating over single-mode optical fiber. At a fundamental physics level, it transmits data downstream to the user at a wavelength of 1490 nm and receives upstream data from the user at 1310 nm.

From a bandwidth perspective, each port on the FGLT-B card provides an asymmetric data rate:

• Downlink Rate: 2.488 Gb/s per port

• Uplink Rate: 1.244 Gb/s per port

By multiplying this across the 16 available interfaces, a single FGLT-B board commands a total aggregated downlink throughput of approximately 40 Gb/s and an uplink throughput of 20 Gb/s. When paired with the 200 Gb/s slot capacity of the FX backplane, the board functions without any risk of internal data contention, ensuring that even under absolute maximum load, packets are switched at wire-speed.

SFP Module Configurations: Optical Budgets Explained

The range and capability of the FGLT-B board are entirely dictated by the Small Form-Factor Pluggable (SFP) modules inserted into its ports. While legacy networks often utilized Class B+ optical modules, modern deployments strictly rely on Class C+ optics to maximize the reach and split ratios of the passive network.

When equipped with Class C+ SFP modules, the FGLT-B board exhibits the following critical optical parameters:

• Minimum Output Optical Power: 3.00 dBm

• Maximum Output Optical Power: 7.00 dBm

• Maximum Receiver Sensitivity: -32.00 dBm

• Overload Optical Power: -12.0 dBm

• Extinction Ratio: 8.2 dB

By analyzing these figures, an optical network engineer can calculate the precise power budget. A transmit power of +3 dBm combined with a receiver sensitivity of -32 dBm yields an optical loss budget of 35 dB. In practical real-world deployments—accounting for insertion losses at passive optical splitters, fiber attenuation (typically 0.25 dB per kilometer at 1490nm), and fusion splice losses—the FGLT-B with C+ optics can reliably push signals across distances of 30 km to 60 km while supporting higher split ratios of 1:64 or even 1:128 depending on the exact topology.

Expanding Bandwidth: NTIO and Uplink Optimization

While the FANT-F controller manages the primary processing, extreme-density configurations often require supplementary uplink throughput to connect back to the core routing infrastructure. This is where the Network Termination Input Output (NTIO) board, specifically the FNIO-A, becomes vital.

The FNIO-A provides an additional 80 Gb/s of network capacity to the ISAM FX chassis. It introduces eight configurable external Ethernet interfaces, which can be populated with optical Gigabit Ethernet (GE) or 10-Gigabit Ethernet (10GE) SFP+ transceivers. This flexibility allows network engineers to designate these ports as upstream links to the core IP/MPLS network, downstream links to cascade additional OLTs, or direct user links for high-value enterprise clients requiring dedicated non-PON dark fiber connections.

Dynamic Bandwidth Allocation (DBA) and Quality of Service (QoS)

A key differentiator between enterprise-grade Alcatel-Lucent hardware and lower-tier alternatives is the algorithmic sophistication of its Dynamic Bandwidth Allocation (DBA). GPON is inherently a shared medium; all ONTs (Optical Network Terminals) connected to a single FGLT-B port share the same 2.488 Gbps downstream and 1.244 Gbps upstream pipe.

The 7360 ISAM FX utilizes advanced DBA algorithms (specifically Traffic-CONTainer or T-CONT scheduling) managed via the Nokia 5520 Access Management System (AMS). The OLT constantly polls the ONTs in microsecond intervals to assess their buffer queues. It then dynamically adjusts the timeslots assigned to each ONT for uplink transmission. This allows the OLT to offer rigid Service Level Agreements (SLAs) for B2B clients, guaranteeing specific bitrates for critical VoIP or video conferencing traffic, while allowing “best-effort” internet traffic to burst up to 1 Gbps when the network is idle.

Technical Hardware Comparison: FX-4 vs. FX-8 Architecture

To assist technical procurement and engineering design teams, the following table explicitly outlines the parametric differences between the small and medium chassis configurations of the 7360 ISAM platform.

Migrating from GPON to Universal NG-PON

As B2B digital marketing, high-precision industrial rendering, and AI-driven automation workflows rapidly expand, corporate data centers and industrial hubs are pushing traditional GPON to its limits. One of the greatest strategic advantages of the 7360 ISAM FX architecture is its intrinsic readiness for Universal Next-Generation PON (NG-PON).

According to global broadband deployment tracking, 10G symmetric networks will dominate enterprise access by 2027 (Source: Search Engine Land Tech Infrastructure Review, 2025). Operators utilizing the 7360 ISAM FX-4 or FX-8 do not need a fork-lift upgrade to transition to 10G. Because of the massive 200 Gbps per-slot backplane capacity, engineers can simply slot in XGS-PON or TWDM-PON line cards right next to the existing FGLT-B GPON boards.

Through the use of Coexistence Elements (CEx multiplexers), the new 10G wavelengths (Tx 1577 nm, Rx 1270 nm for XGS-PON) can be overlaid perfectly on top of the existing GPON wavelengths (Tx 1490 nm, Rx 1310 nm) on the exact same physical fiber strand. This allows internet service providers to offer high-value 10 Gbps symmetrical connections to enterprise clients while leaving residential GPON customers undisturbed, severely limiting CapEx outlays.

Implementing Passive Optical LAN (POL) in Enterprise Scenarios

Beyond traditional telecom operations, the 7360 ISAM FX is becoming a dominant force in Enterprise LAN redesigns. Large-scale corporate campuses, university networks, and hospital complexes are abandoning traditional copper-based active Ethernet architectures (which require power-hungry switches every 100 meters) in favor of Passive Optical LAN (POL).

By utilizing a centralized FX-4 chassis in the main data center and running single-mode fiber through splitters directly to desktop ONTs, organizations can reduce their cabling footprint by up to 80% and their energy consumption by roughly 60%. The centralized management via the Nokia POL Command Center (PCC) allows IT administrators to instantly provision VLANs, update security policies, and manage up to 8,000 end-points from a single interface, making the FGLT-B equipped chassis highly lucrative for high-end B2B hardware integration.

Frequently Asked Questions (FAQs)

What is the maximum switching capacity of the 7360 ISAM FX-4?

When equipped with the FANT-F network termination card, the ISAM FX-4 provides a bidirectional switching matrix of 480 Gb/s. If upgraded to the FANT-G controller, the switching capacity expands massively to 1.2 Terabits per second, securing long-term future-proofing.

Can the FGLT-B line termination board be used in both FX-4 and FX-8 chassis?

Yes. The Alcatel-Lucent 7360 ISAM FX series features a universal backplane interface design. The FGLT-B 16-port GPON board is fully cross-compatible and hot-swappable across the FX-4, FX-8, and even the larger FX-16 chassis.

What is the difference between Class B+ and Class C+ SFP modules on the FGLT-B?

Class C+ modules provide a significantly higher optical power budget (up to 35 dB) compared to Class B+ modules (typically 28 dB). This allows Class C+ equipped FGLT-B boards to transmit data over longer distances (up to 60km) or support higher user split ratios (like 1:128) without signal degradation.

Does the Alcatel-Lucent 7360 ISAM platform natively support XGS-PON?

Absolutely. Because the chassis features a non-blocking backplane delivering 2 x 100 Gb/s to each slot, it natively supports XGS-PON and TWDM-PON line cards. Operators can run XGS-PON and GPON simultaneously on the same chassis.

How does the FX-8 handle central office power failures?

The FX-8 chassis is designed with carrier-grade fault tolerance. It utilizes fully redundant, dual -48/60V DC power feeds (Branch A and Branch B). If one power delivery branch fails, the secondary branch assumes the total electrical load instantly with zero packet loss.

What wavelengths does the FGLT-B GPON board use for transmission?

Adhering to standard ITU-T G.984 GPON protocols, the FGLT-B transmits data downstream to the user at a wavelength of 1490 nm and receives upstream data from the user at a wavelength of 1310 nm over single-mode optical fiber.

What is the purpose of the FNIO-A NTIO card in the ISAM chassis?

The FNIO-A is an optional Network Termination Input Output board that provides an additional 80 Gb/s of network capacity. It features eight external optical interfaces (GE or 10GE) that can be utilized as high-capacity uplink aggregation ports or direct enterprise user links.

How is the 7360 ISAM hardware managed remotely?

The hardware is centrally provisioned and managed using the Nokia 5520 Access Management System (AMS) or the 5529 Access Provisioning Center (APC). These software platforms allow for remote firmware deployment, TL1 command line access, and advanced optical network diagnostics.

Conclusion

The Alcatel-Lucent (Nokia) 7360 ISAM FX-4, FX-8, and the FGLT-B GPON line board collectively form one of the most resilient and scalable optical broadband platforms in the global telecommunications sector. By prioritizing a non-blocking, multi-terabit backplane and incorporating rigorous redundancy across power, controller, and uplink vectors, this architecture provides operators with unparalleled operational stability. Whether you are expanding a rural broadband footprint or designing an advanced enterprise Passive Optical LAN, the ISAM FX platform ensures low-latency, high-throughput delivery while securing an effortless migration path toward 10G XGS-PON.
