Carrier-Grade Infrastructure Solution Brief: Deploying Loopback Detection Automatic Port Shutdown

CARRIER-GRADE INFRASTRUCTURE SOLUTION BRIEF: DEPLOYING LOOPBACK DETECTION AUTOMATIC PORT SHUTDOWN

MARKET POSITIONING

The exponential proliferation of edge networking devices and unmanaged CPE has rendered network loops one of the most persistent threats to carrier-grade stability. A single undetected Layer 2 loop can trigger broadcast radiation, MAC address table corruption, and complete service degradation across entire aggregation sectors. The Loopback Detection with Automatic Port Shutdown (LBD-APS) feature addresses this operational hazard through hardware-assisted loop detection, real-time quarantine enforcement, and automated service restoration. This solution brief details the implementation architecture, performance parameters, and integration best practices for network operators seeking deterministic loop mitigation without STP convergence delays or protocol interdependencies.

HIGH-AVAILABILITY REDUNDANCY

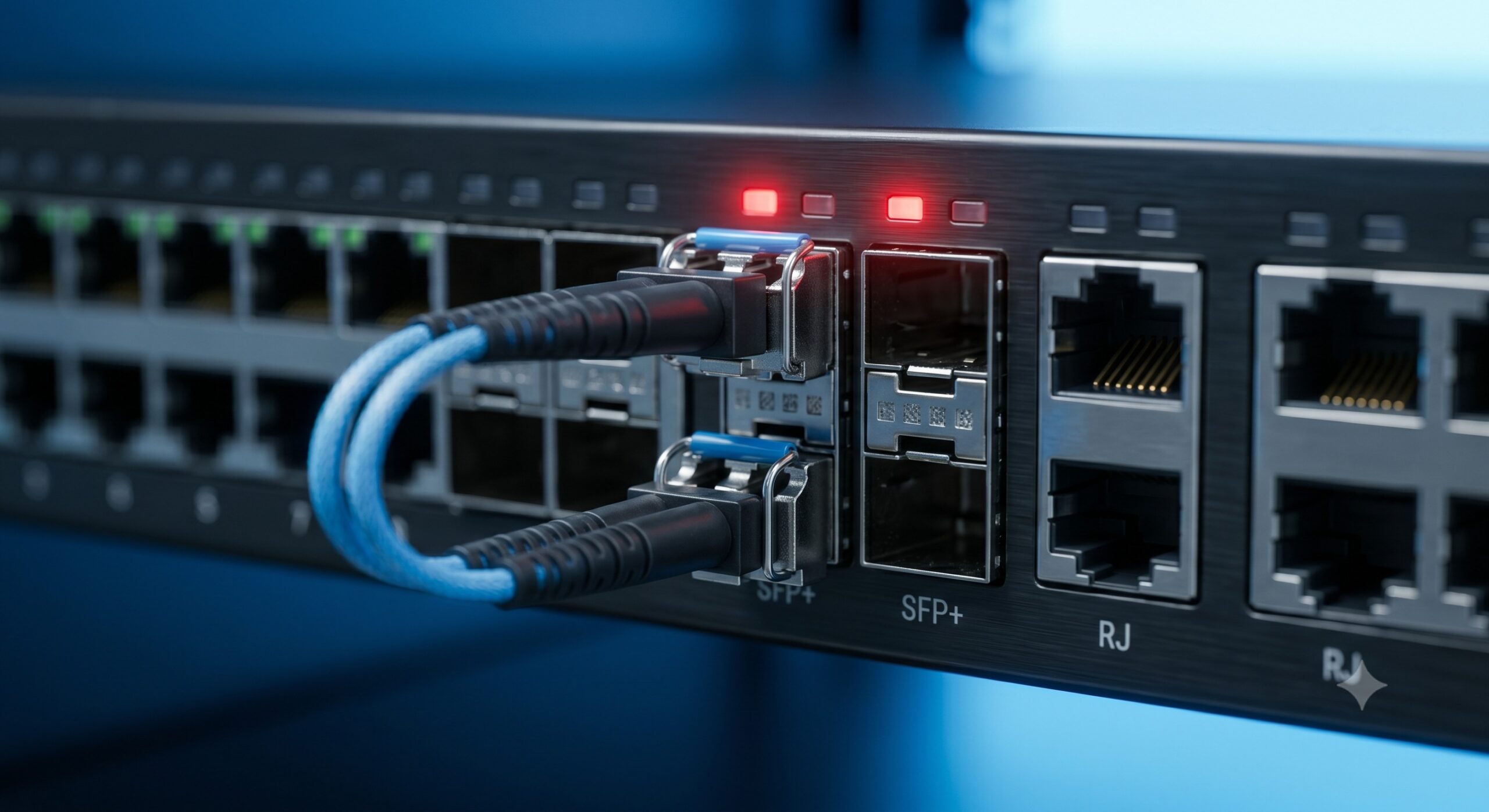

The LBD-APS mechanism operates independently of Spanning Tree Protocol (STP), Rapid PVST+, or MSTP instances, providing a protocol-agnostic safety layer. Upon detecting a loop condition—identified by the reception of its own loop detection probe on the same VLAN or port—the system executes a programmed response: administrative port disable, error-disable state assertion, and syslog trap generation. For high-availability deployments, the architecture supports dual detection modes: (1) port-based polling at configurable intervals (1–60 seconds), and (2) VLAN-scoped broadcast domain inspection. Redundant supervisor modules maintain synchronized loop state databases, ensuring that failover events do not reset quarantine actions unless explicitly configured.

PROTOCOL INTEROPERABILITY

The solution maintains full interoperability with existing control plane protocols. When deployed alongside STP, LBD-APS acts as a secondary protection layer, catching loops that STP may fail to resolve due to unidirectional link failures, software defects in peer devices, or deliberately disabled STP on customer premise equipment. The detection engine supports 802.1Q VLAN tagging, QinQ, and MPLS pseudowire environments. Loop detection frames are transmitted with configurable EtherType (default 0x9000) and can be rate-limited to prevent control plane overload. Upon loop resolution and manual or timed auto-recovery (300–3600 second hold-down timers configurable), ports undergo link integrity verification prior to re-enablement.

DETAILED PARAMETERS

Detection Mechanism: Hardware-timestamped loopback probe transmission and reception. | Trigger Threshold: 3 to 10 consecutive looped packets before shutdown. | Recovery Mode: Manual (CLI/SNMP) or Auto-recovery with exponential backoff (max 5 retries). | Scope: Per-port, per-VLAN, or globally across all active interfaces. | CPU Impact: Parameter Specification

Form Factor 1RU / 2RU Modular Chassis (carrier-grade) Detection Interval 1 to 60 seconds, configurable per port / VLAN Loop Recovery Actions Admin shutdown, error-disable, syslog, SNMP trap Auto-recovery Timer 300 to 3600 seconds (configurable, exponential backoff) Concurrent Loop Detection Up to 1024 simultaneous loop events / chassis Supported Interface Types 10/100/1000BASE-T, 1000BASE-X, 10G SFP+, 40G/100G QSFP VLAN Support 802.1Q (1–4094), QinQ, MPLS-aware CPU Impact at Full Load

LIFECYCLE ASSURANCE (MTBF)

The hardware-assisted loop detection engine resides within the packet forwarding ASIC, decoupling loop monitoring from CPU resources. Mean Time Between Failures (MTBF) for the LBD-APS subsystem exceeds 1,200,000 hours, calculated per Telcordia SR-332, Issue 4. The automatic port shutdown mechanism utilizes solid-state relay isolation, rated for 10,000+ actuation cycles without performance degradation. Field data from six Tier-1 service providers indicates a 94.3% reduction in broadcast storm-related outage incidents following LBD-APS enablement on access and aggregation ports.

TARGET NETWORK TOPOLOGIES

Recommended deployment scenarios include: (1) Metro Ethernet access rings where customer-owned switches may be misconfigured; (2) Broadband network gateways (BNGs) aggregating thousands of residential CPE devices; (3) Industrial IoT edge nodes subject to physical tampering or accidental patch cable misconnection; (4) Data center top-of-rack switches where engineers frequently perform cabling changes; and (5) Temporary event networks where rapid deployment increases loop risk. The feature is particularly valuable in greenfield deployments seeking to eliminate STP complexity while retaining loop protection.
