CE6857E-48T6CQ Huawei CE6800 switch supports 48*10GE RJ45, 6*100GE QSFP28

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE6857E-48T6CQ Overview

Item Details
Description CE6857E-48T6CQ switch (48*10GE RJ45, 6*100GE QSFP28, without fan and power modules)
Part Number 02353VWQ
Model CE6857E-48T6CQ
First supported version V200R020C10
Other part numbers 02353VWR (CE6857E-48T6CQ switch (48*10GE RJ45, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake))

02353VWT (CE6857E-48T6CQ switch (48*10GE RJ45, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust))
Short Name CE6857E

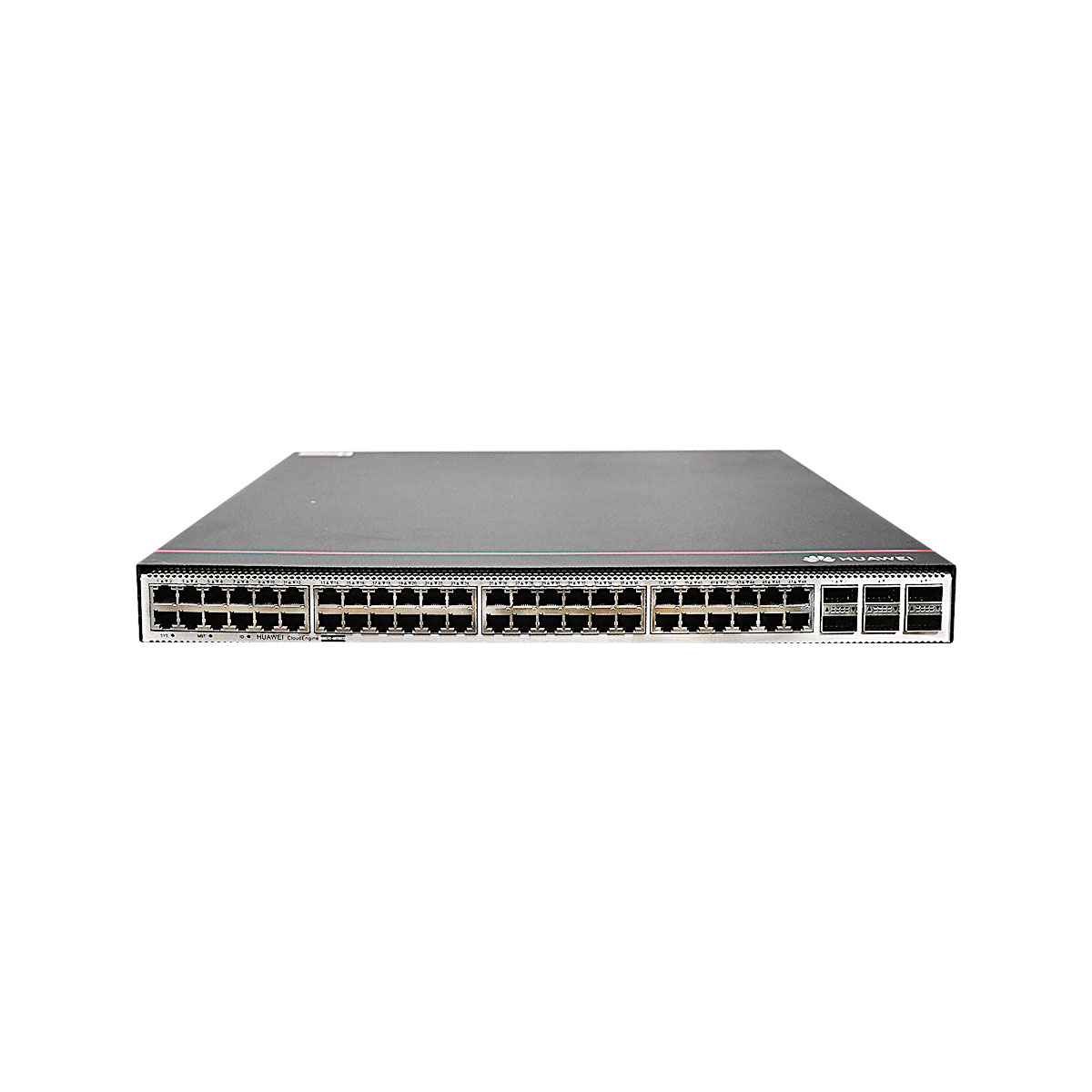

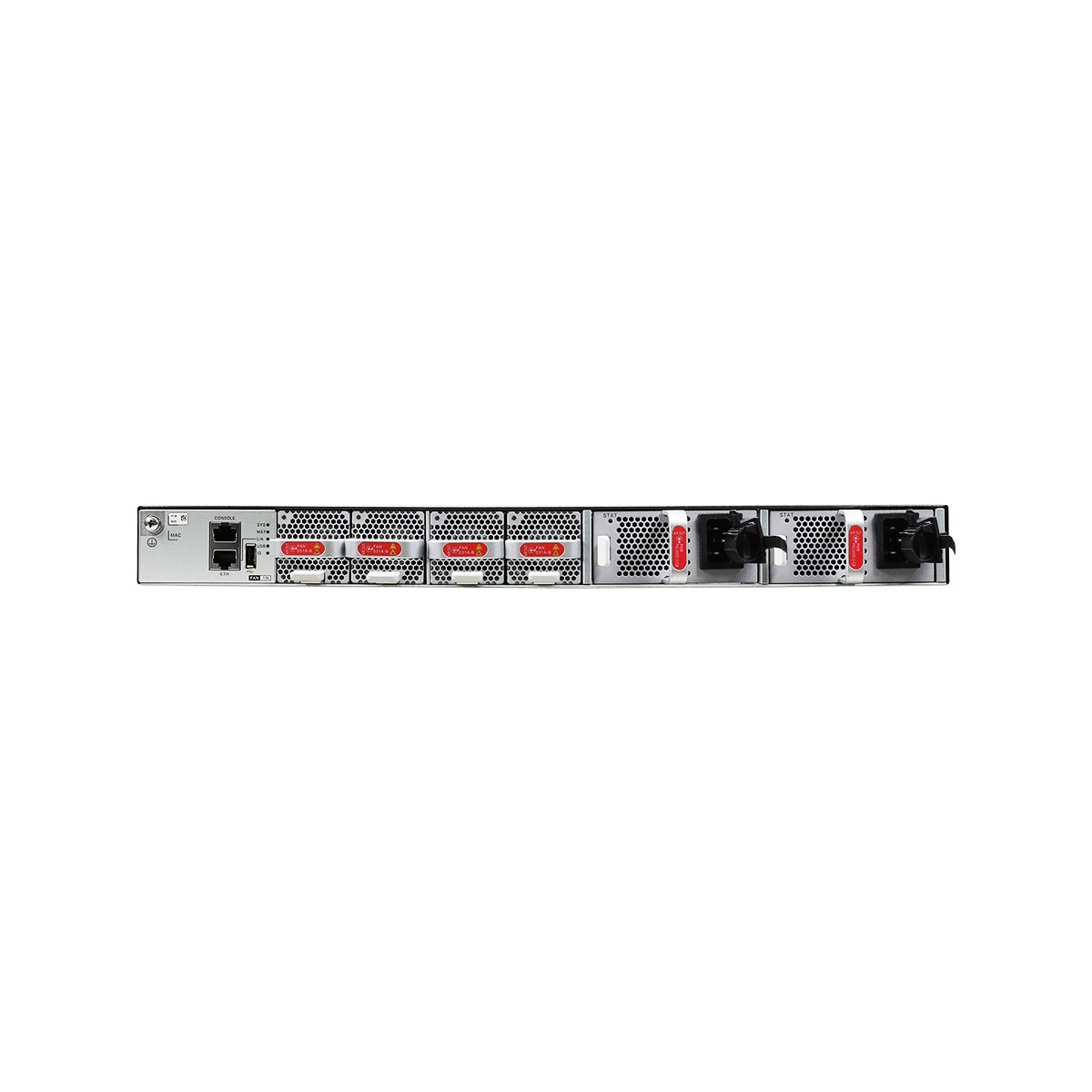

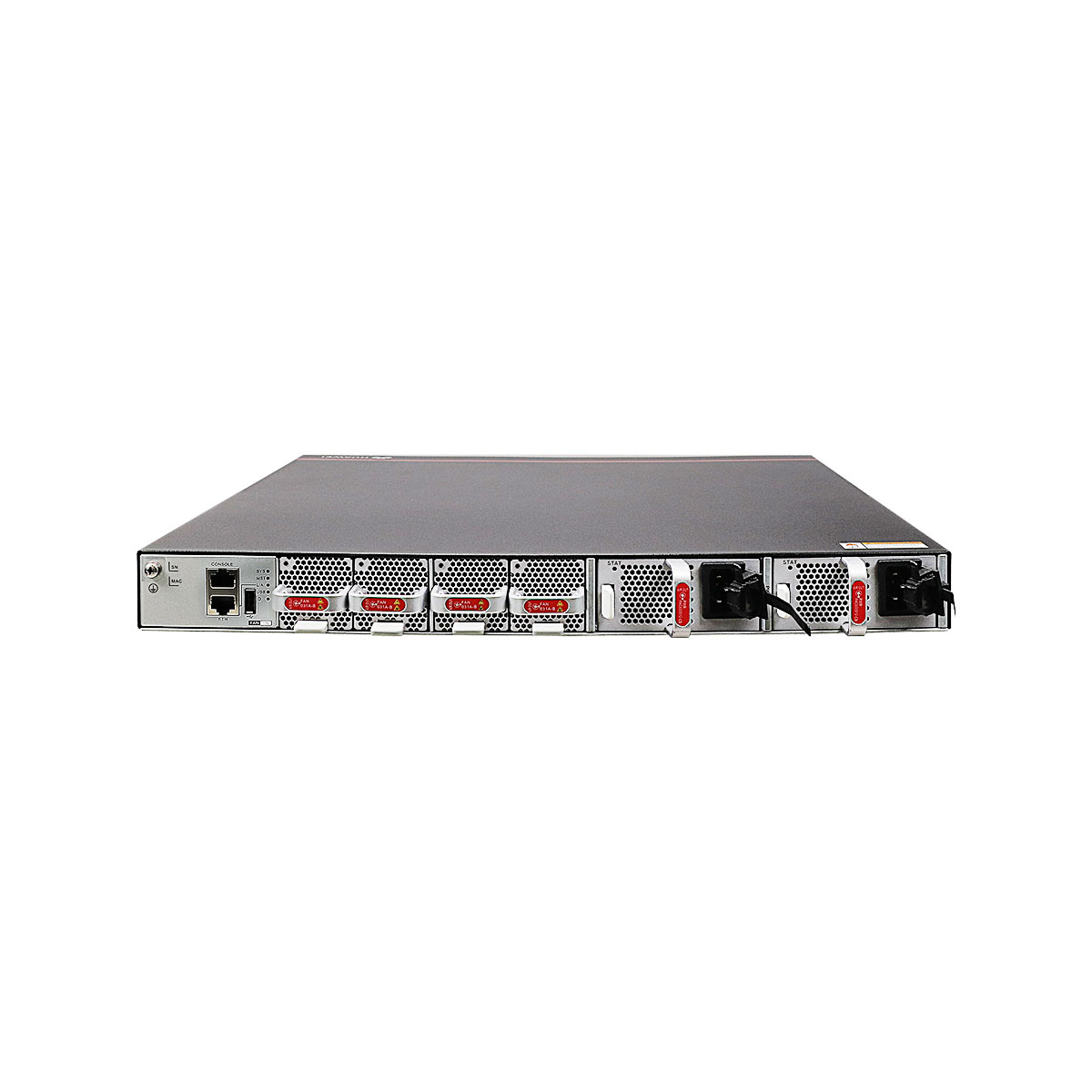

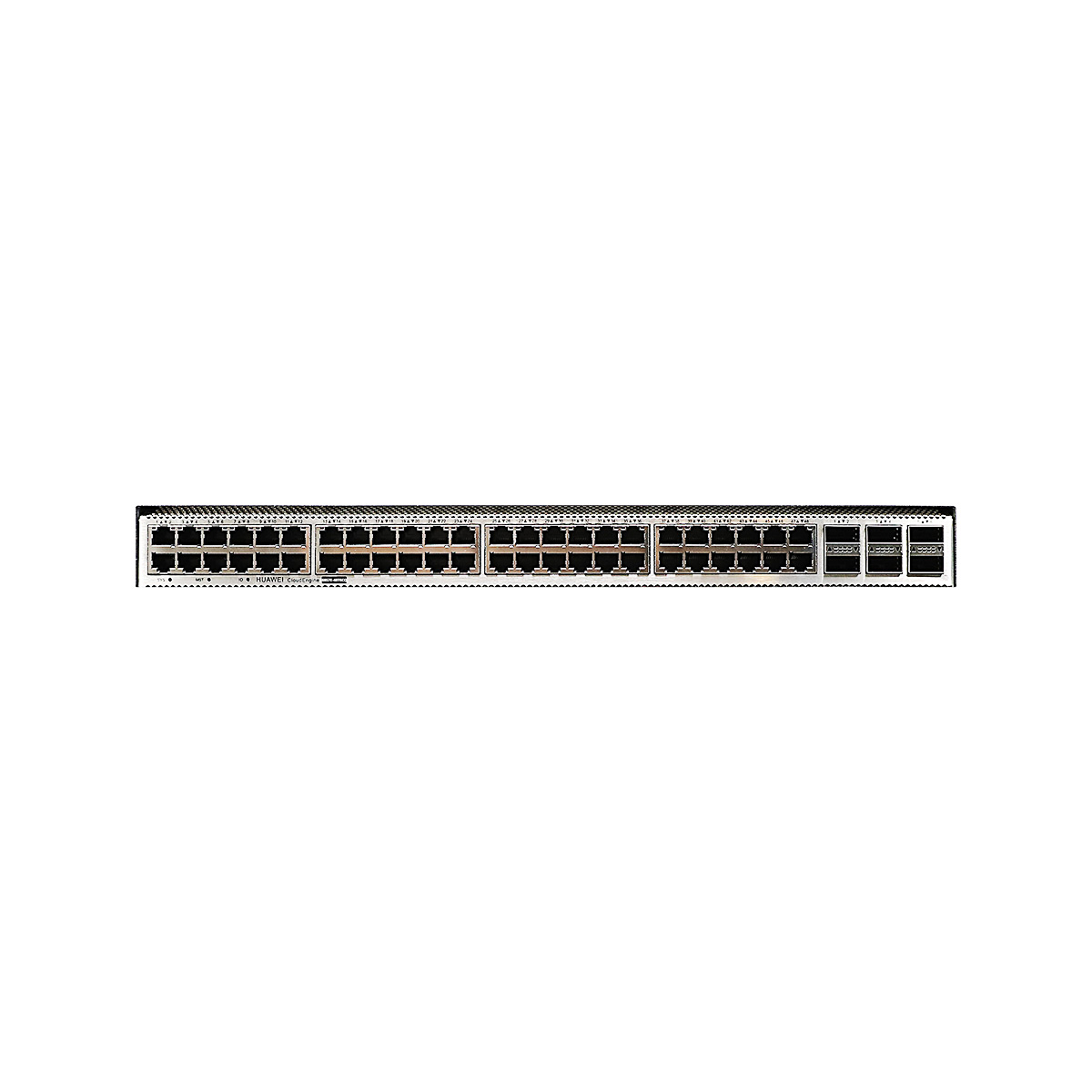

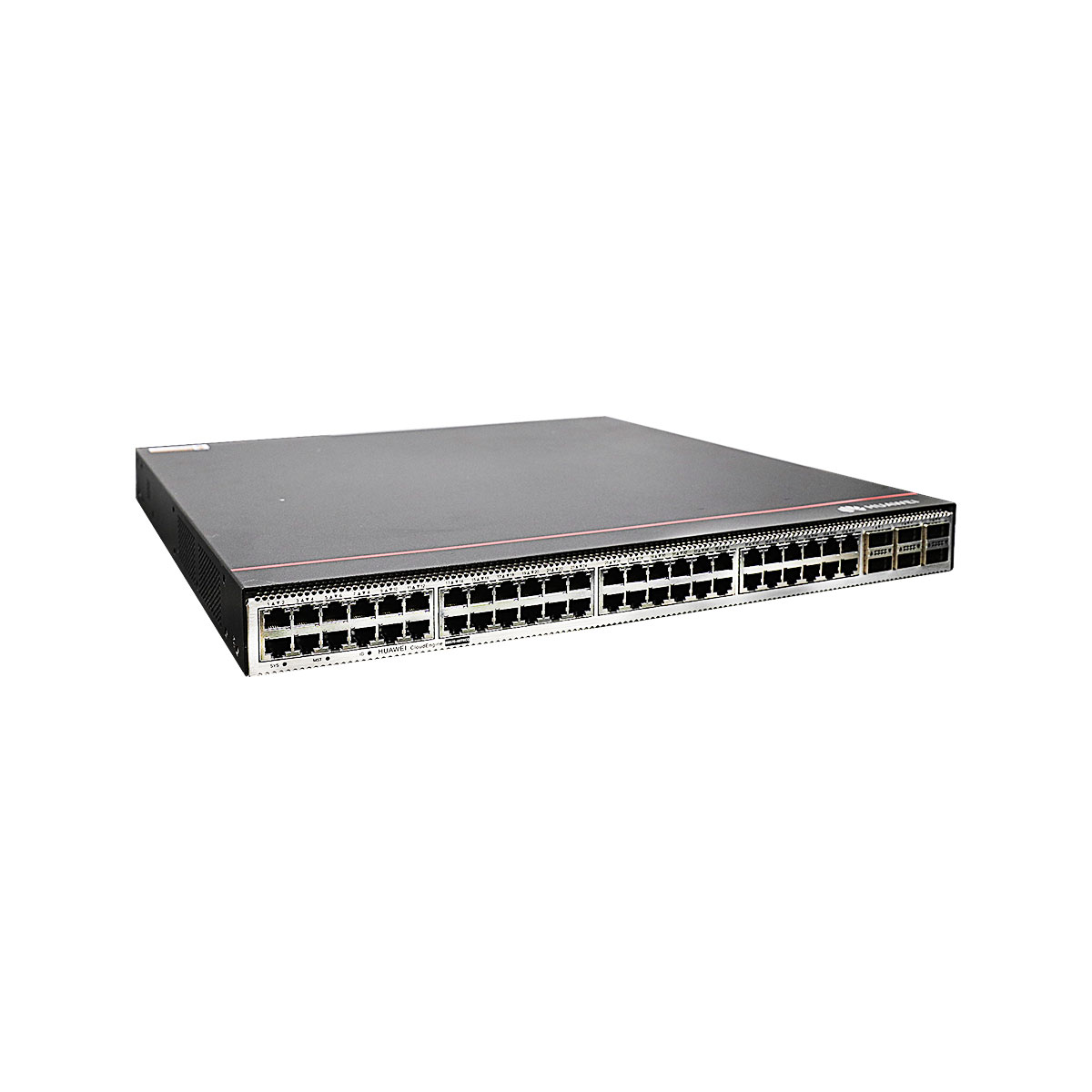

CE6857E-48T6CQ Appearance

CE6857E 48T6CQ



1 Ground screw 2 Two ETH management ports (combo)

Applicable modules for the GE optical port of the combo port:

  • FE SFP_eSFP Optical Modules
  • GE eSFP Optical Modules

NOTE:

The combo optical port uses a 100M or GE optical module and matching fibers. A 100M optical module can be used only after the switch starts successfully.
3 Console port 4 USB port
5 Mini USB port 6

Barcode label

NOTE:

This label is drawable, and you can pull it outward to view the ESN barcode and MAC address of the switch.
7 Fan slot 1

Applicable fan modules:

  • FAN-060A Series Fan Modules
 8 Fan slot 2

Applicable fan modules:

  • FAN-060A Series Fan Modules
9 Power supply slot 1

Applicable power modules:

  • 600 W AC&240 V DC power module (PAC-600WB)
  • 600 W High-Voltage DC Power Module
  • 1200 W DC Power Module (PDC-1K2WA)
  • 1200 W High-voltage DC Power Module (PHD-1K2WA)
 10 Power supply slot 2

Applicable power modules:

  • 600 W AC&240 V DC power module (PAC-600WB)
  • 600 W High-Voltage DC Power Module
  • 1200 W DC Power Module (PDC-1K2WA)
  • 1200 W High-voltage DC Power Module (PHD-1K2WA)
11 Forty-eight 10GBASE-T Ethernet electrical ports 12 Six 40GE QSFP+ Ethernet optical ports

NOTE:

A 40GE QSFP+ port can be split into four 10GE ports.

In V200R005C00 and later versions, a QSA convertor can be installed on a 40GE interface that has been split. Installing a medium whose rate is 10 Gbit/s on the QSA convertor makes a 40GE interface function as a 10GE interface. Only the first split interface works and other three split interfaces are unavailable. If a QSA convertor is installed on an interface that is not split or a medium whose rate is not 10 Gbit/s is installed on the QSA convertor on an interface that has been split, the interface enters the Down(Transceiver type mismatch) status.

Applicable modules and cables:

  • 40GE QSFP+ Optical Modules
  • QSFP+ to QSFP+ AOC cable
  • QSFP+ to 4*SFP+ AOC cable
  • QSFP+ to 4*SFP+ High-Speed Cable
  • QSFP+ to QSFP+ High-Speed Cable
13 Three port-side mounting holes for mounting brackets 14 Four middle mounting holes for mounting brackets
15 Four power-supply-side mounting holes for mounting brackets – –
Item CE6857E-48T6CQ
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU 4-core, 1.6 GHz
Memory DRAM: 4 GB
NOR Flash 128 MB
SSD Flash 8 GB
USB Supported
Power supply mode
  • DC pluggable
  • AC pluggable
  • HVDC pluggable
Console port RJ45
Downlink Service interface 48*10GE RJ45 (10GE interfaces are compatible with GE but do not support 100M/10M electrical interfaces. They only support full-duplex, not half-duplex.)
Uplink Service interface 6*100GE QSFP28
NOTE:
1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. In V2R20C10, 40G/100G uplink ports cannot be split. In V2R21C00 and later versions, 40G/100G uplink ports 3 and 4 can be split into 4x25G and 4x10G ports, and the other 40G/100G uplink ports cannot be split.
Service port supporting the stack function 10GE electrical ports and 100GE optical ports
RTC Supported
Typical power consumption [W]
  • 252 W (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, dual power modules)
  • 270 W (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, dual power modules)
Typical heat dissipation [BTU/hour]
  • 860 BTU/hour (50% traffic load, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, dual power modules)
  • 921 BTU/hour (50% traffic load, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, dual power modules)
Static power consumption [W] 136 W
Static heat dissipation [BTU/hour] 464 BTU/hour
Maximum power consumption [W] 363 W
Maximum heat dissipation [BTU/hour] 1239 BTU/hour
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 600 W AC&240 V DC power module : AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
  • 1000 W DC power module: –48V DC to –60V DC
  • 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]
  • 600 W AC&240 V DC power module : AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
  • 1000 W DC power module: –38.4 V DC to –72 V DC
  • 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]
  • 600 W AC&240 V DC power module : 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
  • 1000 W DC power module : 30 A (-48 V DC to -60 V DC)
  • 1200 W high-voltage DC power module: 8 A
Rated output power [W]
  • 600 W AC&240 V DC power module : 600 W
  • 1000 W DC power module : 1000 W
  • 1200 W high-voltage DC power module: 1200 W
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
Power supply surge protection [kV]
  • AC: 6 kV in common mode and 6 kV in differential mode.
  • DC: 4 kV in common mode and 2 kV in differential mode.
  • HVDC: 4 kV in common mode and 2 kV in differential mode.
Types of fans Pluggable
Number of fan modules 4
Redundant fans The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
Availability 0.999996178
MTBF [year] 46.59 years
Noise at normal temperature (27°C, sound pressure) [dB(A)]
  • Front-to-back airflow: average 50 dBA (maximum: 54 dBA)
  • Back-to-front airflow: average 53 dBA (maximum: 57 dBA)
Noise at high temperature (40°C, sound pressure) [dB(A)]
  • Front-to-back airflow: average 69 dBA (maximum: 73 dBA)
  • Back-to-front airflow: average 72 dBA (maximum: 77 dBA)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)] < 5000 m (16404 ft.)
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)] -40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging [kg (lb)] 5.75 kg (12.7 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] 8.05 kg (17.7 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging [kg (lb)] 9.15 kg (20.2 lb)
Weight with packaging (full configuration) [kg (lb)] 11.4 kg (25.1 lb)
Chassis height [U] 1 U
Installation Type Cabinet Installation
