ZTE’s ZXA10 C300 series solution is very threatening to competitors in the global FTTP market. The new ZXA10 C300 platform is one of only a handful of FTTP OLT solutions that supports both standards-based GPON and EPON, not to mention point-to-point active Ethernet (AE) FTTP and 10G EPON. This gives ZTE a solid competitive advantage in terms of deployment flexibility vis-à-vis rival vendor OLTs, most of which will support only one or two of the various FTTP connectivity options. This article will introduce you ZTE C300 series boards.



Switching and Control Cards



The ZXA10 C300/C350/C320 supports the following switching and control cards:

  • SCTM: supports 2.56 Tbps switching capacity, 256k MAC address table.
  • SCXN: supports 480 Gbps switching capacity, 32k MAC address table, and VoIP function (with VoIP daughter-card).
  • SCXM: supports 480 Gbps switching capacity and 32k MAC address table.
  • SCXL: supports 800 Gbps switching capacity and 32k MAC address table.

SMXA: supports 128 Gbps switching capacity, 32k MAC address table.

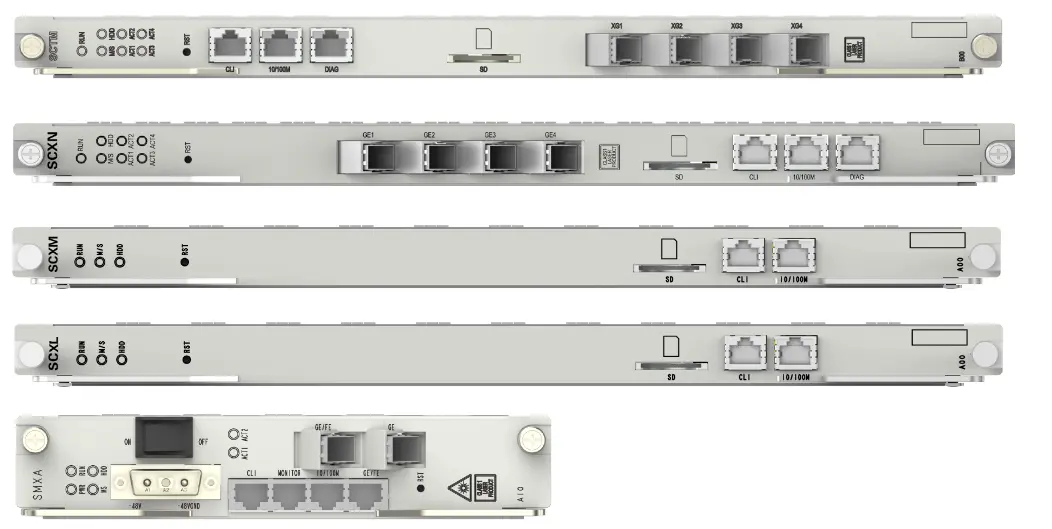

C300 Main Control Board





10GE Ethernet Uplink Cards



The ZXA10 C300/350 supports the following 10GE Ethernet uplink cards:

  •  XUTQ: 4-port 10GE optical interface Ethernet uplink card
  •  XUVQ: 4-port 10GE optical interface Ethernet uplink card, supports SynE and IEEE 1588 TC function.

C300 Uplink



EPON Interface Cards



The EPON interface cards provide EPON access. The ZXA10 C300/C350/C320 supports the following EPON interface cards:

  •  ETGH: 16-port EPON interface card
  •  ETGO: 8-port EPON interface card



GPON Interface Cards



The GPON interface cards provide GPON access. The ZXA10 C300/C350/C320 supports the following GPON interface cards:

  •  GTGH: 16-port GPON interface card
  •  GTGO: 8-port GPON interface card



10G-EPON Interface Cards



The 10G-EPON interface cards provide 10G-EPON access. The ZXA10 C300/C350/C320 supports the following 10G-EPON interface cards:

  •  ETTO: 8-port symmetric/asymmetric 10G-EPON interface card
  •  ETXD: 2-port asymmetric 10G-EPON interface card



GPON Optical Module Specifications

Item Single Fiber Bidirectional Optical Module, Class B+ Single Fiber Bidirectional Optical Module, Class C+ Single Fiber Bidirectional Optical Module, Class C++
SN 1 2 3
Operating wavelength Tx: 1490nm Tx: 1490 nm Tx: 1490 nm
Rx: 1310nm Rx: 1310 nm Rx: 1310 nm
Encapsulation mode SFP SFP SFP
Bandwidth Tx: 2.488 Gbit/s Tx: 2.488 Gbit/s Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s Rx: 1.244 Gbit/s Rx: 1.244 Gbit/s
Minimum output optical power 1.5 dBm 3.0 dBm 4.5 dBm
Maximum output optical power 5.0 dBm 7.0 dBm 8.0 dBm
Maximum receiver sensitivity -28.0 dBm -32.0 dBm -30 dBm @10E-10

-32 dBm @10E-10
Optical connector type SC/PC SC/PC SC/PC
Optical fiber type Single mode Single mode Single mode
Transmission distance 20.0 km 20.0 km 20.0 km
Saturation optical power -8.0 dBm -12.0 dBm -12.0 dBm
Extinction ratio 10.0 dB 8.2 dB 8.2 dB



XG-PON1 Interface



XG-PON1 Optical Module Specifications

Item Single Fiber Bidirectional Optical Module, N1 Single Fiber Bidirectional Optical Module, N2a
SN 1 2
Operating wavelength Tx: 1577 nm Tx: 1577 nm
Rx: 1270nm Rx: 1270 nm
Encapsulation mode XFP XFP
Bandwidth Tx: 10 Gbit/s Tx: 10 Gbit/s
Rx: 2.488 Gbit/s Rx: 2.488 Gbit/s
Minimum output optical power 2 dBm 4 dBm
Maximum output optical power 6 dBm 8 dBm
Maximum receiver sensitivity -27.5 dBm -29.5 dBm
Optical connector type SC/UPC SC/UPC
Optical fiber type Single mode Single mode
Transmission distance 20 km 20 km
Saturation optical power -7 dBm -9 dBm
Extinction ratio 8.2 dB 8.2 dB



XGS-PON Interface



XGS-PON Optical Module Specifications

Item Single Fiber Bidirectional Optical Module, N1 Single Fiber Bidirectional Optical Module, N2a
SN 1 2
Operating wavelength Tx: 1577 nm Tx: 1577 nm
Rx: 1270 nm Rx: 1270 nm
Encapsulation mode XFP XFP
Bandwidth Tx: 10 Gbit/s Tx: 10 Gbit/s
Rx: 10 Gbit/s Rx: 10 Gbit/s
Minimum output optical power 2 dBm 4 dBm
Maximum output optical power 5 dBm 7 dBm
Maximum receiver sensitivity -26 dBm -28 dBm
Optical connector type SC/UPC SC/UPC
Optical fiber type Single mode Single mode
Transmission distance 60 km 60 km
Saturation optical power -5 dBm -7 dBm
Extinction ratio 8.2 dB 8.2 dB



EPON Interface



EPON Optical Module Specifications

Item Single Fiber Bidirectional Optical Module, PR20+ Single Fiber Bidirectional Optical Module, PR20++
SN 1 2
Operating wavelength Tx: 1490 nm Tx: 1490 nm
Rx: 1310 nm Rx: 1310 nm
Encapsulation mode SFP SFP
Bandwidth Tx: 1.25 Gbit/s Tx: 1.25 Gbit/s
Rx: 1.25 Gbit/s Rx: 1.25 Gbit/s
Minimum output optical power 2.5 dBm 4.5 dBm
Maximum output optical power 7.0 dBm 8.0 dBm
Maximum receiver sensitivity -30.0 dBm -32.0 dBm
Optical connector type SC/PC SC/PC
Optical fiber type Single mode Single mode
Transmission distance 20.0 km 20.0 km
Saturation optical power -6.0 dBm -6.0 dBm
Extinction ratio 9.0 dB 9.0 dB



10G-EPON Interface



10G-EPON Optical Module Specifications

Item Single Fiber Bidirectional Optical Module, PRX30 Single Fiber Bidirectional Optical Module, PR30
SN 1 2
Operating wavelength Tx: 1577 nm/1490 nm Tx: 1577 nm/1490 nm
Rx: 1270 nm Rx: 1270 nm/1310 nm
Encapsulation mode XFP XFP
Bandwidth Tx: 10.3125 Gbit/s, 1.25 Gbit/s Tx: 10.3125 Gbit/s, 1.25 Gbit/s
Rx: 1.25 Gbit/s Rx: 10.3125 Gbit/s, 1.25 Gbit/s
Minimum output optical power 10G channel: ≥2.5 dBm 10G channel: ≥2.5 dBm
1G channel: ≥3 dBm 1G channel: ≥3 dBm
Maximum output optical power 10G channel: ≤5 dBm 10G channel: ≤5 dBm
1G channel: ≤7 dBm 1G channel: ≤7 dBm
Maximum receiver sensitivity -31 dBm 10G channel: ≥-28.5 dBm
1G channel: ≥-31 dBm
Optical connector type SC/UPC SC/UPC
Optical fiber type Single mode Single mode
Transmission distance 20 km 20 km
Saturation optical power -9 dBm -6 dBm
