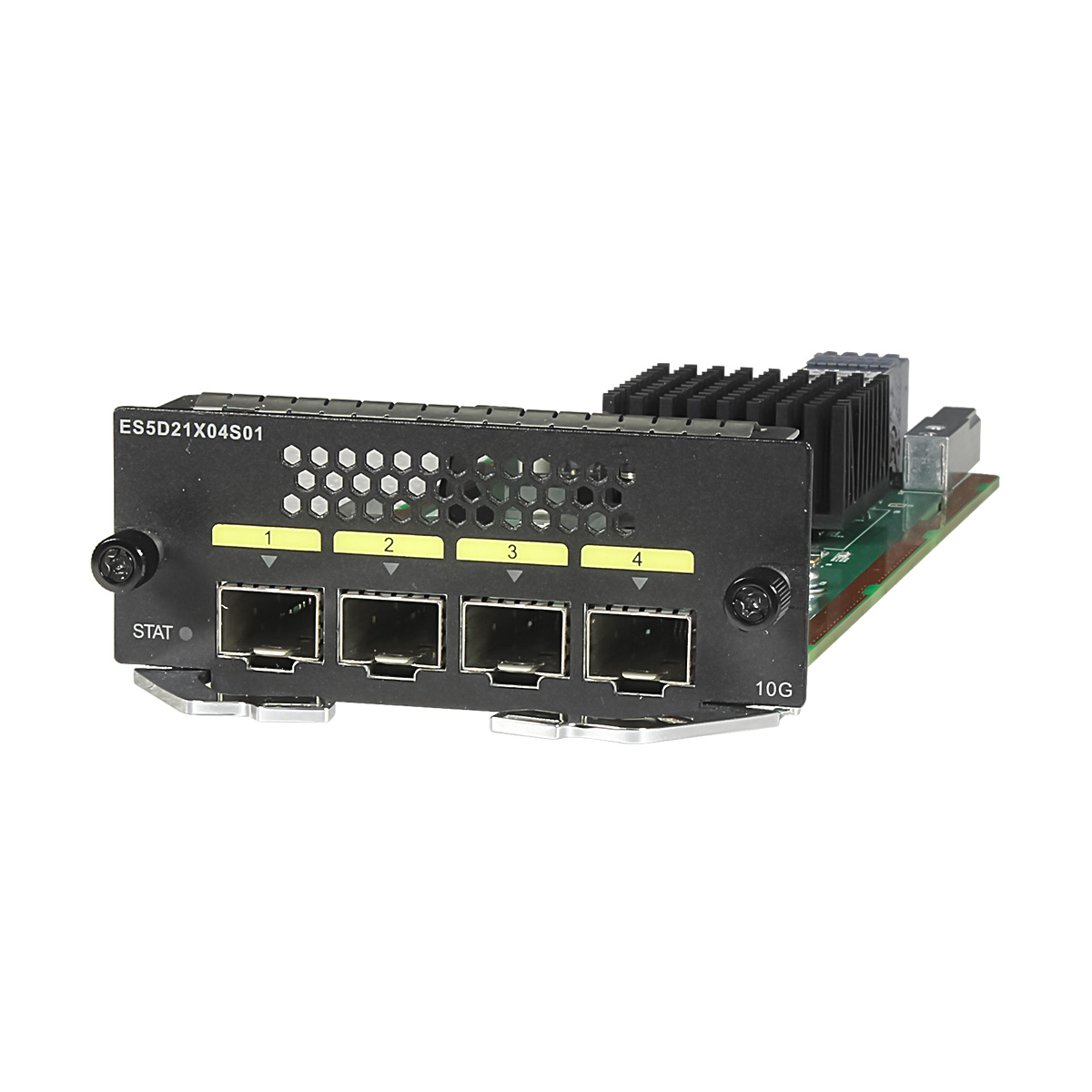

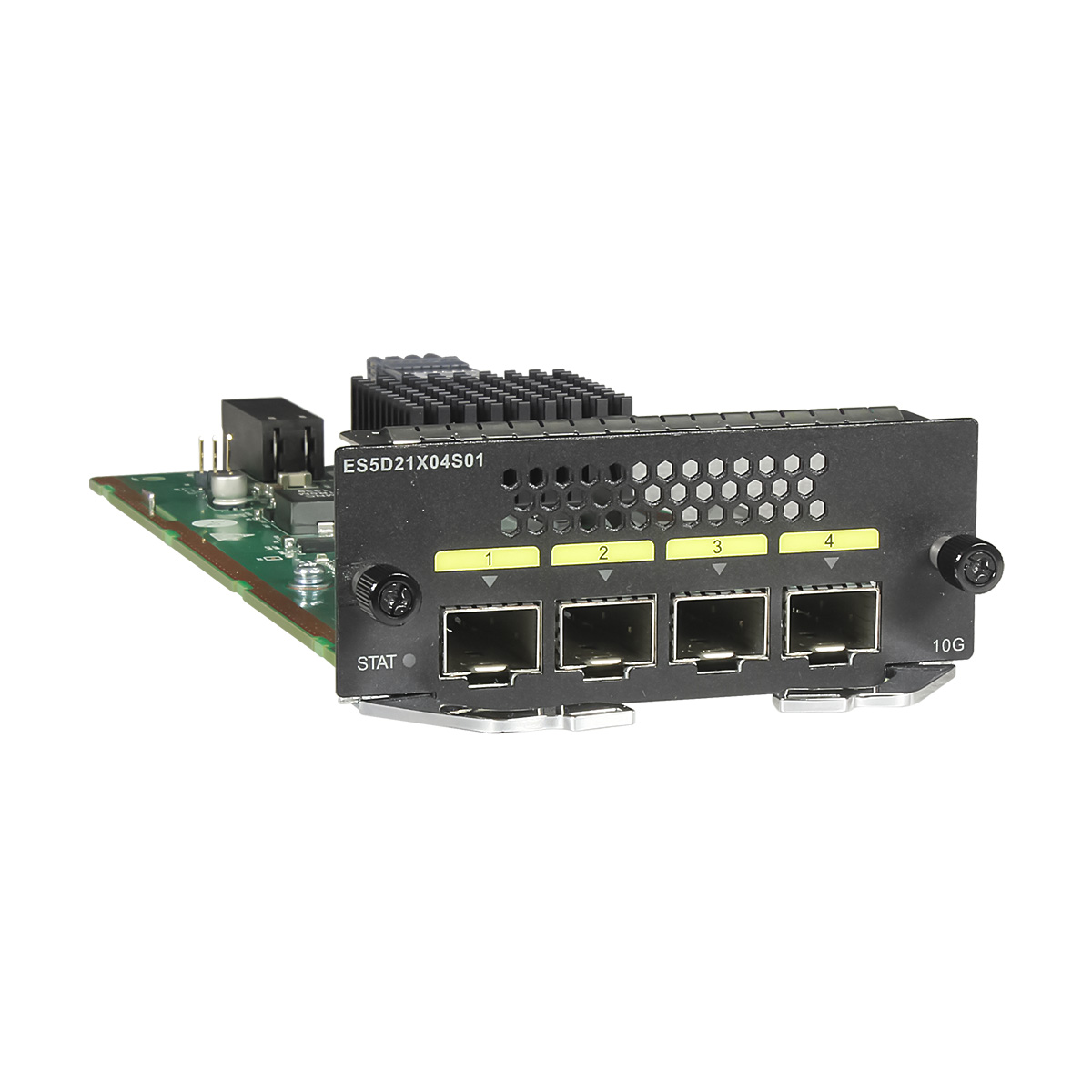

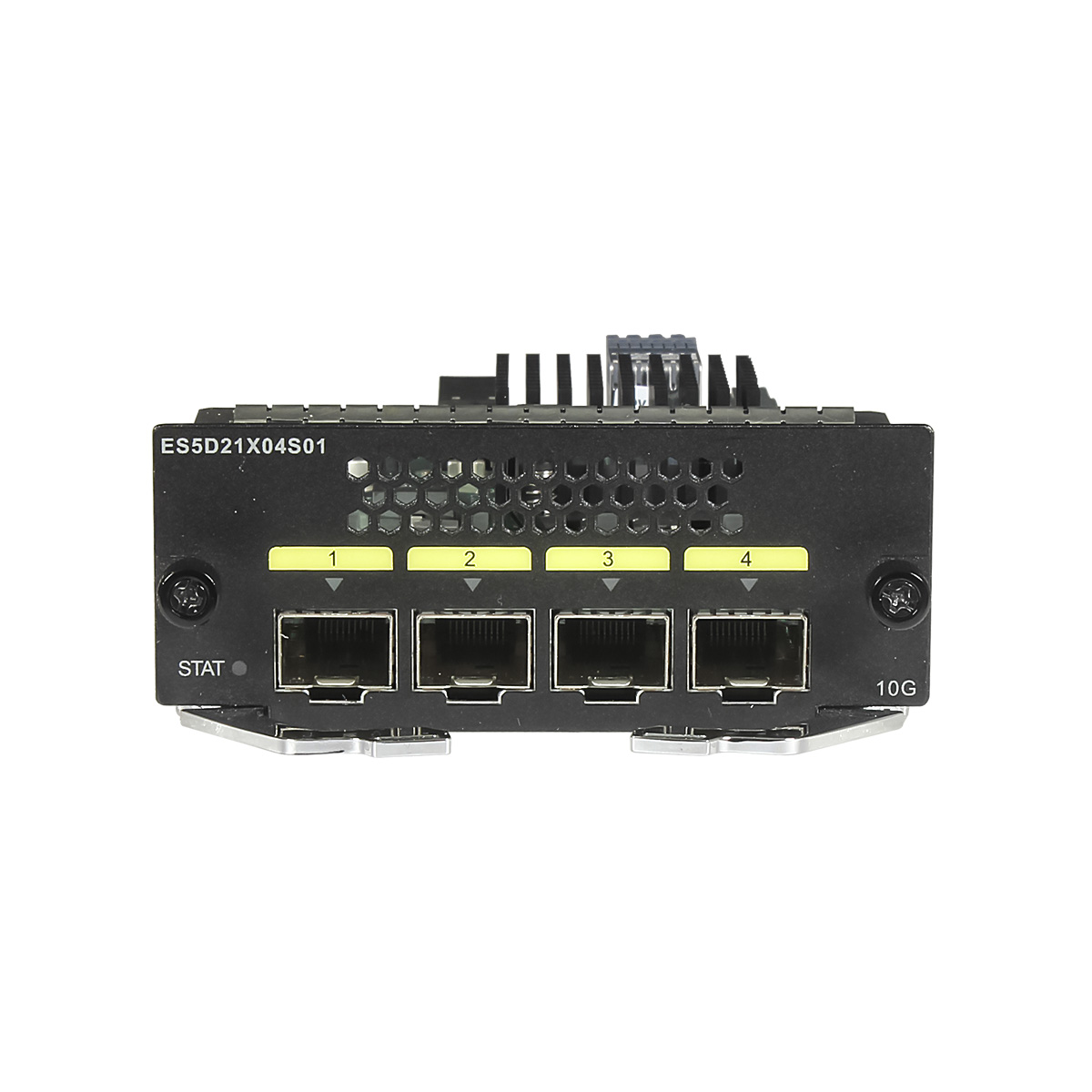

Huawei ES5D21X04S01 4-Port 10GE SFP+ Rear Interface Card

Description

ES5D21X04S01 overview

The ES5D21X04S01 provides four 10GE SFP+ optical ports for data access and line-rate switching.

The ES5D21X04S01 can be installed in rear card slot 2 of the S5720-HI.



Applicable switch models

Card Switch Model
ES5D21X04S01
  • S5720-32C-HI-24S-AC
  • S5720-56C-HI-AC
  • S5720-56C-PWR-HI-AC
  • S5720-56C-PWR-HI-AC1
ES5D21X04S01 function
Function Item
Basic function Provides four 10GE SFP+ optical ports for data access and line-rate switching.
Hot swapping Supported
Service ports for stacking The service ports on the card can be used as stack ports.

NOTE:

The S5720-HI has supported service port-based stacking since V200R009C00.

ES5D21X04S01 technical specification



Item ES5D21X04S01
Apply toS5720-HI or S6720-SI series
 Attributes of 10GE SFP+ optical port
Connector type LC/PC
Standards compliance IEEE 802.3ae
Attributes of 10GE SFP+ optical modules
Model Transmission Distance (km) Standard Fiber Type
SFP-10G-USR ≤ 0.1 10Gbase-USR
  • Fiber mode: multimode (OM3)
  • Connector type: LC
OSXD22N00 ≤ 0.1 10Gbase-LRM
  • Fiber mode: multimode
  • Modal bandwidth: 400 MHz*km
  • Core diameter: 50 μm
  • Connector type: LC
≤ 0.22 10Gbase-LRM
  • Fiber mode: multimode
  • Modal bandwidth: 500 MHz*km
  • Core diameter: 62.5 μm
  • Connector type: LC
≤ 0.22 10Gbase-LRM
  • Fiber mode: multimode (OM1, OM2, OM3)
  • Connector type: LC
OMXD30000 ≤ 0.026 10Gbase-SR
  • Fiber mode: multimode
  • Modal bandwidth: 160 MHz*km
  • Core diameter: 62.5 μm
  • Connector type: LC
≤ 0.033 10Gbase-SR
  • Fiber mode: multimode (OM1)
  • Connector type: LC
≤ 0.066 10Gbase-SR
  • Fiber mode: multimode
  • Modal bandwidth: 400 MHz*km
  • Core diameter: 50 μm
  • Connector type: LC
≤ 0.082 10Gbase-SR
  • Fiber mode: multimode (OM2)
  • Connector type: LC
≤ 0.3 10Gbase-SR
  • Fiber mode: multimode (OM3)
  • Connector type: LC
≤ 0.4 10Gbase-SR
  • Fiber mode: multimode (OM4)
  • Connector type: LC
OSX010000 ≤ 10 10Gbase-LR
  • Fiber mode: single-mode
  • Connector type: LC
OSX040N01 ≤ 40 10Gbase-ER
SFP-10G-BXU1 (bidirectional single-mode fiber) ≤ 10 10GBase-BX
SFP-10G-BXD1 (bidirectional single-mode fiber) ≤ 10 10GBase-BX
SFP-10G-ZR

Limiting

≤ 80 10Gbase-ZR
SFP-10G-iLR ≤ 1.4 10GBASE-iLR
SFP-10G-ER-SM1330-BIDI

(Single-fiber bidirectional optical module)

≤ 40 10GBase-BX
SFP-10G-ER-SM1270-BIDI

(Single-fiber bidirectional optical module)

SFP-10G-ZDWT ≤ 80 DWDM
Optical parameters of 10GE SFP+ optical modules
Model Center Wavelength (nm) Transmit Power (dBm) Receiver Sensitivity (dBm) Overload Optical Power (dBm) Extinction Ratio (dB)
SFP-10G-USR 850 -7.3 to -1.0 ≤ -10.7 0.5 ≥ 3.0
OSXD22N00 1310 -6.5 to 0.5 ≤ -6.5 1.5 ≥ 3.5
OMXD30000 850 -7.3 to -1.0 ≤ -11.1 -1.0 ≥ 3.0
OSX010000 1310 -8.2 to 0.5 ≤ -12.6 0.5 ≥ 3.5
OSX040N01 1550 -4.7 to 4.0 ≤ -14.1 -1.0 ≥ 3
SFP-10G-BXU1 (bidirectional single-mode fiber) RX1330/TX1270 -8.2 to 0.5 ≤ -14.4 0.5 ≥ 3.5
SFP-10G-BXD1 (bidirectional single-mode fiber) RX1270/TX1330 -8.2 to 0.5 ≤ -14.4 0.5 ≥ 3.5
SFP-10G-ZR

Limiting

1550 0 to 4.0 ≤ -24.0 -7.0 ≥ 9
SFP-10G-iLR 1310 -8.2 to 0.5 ≤ -14.4 0.5 ≥ 3.5
SFP-10G-ER-SM1330-BIDI

(Single-fiber bidirectional optical module)

Tx1330/Rx1270 0 to 5 ≤ -18 -9 ≥ 3.5
SFP-10G-ER-SM1270-BIDI

(Single-fiber bidirectional optical module)

Tx1270/Rx1330 0 to 5 ≤ -18 -9 ≥ 3.5
SFP-10G-ZDWT 1529.16 to 1560.61 -1 to 3 ≤ -24 -1 ≥ 8.2
Physical specifications
Dimensions (mm) 100 (W)x 208 (D) x 40 (H)
Weight (kg) 0.76
Maximum power consumption (W) 9.95
Environment parameters
Operating temperature 0°C to 45°C
Relative humidity 5% RH to 95% RH
Storage temperature -40°C to +70°C

Additional information

Weight 2.0000 kg
Dimensions 34.0000 × 25.5000 × 9.0000 cm
