F673AV9a

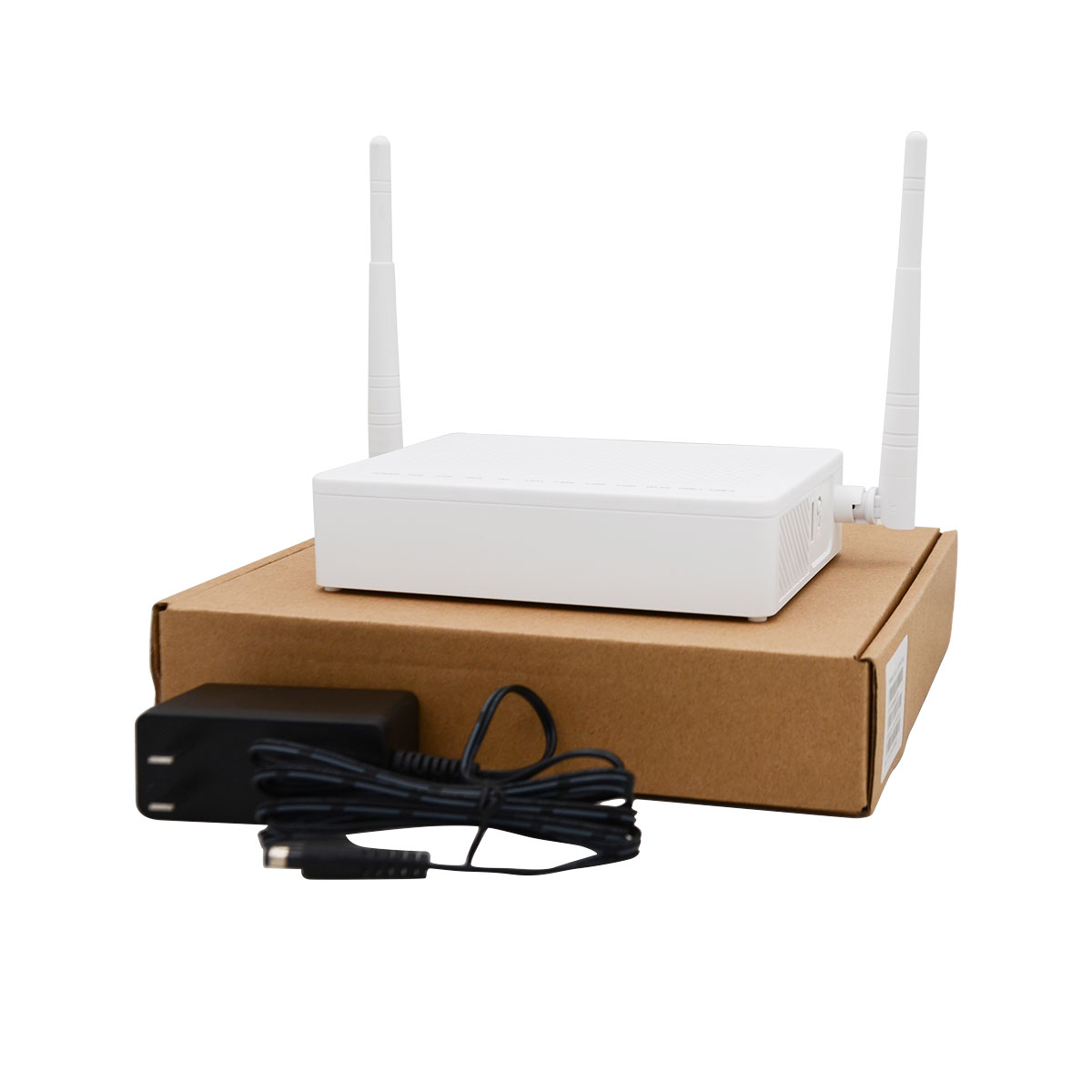

ZTE ZXHN F673AV9a GPON Optical Network Terminal with 4*GE+1*POTS+2*USB+2.4G&5GWIFI, 5dBi
ZTE
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Packing info
- Comparison
- FAQ
- Download
- Reviews (5)
Description
F673AV9a overview
ZTE ZXHN F673AV9a GPON Optical Network Terminal with 4*GE+1*POTS+2*USB+2.4G&5GWIFI, 5dBi antenna, ZTE based solution.
- ZTE ZXIC Dual-Core Chip
- With OMCI function
- English firmware, English indicator, English interface description
- Connector type: SC/UPC by default, SC/APC for choice
- PPPOE: support
| Item | F673AV9a |
| Ports | 4*GE+1*POTS+2*USB+2.4G&5GWIFI, 5dBi |
| Connector | SC/UPC |
| Chip | ZTE ZXIC Dual Core Chip |
| Indicators | POWER/PON/LOS/TEL/LAN1/LAN2/LAN3/LAN4/WLAN/WPS/USB-1/USB-2/ |
| Dimensions (length x width x height) | 180mm*170mm*40mm |
| Weight | About 0.5kg |
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 18 × 17 × 4 cm |
Dual Band ONT Comparation
| Model Name | EG8145V5 | EG8247W | F673AV9a | HG6145D1 | G-140W-C |
| Brand | Huawei | Huawei | ZTE | Fiberhome | Nokia |
| UNI(User Network Interface) | 4*GE+1*POTS+2*USB+2.4G/5G WIFI | 4*GE+1*POTS+USB+2.4G/5G WIFI with 4 antennas | 4*GE+1*POTS+2*USB+2.4G/5G WIFI | 4*GE+1*POT+2*USB+2.4G/5G WIFI | 4*GE+1*POTS+2*USB+2.4G/5G WIFI |
| Operating temperature | 0ºC to 40ºC | 0ºC to 40ºC | 0ºC to 40ºC | -5ºC to 45ºC | 0ºC to 40ºC |
| Environment humidity | 5% to 95% (noncondensing) | 5% to 95% (noncondensing) | 5% to 95% (noncondensing) | 10% to 95% (noncondensing) | 5% to 95% (noncondensing) |
| System power supply | 11–14 V DC, 1.5 A | 12V, 1.5 A | 12 V DC, 1.5 A | 12 V DC, 1.5 A | 12 VDC,1.5 A |
| Antenna gain | 5dBi | 5dBi | 5dBi | 5dBi | 5dBi |
| Weight | About 0.5 kg | About 0.5 kg | About 0.5 kg | About 0.5 kg | About 1 kg |
Q: Is F673AV9a compatible with ZTE OLT?
A: It is a solution based on ZTE regardless of PCB, chipset, or firmware, so it is not only compatible with ZTE OLT but also compatible with Huawei, Fiberhome, and Nokia OLT.
Q: Can I use OMCI to manage the F673AV9a via my ZTE C620?
A: Yes, this model supports ZTE OMCI protocol.
Q: What is the difference between the F670L v9.0 and this model?
A: F670L V9.0 comes with 4 antennas, which improves WiFi performance by 40%
Q: What is the default login address of the firmware WebUI? And the IP address of the PC?
A: IP for the firmware: 192.168.1.1; IP for the PC local: 192.168.1.2.
Q: Can I change the default admin password?
A: Yes, you can inform your assigned technical sales manager of your needs.
Alchibald –
WiFi is fast, and finally get rid of the previous dragging network condition.
Kathy –
F673AV9a supports OMCI, i’d like to buy in bulk soon.
Carlos –
The most economical a.c ONT of the ZTE brand, supports the ZTE OLT private OMCI protocol, can perform some configuration and management through the Telnet command line, and is fully compatible with my TR069 platform SmartOLT.
Torres –
F673AV9a supports OMCI, with full English version.
Nicolas –
This is the most cost-effective ZTE dual-band ONU I have ever used, mainly because it is so cheap and compatible with ZTE’s OMCI protocol
