H801SCUN is a main control card of Huawei MA5683T MA5680T, integrated with 4-port GE optical uplink port

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

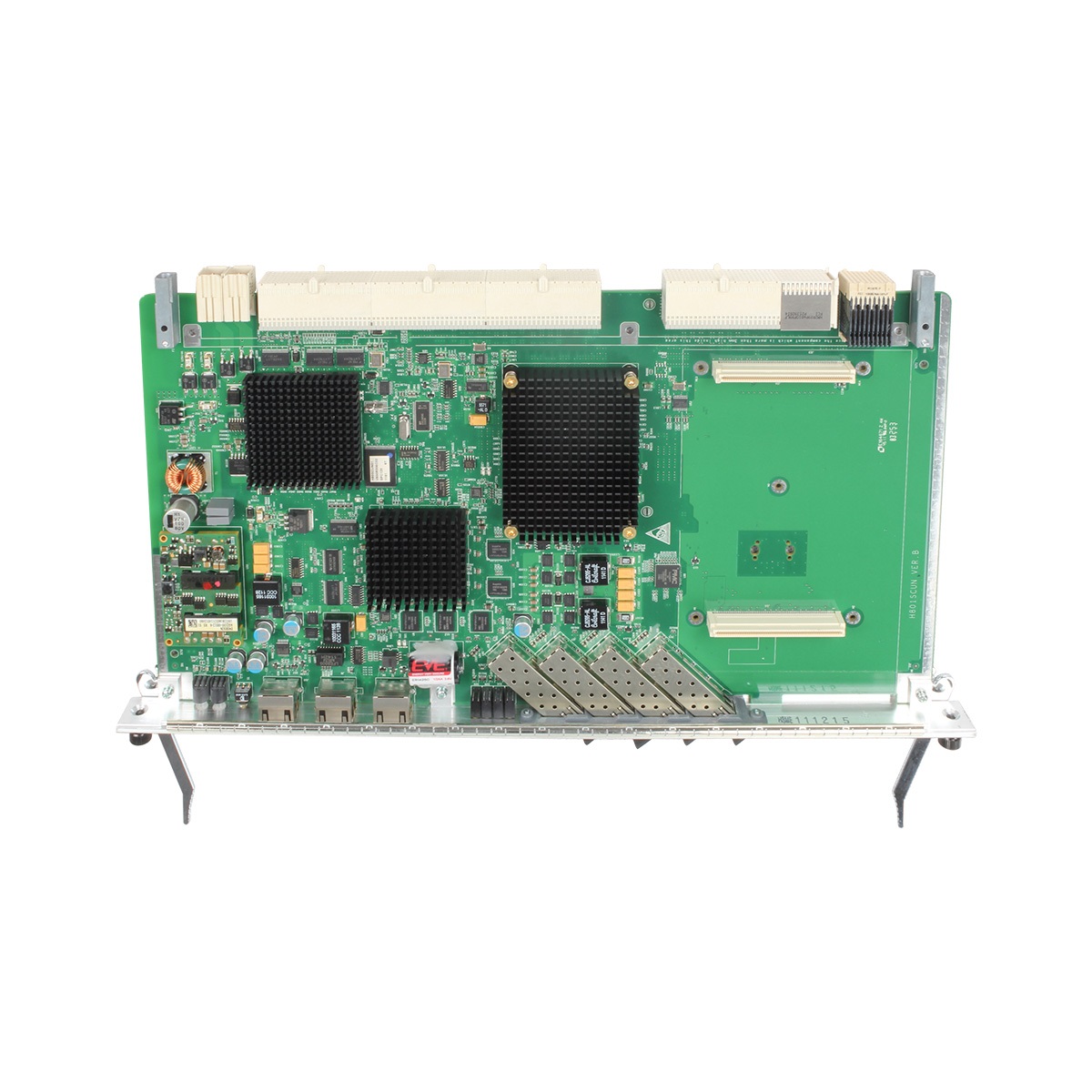

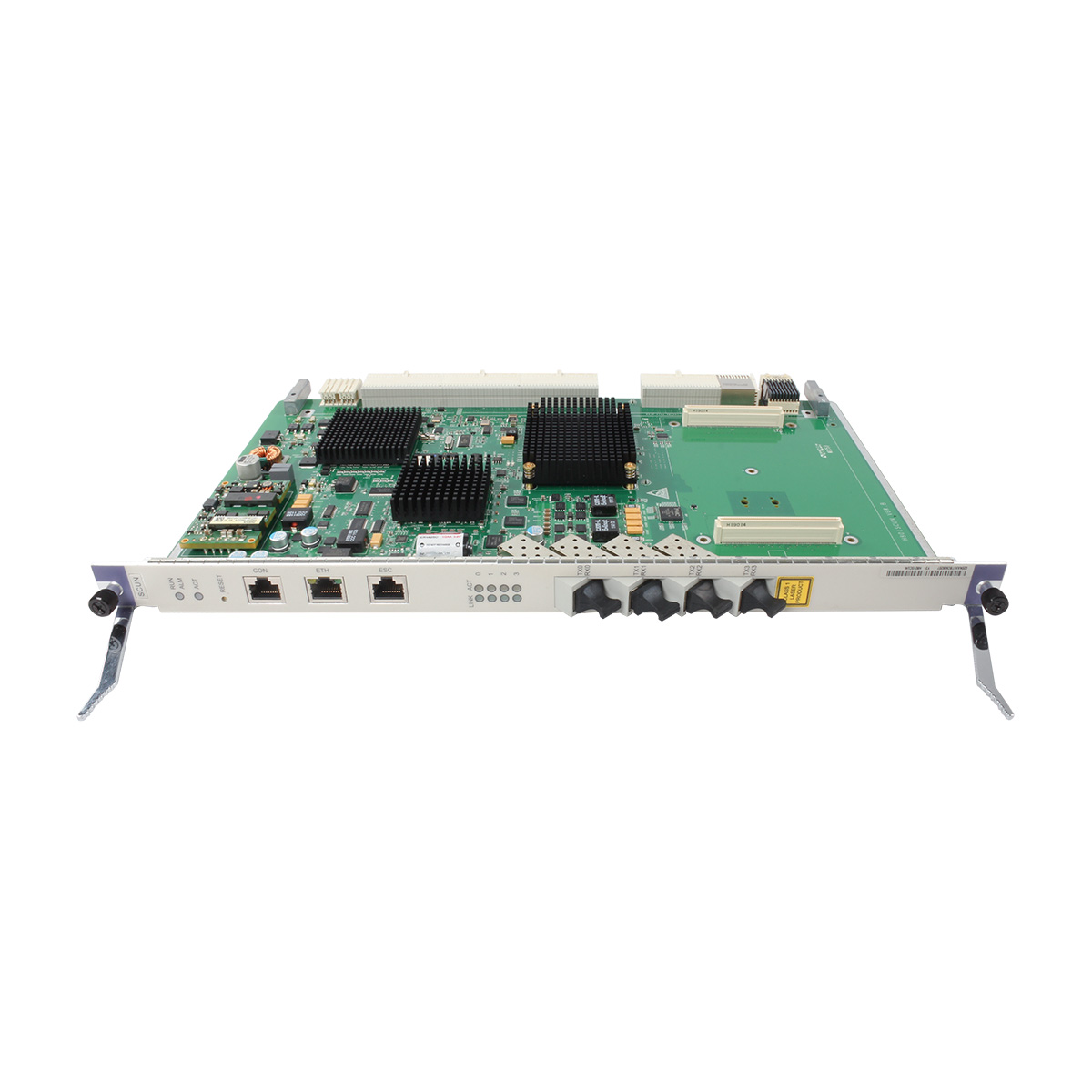

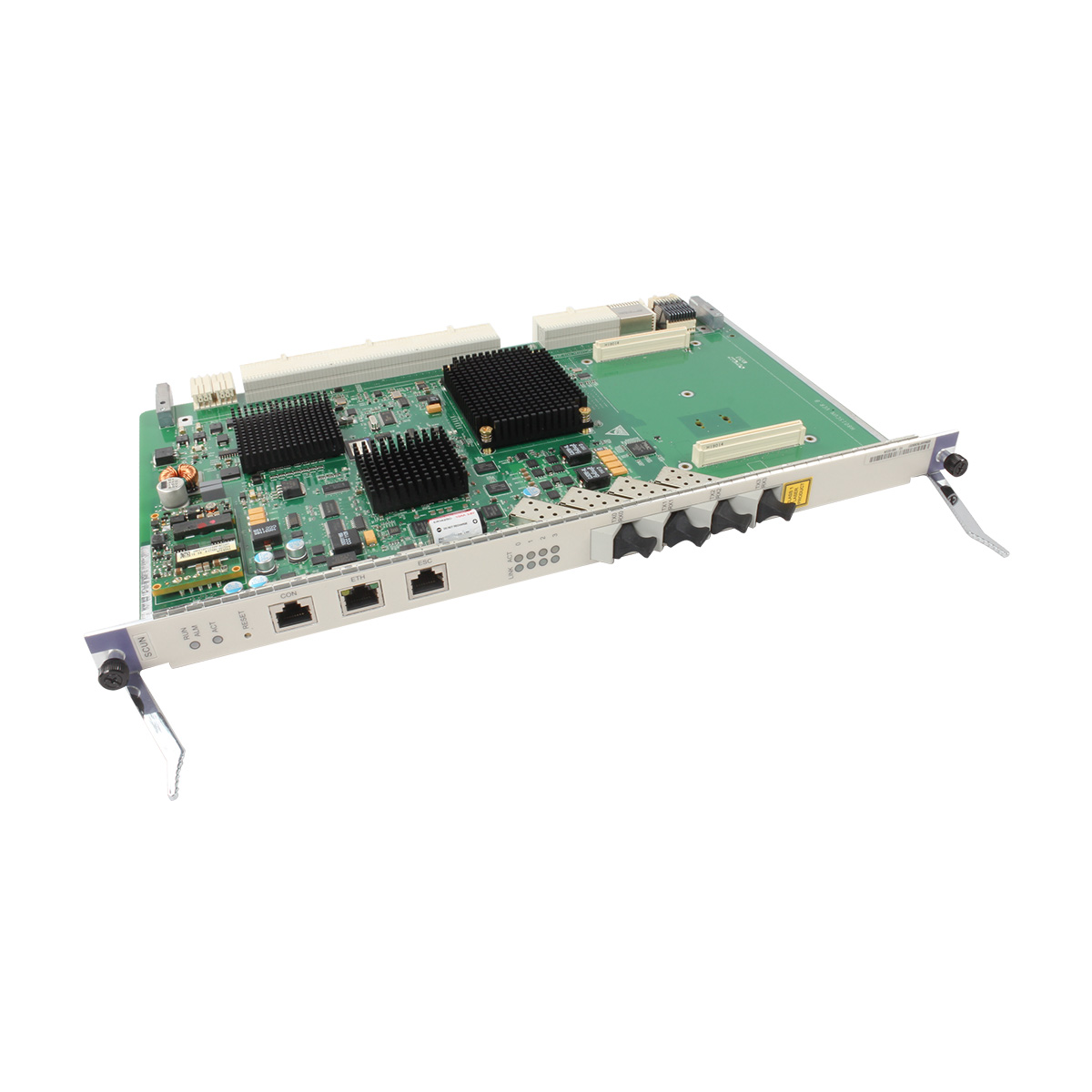

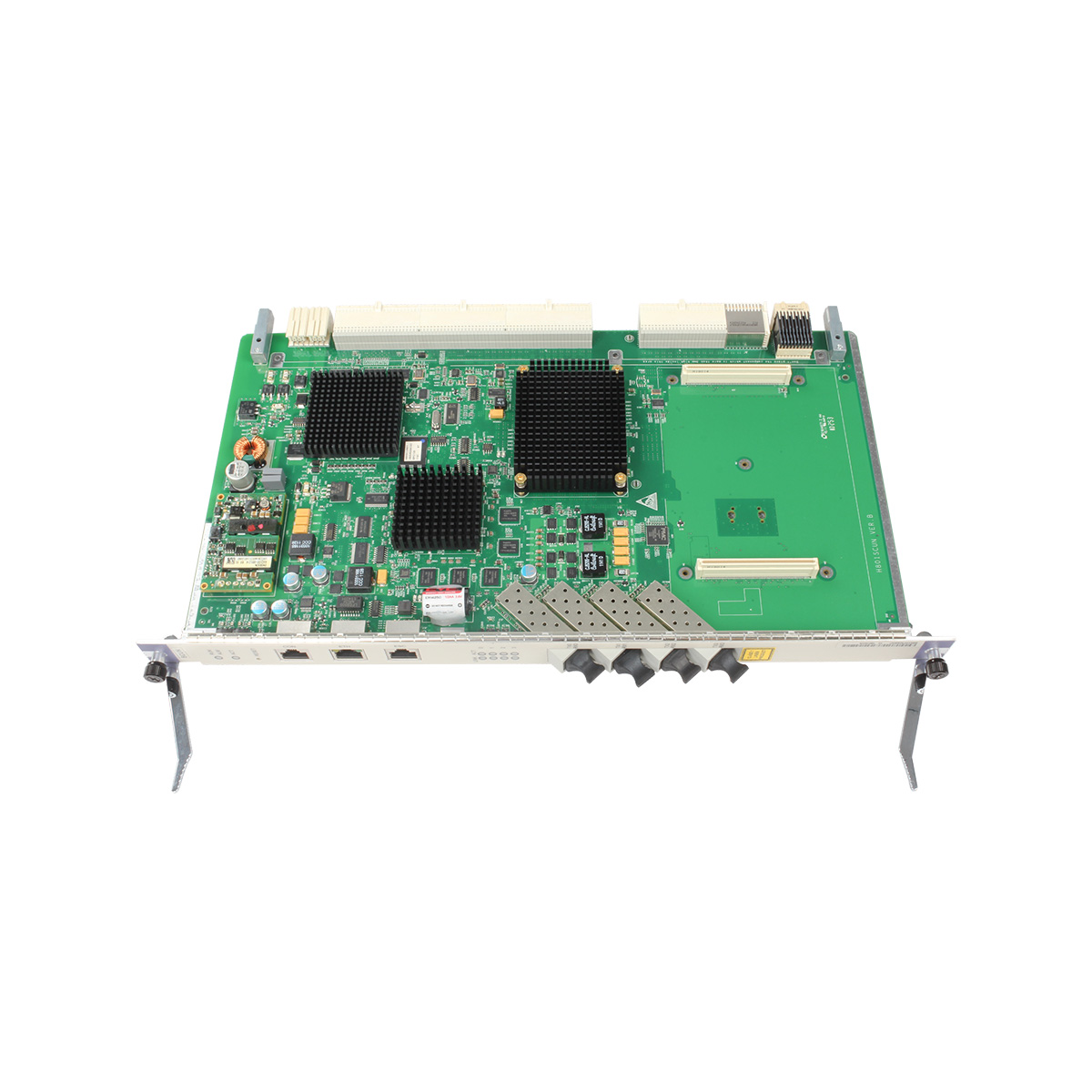

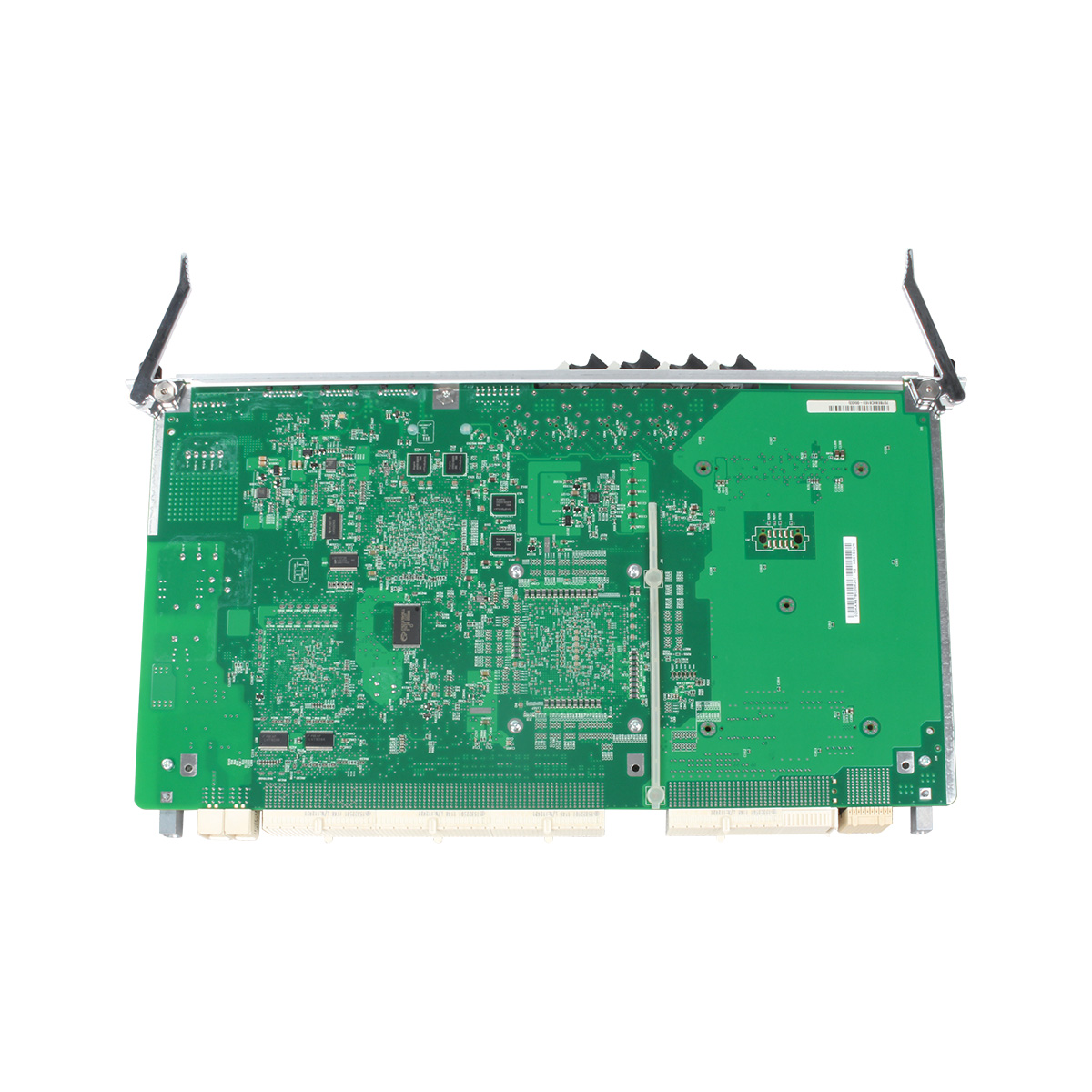

H801SCUN is a main control card of Huawei OLT MA5680T, MA5683T; it is the core of the system control and service switching and aggregation.



Provide 480G switching capacity (active/standby mode), MAX access 8192 subscribers. SCUN has two hardware versions, H801SCUN and H802SCUN, basically no difference between these two versions.

  • Supports integrated optical copper access for GPON, P2P, xDSL, and voice services.
  • Supports 480 Gbit/s (active/standby mode), 960 Gbit/s (load sharing mode) switching capacity.
  • Supports active/standby mode and load sharing mode, doubling processing performance.
  • Supports ISSU, saving the upgrade interruption time.
  • Supports 1588v2, and 1588 ACR by working together with the H801CKMD daughter board.

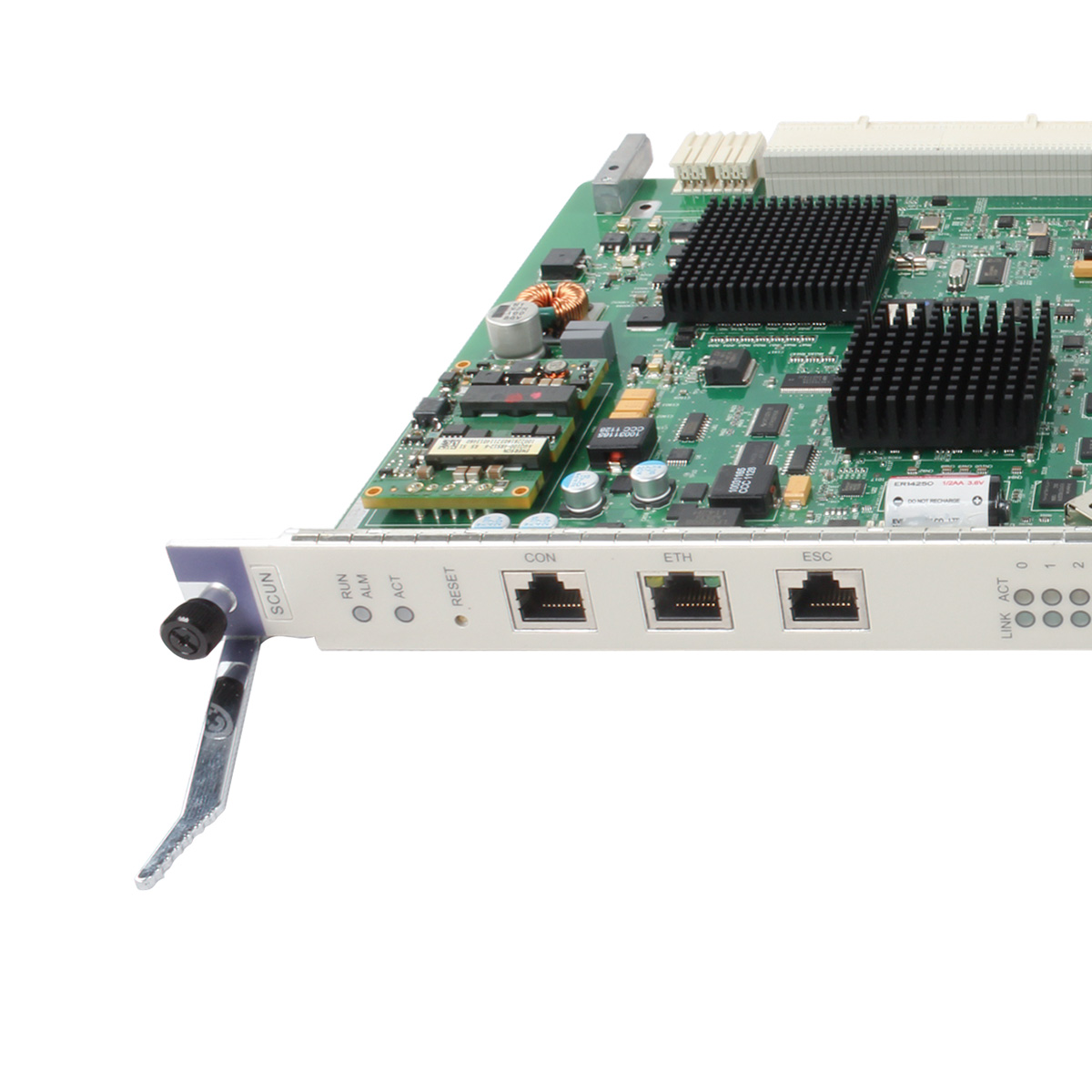

  • Supports interfaces CON (RJ-45), ETH (RJ-45), ESC (RJ-45).
  • Supports Communication Interfaces TX0 RX0 to TX3 RX3 (4 x SFP GE ports).
Item H801SCUN
LAN switch 24 x 10GE + 4 x GE
Switching capacity 480 Gbit/s (active/standby mode) 960 Gbit/s (load sharing mode)
Bandwidth per slot 10 Gbit/s (active/standby mode) 20 Gbit/s (load sharing mode)
MAC address table 32768
Access user 8192
Multicast user 8192
Configurable multicast channel 4096
Concurrent multicast channel 2000
IPv4 routing table 5120
IPv6 routing table 5120
Service port 32768
ARP table 8192
ACL rule 1024
Maximum Frame Size 2052 bytes. After jumbo frame  function is enabled, a maximum of 9216  bytes can be supported.
VRF (L3 VPN) Supported
Operating temperature -25°C to +65°C
Power consumption Static: 30 Maximum: 50 W
Mechanical Specification
Dimensions(mm) 25.40 (W)x 237.00 (D) x 395.40(H)
Weight(kg) 0.5

What management and software features are supported?

The device supports IPv4/IPv6 dual stack, QoS, VLAN and QinQ, IGMP/MLD, OAM, remote maintenance, and full compatibility with Huawei NMS platforms.

Does the MA5600 Series support IPv6? Will software upgrades be required?

Yes. IPv6 is supported when:
The control board runs a software version that includes IPv6 features.
ONUs/ONTs support IPv6 (bridge or routing mode).
The broadband service is configured for IPv6 address assignment (SLAAC/PD/DHCPv6).
A unified IPv6 plan is recommended to avoid routing inconsistencies.

Can the MA5600 Series interoperate with third-party ONUs/ONTs?

Yes, as long as both sides comply with ITU-T G.988 OMCI standards.
However, advanced functions such as Wi-Fi, VoIP, TR-069, and custom VLAN templates may behave differently.
A full OMCI interoperability and service verification test is strongly recommended before large-scale deployment.

Which software version should be used? Is upgrading to the latest version necessary?

For carrier networks, the priority is:
1. Version stability
2. Board compatibility
3. Feature consistency with existing equipment
Use a widely deployed, mature version rather than the newest release. Always prepare a rollback plan before upgrading

What is the maximum access capacity supported by the MA5608T chassis?

Depending on installed service boards, the MA5608T can support up to:
1. 4,096 GPON subscribers (with typical 1:64 split ratio)
2. 2 service slots for PON boards
Actual capacity depends on optical budget, splitter design, and upstream network planning.

Major differences between SCU boards
Board Access Service Daughter Board Load sharing Ethernet synchronization Temperature reading and high temperature alarming Built-in 2GB CF card Centric Management for GE Remote Extended Subracks D-CMTS
H801SCUB/H802SCUB Copper H801FLBA H801CKMC H801CKMD No No Yes No No No
H801SCUF Optical and copper H801FLBA H801CKMC H801CKMD No No Yes No No No
H801SCUL Optical H801CKMC H801CKMD No No Yes No No No
H801SCUN Optical and copper H801FLBA H801CKMC H801CKMD H801M2XA Yes (supported in V800R011C00 and later versions) No Yes No Yes No
H802SCUN Optical and copper H801FLBA H801CKMC H801CKMD H801M2XA (version B) Yes (supported in V800R011C00 and later versions) No Yes No Yes No
H801SCUK Optical and copper H801FLBA H801CKMC H801CKMD H801M2XA (version B) Yes (supported in V800R011C00 and later versions) No Yes No Yes No
H801SCUH Optical No Yes Yes Yes Yes No No
H801SCUV Optical No Yes Yes Yes Yes No Yes

Additional information

Weight 3.5000 kg
Dimensions 49.0000 × 32.5000 × 7.5000 cm
MA5600T

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Brand

Huawei
