Huawei MA5608T/MA5683T/MA5680T 8-port Multifunctional service Process Board
Huawei 8-port Multifunctional service Process Board
Supports 8-port GE SFP or 10G SFP+
Supports upstream transmission and cascading
Supports intra-board link aggregation and inter-board link aggregation

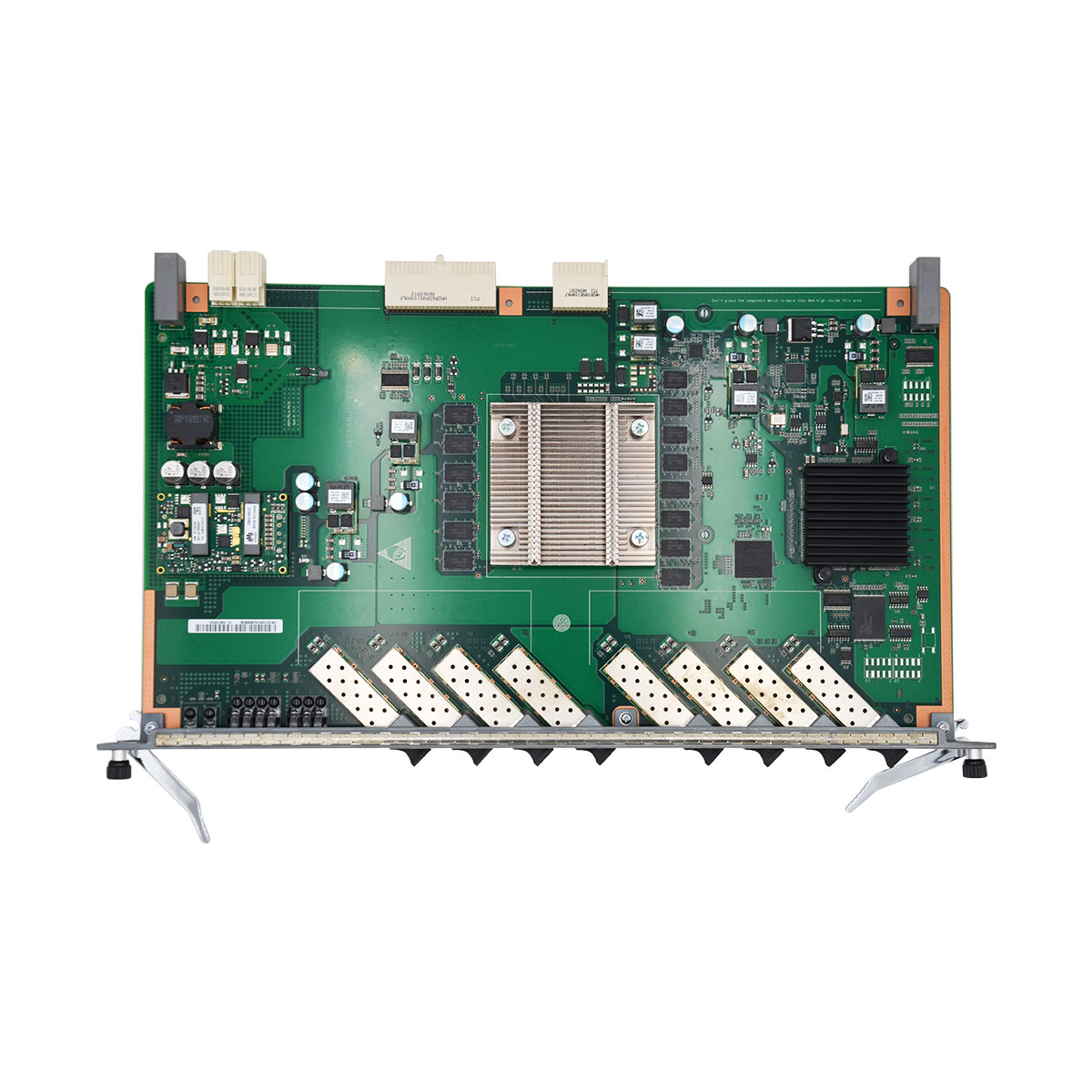

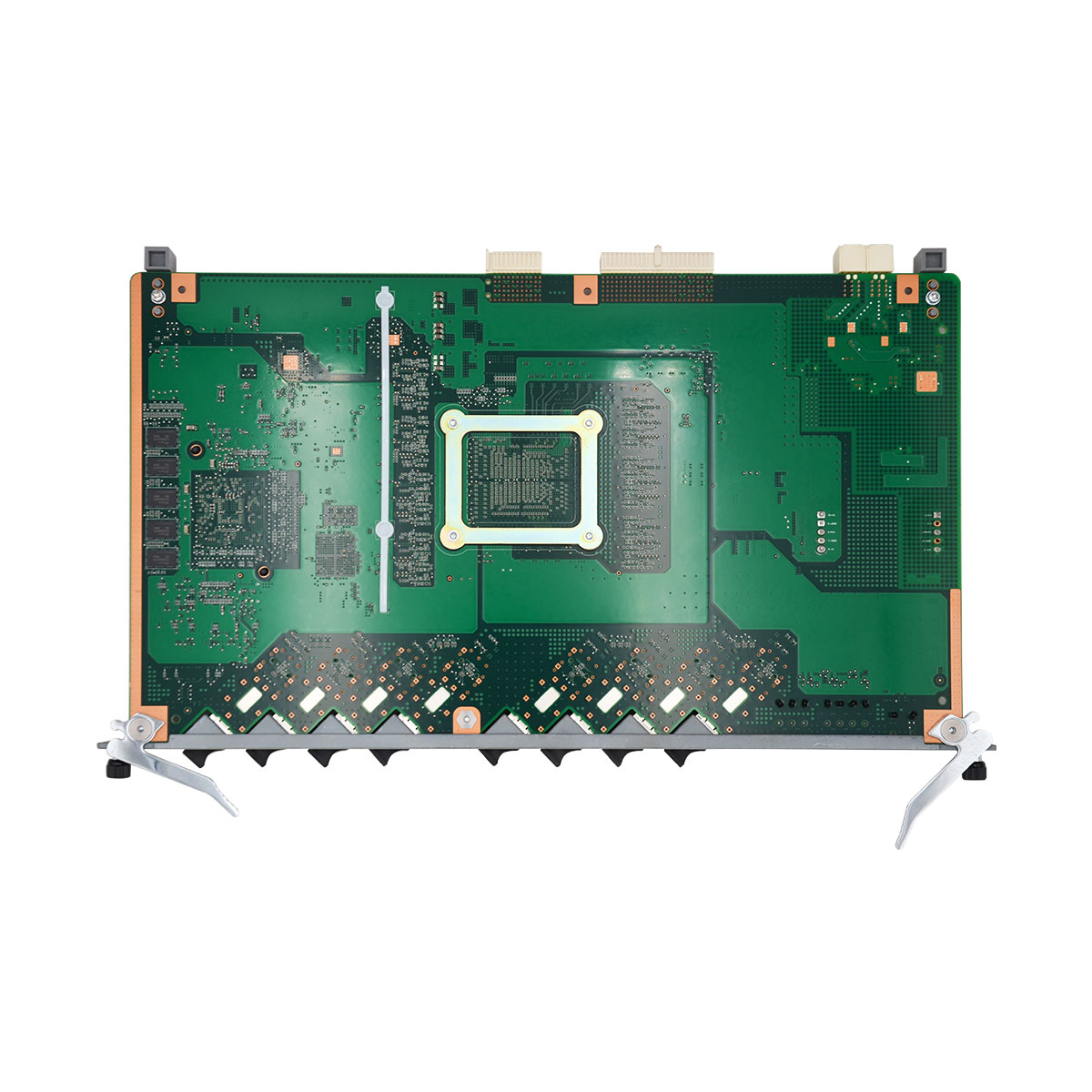

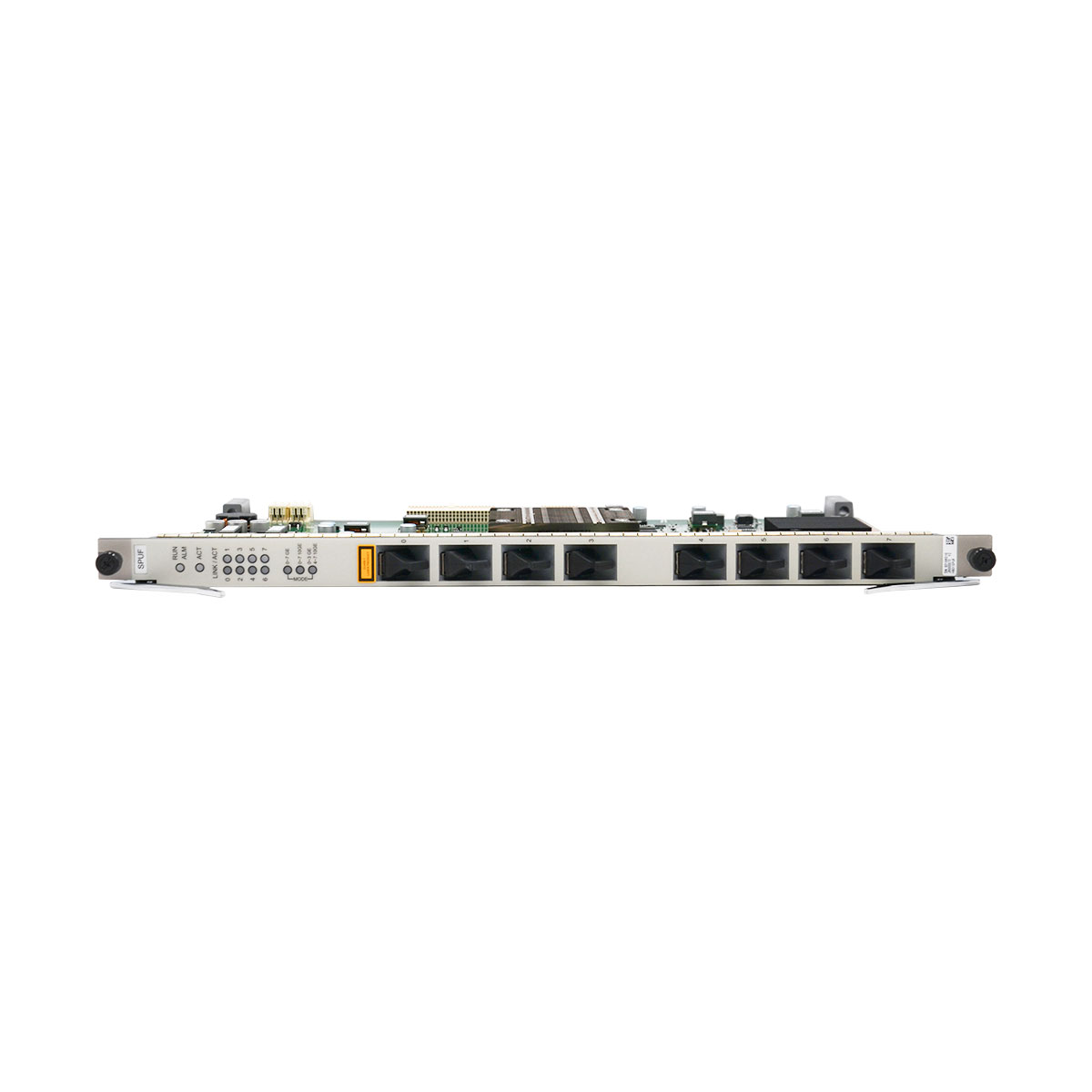

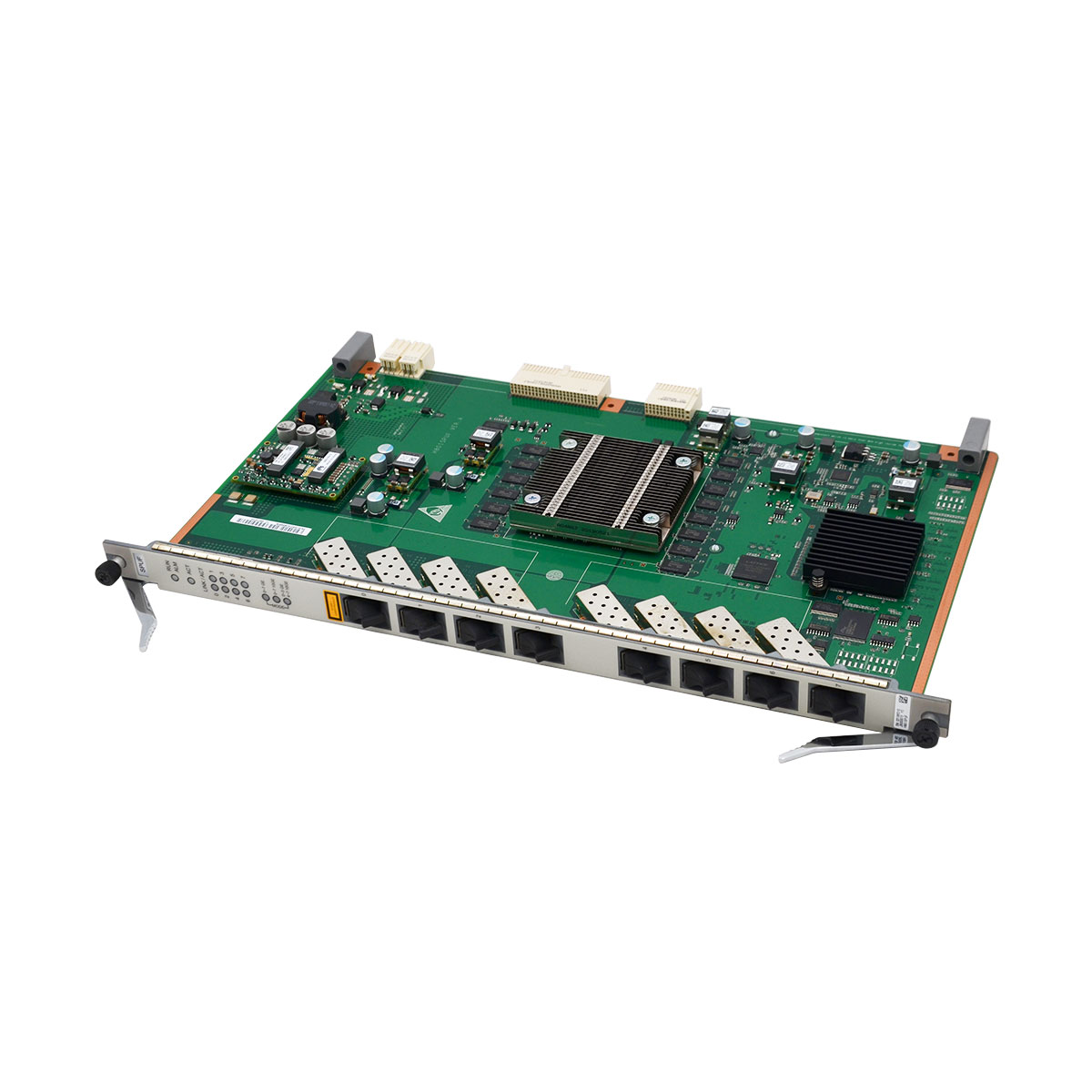

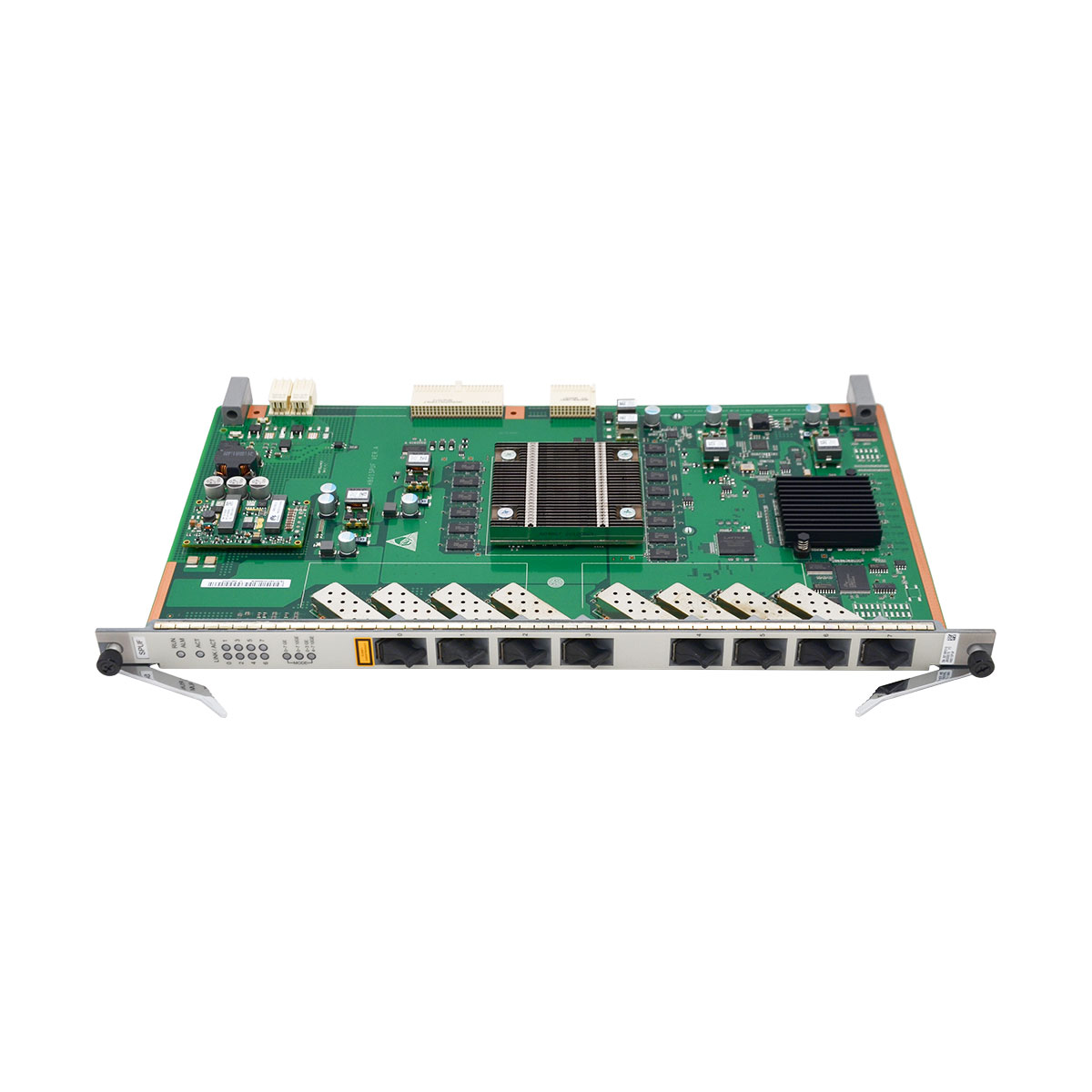

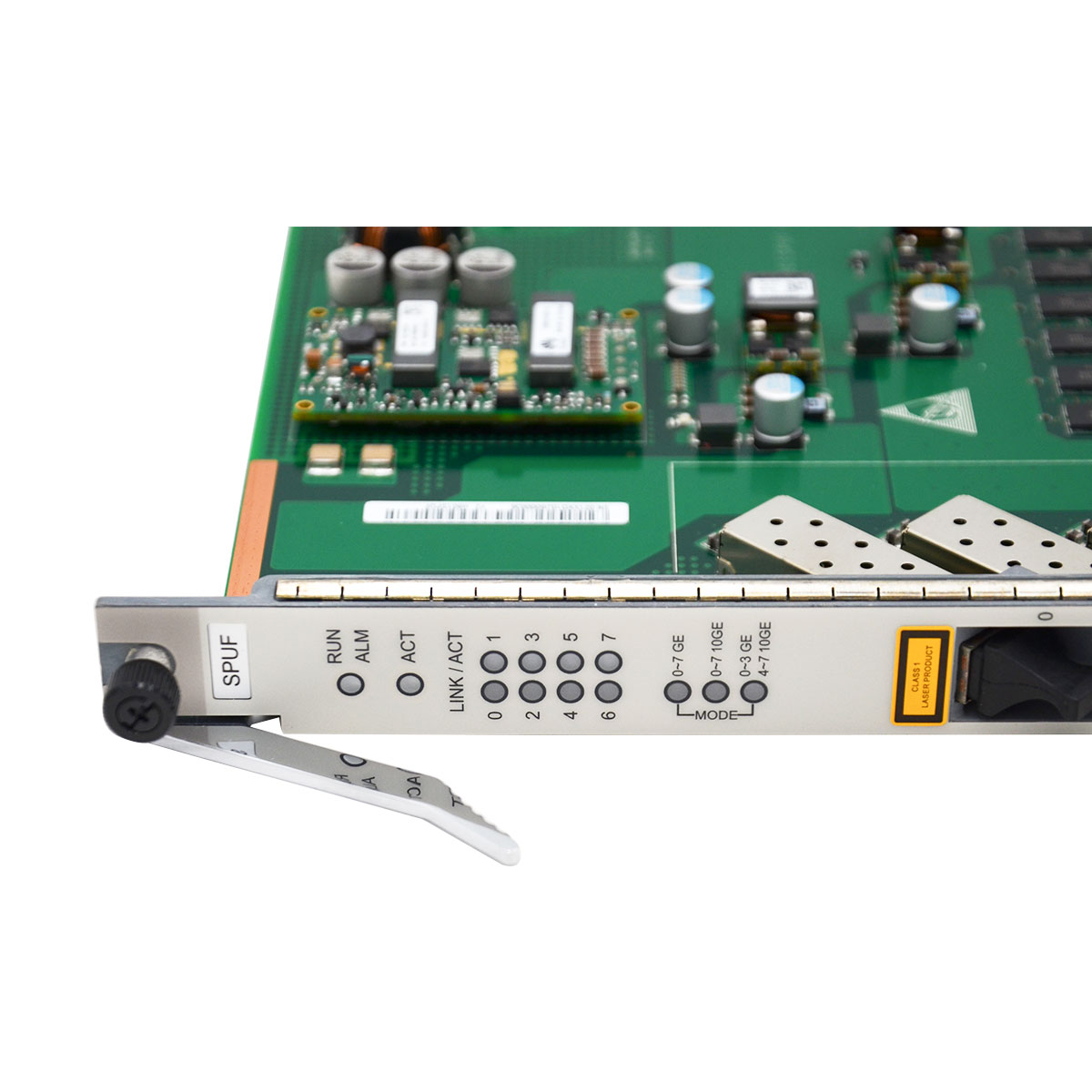

H801SPUF is a Multifunctional service Process Board for Huawei MA5608T/MA5683T/MA5680T, supports 8 ports upstream transmission and cascading. Hardware version is H801SPUF, part number is 03021XKD. Can be equipped with GE/10G optical modules, modules doesn’t come together with boards.
| Item | H801SPUF |
| Specification | |
| Number of interfaces | 8 |
| Optical module | SFP GE optical module or SFP+ 10G optical module |
| Dimensions (mm) | 25.4(W) x 372(D) x 399.5(H) |
| Function | |
| Forwarding capability 40 Gbit/s | 40 Gbit/s |
| MAC number | 128K |
| Maximum frame size | 2052 bytes 9216 bytes |
| 9216 bytes (jumbo frame enabled) | |
| VLAN forwarding | VLAN+MAC |
| Shaping in outband management | Supported |
| L3 forwarding | IPv4/IPv6 ARP table supported |
| IPv4/IPv6 routing supported | |
| Clock synchronization | 1588V2, 1588ACR, SyncE |
| Y.1731 | Supported |
| Link aggregation | Supported at Inter-board and Intra-board |
| Supported at Inter-board and Intra-board | Supported |
| Supported at Inter-board and Intra-board | Supported |
| Environment | |
| Operating temperature | -40°C to +65°C |
| Power consumption | GE mode: |
| Static: 31 W; Maximum: 38 W | |
| 10GE mode: | |
| Static: 32 W; Maximum: 50 W | |
| 4*GE+4*10GE mode: | |
| Static: 32 W; Maximum: 50 W | |
| Function/Specification | H801SPUA | H801SPUC | H801SPUF |
|---|---|---|---|
| Application scenario | Used for multi-RSP access in the Open Access scenario and serves as an upstream interface board at the point of interconnection (POI). | Used for multi-RSP access in the Open Access scenario and serves as an upstream interface board at the point of interconnection (POI). | Supports both Layer 2 and Layer 3 forwarding modes. You can run the router mode command to configure the Layer 3 forwarding mode of the system.
|
| Interfaces and optical module |
|
|
Eight SFP interfaces (GE) or SFP+ interfaces (10 GE)
The board port rate supports the preceding three working modes. When switching a mode, modify configurations first. Run the interface eth frameid/slotid command to enter the ETH mode and then run the board speed-mode speed-mode command to set the port rate mode.
|
| Switching capability | 20G | 40G |
|
| VLAN forwarding mode |
|
|
VLAN + MAC |
| Ethernet upstream transmission and cascading | Supports upstream transmission and cascading. The network role can only be configured based on board. You need to run the service-port command to create an Ethernet service flow to add the upstream or cascading port into a VLAN. The port vlan command is not supported in the H801SPUA board. If multiple upstream ports are added into a protection group, these ports must be added into an aggregation group. In this way, you only need to create a service flow to add the master port of the protection group into the VLAN so that all the member ports of the protection group will be added into the VLAN. | Supports upstream transmission and cascading. The network role can only be configured based on board. You need to run the service-port command to create an Ethernet service flow to add the upstream or cascading port into a VLAN. The port vlan command is not supported in the H801SPUC board. If multiple upstream ports are added into a protection group, these ports must be added into an aggregation group. In this way, you only need to create a service flow to add the master port of the protection group into the VLAN so that all the member ports of the protection group will be added into the VLAN. | Supports upstream transmission and cascading. The network role can only be configured based on board.
|
| Ethernet link aggregation | Support intra-board link aggregation and inter-board link aggregation | Support intra-board link aggregation and inter-board link aggregation | Support intra-board link aggregation and inter-board link aggregation |
| Packet capture | Identifying and capturing DHCP and PPPoE packets with 3 tags (V800R013C00 and later versions) | Identifying and capturing DHCP and PPPoE packets with 3 tags | Identifying and capturing DHCP and PPPoE packets with 3 tags |
| Load sharing | Yes | Yes | Yes A maximum of 2 H801SPUF boards can be configured as Layer 3 forwarding boards and work in load-sharing mode. |
| Automatic power shutdown in case of a high temperature | Yes | Yes | Yes |
| Temperature query and high-temperature alarm | Yes | Yes | Yes |
| HQoS | Yes | Yes | No |
| IEEE1588 V2 time synchronization | No | No | Yes |
| 1588 ACR | Yes | Yes | Yes |
| Synchronous Ethernet clock | Yes | Yes | Yes |
| Y.1731 | No | Yes | Yes |
| TPID configuration based on port | Yes | Yes | No |
| Limitation | None | None | Does not support the MSAN VoIP service.
When the system works in enhanced Layer 3 forwarding mode:
|
What is the maximum access capacity supported by the MA5608T chassis?
Depending on installed service boards, the MA5608T can support up to:
1. 4,096 GPON subscribers (with typical 1:64 split ratio)
2. 2 service slots for PON boards
Actual capacity depends on optical budget, splitter design, and upstream network planning.
What management and software features are supported?
The device supports IPv4/IPv6 dual stack, QoS, VLAN and QinQ, IGMP/MLD, OAM, remote maintenance, and full compatibility with Huawei NMS platforms.
What is the recommended optical power range for GPON on the MA5600 Series?
Typical GPON optical power budget:
1. OLT Receiver (Rx): –8 dBm to –27 dBm
2. ONU Receiver (Rx): –8 dBm to –27 dBm
Proper optical design is required to prevent ONU flapping caused by excessive split ratios or fiber degradation.
Which uplink options are supported?
The MA5608T supports GE and 10GE uplink interfaces through dedicated uplink boards, enabling flexible integration into aggregation or core networks. Link protection and redundant uplink configurations are supported.
Which PON technologies are supported by the MA5608T?
The MA5608T supports:
GPON service boards (ITU-T G.984)
EPON service boards (IEEE 802.3ah)
| Dimensions | 2.54 × 37.2 × 39.95 cm |
|---|---|
| Brand | Huawei |
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
