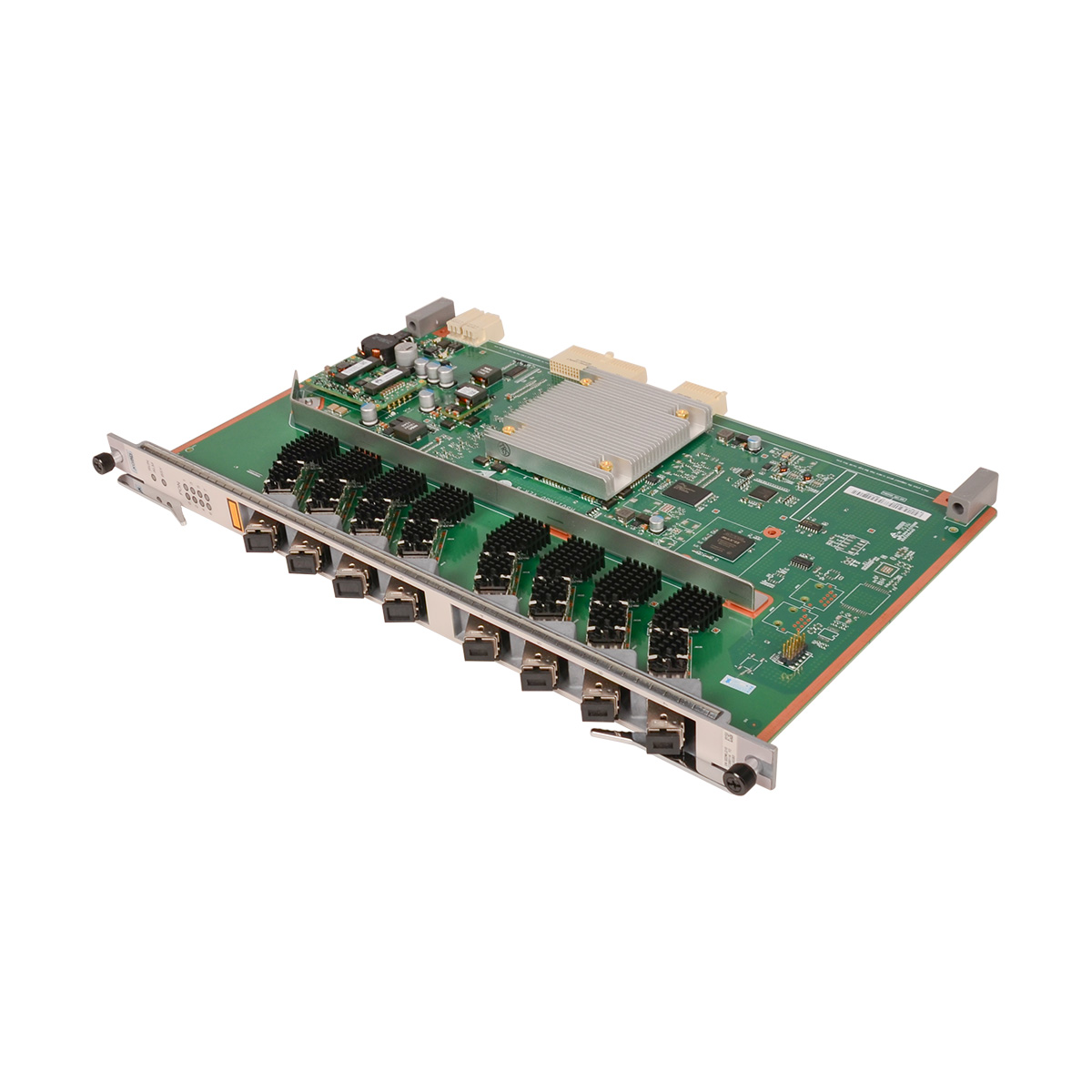

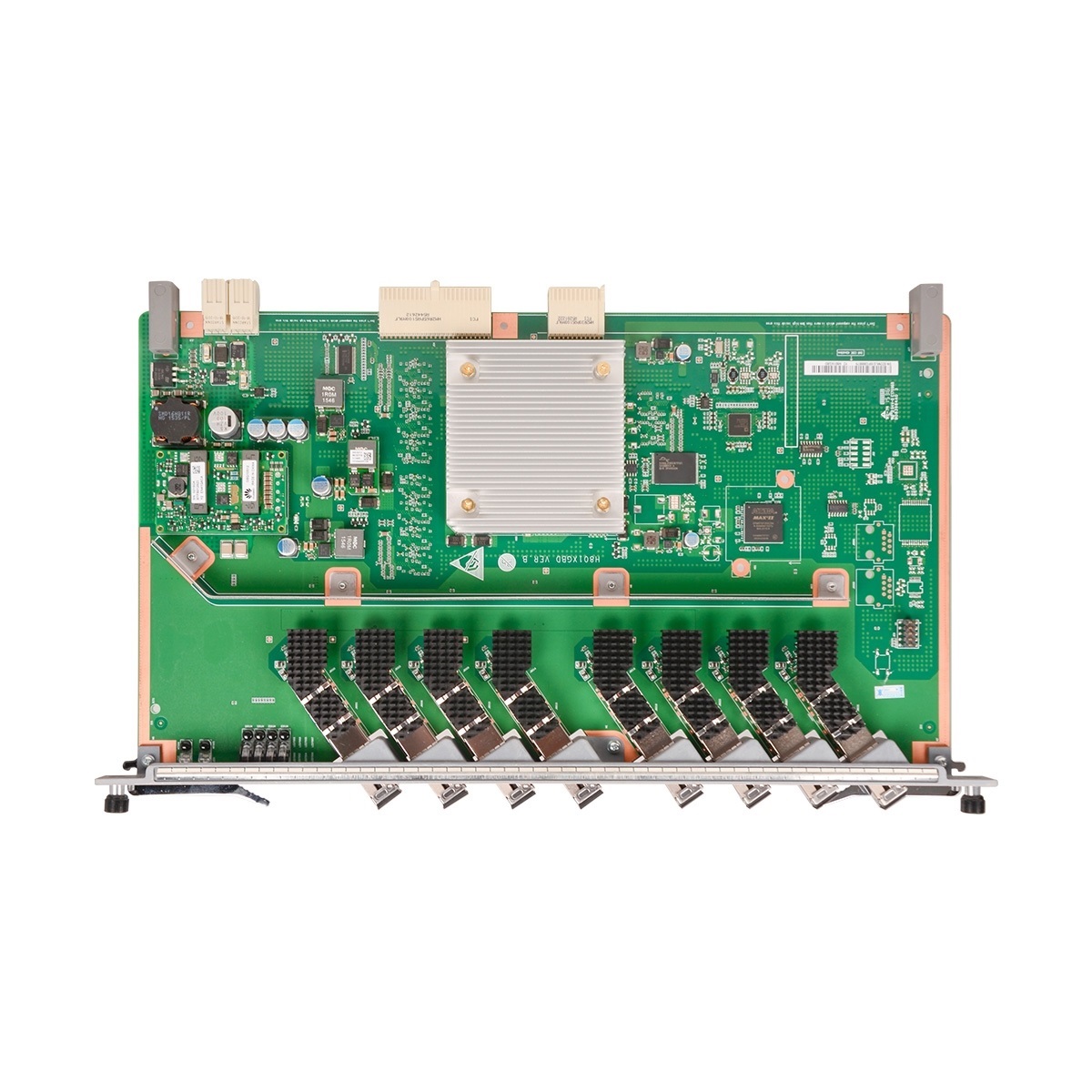

Huawei H801XGBD 8-port 10G GPON OLT Interface Board with N1 Optical Module
Huawei 8-port 10G GPON OLT interface board with 10G GPON N1 Optical Module, which can be used in the Huawei MA5600T series OLTs: MA5608T MA5683T MA5680T.
H801XGBD Port Rate: Tx: 10 Gbit/s, Rx: 2.5 Gbit/s.
Forwarding capability: 40 Gbit/s
T-CONTs per PON port: 1K
Service flows per PON board: 16K
Maximum frame size:2004 bytes, 9216 bytes (jumbo frame enabled)
MAC addresses: 64K
Maximum distance difference between two ONUs under the same PON port: 40 km from V800R013
| Item | H801XGBD |
| Service ports | |
| GPON Port | 8-port 10G GPON |
| GPON SFP+ Module Specification | |
| Type | One-fiber bi-directional optical module |
| Operating Wavelength | Tx: 1577 nm Rx: 1270 nm |
| Encapsulation Type | 10G-GPON |
| Port Rate | Tx: 9.95 Gbit/s Rx: 2.49 Gbit/s |
| Minimun Output Optical Power | 2 dBm |
| Maximum Output Optical Power | 6 dBm |
| Maximum Receiver Sensitivity | -27.5 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20 km |
| Overload Optical Power | -7 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 26 W; Maximum: 50 W |
| Maximum Frame Size | 2004 bytes; 9216 bytes (jumbo frame enabled) |
| Operating temperature | -25°C to +65°C |
Can the MA5600 Series interoperate with third-party ONUs/ONTs?
Yes, as long as both sides comply with ITU-T G.988 OMCI standards.
However, advanced functions such as Wi-Fi, VoIP, TR-069, and custom VLAN templates may behave differently.
A full OMCI interoperability and service verification test is strongly recommended before large-scale deployment.
What is the recommended optical power range for GPON on the MA5600 Series?
Typical GPON optical power budget:
1. OLT Receiver (Rx): –8 dBm to –27 dBm
2. ONU Receiver (Rx): –8 dBm to –27 dBm
Proper optical design is required to prevent ONU flapping caused by excessive split ratios or fiber degradation.
Which PON technologies are supported by the MA5608T?
The MA5608T supports:
GPON service boards (ITU-T G.984)
EPON service boards (IEEE 802.3ah)
Which uplink options are supported?
The MA5608T supports GE and 10GE uplink interfaces through dedicated uplink boards, enabling flexible integration into aggregation or core networks. Link protection and redundant uplink configurations are supported.
Which software version should be used? Is upgrading to the latest version necessary?
For carrier networks, the priority is:
1. Version stability
2. Board compatibility
3. Feature consistency with existing equipment
Use a widely deployed, mature version rather than the newest release. Always prepare a rollback plan before upgrading
| Service Board | H802XGBC | H801XGBD |
|---|---|---|
| Number of 10G GPON ports supported by each board | 4 | 8 |
| Port mode | XFP | SFP+ |
| Optical module | One-fiber bi-directional optical module. | One-fiber bi-directional optical module. |
| Number of GEM Port supported by each port | 3872 | 3872 |
| Number of T-CONT supported by each port | 2048 | 2048 |
| Split ratio | Supports a maximum of 1:128 split ratio. | Supports a maximum of 1:256 split ratio. |
| Transparent transmission of jumbo frame | - | 9216 Bytes |
| Optical module management |
Support the function for querying optical module parameters, such as
|
Support the function for querying optical module parameters, such as
|
| Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module | Support | Support |
| Temperature query and alarm in case of a high temperature | Support | Support |
| Board power-off in case of a high temperature | Support | Support |
| Weight | 3.5000 kg |
|---|---|
| Dimensions | 50.0000 × 33.0000 × 8.0000 cm |
| MA5600T | |
| Brand | Huawei |
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
