H802GPFD

1 Review Write a review
PN02311EQC
Brands
AvailabilityIn Stock
MA5600T GPON Board
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

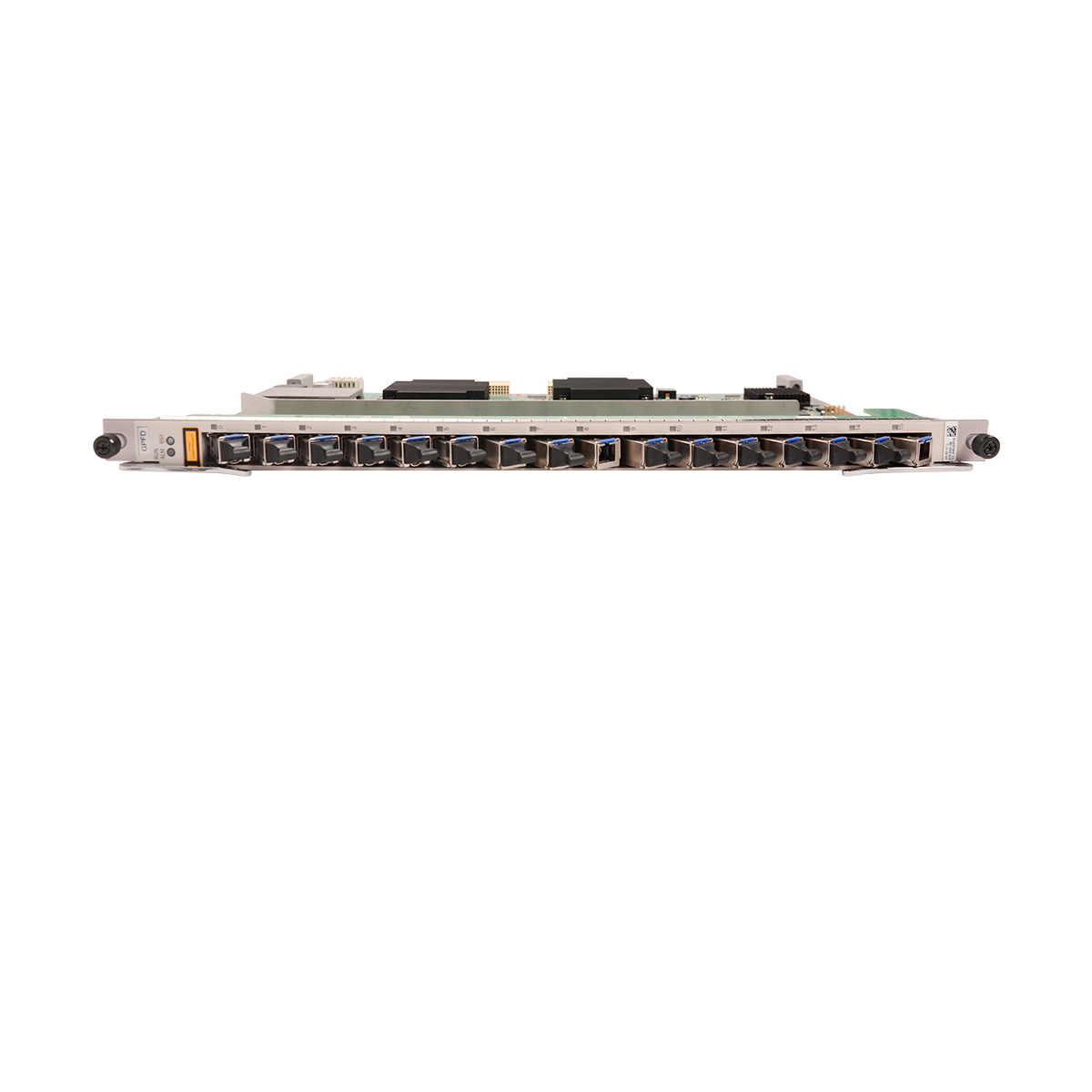

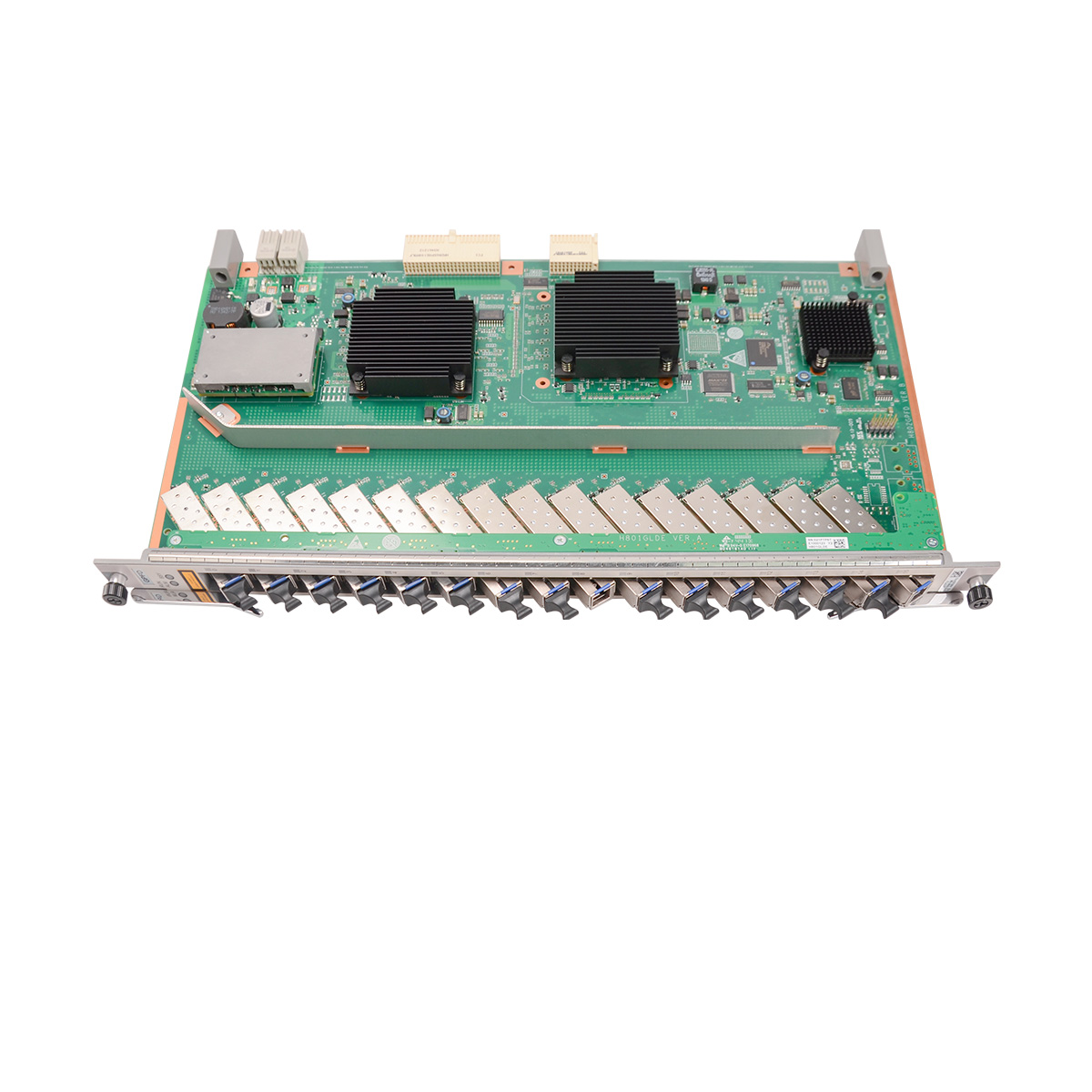

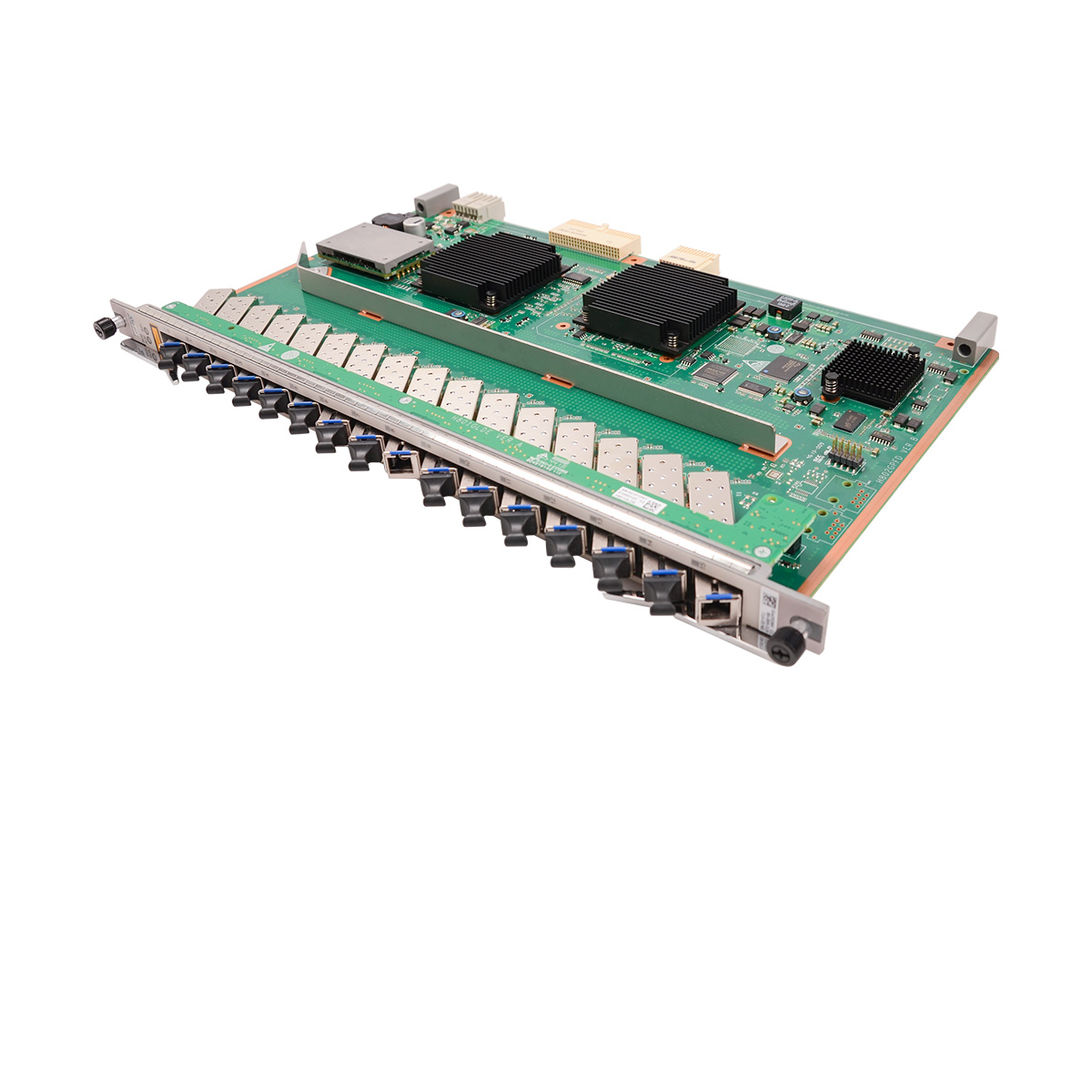

Huawei H802GPFD 16-port GPON OLT Interface Board with B+/C+/C++ module, apply to Huawei MA5608T/MA5680T/MA5683T

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Huawei H802GPFD 16-port GPON OLT Interface Board with B+/C+/C++ module, which can be used in the Huawei MA5600T serie OLT: MA5608T MA5683T MA5680T.

Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4

Interface Type: SC/PC

Operating Wavelength: Tx: 1490nm, Rx: 1310nm

Max. split radio:

Class B+: 1:64

Class C+/++: 1:128

  • B+ SFP Module Optical Power: 1.5 dBm~5 dBm, Receiver Sensitivity: -28 dBm
  • C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm
  • C++ SFP Module Optical Power: 6 dBm~10dBm, Receiver sensitivity: -35 dBm

Class B+/C+: Tx: 2.49Gbit/s, Rx: 1.24Gbit/s

Class C++: Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Item H802GPFD
GPON Port 16-GPON Port
GPON SFP Module Specification
Type B+ Module: One-fiber bi-directional optical module, class B+ C+ Module: One-fiber bi-directional optical module, class C+ C++ Module: One-fiber bi-directional optical module, class C++
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate B+: Tx: 2.49Gbit/s, Rx: 1.24Gbit/s C+: Tx: 2.49Gbit/s, Rx: 1.24Gbit/s C++: Tx: 2.488Gb/s, Rx: 1.244Gb/s
Minimun Output Optical Power B+: 1.50 dBm C+: 3.00 dBm C++: 6.00 dBm
Maximum Output Optical Power B+: 5.00 dBm C+: 7.00 dBm C++: 10.00 dBm
Maximum Receiver Sensitivity B+: -28.00 dBm C+: -32.00 dBm C++: -35.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20 km
Overload Optical Power B+: -8.00 dBm C+: -12.00 dBm C++: -15.00 dBm
Extinction Ratio 8.2 dB
Power Consumption and Maximum Frame Size
Power Consumption H802GPFD : Static: 45 W, Maximum: 73 W H803GPFD : Static: 39 W, Maximum: 61 W H805GPFD : Static: 26 W, Maximum: 50 W
Maximum Frame Size 2004 bytes
Operating temperature -25°C to +65°C
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm

Additional information

MA5600T

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item H802GPFD
GPON Port 16-GPON Port
GPON SFP Module Specification
Type B+ Module: One-fiber bi-directional optical module, class B+ C+ Module: One-fiber bi-directional optical module, class C+ C++ Module: One-fiber bi-directional optical module, class C++
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate B+: Tx: 2.49Gbit/s, Rx: 1.24Gbit/s C+: Tx: 2.49Gbit/s, Rx: 1.24Gbit/s C++: Tx: 2.488Gb/s, Rx: 1.244Gb/s
Minimun Output Optical Power B+: 1.50 dBm C+: 3.00 dBm C++: 6.00 dBm
Maximum Output Optical Power B+: 5.00 dBm C+: 7.00 dBm C++: 10.00 dBm
Maximum Receiver Sensitivity B+: -28.00 dBm C+: -32.00 dBm C++: -35.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20 km
Overload Optical Power B+: -8.00 dBm C+: -12.00 dBm C++: -15.00 dBm
Extinction Ratio 8.2 dB
Power Consumption and Maximum Frame Size
Power Consumption H802GPFD : Static: 45 W, Maximum: 73 W H803GPFD : Static: 39 W, Maximum: 61 W H805GPFD : Static: 26 W, Maximum: 50 W
Maximum Frame Size 2004 bytes
Operating temperature -25°C to +65°C
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
