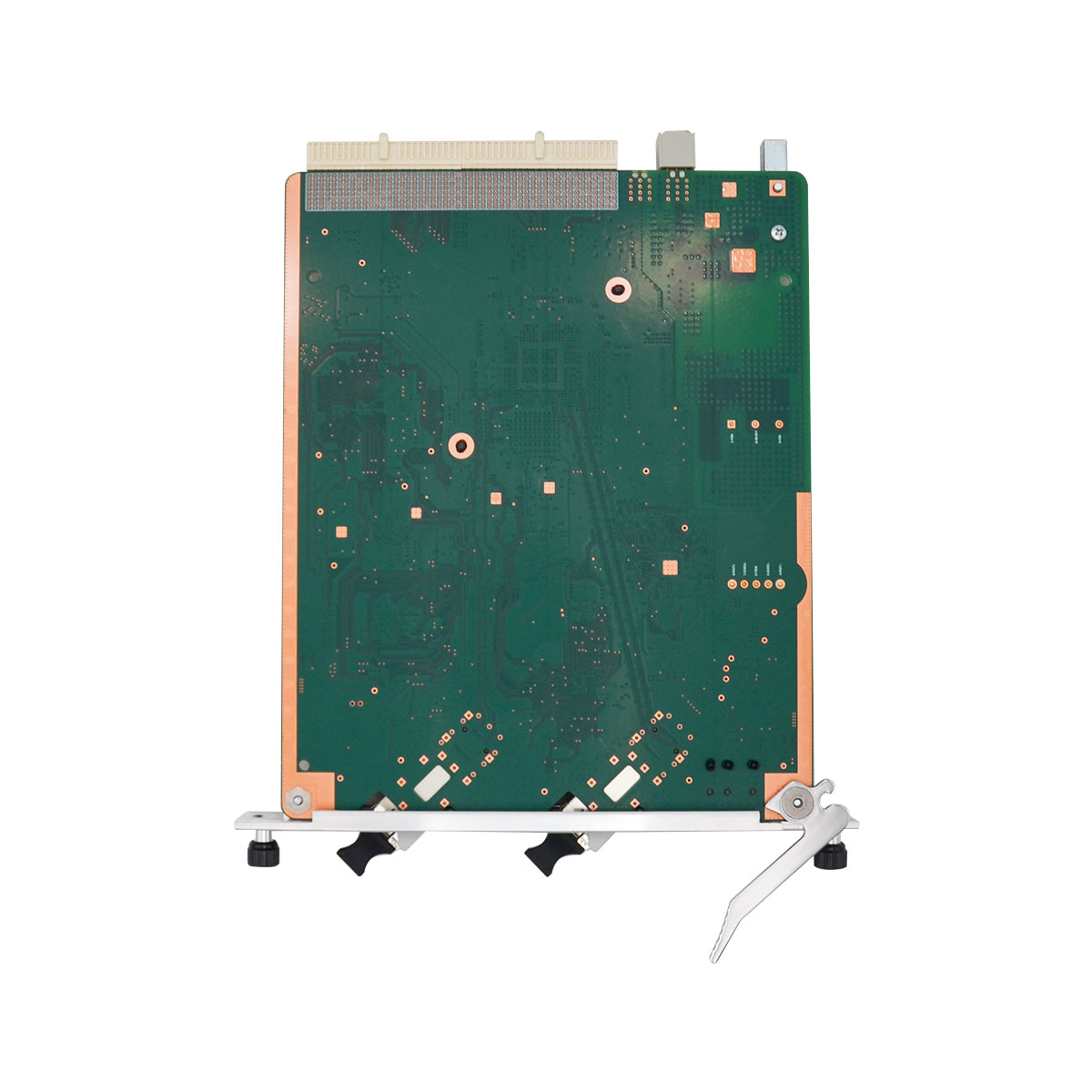

Huawei MA5683T MA5680T 2 ports GE/10GE uplink interface board
This board is a 2-port GE/10GE uplink interface board, which can be applied to Huawei MA5683T and Huawei MA5680T OLT systems.
Besides, we also have the versions H801X2CK available.
Kindly note all uplink boards from Telecomate.com will come without an optical module equipped by default, if the GE SFP module or 10GE SFP+ module is needed, please contact csd@telecomate.com.
| Item | H803X2CK |
| Clock Feature | 10GE/GE synchronous Ethernet |
| 1588v2 (with CKMC or CKMD) | |
| 1588ACR (with CKMD) | |
| Port | Two 10GE/GE ports |
| Pluggable Optical Module | SFP/SFP+ |
| Pluggable Electrical Module | SFP |
Which uplink options are supported?
The MA5608T supports GE and 10GE uplink interfaces through dedicated uplink boards, enabling flexible integration into aggregation or core networks. Link protection and redundant uplink configurations are supported.
What control and switching capabilities does the MA5608T provide?
The MA5608T supports dual-control-board architecture and provides high switching throughput with carrier-grade forwarding performance. It supports L2/L3 edge access features, including VLAN, QinQ, QoS, multicast, and user authentication.
What is the recommended optical power range for GPON on the MA5600 Series?
Typical GPON optical power budget:
1. OLT Receiver (Rx): –8 dBm to –27 dBm
2. ONU Receiver (Rx): –8 dBm to –27 dBm
Proper optical design is required to prevent ONU flapping caused by excessive split ratios or fiber degradation.
What are the most common operational issues with the MA5600 Series?
Typical issues encountered in the field include:
1. ONU drop / optical power fluctuations due to ODN attenuation or fiber aging
2. Control board switchover failure caused by mismatched versions
3. IPTV freezing triggered by incomplete multicast configuration or insufficient uplink bandwidth
4. ONU not registering due to OMCI compatibility problems
5. Device reboot caused by fan or power module aging
Routine power-level inspections, board version checks, and temperature monitoring can significantly reduce risks.
What management and software features are supported?
The device supports IPv4/IPv6 dual stack, QoS, VLAN and QinQ, IGMP/MLD, OAM, remote maintenance, and full compatibility with Huawei NMS platforms.
| Board | Upstream Transmission | Cascading | Intra-board aggregation and Inter-board aggregation | Clock Feature | Port | Pluggable Optical Module | Pluggable Electrical Module |
| H801GICD | Yes | Yes | Yes | 1588ACR (with CKMD) | Four GE ports | SFP | SFP |
| H801GICE | Yes | Yes | Yes | 1588ACR (with CKMD) | Four GE electrical ports | No | No |
| H801GICF | Yes | Yes | Yes | 1588ACR (with CKMD) | Two GE ports | SFP | SFP |
| H801GICG | Yes | Yes | Yes | 1588ACR (with CKMD) | Two GE electrical ports | No | No |
| H801GICK | Yes | Yes | Yes | GE synchronous Ethernet (V800R013C10 and later versions) | Two GE ports | SFP | SFP |
| 1588v2 (with CKMC or CKMD, V800R013C10 and later versions) | |||||||
| 1588ACR (with CKMD, V800R013C10 and later versions) | |||||||
| H802GICK | Yes | Yes | Yes | GE synchronous Ethernet (V800R017C10 and later versions) | Two GE ports | SFP | SFP |
| 1588v2 (with CKMC or CKMD, V800R017C10 and later versions) | |||||||
| 1588ACR (with CKMD, V800R017C10 and later versions) | |||||||
| H801GSCA | Yes | Yes | Yes | GE synchronous Ethernet | Four GE ports | SFP | No |
| 1588ACR (with CKMD) | |||||||
| H801X1CA | Yes | Yes | Yes | 1588ACR (with CKMD) | One 10GE port | XFP | No |
| H801X2CA | Yes | Yes | Yes | 1588ACR (with CKMD) | Two 10GE ports | XFP | No |
| H801X2CS | Yes | Yes | Yes | 10GE synchronous Ethernet | Two 10GE ports | SFP+ | No |
| 1588ACR (with CKMD) | |||||||
| H802X2CS | Yes | Yes | Yes | 10GE/GE synchronous Ethernet | Two 10GE/GE ports | SFP/SFP+ | SFP |
| 1588ACR (with CKMD) | |||||||
| H801X2CK | Yes | Yes | Yes | 10GE/GE synchronous Ethernet (V800R017C10 and later versions) | Two 10GE/GE ports | SFP/SFP+ | SFP |
| 1588v2 (with CKMC or CKMD, V800R017C10 and later versions) | |||||||
| 1588ACR (with CKMD, V800R017C10 and later versions) | |||||||
| H803X2CK | Yes | Yes | Yes | 10GE/GE synchronous Ethernet | Two 10GE/GE ports | SFP/SFP+ | SFP |
| 1588v2 (with CKMC or CKMD) | |||||||
| 1588ACR (with CKMD) | |||||||
| H802P2CA | Yes | No | No | No | Two GPON port (only TX0/RX0 available) | SFP | No |
| Weight | 2 kg |
|---|---|
| Brand | Huawei |
| Lead Time | In Stock |
| Ship From | Shenzhen Warehouse |
