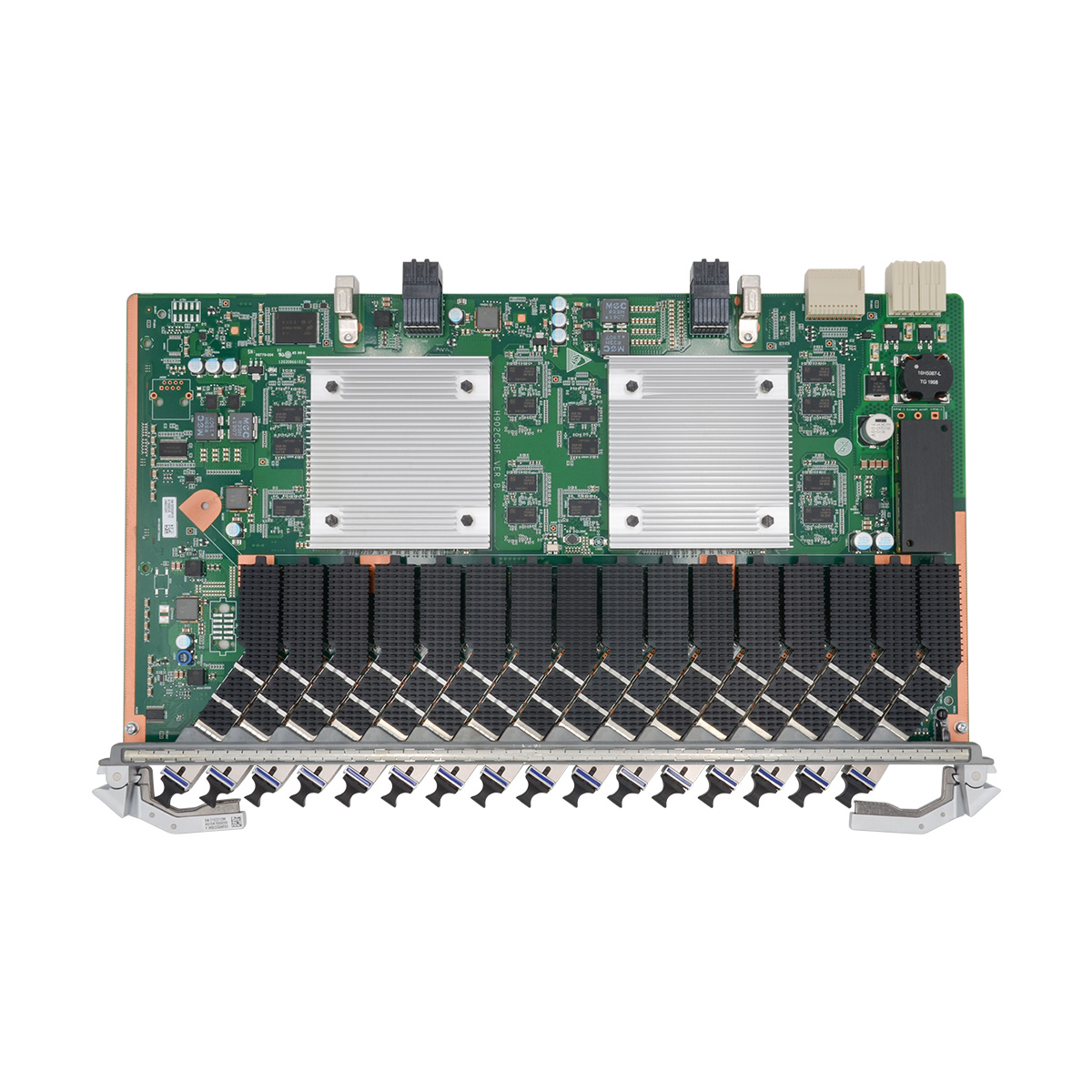

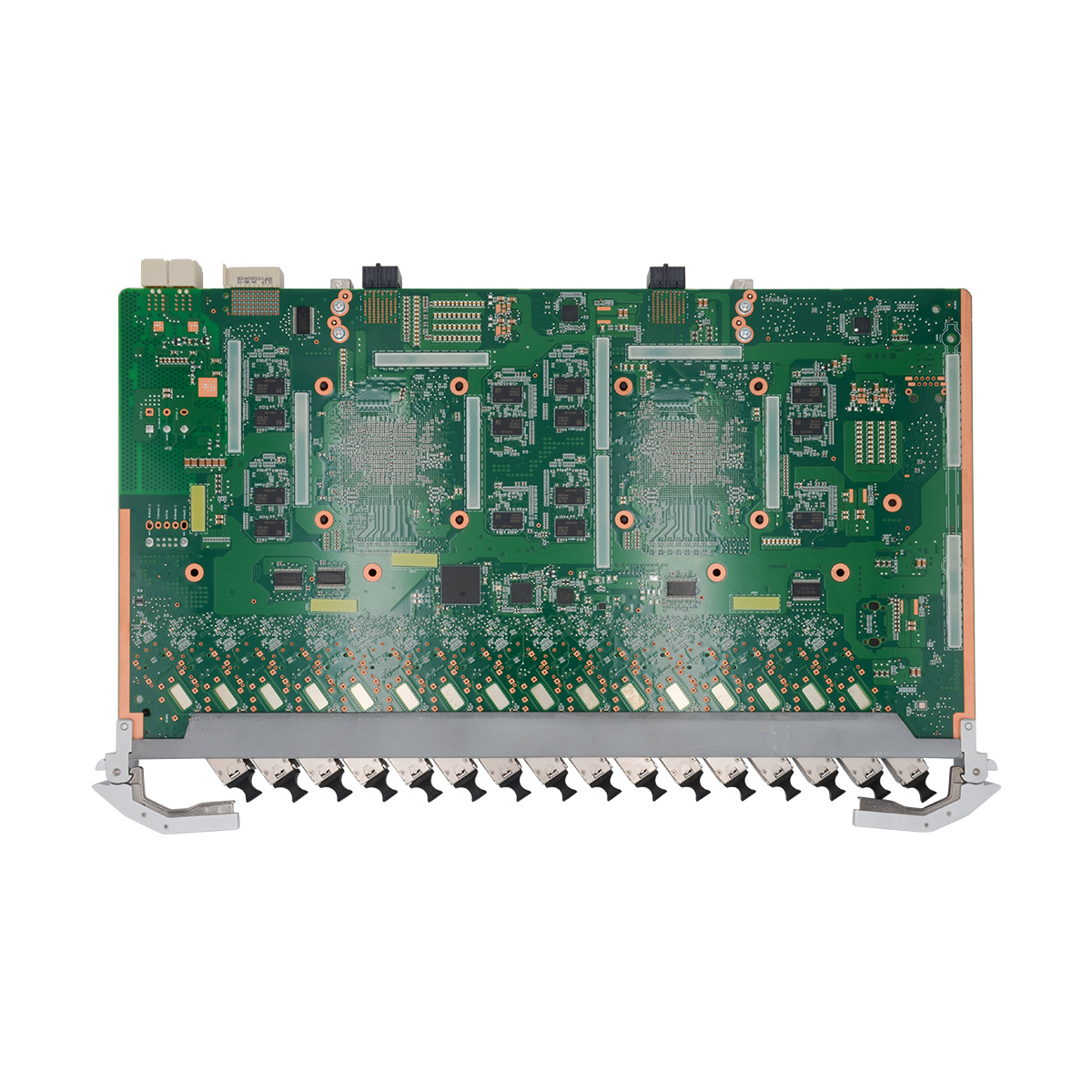

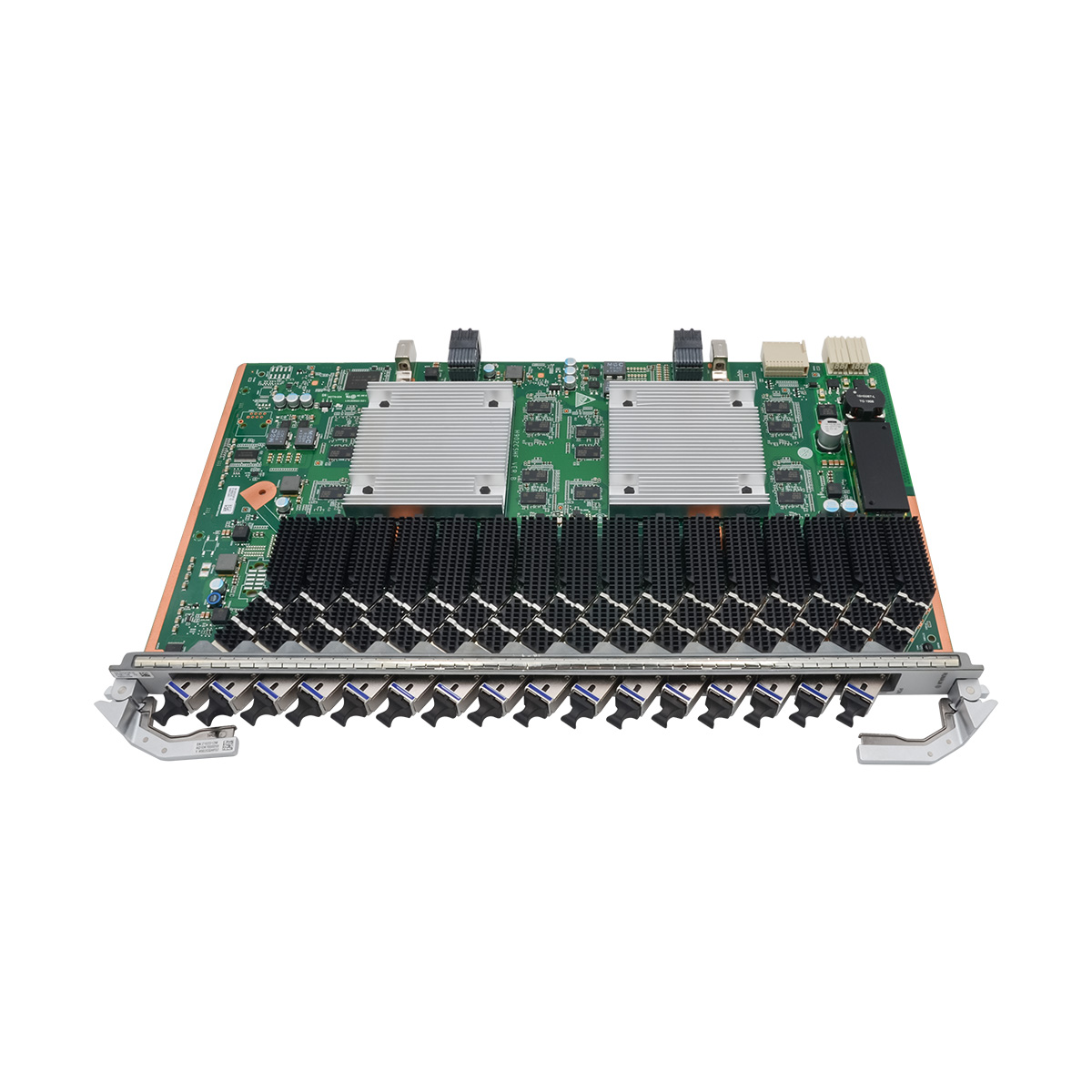

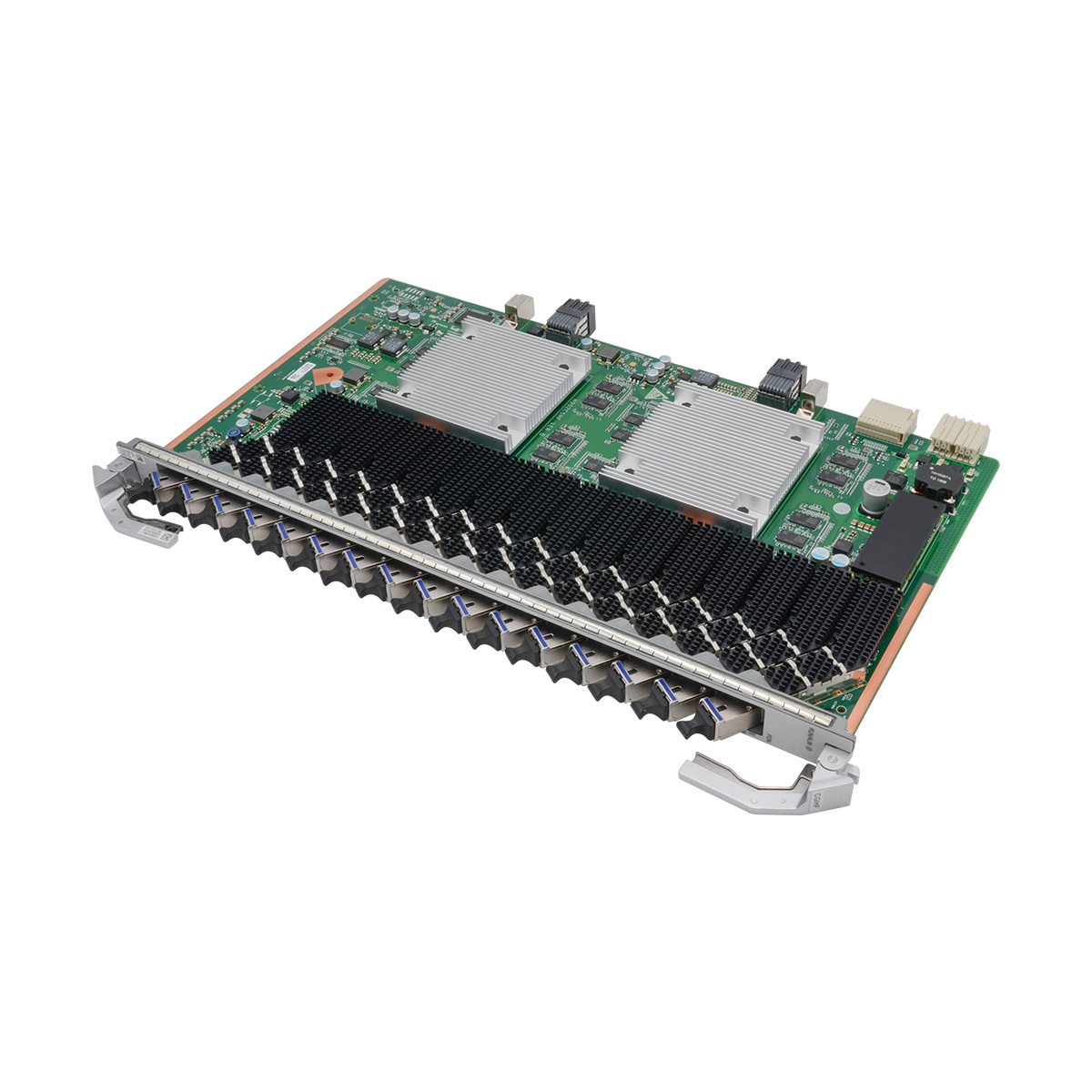

H902CGHF Overview

Huawei H902CGHF is a 16-port XG-PON and GPON Combo OLT interface board with XG-PON & GPON C+/N2a Optical Module, apply to Huawei MA5800-X2, X7, X15, X17 NG OLT system. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.

Forwarding Capability: 200 Gbit/s

Max split radio: 1:256

Maximum Frame Size:
2052 bytes
9216 bytes (jumbo frame enabled)
T-CONTs per PON port:
GPON: 1024
XG-PON: 2048
Maximum number of MAC addresses: 131072
Service flows per PON board: 16352

GPON channel:

  • Tx: 2.488 Gbit/s
  • Rx: 1.244 Gbit/s

XG-PON channel:

  • Tx: 9.953 Gbit/s
  • Rx: 2.488 Gbit/s

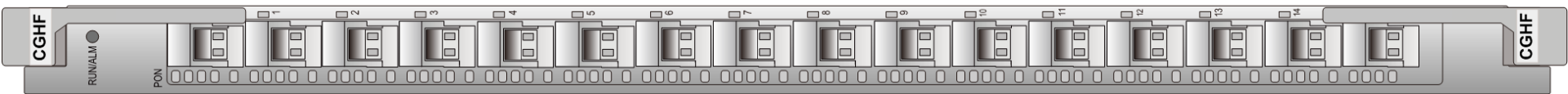

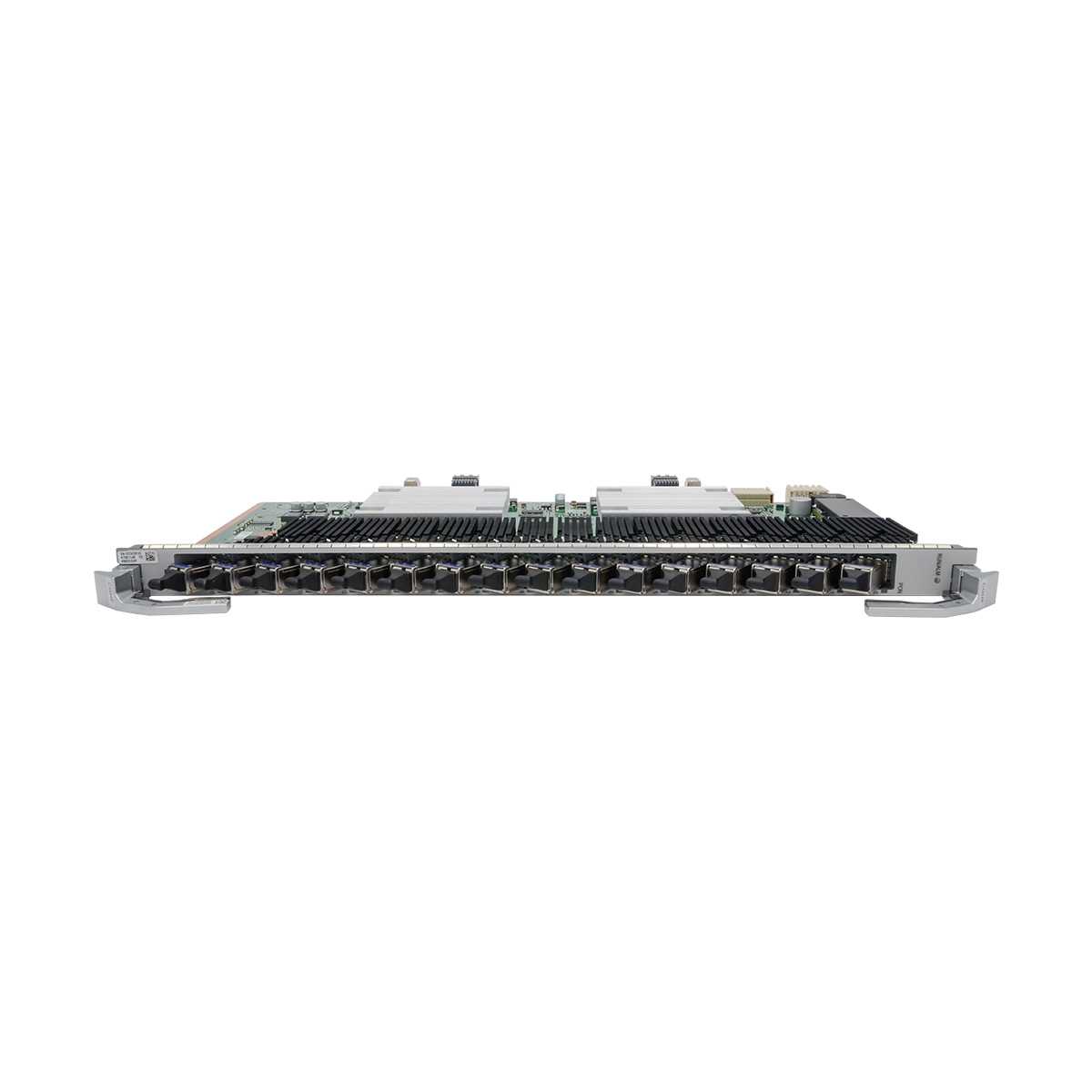

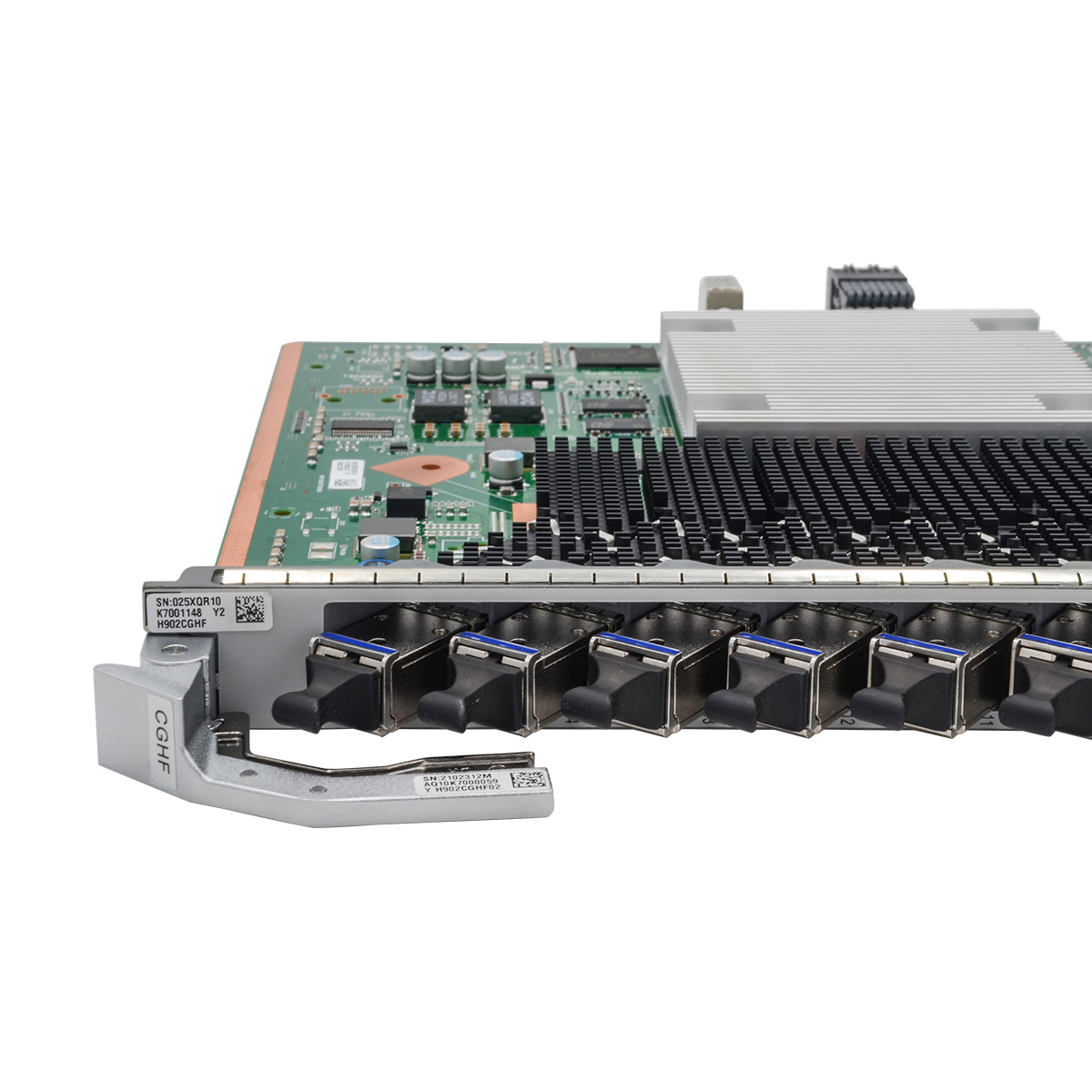

Front Panel

H902CGHF

Show More Show Less
H902CGHF Datasheet
Item H902CGHF
Service ports
GPON Port 16 XG-PON & GPON ports
Forwarding Capality 200 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON port GPON: 1024 XG-PON: 2048
Service flows per PON board 16352
Maximum frame size 2052 bytes 9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUs under the same PON port  40 km
FEC Bidirection
CAR group Supported
HQoS Supported
Variable-length OMCI Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Supported
Type B protection(single-homing) Supported
Type C protection(dual-homing) Supported(applicable to GPON channels)
Type C protection(single-homing) Supported(applicable to GPON channels)
1588v2 Supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Not supported
GPON SFP Module Specification
Type One-fiber bi-directional optical module C+ One-fiber bi-directional optical module N2a
Operating Wavelength GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm
Encapsulation Type SFP+
Port Rate GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s
Minimum Output Optical Power N2a: GPON channel: 3 dBm XG-PON channel: 4 dBm C+: GPON channel: 3 dBm XG-PON channel: 5 dBm
Maximum Output Optical Power N2a: GPON channel: 7 dBm XG-PON channel: 8 dBm C+: GPON channel: 7 dBm XG-PON channel: 8 dBm
Maximum Receiver Sensitivity N2a: GPON channel: -32 dBm XG-PON channel: -29.5 dBm C+: GPON channel：-32dBm XG-PON channel：-30.5dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power N2a: GPON channel: -12 dBm XG-PON channel: -9 dBm C+: GPON channel: -12 dBm XG-PON channel: -10 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption
Power Consumption Static: 48 W Maximum: 106 W
Operating temperature -40°C to +65°C

Additional information

Weight 3.0000 kg
Dimensions 49.0000 × 32.5000 × 7.5000 cm
MA5800

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
H902CGHF Datasheet
Item H902CGHF
Service ports
GPON Port 16 XG-PON & GPON ports
Forwarding Capality 200 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON port GPON: 1024 XG-PON: 2048
Service flows per PON board 16352
Maximum frame size 2052 bytes 9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUs under the same PON port  40 km
FEC Bidirection
CAR group Supported
HQoS Supported
Variable-length OMCI Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Supported
Type B protection(single-homing) Supported
Type C protection(dual-homing) Supported(applicable to GPON channels)
Type C protection(single-homing) Supported(applicable to GPON channels)
1588v2 Supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Not supported
GPON SFP Module Specification
Type One-fiber bi-directional optical module C+ One-fiber bi-directional optical module N2a
Operating Wavelength GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm
Encapsulation Type SFP+
Port Rate GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s
Minimum Output Optical Power N2a: GPON channel: 3 dBm XG-PON channel: 4 dBm C+: GPON channel: 3 dBm XG-PON channel: 5 dBm
Maximum Output Optical Power N2a: GPON channel: 7 dBm XG-PON channel: 8 dBm C+: GPON channel: 7 dBm XG-PON channel: 8 dBm
Maximum Receiver Sensitivity N2a: GPON channel: -32 dBm XG-PON channel: -29.5 dBm C+: GPON channel：-32dBm XG-PON channel：-30.5dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power N2a: GPON channel: -12 dBm XG-PON channel: -9 dBm C+: GPON channel: -12 dBm XG-PON channel: -10 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption
Power Consumption Static: 48 W Maximum: 106 W
Operating temperature -40°C to +65°C
