Description

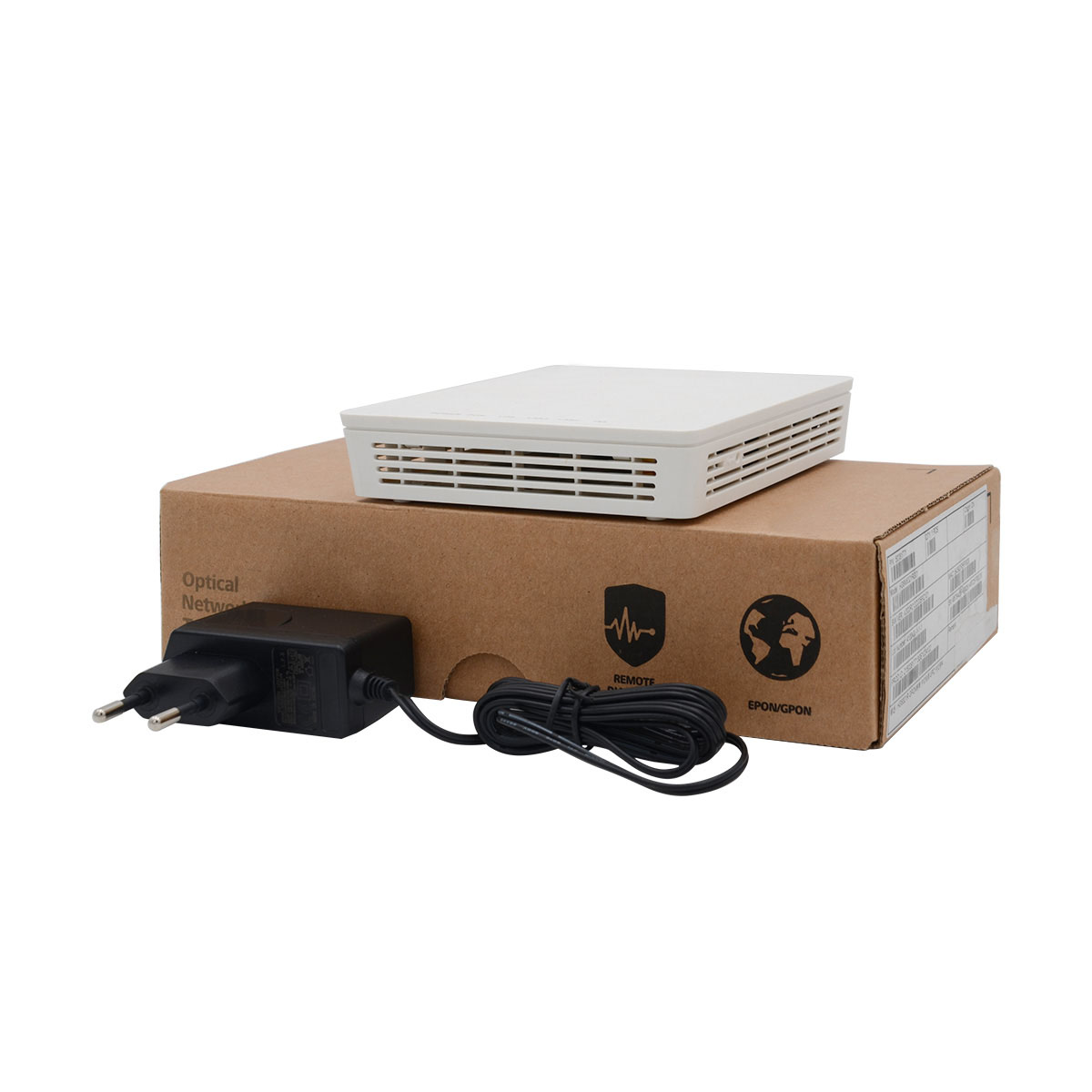

Huawei OLT compatible HG8321R GPON Optical Network Terminal with 1*GE+1*FE+1*POTS, it can be configured by OLT or Web or NMS. It is a indoor optical network terminal in FTTx solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users.
- GPON SC/UPC
- Compatible with Huawei OLT that supports OMCI
- Without WIFI
- EU/CN/US/AU power supply for choice
- EG8120L and HG8321R are same ports, recommend EG8120L instead of HG8321R, because EG8120L is 20% smaller size than HG8321R.
| Item | HG8321R |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Pressure environment: 0 to 106 kPa | |
| Power consumption | Static power: 2 W |
| Maximum power consumption: 2.5 W | |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 VDC, 0.5 A | |
| Network-side port | GPON (SC/UPC) |
| Dimensions (length x width x height) |
82 mm x 90 mm x 27 mm |
| Weight | About 0.5 Kg |
| Model Name | HG8310M | HG8010H | HG8321R | EG8120L |
| UNI(User Network Interface) | 1*GE | 1*GE | 1*GE+1*FE+1*POTS | 1*GE+1*FE+1*POTS |
Q: What’s the difference between EG8120L and HG8321R?
A: EG8120L RAM is 64, HG8321R RAM is 128; the volume of EG8120L is about 30% smaller than that of HG8321R.
Q: Can HG8321R replace EG8120L?
A: Yes, both models have the same ports, 1*GE+1*FE+1*POTS.
Q: Does the HG8321R only support Bridge mode?
A: No, both bridge and route modes are supported.
Q: How can I do if I want to use WIFI?
A: Please connect a home router with the LAN port of the EG8120L.
