HS8546V5
HS8546V5-1
HS8546V5-2
HS8546V5-3
HS8546V5-4
HS8546V5-5
Categories:

HS8546V5

4 Reviews Write a review
SKU2002658
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei OLT compatible HS8546V5 GPON Terminal with 4*GE+1*POTS+1*USB+2.4G/5G WIFI, English firmware, English indicator, English interface description.

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

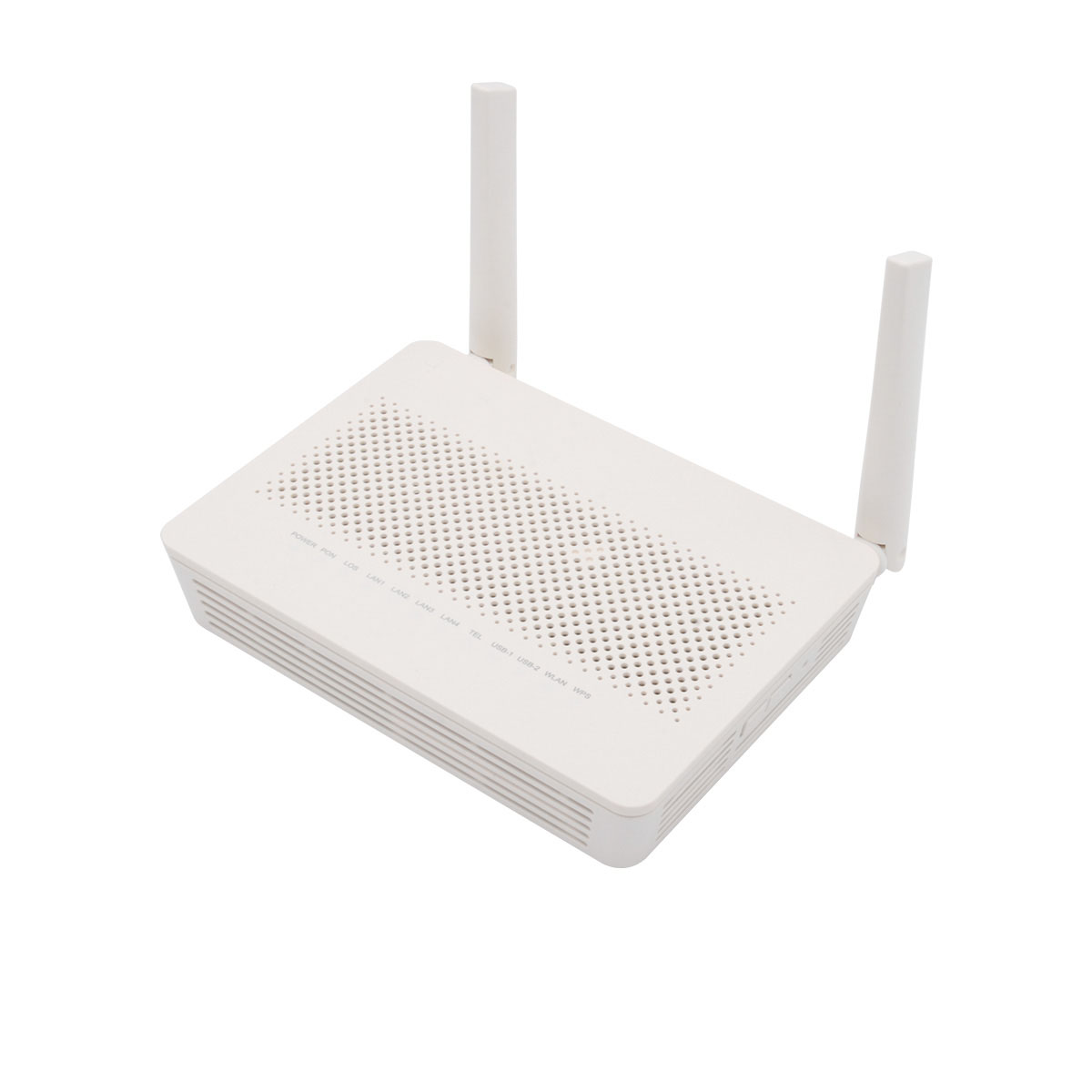

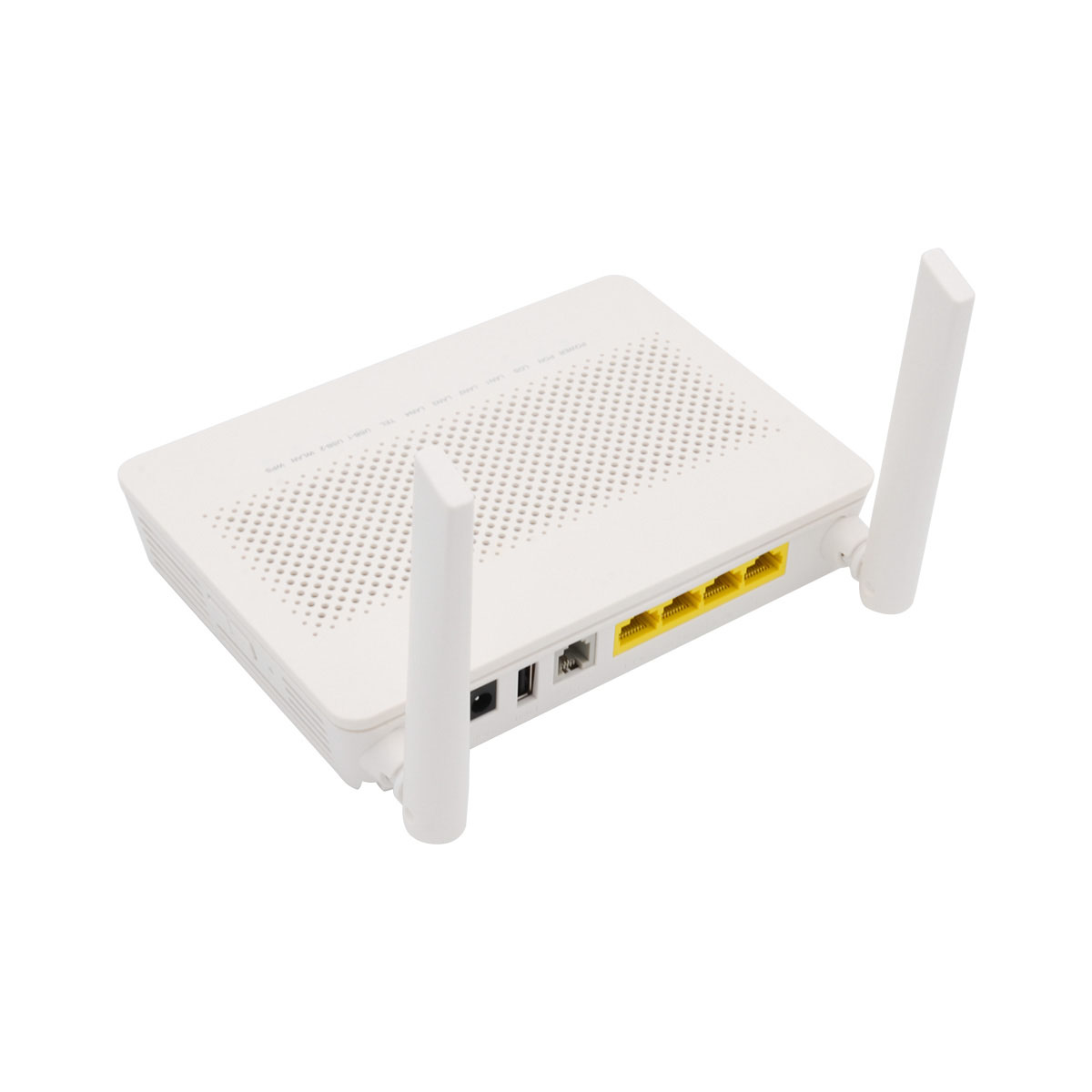

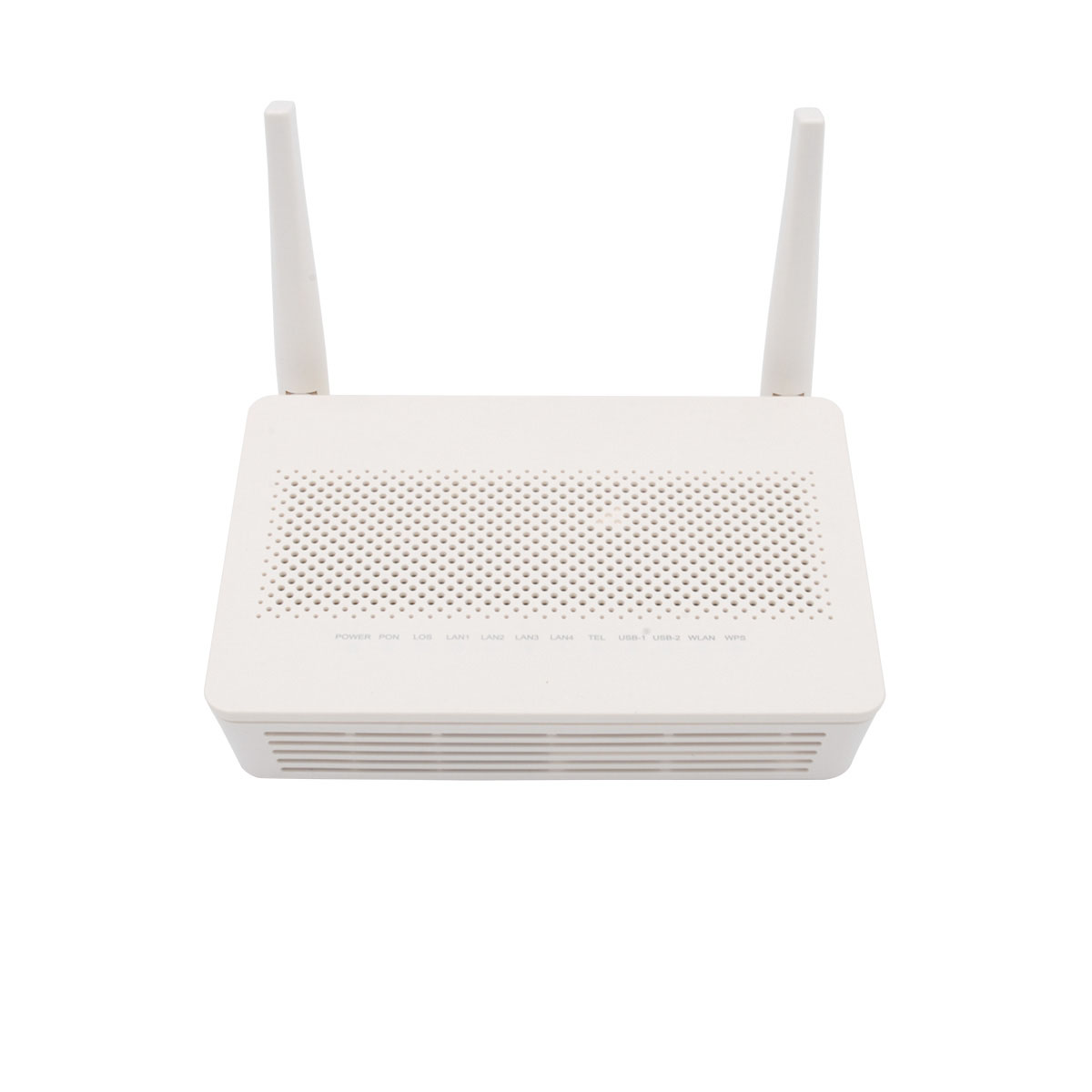

Huawei OLT compatible HS8546V5 GPON Optical Network Terminal with 4*GE+1*POTS+1*USB+2.4G/5G WIFI.

Connector: SC/UPC

Interface type: 4GE+1USB+1POTS+dual-band (2.4GHz & 5GHz) Wi-Fi.

Flexible application: Home terminals such as PC and STB can be mixed and inserted on the Ethernet port at will; support SIP and H.248 two kinds of protocol self-adaption, and it is convenient to connect with soft switch.

Plug and play: Support the remote automatic distribution of voice, broadband, multicast and other services through the OMCI protocol and TR069, without on-site configuration.

Remote diagnosis: support POTS port external line test, call emulation, PPPoE dial emulation, easy to realize remote fault location.

Green and energy-saving: highly integrated SOC, integrated PON, voice, gateway and LSW modules, energy saving 25%.

 Item  HS8546V5
Working environment Operating temperature: 0ºC to 40ºC
Environment humidity: 5% to 95% (noncondensing)
Typical power consumption 8 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 VDC, 2 A
WLAN 2.4GHZ: 802.11n 5GHZ: 802.11ac
Network-side Port GPON(SC/UPC)
User-side Ports 1 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 2 x USB
Indicators POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
Dimensions (length x width x height) 173 mm x 120 mm x 30 mm
Weight About 1 Kg

Dual-band ONT Comparation
Model EG8145X6 HG8245Q2 HS8546V5 HS8145V5 HS8145V HS8546V EG8145V5 EG8247W
GE port(s) 4 4 4 4 4 4 4 4
USB port(s) 2 2 1 1 1 1 2 1
POTS port(s) 1 1 1 1 1 1 1 1
Antenna 2*5dBi Built-in, 5dBi 2*5dBi 2*5dBi 2*5dBi 2*5dBi 2*5dBi 4*5dBi
WiFi6 supported Yes No No No No No No No

Additional information

Lead Time

3-5 days
Ship From

Shenzhen Warehouse

Reviews

  1. Lee –

    Huawei Logo, not “China Mobile” logo like other suppliers. Perfect!

  2. Ramón –

    El mismo modelo que compré desde otro proveedor antes lleva el logo de China Mobile, pero la HS8546V5 de telecomate.com no la contiene. La muestra funciona muy bien. Listo para comprarla a granel.

  3. Milos –

    Very good ONT with great package, fortunately the outer packing has waterproof film, or it will be wet due to the rain.

  4. Ali –

    Delivery is fast. A pleasant purchasing!
