HS8546V

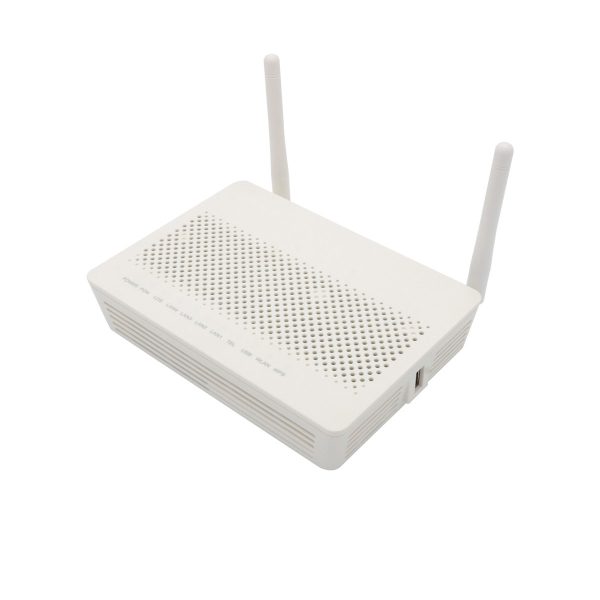

Huawei Echolife HS8546V GPON Terminal with 4*GE+1*POTS+1*USB+2.4G/5G WIFI, China Mobile Logo

SKU: 2002713 Categories: , Tag:

Description

Huawei Echolife HS8546V GPON Terminal with 4*GE+1*POTS+1*USB+2.4G/5G WIFI, China Mobile Logo

GPON ONT HS8546V5 2.4G/5G WIFI Optical Network Terminal

GPON ONT, 4*GE+1*POTS+1*USB, with 2.4G/5G WiFi

ENG firmware, ENG interface, CE Label

2.4GHZ: 802.11n 2×2 MIMO

5GHZ: 802.11ac 2×2 MIMO

Antenna Gain: 3dBi

Connector type SC/UPC

Can be configured by OLT or Web or NMS

OMCI Supported on Huawei OLT

Routing function supported

Specification
Working environment Operating temperature: 0ºC to 40ºC
Environment humidity: 5% to 95% (noncondensing)
Typical power consumption 8 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 VDC, 2 A
WLAN 802.11ac
Support IPv4 or IPv6 IPv4 and IPv6
Network-side Port GPON
User-side Ports 1 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 2 x USB
Indicators POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
Dimensions
(length x width x height)
265 mm x 176 mm x 82 mm
Weight About 1.5 Kg

Huawei dual-band ONT Comparation

Model EG8145X6 HG8245Q2 HS8546V5 HS8145V5 HS8145V HS8546V EG8145V5 EG8247W
GE port(s) 4 4 4 4 4 4 4 4
USB port(s) 2 2 1 1 1 1 2 1
POTS port(s) 1 1 1 1 1 1 1 1
Antenna 2*5dBi Built-in, 5dBi 2*5dBi 2*5dBi 2*5dBi 2*5dBi 2*5dBi 4*5dBi
WiFi6 supported Yes No No No No No No No

Q: What does 5G WIFI mean?

A: 5G Wi-Fi (802.11ac) refers to Wi-Fi that operates in the 5Ghz radio wave frequency band and uses the 802.11ac protocol.



Q: What is the difference between 2.4G WIFI and 5G WIFI?

A: 2.4G WIFI Advantages

The signal is better than 5G WIFI. 2.4G WIFI works in the 2.4G frequency band. According to the physical characteristics of electromagnetic waves, the longer the wavelength, the less attenuation. The frequency of 2.4G WIFI is low and the wavelength is long, so when the signal passes through obstacles, the attenuation is relatively small and can be transmitted. farther away.

2.4G WIFI Disadvantages

The 2.4G signal bandwidth is narrow, and most home appliances and wireless devices use the 2.4G frequency band. The wireless environment is more crowded and the interference is greater.

Advantages of 5G WIFI
The 5G signal bandwidth is wider, the wireless environment is relatively clean, the interference is less, the network speed is stable, and the 5G can support higher wireless rates.

5G Wi-Fi disadvantages

The frequency of a 5G signal is higher, the attenuation is greater when propagating in the air or obstacles, and the coverage distance is generally smaller than that of a 2.4G signal.



Q: Does WIFI6 belong to dual-band?

A: Yes, WiFi6 covers 2.4&5.8GHz dual-band; the capacity of WiFi 6 is almost four times that of WiFi 5.



Q: Can you customize my logo on the shell and firmware of HS8546V?

A: Yes, we support customized services.

1 review for HS8546V

  1. 5 out of 5

    Arnaud

    Great ONT, my customer is very satisfied with it, hope can more discount in later order.
