$0.00 Original price was: $0.00.Current price is: $0.00.

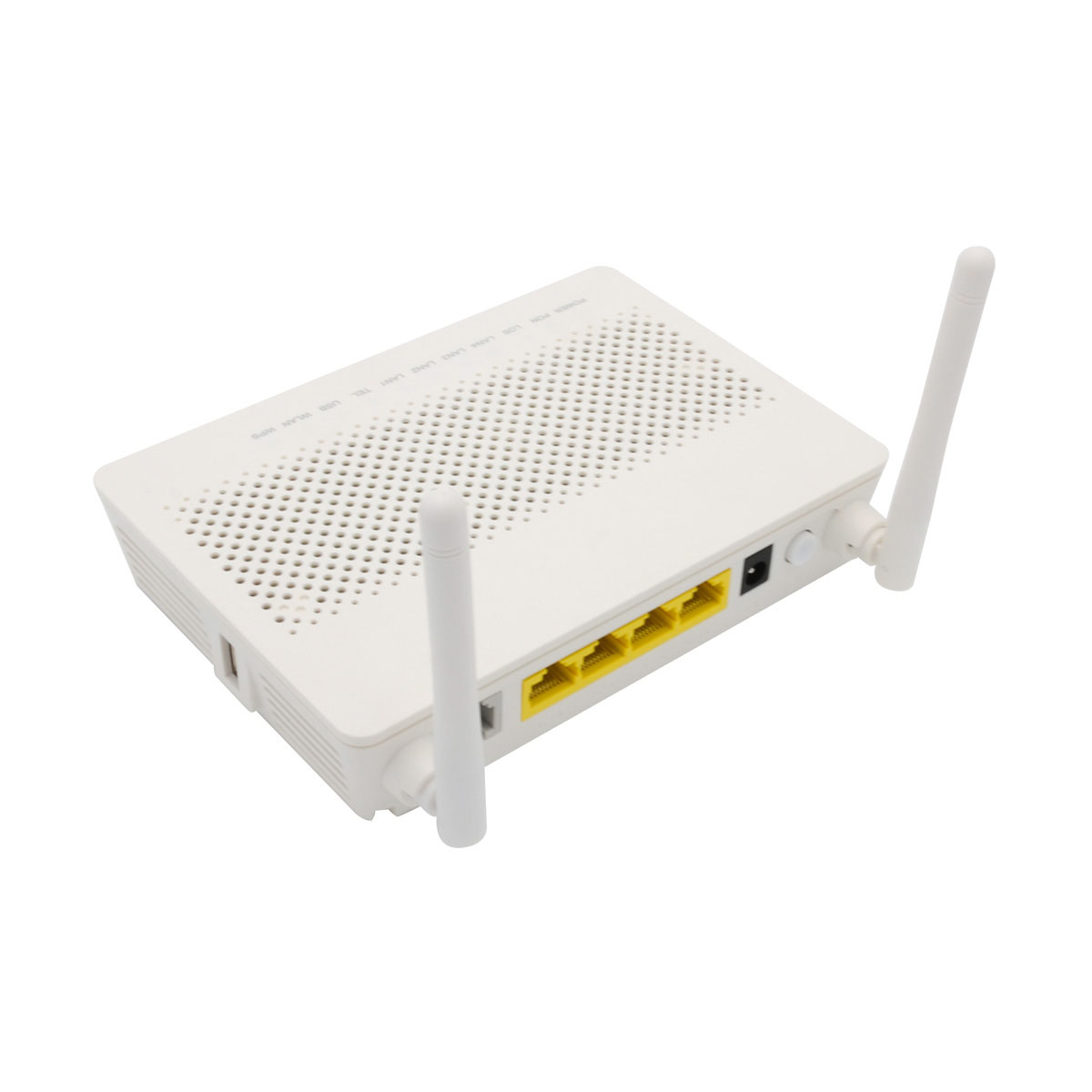

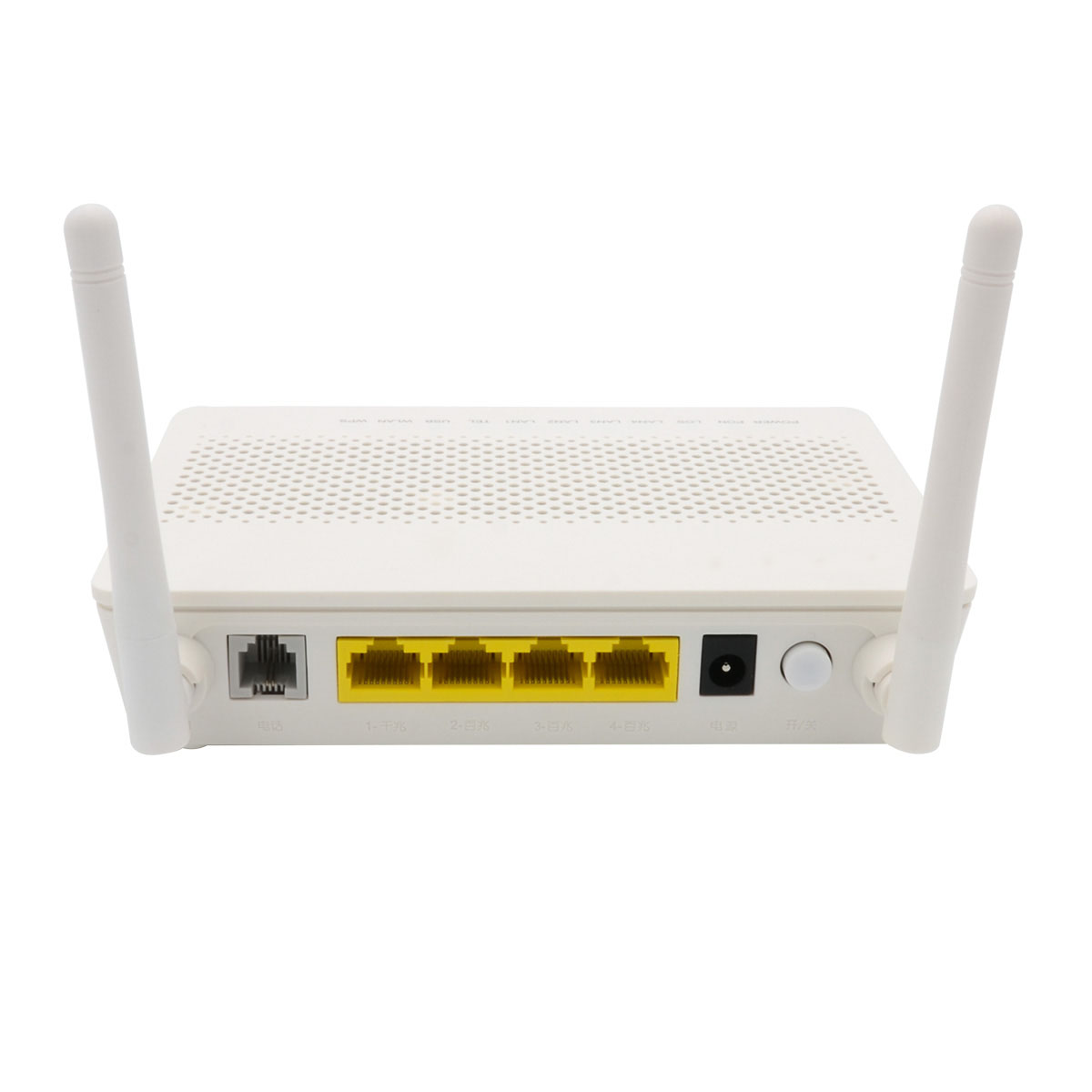

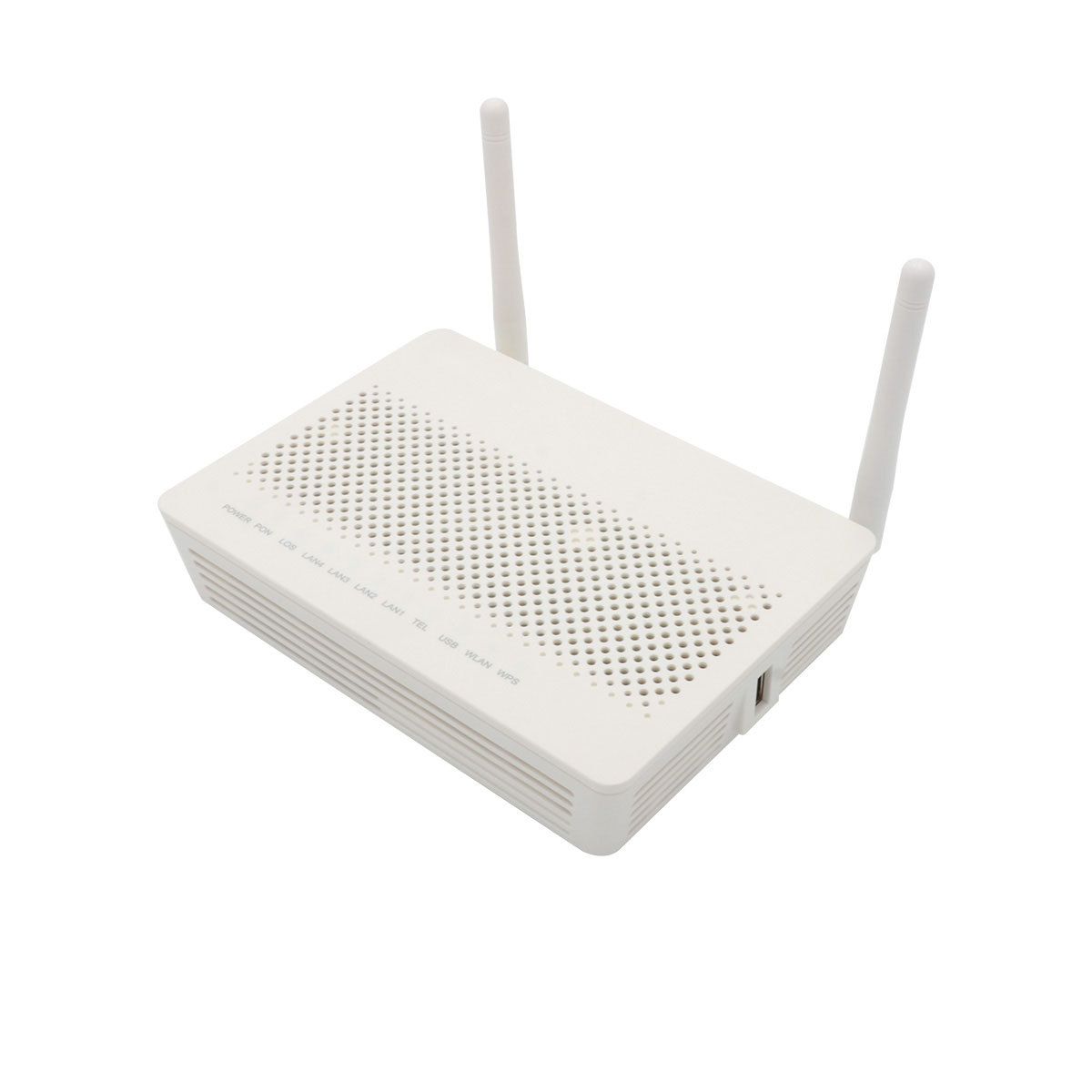

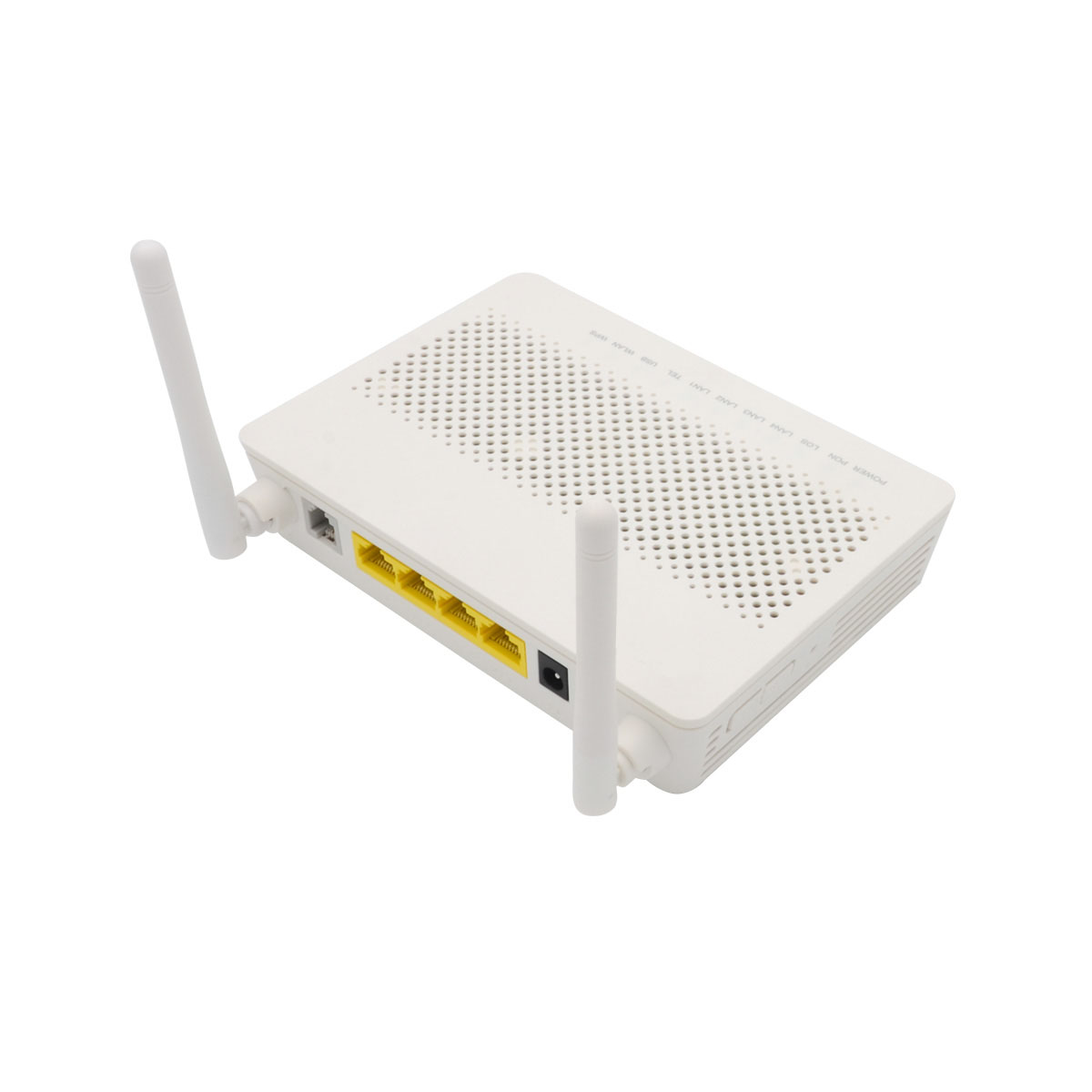

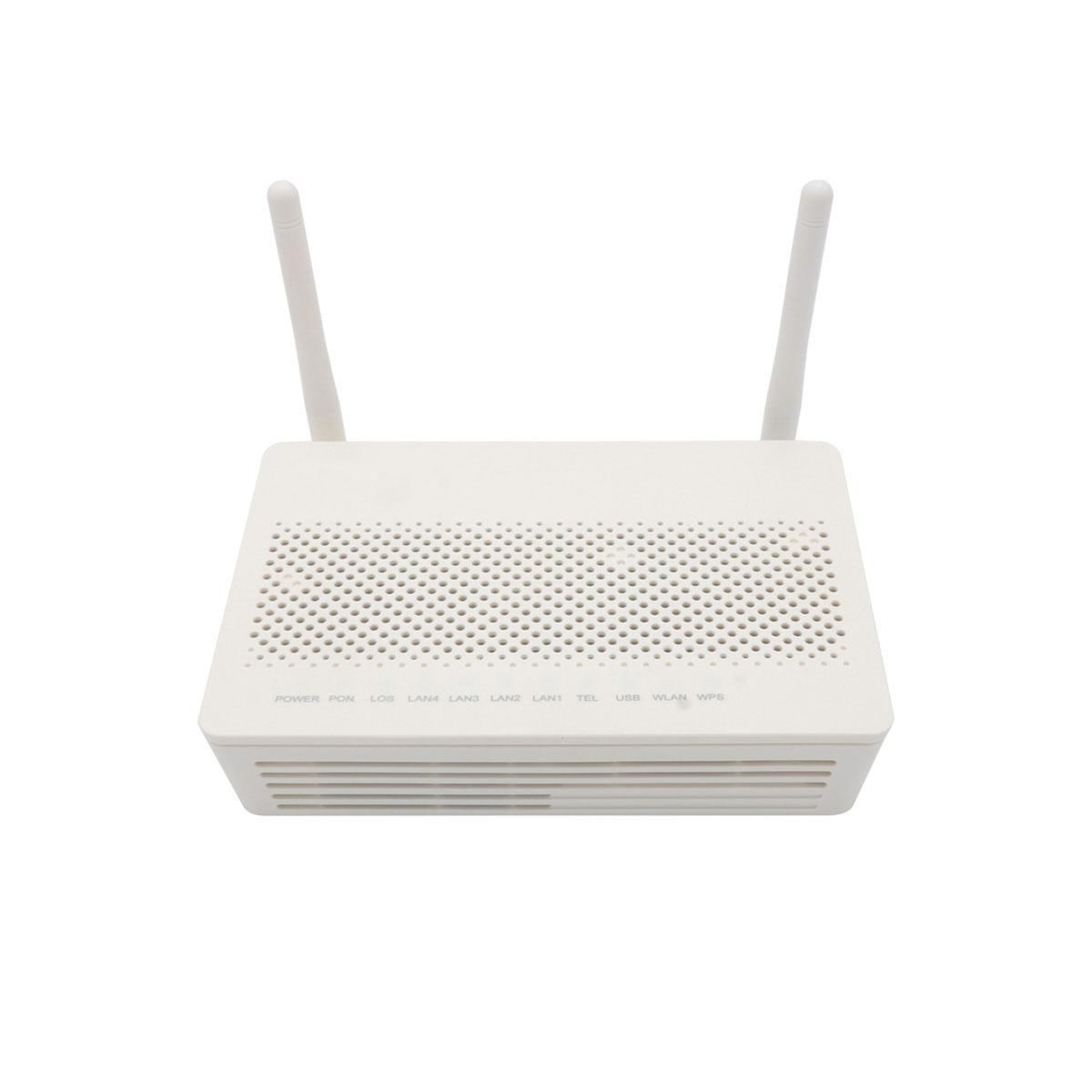

Huawei OLT compatible HS8546V GPON Terminal with 4*GE+1*POTS+1*USB+2.4G/5G WIFI, China Mobile Logo
Huawei OLT compatible HS8546V GPON Terminal with 4*GE+1*POTS+1*USB+2.4G/5G WIFI, China Mobile Logo
GPON ONT HS8546V5 2.4G/5G WIFI Optical Network Terminal
GPON ONT, 4*GE+1*POTS+1*USB, with 2.4G/5G WiFi
ENG firmware, ENG interface, CE Label
2.4GHZ: 802.11n 2×2 MIMO
5GHZ: 802.11ac 2×2 MIMO
Antenna Gain: 3dBi
Connector type SC/UPC
Can be configured by OLT or Web or NMS
OMCI Supported on Huawei OLT
Routing function supported
| Specification | |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Typical power consumption | 8 W |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 VDC, 2 A | |
| WLAN | 802.11ac |
| Support IPv4 or IPv6 | IPv4 and IPv6 |
| Network-side Port | GPON |
| User-side Ports | 1 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 2 x USB |
| Indicators | POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
| Dimensions (length x width x height) | 265 mm x 176 mm x 82 mm |
| Weight | About 1.5 Kg |
| Lead Time | 3-5 days |
|---|---|
| Ship From | Shenzhen Warehouse |
| Specification | |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Typical power consumption | 8 W |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 VDC, 2 A | |
| WLAN | 802.11ac |
| Support IPv4 or IPv6 | IPv4 and IPv6 |
| Network-side Port | GPON |
| User-side Ports | 1 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 2 x USB |
| Indicators | POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
| Dimensions (length x width x height) | 265 mm x 176 mm x 82 mm |
| Weight | About 1.5 Kg |
.svg)
.svg)
Arnaud –
Great ONT, my customer is very satisfied with it, hope can more discount in later order.
