Huawei OLT compatible HN8245Q XG-PON Terminal with 4*GE+2*POTS+2*USB+2.4G/5G WIFI

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Huawei OLT compatible HN8245Q is an routing-type ONT used in the Huawei all-optical access solution. It uses XG-PON technology to provide ultra-broadband access for users.
It provides 4*GE+2*POTS+2*USB+2*WiFi(4*GE Ethernet ports, 2*POTS ports, 2*USB port, 1*2.4G WiFi port and 1*5G WiFi port) . High-performance forwarding provides VoIP, Internet, and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.



XG-PON HN8245Q Optical Network Terminal

XG-PON ONT with 4*GE+2*POTS+2*USB+2.4G/5G WiFi

Support 802.11ac

Support IPv4&IPv6

Connector type SC/UPC

Can be configured by OLT or Web or NMS

Routing function supported



Show More Show Less
Item HN8245Q
Working environment Operating temperature: 0ºC to 40ºC
Environment humidity: 5% to 95% (noncondensing)
MAX power consumption 30 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 VDC, 3 A
WLAN 802.11ac
Support IPv4 or IPv6 IPv4 and IPv6
Network-side Port XG-PON

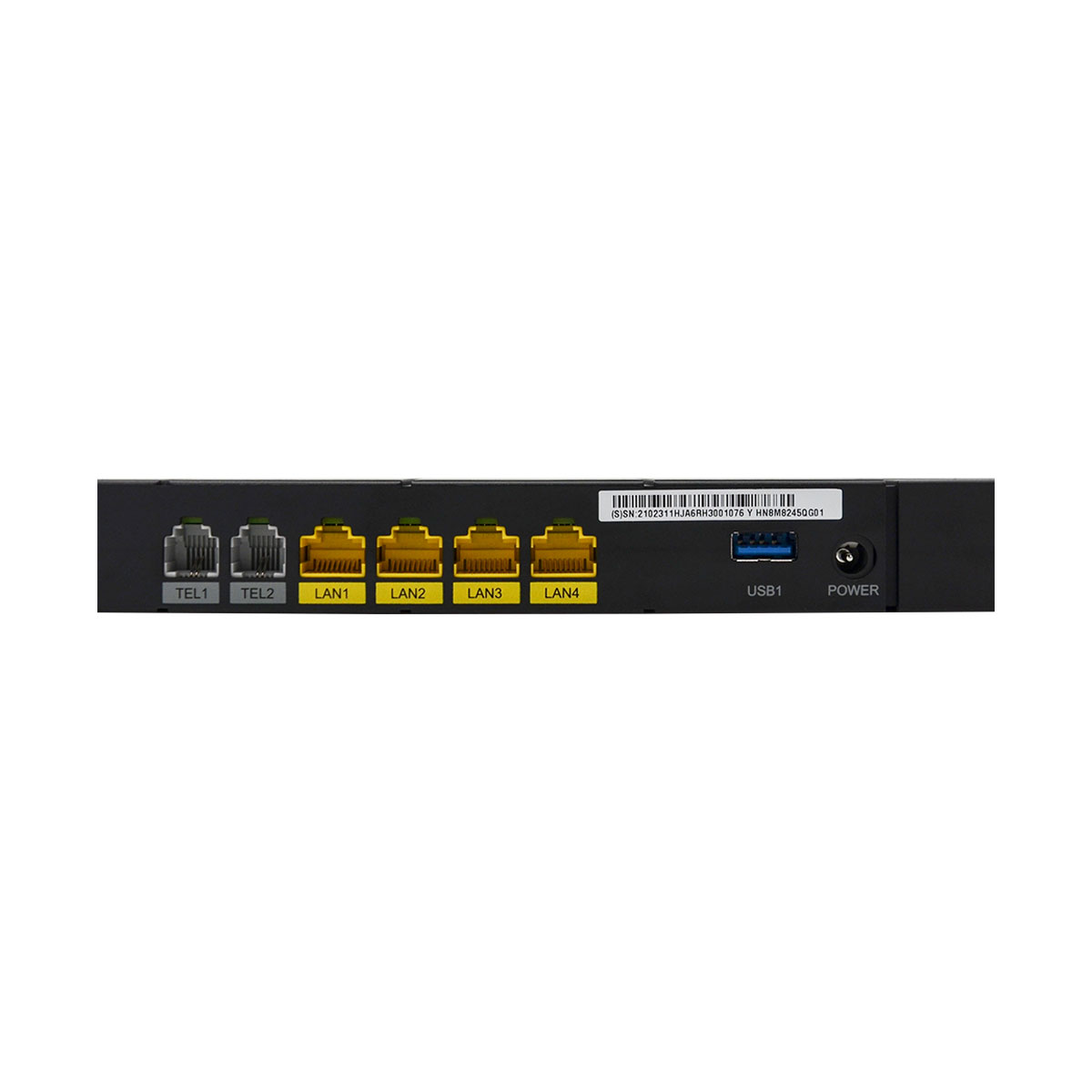

User-side Ports 2 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 2 x USB

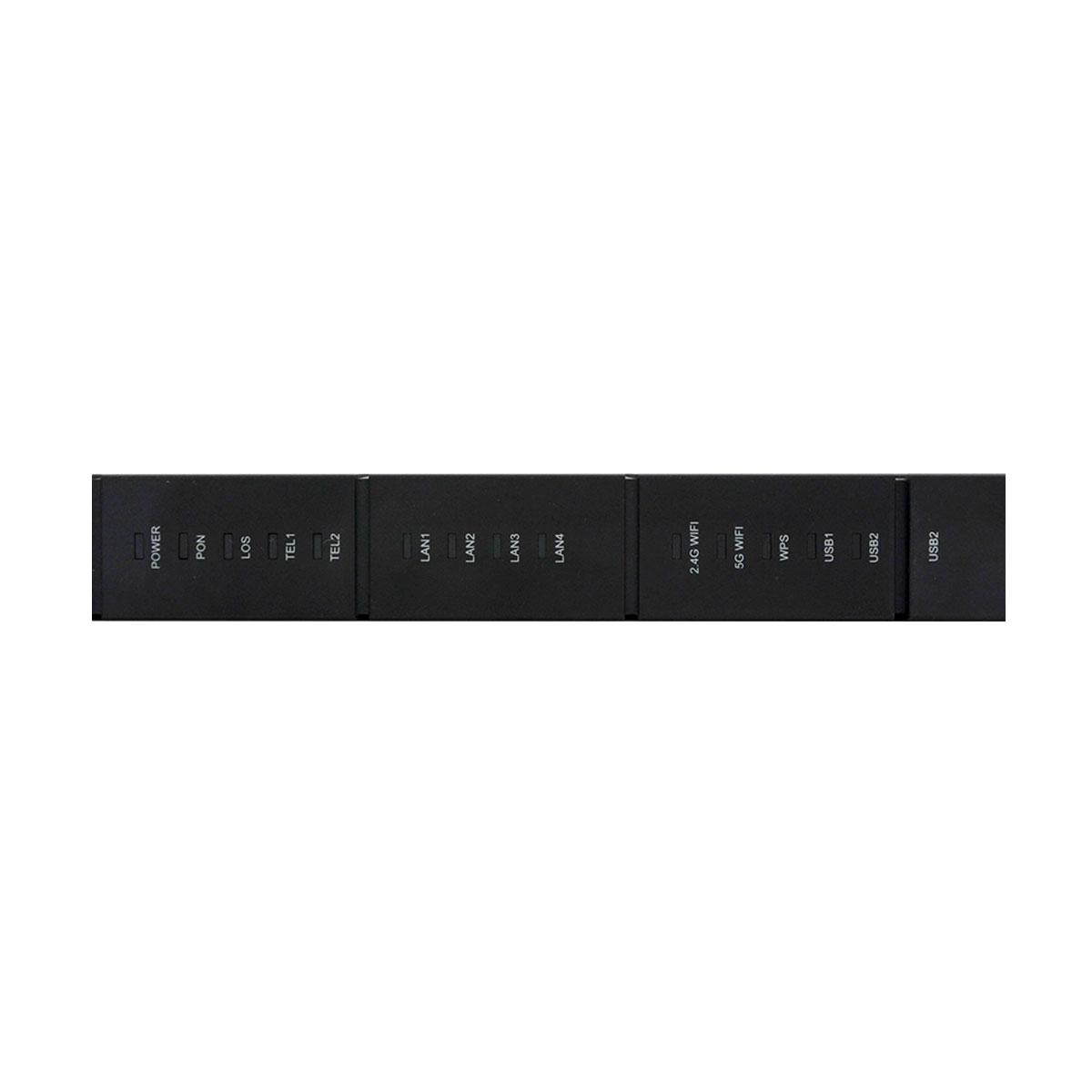

Indicators POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS
Dimensions (length x width x height) 238mm x 190mm x 26mm
Weight About 1.0 Kg

Additional information

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item HN8245Q
Working environment Operating temperature: 0ºC to 40ºC
Environment humidity: 5% to 95% (noncondensing)
MAX power consumption 30 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 VDC, 3 A
WLAN 802.11ac
Support IPv4 or IPv6 IPv4 and IPv6
Network-side Port XG-PON
User-side Ports 2 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 2 x USB
Indicators POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS
Dimensions (length x width x height) 238mm x 190mm x 26mm
Weight About 1.0 Kg
