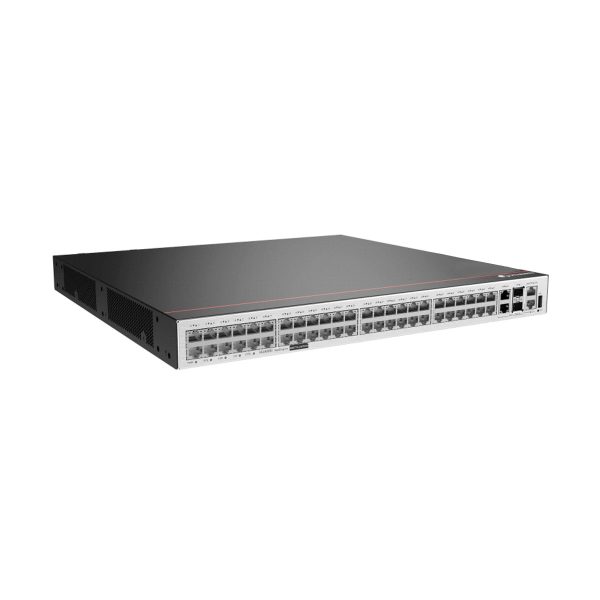

Huawei AR6710-L50T2X4

0 out of 5

0 customer reviews|Add a review

Huawei AR6710-L50T2X4 AC host, 50*GE RJ45, 2*10GE(SFP+), 1*USB 2.0, 4*SIC

Brand: Huawei

Lead Time: 3-5 days

Ship From: Shenzhen Warehouse

SKU: 2013856 Category: AR Series

Description
DATASHEET
Reviews (0)

Description

Overview

Huawei AR6710-L50T2X4 AC host, 50*GE RJ45, 2*10GE(SFP+), 1*USB 2.0, 4*SIC

Item	Details
Description	AR6710-L50T2X4 AC host, 50GE RJ45, 210GE(SFP+), 1USB 2.0, 4SIC
Part Number	02354KAP
Model	AR6710-L50T2X4
First supported version	V600R022C00

Item	AR6710-L50T2X4
Installation type	Rack
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 420 mm (1.75 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 44.4 mm x 442.0 mm x 442.5 mm (1.75 in. x 17.40 in. x 17.42 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Weight with packaging [kg(lb)]	8.95 kg (19.73 lb)
Weight without packaging [kg(lb)]	5.75 kg (12.68 lb)
CPU	Quad-core, 1.4 GHz
Memory	4 GB
NAND Flash	2 GB
Console port	RJ45
RTC	Supported
Maximum power consumption [W]	115 W
Power supply mode	External AC
Number of power modules	2
Rated input voltage [V]	AC: 100 V to 240 V, 50 Hz/60 Hz DC: 240V
Input voltage range [V]	AC: 90 V to 264 V, 45 Hz to 65 Hz DC: 240 V
Maximum input current [A]	AC: 3 A DC: 2.5 A
Maximum output power [W]	350 W
Type of fans	Built-in
Number of fan modules	0
Heat dissipation mode	Air cooling
Airflow direction	Left to right
Extended slots (standard configuration)	4 x SIC
Number of service board slots	4
Redundant power supply	Dual power supplies in 1:1 backup mode
PoE	Not supported
Noise at normal temperature (acoustic power) [dB(A)]	57.2 dB(A)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F) NOTE: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	< 5000 m (16404.2 ft.)
MTBF [year]	46.08 year
MTTR [hour]	2 hour
Availability	0.9999950457
