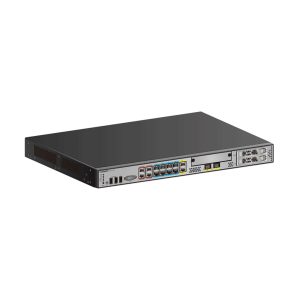

Huawei AR8140-12G10XG

Huawei AR8140-12G10XG

Huawei AR8140-12G10XG,10*10GE(SFP+),8*GE Combo,4*GE Copper,1*USB3.0,4*SIC


3-5 days

Shenzhen Warehouse

SKU: 2013858 Category:



Huawei AR8140-12G10XG,10*10GE(SFP+),8*GE Combo,4*GE Copper,1*USB3.0,4*SIC

Item Details
Description AR8140-12G10XG,10*10GE(SFP+),8*GE Combo,4*GE Copper,1*USB3.0,4*SIC
Part Number 02353UNW
Model AR8140-12G10XG
First supported version V600R021C00
Item AR8140-12G10XG
Installation type Rack
Dimensions without packaging (H x W x D) [mm(in.)]
  • Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 420.0 mm (1.75 in. x 17.40 in. x 16.54 in.)
  • Maximum dimensions (the depth is the maximum distance from the protruding port on the front panel to the module handle on the rear panel): 44.4 mm x 442.0 mm x 442.5 mm (1.75 in. x 17.40 in. x 17.42 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 185 mm x 550 mm x 650 mm (7.28 in. x 21.65 in. x 25.59 in.)
Chassis height [U] 1 U
Weight with packaging [kg(lb)] 9 kg (19.84 lb)
Weight without packaging [kg(lb)] 5.8 kg (12.79 lb)
CPU 2.0 GHz, 16 cores
Memory 16 GB
NAND Flash 4 GB
Console port RJ45
RTC Supported
Maximum power consumption [W] 191 W
Power supply mode AC external
Number of power modules 2
Rated input voltage [V] AC: 100 V to 240 V, 50 Hz/60 Hz

DC: 240 V

Input voltage range [V] AC: 90 V to 290 V, 45 Hz to 65 Hz

DC: 240 V

Maximum input current [A] AC: 5.5 A

DC: 2.5 A

Maximum output power [W] 350 W
Type of fans Built-in
Number of fan modules 0
Heat dissipation mode Air cooling
Airflow direction Left to right
Extended slots (standard configuration) 4 x SIC
Number of service board slots 4
Redundant power supply Support double power supply (1:1 backup)
RPS input Not supported
PoE Not supported
Noise at normal temperature (acoustic power) [dB(A)] 57.6 dB(A)
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)


When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] < 5000 m (16404.2 ft.)
MTBF [year] 37.80 year
MTTR [hour] 2 hour
Availability 0.9999939599
