JL685A overview
The Aruba Instant On 1930 switches features advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They’re made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance

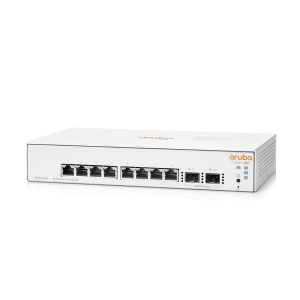

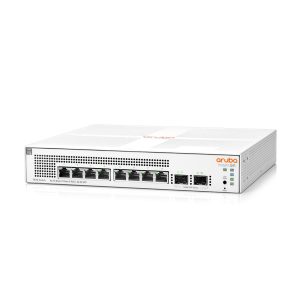

Smart-managed layer 2+ Ethernet switch series ready to deploy in 8-, 24- and 48-port for non-PoE and Class 4 PoE models. PoE to power APs and IoT devices like IP phones, surveillance cameras and door locks. Two (2) dedicated 1G SFP fiber ports on 8-port models, and four (4) dedicated 1G/10G SFP+ fiber ports on 24-/48-port models to eliminate traffic bottlenecks across your network. Security controls let you define access in each area of your network, keeping your business data safe Convenient mobile app and web based GUI for set up, management and troubleshooting.
Key features:
- Easy set up and management
- Site inventory and topology view
- Better together with instant on
- Two-factor authentication (2fa)
- Non-intrusive, aesthetic design
- Multi-site remote management
- High performance with flexible options built-in security
- No hidden fees
- Optimized user experience
| Specifications | JL684B | JL685A | JL686B |

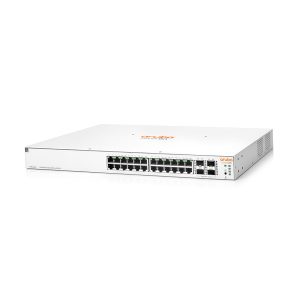

| /O ports and slots | 24RJ-45 autosensing 10/100/100o Class 4 PoE ports 4SFP+1/10GbE ports | 48RJ-45 autosensing 10/100/1000 ports 4 SFP+ 1/10GbE ports | 48RJ-45 autosensing 10/100/100o Class 4 PoE ports 4 SFP+ 1/10GbE ports |
| Frequency | 50/60Hz | 50/60 Hz | 50/60Hz |
| ACvoltage | 100 – 127 / 200 – 240 VAC | 100-127/ 200- 240 VAc | 100- 127/200- 240 VAC |
| Current | 4.9A/2.4A | .8A.5A | 5.2 A/2.6A |
| Maximum power rating | 440.4W | 36.9 w | 465.6W |
| ldle power | 20.3W | 16.8 w | 38.3w |
| PoE power | 370w class 4 PoE | 370w class 4 PoE | |
| Dimensions | 17.42(w)×10.42(d)x 1.73(h) in (44.25×26.47×4.39 cm) (1u height) | 17.42(w)x 11.12(d)x 1.73(h) in (44.25×28.24×4.39 cm) (1U height) | 17.42(w)x 12.7(d)x 1.i3(h) in (44.25×x 32.26×4.39 cm)(1u height) |
| weight | 8.23 lb (3.73 kg) | 6.91 lb(3.13 kg) | 10.12 lb(4.59 kg) |
| Processor and Memory | ARM Cortex-A9 @800 MHz,512 MB SDRAM,256 MB flash: packet buffer: 1.5MB | ARM Cortex-A9@800 MHz,512 MB SDRAM,256 MB flash: packet buffer: 1.5MB | ARM Cortex-A9@800 MHz,512 MB SDRAM,256 MB flash; packet buffer: 1.5MB |
| 100 Mb Latency | <4.7 uSec | <4.5uSec | <4.5 uSec |
| 1000 Mb Latency | <2.4 uSec | <2.2 uSec | <2.2 uSec |
| 10000 Mb Latency | <1.3 uSec | <1.2 uSec | <1.2 uSec |
| Throughput (Mpps) | 95.23 Mpps | 130.95 Mpps | 130.95 Mpps |
| Capacity | 128 Gbps | 176 Gbps | 176Gbps |
| Routing table size (of static entries) | 32 static entries | 32 static entries | 32 entries |
| MACAddress table size (# of entries) | 16,000 entries | 16,000 entries | 16,000 entries |
| Reliability MTBF (years) | 71 | 114 | 57 |
| Tranceivers | Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A) Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A) Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E) Aruba Instant On 10G SFP+ to SFP+ 1m DAC (R9D19A) Aruba Instant On 10G SFP+ to SFP+ 3m DAC (R9D20A) |
||
