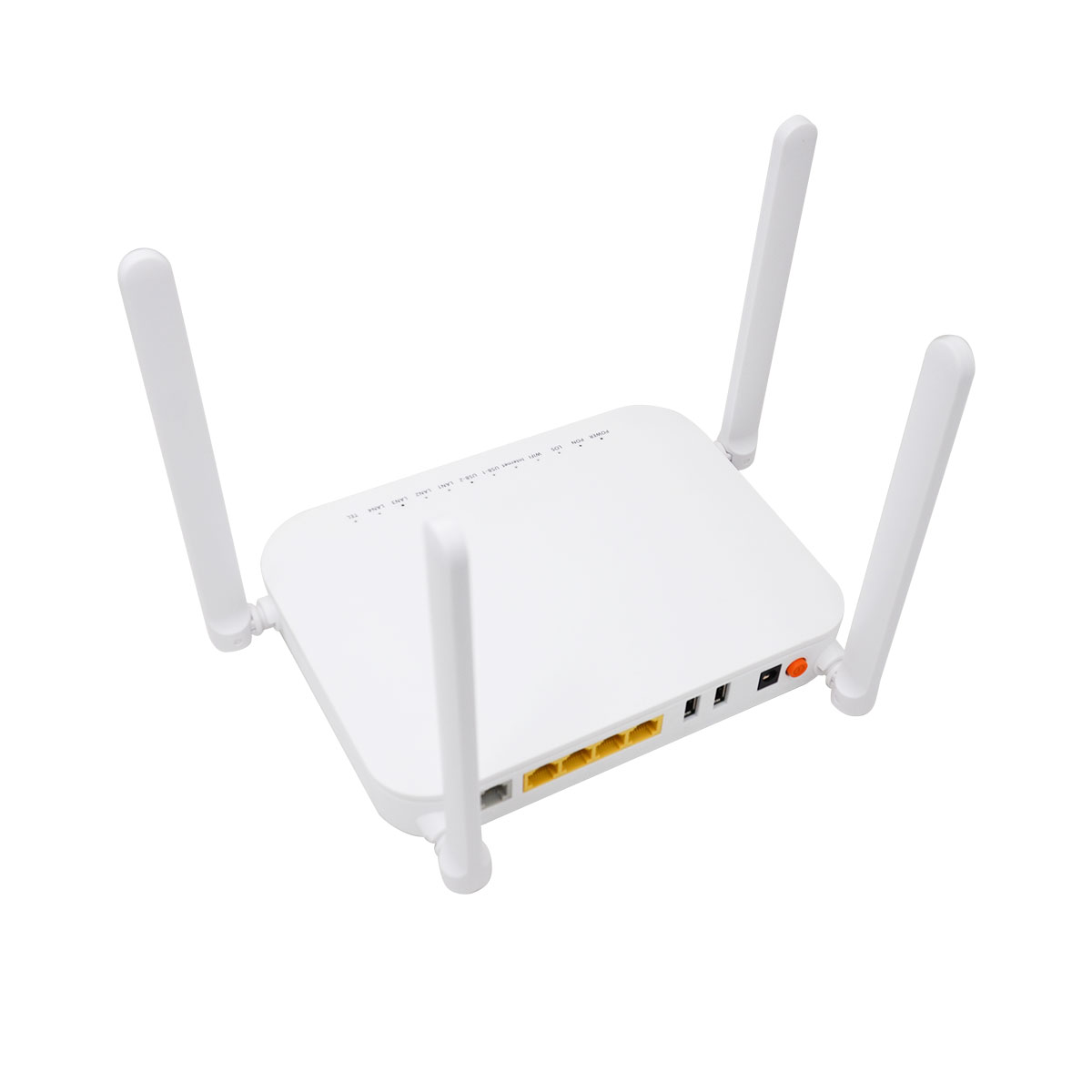

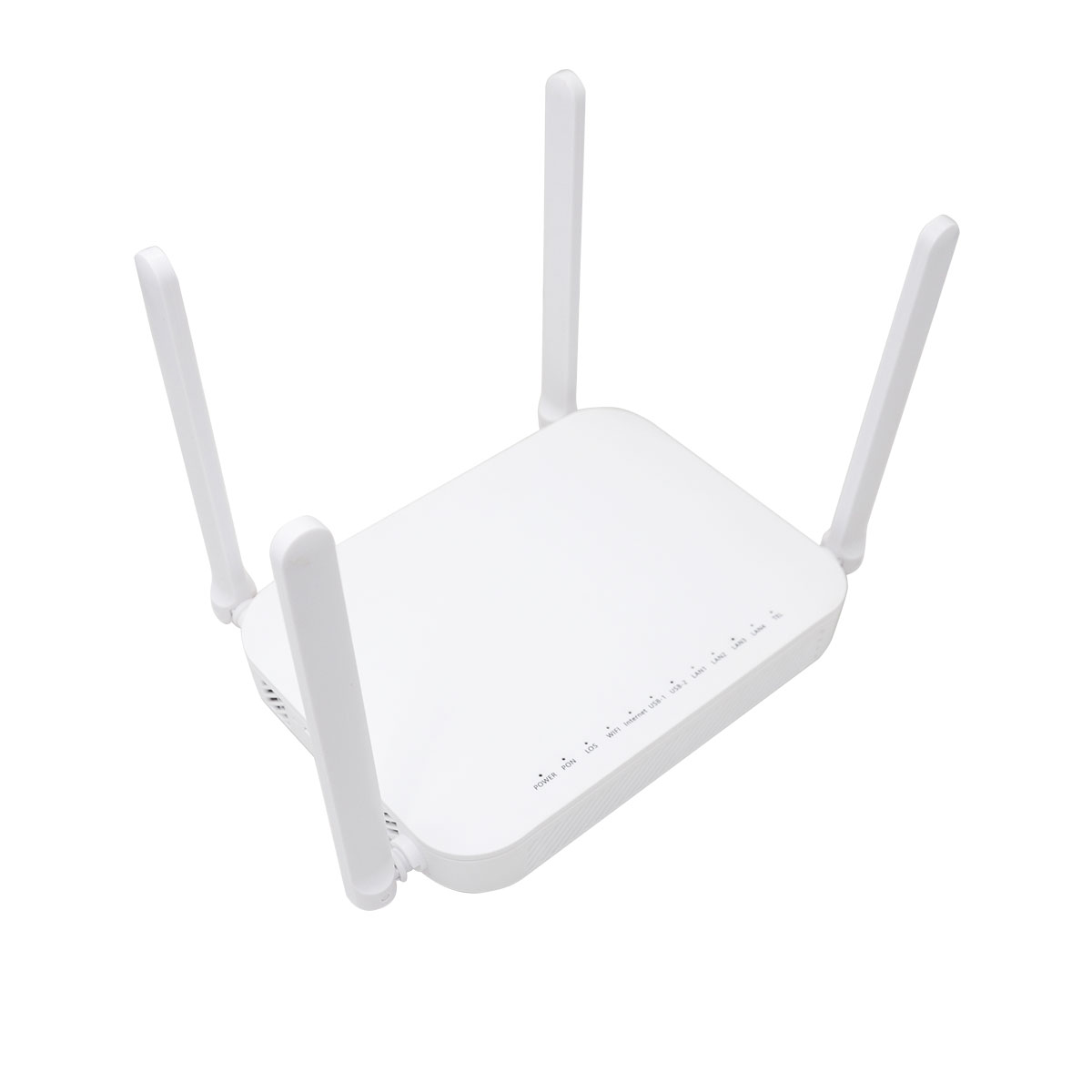

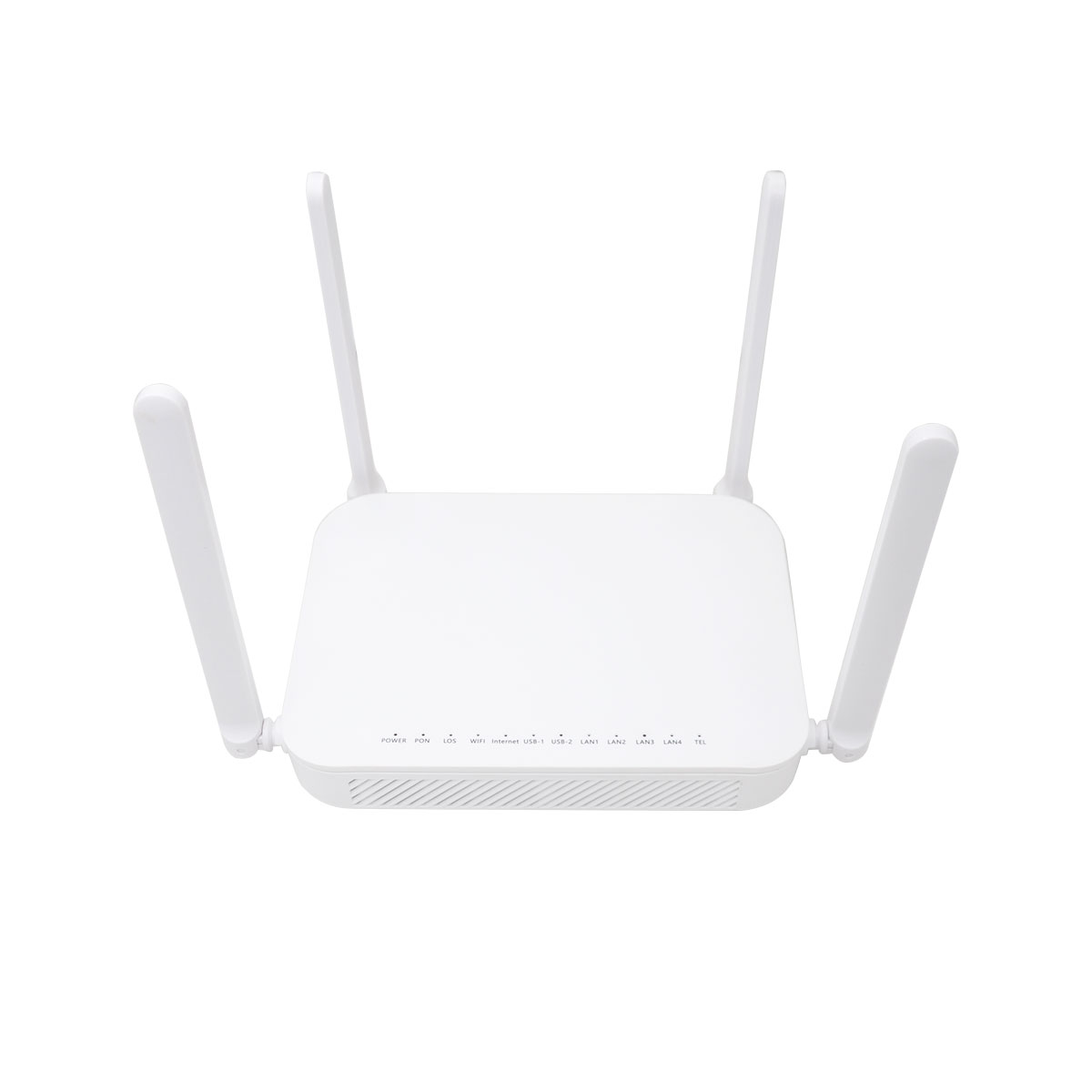

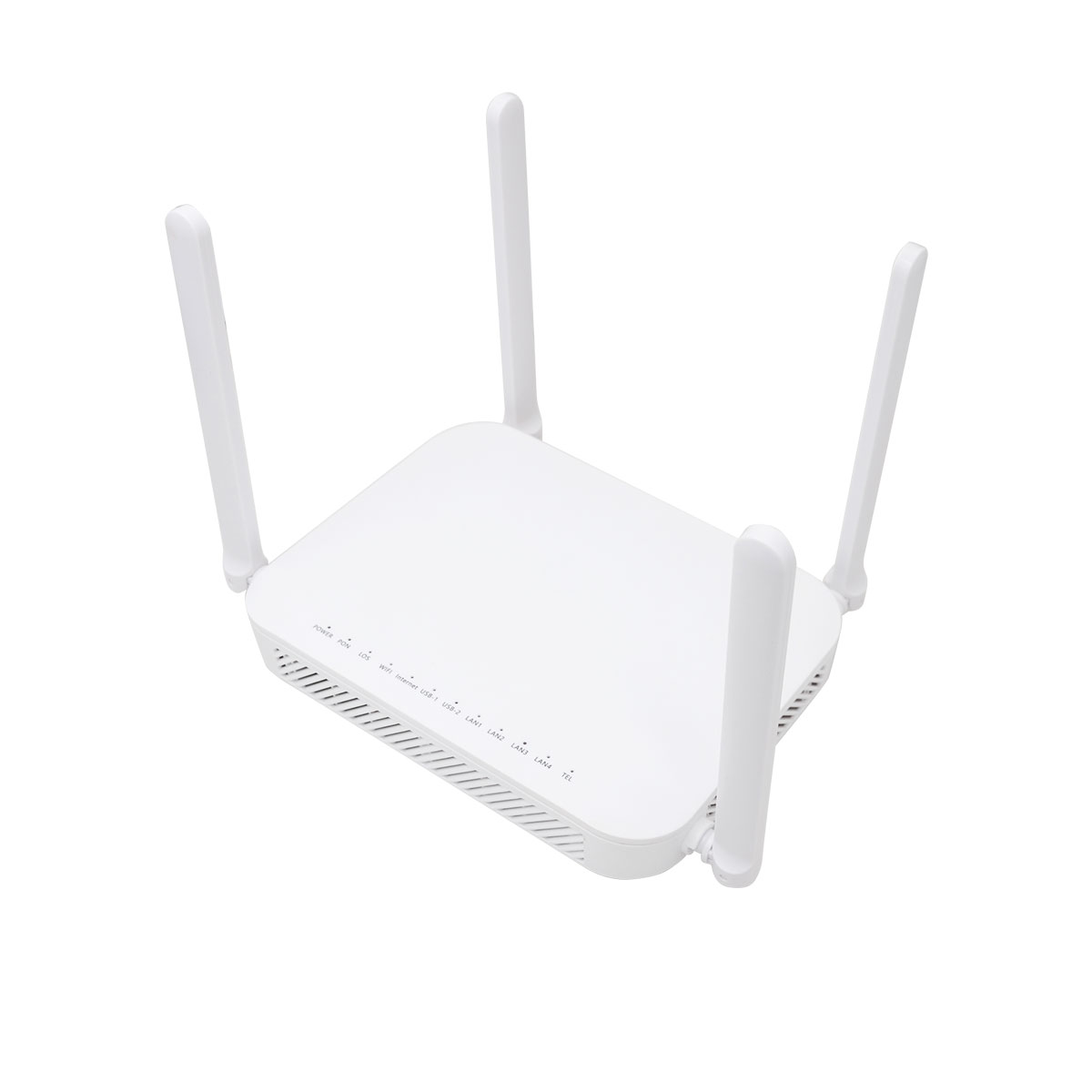

M520 overview
Based on the Fiberhome solution, the M520 is an AC1200 dual-band triple-play GPON gateway that comes with four GE LAN ports and one phone port. Dual-band concurrent Wi-Fi up to 1200Mbps enables excellent Wi-Fi performance, which allows customers to better surf the web, watch videos and play online games.
It provides two bands: 2.4 GHz and 5 GHz. The dual bands do not interfere with each other. The 2.4 GHz signal has a long-range, the performance is good and the coverage is better. The channel interference in the 5 GHz frequency band is small and the speed is faster. The dual-band concurrency can meet HD video playing and high-speed download requirements, providing a better Internet experience.
M520 fast spec
Ports: 4*GE+1*POTS+2*USB+2.4/5G WIFI
Broadcom Core Chip
4*5dBi High Gain Antennas
ENG firmware, EU power supply
Connector type: SC/UPC
Support Web UI, TR069, TMS Server management
Similar to EG8145V5, F670L
Compatible with Huawei/ZTE/Nokia/FiberHome OLT
| Item | M520 |
| Ports | 4*GE+1*POTS+2*USB+2.4/5G WIFI+4 antennas 5 dBi |
| Chip | Broadcom Core Chip |
| Storage | I RAM: 512MB I FIash: 256MB |
| Antenna | 4*5dBi High Gain Antennas |
| Indicators | POWER/PON/LOS/WIFI/Internet/USB-1/USB-2/LAN1/LAN2/LAN3/LAN4/TEL |
| Management | Web UI, TR069, TMS Server supported USB: USB backup |
| System power supply | 11–13V DC, 1-1.5A |
| Power adapter input | 100–240V AC, 50–60Hz |
| Weight | About 350g |
| Dimensions (HxWxD) | 200mm*150mm*40mm (without an external antenna) |
Dual Band ONT Comparation
| Model | M520 | ZXHN F670L V9.0 | EG8145V5 | HG6145D1 | G-1425-MA |
| Brand | OEM | ZTE | Huawei | Fiberhome | Nokia |
| Ports | 4*GE+1*POTS+1*USB | 4*GE+1*POTS+1*USB | 4*GE+1*POTS+2*USB | 4*GE+1*POTS+2*USB | 4GE+1POTS+USB |
| Antennas | 4 | 4 | 2 | 2 | 2 |
Q: If this M520 model is based on the Fiberhome solution, so it is compatible with Fiberhome OLT?
A: Yes, M520 is compatible with not only Fiberhome OLT but also Huawei ZTE and Nokia OLT.
Q: Can I use OMCI to manage M520 via my Fiberhome AN6000-7 OLT?
A: This model does not support OMCI, but the Fiberhome HG6143D does.
Q: What is the difference between 4 antennas and two antennas?
A: Four antennas can effectively improve the coverage and stability of WIFI.
Q: Can you print my logo on the shell of M520?
A: Yes, when the quantity of the order reaches 1000, we provide free customization service, if it is less than MOQ, you can also pay for customization.
Q: Can I get some free samples for testing?
A: As the international shipping cost is high, we don’t send free samples, but the cost incurred by samples can be written off in the formal order.
Sheriff –
M520 is a third-party ONT, cheap and compatible with Huawei, ZTE, Fiberhome and Nokia OLT, which suits our nigerian market.
