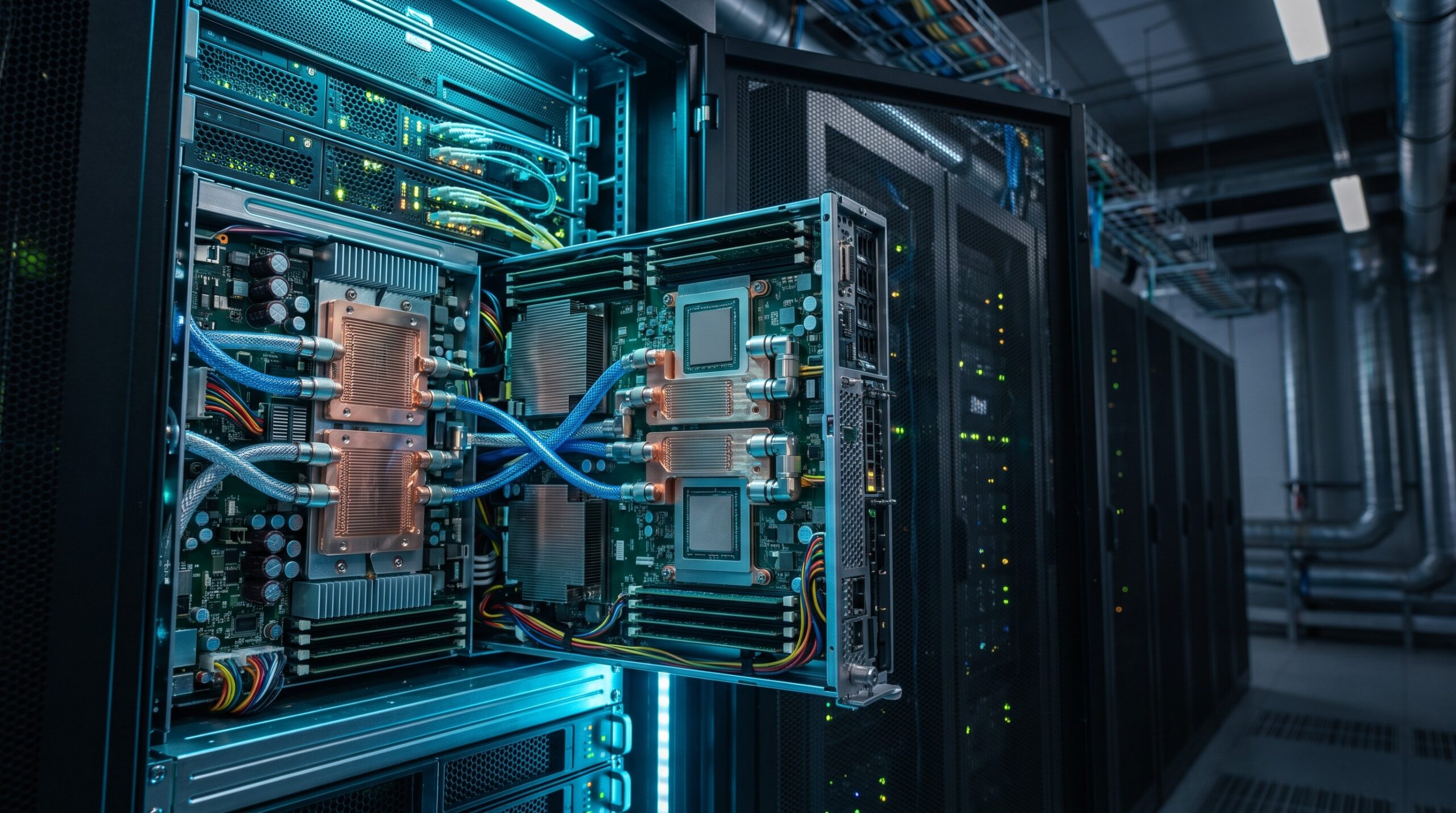

Micro-Channel Cold Plate Thermal Interface Material (TIM) Compatibility – Official Technical Overview & Hardware Datasheet

EXECUTIVE SUMMARY

As next-generation telecom switching and routing ASICs push beyond 800G per package and thermal design power (TDP) exceeds 1,200W per device, traditional air-cooling architectures have reached their physical limits. Micro-channel cold plate liquid cooling has emerged as the definitive thermal management solution for carrier-grade core routers, edge aggregation platforms, and high-density optical transport chassis. However, the thermal performance of a micro-channel cold plate is not determined by the cold plate alone. The thermal interface material (TIM) that bonds the ASIC lid or bare die to the cold plate surface is the single most critical factor governing junction-to-coolant thermal resistance, long-term reliability, and field serviceability.

This document provides an authoritative technical overview of TIM compatibility requirements for micro-channel cold plate assemblies deployed in telecom infrastructure. It defines the thermal, mechanical, chemical, and environmental criteria that must be satisfied to achieve optimal heat transfer across the full operational lifecycle of high-availability network equipment. It is intended for thermal architects, hardware qualification engineers, and pre-sales technical teams specifying liquid-cooled telecom platforms.

ARCHITECTURE & CHASSIS DESIGN

Micro-channel cold plates achieve superior heat transfer coefficients by forcing coolant through channels with hydraulic diameters typically ranging from 200 micrometers to 1,000 micrometers. This geometry creates high surface-area-to-volume ratios and turbulent flow regimes at relatively low flow rates. However, the same micro-scale features that enhance thermal performance also impose stringent demands on the TIM layer.

The TIM serves three simultaneous functions: (1) filling microscopic surface asperities between the ASIC lid and cold plate base to minimize contact resistance, (2) providing a compliant layer to absorb coefficient of thermal expansion (CTE) mismatches during power cycling, and (3) acting as a barrier against coolant ingress, particulate contamination, and galvanic corrosion at the interface. In carrier-grade telecom equipment, the TIM must perform these functions without degradation for a minimum of 15 years in uncontrolled field environments ranging from -40C to +85C ambient.

Cold plate base materials in telecom hardware are predominantly oxygen-free copper (C11000) or aluminum alloy 6063-T5, often with nickel plating to prevent oxidation. The TIM selection must be chemically compatible with the base metal, the coolant chemistry (typically propylene glycol-water mixtures or dielectric fluids), and the lid finish of the ASIC package, which may be nickel-plated copper, bare silicon, or ceramic.

HARDWARE FEATURES

Thermal Performance Requirements

The TIM must deliver a thermal resistance of less than 0.05 Ccm2/W at bond line thicknesses (BLT) between 25 and 100 micrometers. For high-power ASICs operating at 1,000W and above, the TIM contribution to total junction-to-coolant resistance must not exceed 15 percent. This demands materials with bulk thermal conductivity exceeding 5 W/mK, ideally in the range of 8 to 12 W/mK for phase-change materials and 10 to 20 W/mK for metallic solders and sintered interfaces.

Mechanical Compliance and Pump-Out Resistance

Telecom equipment experiences continuous power cycling driven by diurnal traffic patterns and redundancy failover events. The TIM must resist pump-out, a phenomenon where the material is progressively displaced from the interface by shear forces generated by CTE mismatch. High-viscosity phase-change materials and cross-linked polymer systems demonstrate superior pump-out resistance compared to traditional thermal greases. For solder TIM and sintered silver TIM, the bond is metallurgical and immune to pump-out but introduces rigid mechanical coupling that must be managed at the package and board level.

Chemical Compatibility and Coolant Resistance

In liquid-cooled telecom chassis, the TIM is exposed to coolant vapors, humidity, and potential micro-leaks at the cold plate perimeter. The TIM must not swell, dissolve, or outgas when exposed to propylene glycol, ethylene glycol, or fluorinated dielectric coolants. Silicone-based TIMs require careful evaluation because low-molecular-weight siloxanes can migrate and deposit on optical interfaces, causing signal degradation in high-speed optical modules.

Long-Term Reliability and Qualification

The TIM must pass accelerated life testing including 1,000 hours at 125C, 500 thermal cycles from -40C to +125C, and 85C/85 percent relative humidity bias testing without exceeding a 20 percent increase in thermal resistance. For carrier-grade deployment, MTBF contribution from the TIM interface must be less than 0.5 failures per million hours.

COMPLIANCE & STANDARDS

TIM compatibility for micro-channel cold plates in telecom infrastructure must satisfy the following standards and specifications:

Telcordia GR-63-CORE: Network Equipment Building System (NEBS) physical protection, including thermal robustness and fire resistance.

Telcordia GR-487-CORE: Outdoor electronic equipment cabinets, applicable to edge-deployed liquid-cooled platforms.

IEC 62368-1: Audio/video, information and communication technology equipment safety, including thermal and material flammability requirements.

JEDEC JESD51-14: Transient dual interface test method for thermal resistance measurement of semiconductor packages with heat sinks.

ASTM D5470: Standard test method for thermal transmission properties of thermally conductive electrical insulation materials.

RoHS 2011/65/EU and REACH: Restrictions on hazardous substances, critical for TIM material selection and disposal.

IPC/JEDEC J-STD-020: Moisture sensitivity classification for non-hermetic solid state surface mount devices, applicable to TIM application processes.

TECHNICAL SPECIFICATIONS

The following table summarizes the key TIM compatibility parameters for micro-channel cold plate assemblies in telecom hardware.

ORDERING OPTIONS

TIM materials qualified for micro-channel cold plate integration are available in the following configurations:

Phase-Change TIM, 0.125mm and 0.250mm thickness, die-cut to ASIC lid dimensions, for automated pick-and-place assembly. Operating range -40C to +125C, thermal conductivity 8.5 W/mK, BLT 25-50 micrometers.

Gap-Filler TIM, 0.5mm to 2.0mm thickness, dispensable or pre-cured pad form, for cold plates with non-uniform standoff. Thermal conductivity 3.0-6.0 W/mK, compression set less than 10 percent.

Sintered Silver TIM, screen-printable paste or preform foil, requiring pressure-assisted sintering at 250-300C. Thermal conductivity 150-250 W/mK, BLT 10-30 micrometers, for bare-die ASIC attachment in high-power core routing line cards.

Indium Solder TIM, preform ribbon 0.025mm to 0.100mm, reflowed at 160-180C. Thermal conductivity 86 W/mK, BLT 15-40 micrometers, compatible with nickel-plated copper cold plate surfaces.

Graphene-Enhanced Polymer TIM, 0.100mm to 0.300mm, thermal conductivity 12-15 W/mK, designed for pump-out resistance in high-vibration telecom rack environments.

Each TIM option is supplied with a qualification report documenting thermal resistance, modulus, CTE, and coolant compatibility test results specific to the target cold plate material and coolant chemistry.
