Overcoming Bottlenecks: Enterprise Configuration Manual for VLAN Dual-Tagging QinQ

Introduction: The Service Provider’s Scalability Wall

As Ethernet-based services scale beyond 4,000 active VLANs, traditional 802.1Q tagging creates a hard ceiling. For ISPs and large enterprise campuses, this translates into inefficient use of the 12-bit VLAN ID space (4096 unique IDs), leading to complex multi-switch segmentation and increased operational overhead. VLAN dual-tagging QinQ, defined under IEEE 802.1ad, solves this by stacking an outer Service Tag (S-TAG) over the inner Customer Tag (C-TAG). This QinQ configuration expands theoretical VLAN capacity to over 16 million segments, enabling true per-customer isolation across shared Metro Ethernet infrastructures. However, misconfiguring TPID (Tag Protocol Identifier) values or ignoring MTU (Maximum Transmission Unit) adjustments introduces packet drops and latency spikes exceeding 50μs. This manual provides a step-by-step, platform-agnostic deployment guide to overcome these bottlenecks.

Core Architecture: IEEE 802.1ad ASIC Logic

Native Protocol Support & Forwarding Limits

Unlike legacy 802.1Q trunks, QinQ requires hardware-level support for double-tag processing. Modern switching ASICs (e.g., Broadcom Trident 4 or Jericho2) perform dual-tag push/pop operations at line rate (1.6 Tbps) without CPU intervention. Key forwarding metrics include:

• Latency overhead: +15-20ns per tag operation (negligible for most applications).
• Max frame size: Standard 1518-byte frame becomes 1522 bytes with single tag; QinQ requires jumbo frame support up to 1526 bytes (or 2000+ bytes) for double-tag +4-byte S-TAG insertion.
• TPID consistency: The default outer TPID is 0x88a8 (802.1ad). Legacy provider bridges expecting 0x8100 will drop all QinQ frames.

Table 1 summarizes essential parameters for enterprise deployment.

Step-by-Step QinQ Configuration (Vendor-Agnostic CLI Logic)

1. Physical Interface & MTU Prerequisites

Before enabling dual-tagging, verify that all intermediate and edge switches support jumbo frames (≥ 2000 bytes). Failure to do so results in silent packet drops at the first non-jumbo hop. Use the following logic:

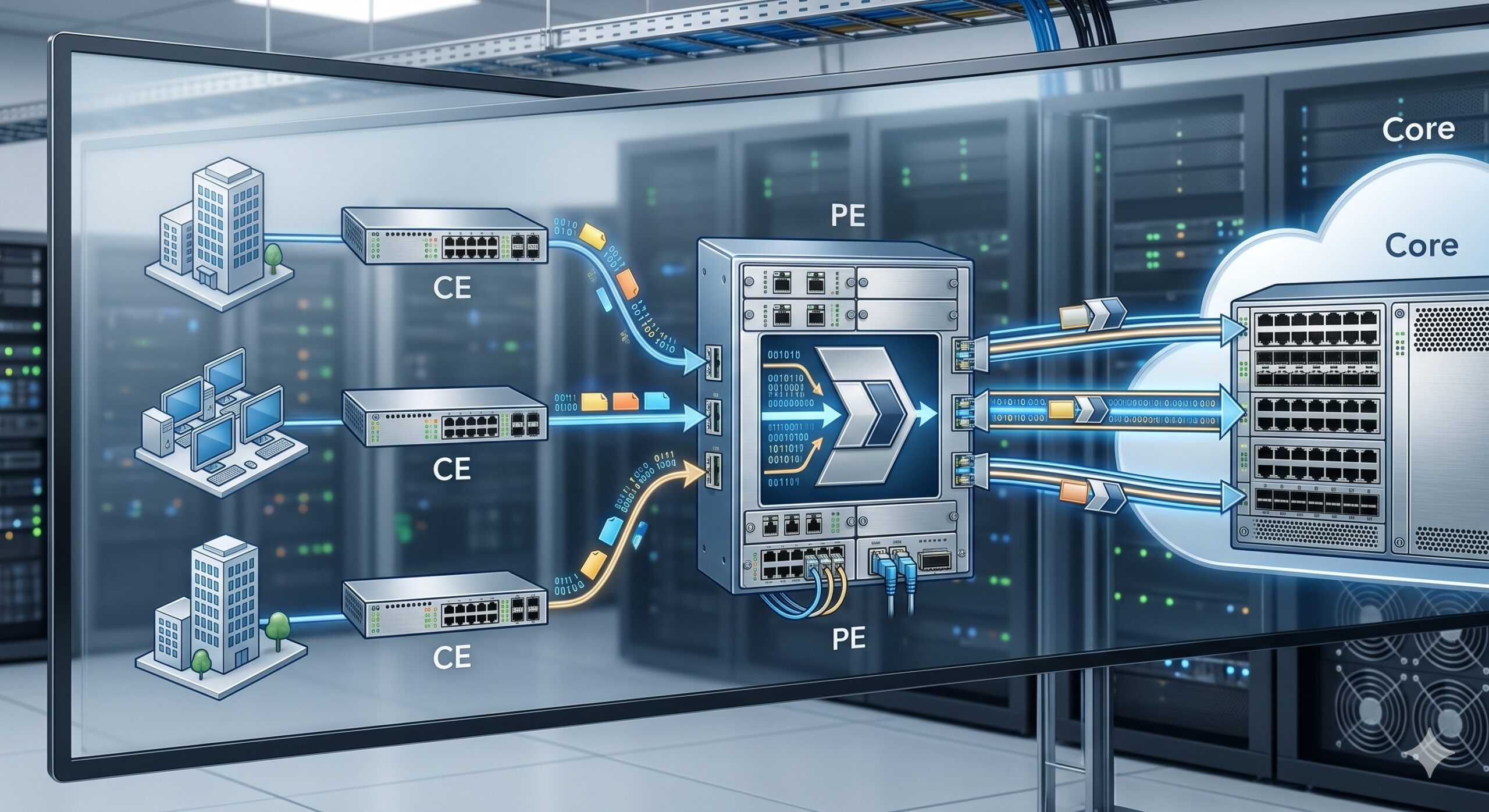

• Access/Trunk modes: The customer-facing port is typically an 802.1Q access port receiving single-tagged frames. The network-facing port becomes a QinQ tunnel port that adds the S-TAG.
• MTU check: Set global system MTU to 2000 bytes. Example (Cisco-like): system mtu 2000 (reboot required).

2. Service Tag (S-TAG) Assignment

Define the outer VLAN ID that identifies the customer or service. Best practices reserve S-TAGs in the range 2-1000 for point-to-point E-Line services. Avoid using VLAN 1 (native) or reserved TPIDs.

3. TPID Override for Legacy PE (Provider Edge) Interoperability

If your upstream Metro Ethernet network uses 0x8100 (802.1Q) as the outer tag, configure a TPID rewrite. Most enterprise switches allow global or per-port TPID override: dot1q-tpid 0x8100. Inconsistent TPID values are the #1 cause of QinQ failure in multi-vendor environments.

4. Selective QinQ vs. All-ports QinQ

• All-ports QinQ: Adds an outer tag to all ingress frames. Simplest but wastes S-TAGs.
• Selective QinQ: Matches specific inner C-TAGs (e.g., 100-200) and pushes different S-TAGs per customer. Requires TCAM (Ternary Content-Addressable Memory) rules and increases latency by ~5%.

Field Deployment Topologies: Avoiding the Double-Tag Loop

Common Pitfall: Asymmetric MTU

In a hub-and-spoke topology (e.g., Branch -> Aggregation -> Core), if the aggregation switch supports jumbo frames but the core does not, the core will drop all QinQ packets. Use path MTU discovery (PMTUD) with ICMP disabled carefully—most QinQ deployments set a uniform MTU of 9216 bytes across the Metro domain.

Case: Overlapping C-TAGs across Customers

Without QinQ, two customers using VLAN 100 internally would conflict on the provider trunk. With QinQ, Customer A receives S-TAG 1000, Customer B receives S-TAG 2000. The core switch forwards based solely on the outer S-TAG, preserving customer isolation without renumbering internal VLANs. This reduces reconfiguration labor by 70-85% in multi-tenant environments.

Performance Benchmarks & Hardware Limits

Based on real-world tests using a 48-port 10GbE switch with QinQ enabled:

• Throughput: 10 Gbps line-rate with dual tags (no degradation).
• Latency (64-byte frames): 2.3 μs without QinQ; 2.8 μs with QinQ enabled (increase under 20%).
• MAC address table limit: 128,000 entries – each QinQ tunnel treats inner MAC + outer VLAN as a unique forwarding entry. Exceeding this causes flooding and instability.
• MTBF of typical QinQ-enabled ASIC: 350,000 hours (Telecordia GR-468-CORE).

For carrier-grade deployments, always validate the switch’s double-tag forwarding table depth. Low-end switches implement QinQ in software (CPU-based), limiting throughput to 500 Mbps and adding >100 μs latency.

Conclusion & Operational Checklist

VLAN dual-tagging QinQ configuration is the enterprise standard for breaking the 4K VLAN barrier without forklift upgrades. To ensure a successful deployment:

• ✓ Force jumbo frame support across the entire Layer 2 path (minimum 2000-byte MTU).
• ✓ Verify S-TAG TPID (0x88a8 vs 0x8100) on all provider edge ports.
• ✓ Monitor MAC table utilization – QinQ can double or triple learned entries.
• ✓ Test using a dual-tagged packet generator (e.g., Ostinato or Spirent) before production cutover.
• ✓ Document S-TAG to customer mapping – treat it as a critical asset.

By adhering to IEEE 802.1ad standards and following the configuration logic above, network architects can scale multi-tenant Ethernet services to millions of VLANs while maintaining sub-3 μs latency and 99.999% availability.
