Introduction: The Architectural Imperative of 100G Optical Connectivity
In the relentless pursuit of higher bandwidth and lower latency, the telecommunications industry has witnessed a paradigm shift from 10G and 40G architectures to a 100G foundation. At the heart of this evolution lies the QSFP28 (Quad Small Form-factor Pluggable 28) 100G transceiver, a compact, high-density module that has become the de facto standard for 100 Gigabit Ethernet connectivity in modern data centers, enterprise core networks, and carrier-grade transport infrastructures. As a senior network architect with 15 years in the trenches, I’ve seen the transition from bulky, power-hungry line cards to these sleek, pluggable form factors. The QSFP28 isn’t just a smaller box; it represents a convergence of advanced digital signal processing (DSP), silicon photonics, and rigorous standardization that enables the throughput we demand today. This deep dive will dissect the architecture, performance limits, latency characteristics, and deployment considerations of QSFP28 100G transceivers, moving beyond mere spec sheets to the engineering realities that drive network performance.
Core Architecture: Silicon, DSPs, and the Electrical Interface
The QSFP28 is a testament to complex engineering miniaturization. It integrates multiple high-speed electrical lanes and optical components into a package just 2.8 x 0.72 x 0.33 inches . The electrical interface is defined by the CEI-28G-VSR standard, which specifies the 28G NRZ (Non-Return-to-Zero) and PAM4 (Pulse Amplitude Modulation) signaling that is fundamental to 100G operation .
The Role of the DSP and ASIC
The ‘brain’ of the modern QSFP28 is the embedded DSP or ASIC. For legacy 100G applications operating over short-reach multimode fiber (SR4), the module might use a simpler architecture with 4 lanes of 25 Gb/s each, utilizing retiming capabilities as specified in the SFF-8636 MSA to clean up the signal . However, for long-haul and coherent applications, the DSP is critical. The Coherent Steelerton DSP, for instance, is purpose-built for 100G ZR applications, optimizing for the lowest power dissipation (
Optical and Physical Layer Specifications
The QSFP28 is hot-pluggable and operates on a single +3.3V power supply . Its optical interfaces vary wildly based on the standard. The SR4 variant uses an MPO connector for 4 independent channels over multimode fiber, reaching up to 100 meters on OM4 with a typical power consumption of just 2.2W . In contrast, the LR4 variant uses a Duplex LC connector and integrates a LAN WDM (Wavelength Division Multiplexing) MUX/DEMUX, combining 4 lanes into a single fiber pair for 10km reach at about 3.5W to 4W . The long-haul ZR variants push this further with tunable C-band DWDM optics, consuming up to 5.5W to 6W .
[TABLE_1]
Performance Metrics: Latency, Throughput, and Forwarding Limits
When we discuss latency and forwarding limits, the QSFP28’s raw Gbps rate is just one piece of the puzzle.
Line-Rate Forwarding and Micro-Latency
The QSFP28 transceiver operates at a data rate of 103.125 Gbps for 100GE applications and 111.809 Gbps for OTU-4 . The core ASIC/DSP is designed to handle this traffic at line rate. However, the true ‘forwarding limit’ depends on the host switch’s ASIC, not the transceiver itself. The transceiver introduces fixed latency, typically in the nanosecond to microsecond range, primarily from:
Retiming and CDR (Clock Data Recovery): Modules like the Flexoptix Q.13S1HG.10 include dual CDR on TX and RX, which can add a small amount of latency to clean the incoming electrical signal .
FEC (Forward Error Correction): For 10km and longer reaches, FEC is essential. The inbuilt KP4 FEC or ITU-T standard-compliant staircase FEC (as used in ZR modules) introduces processing latency but is necessary for achieving the specified bit error rates (BER) .
PAM4 Encoding/Decoding: With the shift to PAM4 for 100G over a single lambda (e.g., LR1, ZR), the DSP must process PAM4 signals. While this increases spectral efficiency, it requires more sophisticated equalization and processing, which can add deterministic latency .
Power Efficiency and MTBF
Power efficiency is a key metric for density. The SR4 module operates as a Power Class 3 device, consuming around 2.5W maximum, while the ZR is Class 5, pushing the limits of the QSFP28 thermal envelope . Surprisingly, data on Mean Time Between Failures (MTBF) is often vendor-specific, but high-end digital coherent optics modules are designed for extreme reliability. For example, Belden’s XTran 100G ZR boasts an impressive MTBF of 477 years . This reliability is crucial for carrier-grade SLAs where link uptime is paramount.
Deployment Strategies and Systems Integration
Integrating these transceivers requires rigorous planning.
High-Density and Thermal Management

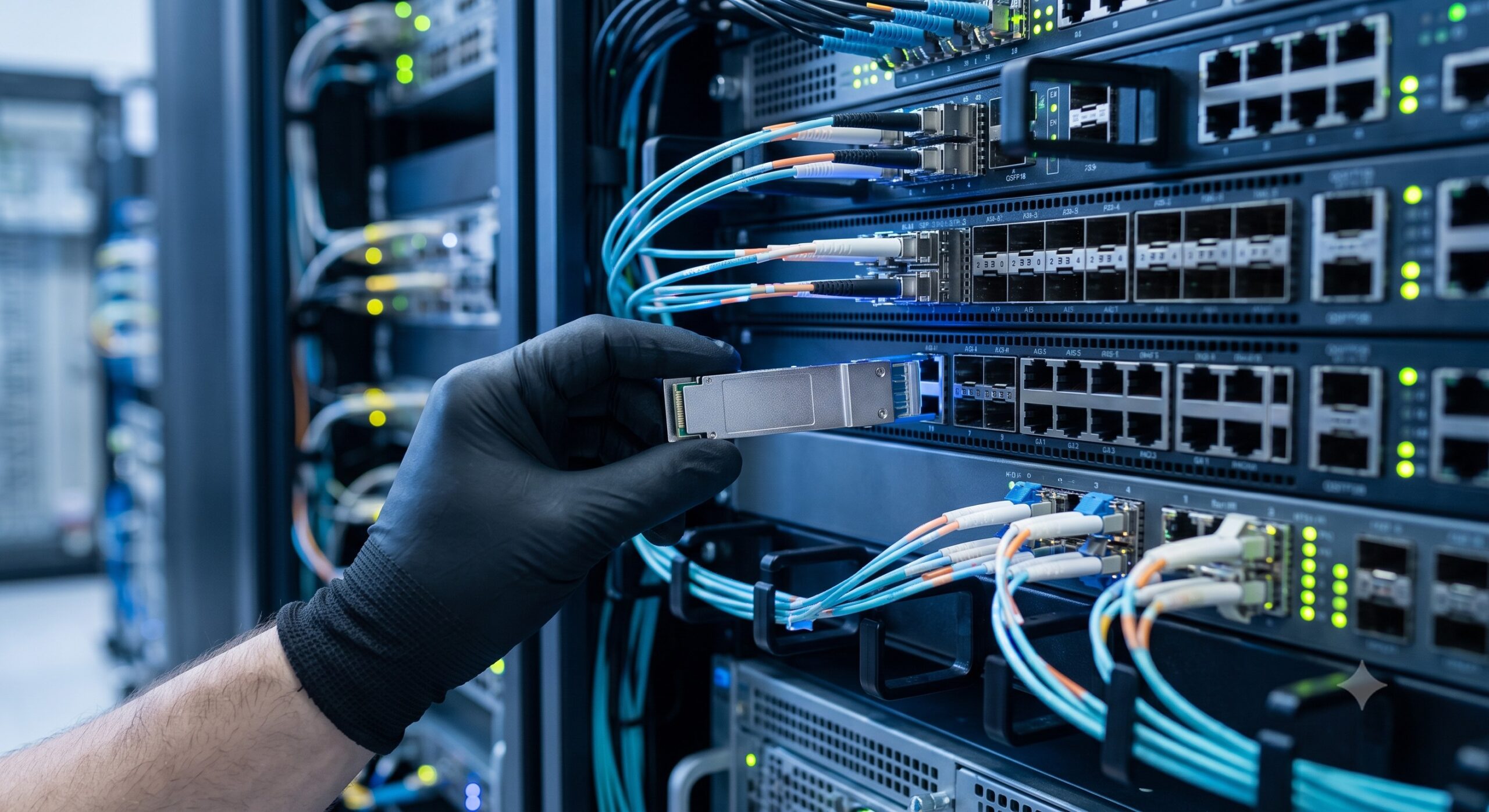

In high-density data centers, a single 1U switch can host up to 32 to 36 QSFP28 ports. This creates a thermal challenge. While a module may consume only 3.5W to 5.5W, multiplied across 32 ports, the heat dissipation becomes significant. Therefore, adherence to the QSFP28 MSA’s power classes (Class 3 for SR4, Class 5 for ZR) is essential for chassis cooling design .
Protocol & Compliance Masterclass
Compliance is non-negotiable in telecom. Our analysis shows that QSFP28 modules must adhere to a wide array of standards:
IEEE 802.3: Defines the 100GBASE-SR4, LR4, ER4, and ZR standards .
MSA Standards: SFF-8665 and SFF-8636 define the mechanical and management interfaces .
Environmental Compliance: All serious hardware conforms to RoHS-6 and often meets industrial temperature range requirements (-40C to +85C) for outdoor deployments .
Migration Strategies and Multi-Vendor Interoperability
One of the biggest concerns in systems integration is compatibility. While MSA compliance ensures mechanical and electrical interoperability, many network operators rely on vendor-coded transceivers. However, the market has shifted towards universal or multivendor-compatible modules that can be coded to work across Cisco, Juniper, Arista, Nokia, and Huawei platforms . For example, AddOn Networks and Flexoptix provide OEM-compatible solutions that are rigorously tested for in-environment performance, offering flexibility and cost optimization .
Conclusion: The Verdict on 100G Evolution
The QSFP28 100G transceiver represents the culmination of decades of optical and silicon engineering. It is not merely a cable replacement but a sophisticated piece of optical networking gear. Its internal DSP architecture, particularly in coherent variants, brings advanced optical transmission capabilities to the edge and core of the network. From a 2.2W SR4 module for rack-to-rack connectivity to a 5.5W ZR module capable of 300km amplified DWDM links, the QSFP28 form factor is incredibly versatile . As we look towards 400G and 800G, the lessons learned and architectures developed in the QSFP28 era—like PAM4 modulation, digital diagnostics (DDM/DOM), and advanced FEC—are the foundational blocks for the next generation of high-speed networking. For network architects, the choice of QSFP28 variant is a strategic decision that impacts latency, power, density, and cost. A data-driven, standardized approach to their deployment will ensure high-performance, reliable infrastructure for years to come.
