The Ultimate Guide to NAT Configuration on Cisco Routers: Architecture, Specs, and Deployment

Introduction: The Indispensable Role of NAT in Modern Network Architecture

In the realm of enterprise and service provider networking, Network Address Translation (NAT) remains a cornerstone technology, crucial for mitigating IPv4 address exhaustion and enforcing robust security perimeters. As a Senior Network Architect, I’ve observed that while NAT is ubiquitous, a nuanced understanding of its configuration—particularly on Cisco platforms from IOS to IOS-XE—is essential for optimizing performance, ensuring carrier-grade reliability, and maintaining a healthy total cost of ownership (TCO). This guide delves into the architecture and specifications of NAT on Cisco routers, providing a data-driven blueprint for deployment and troubleshooting.

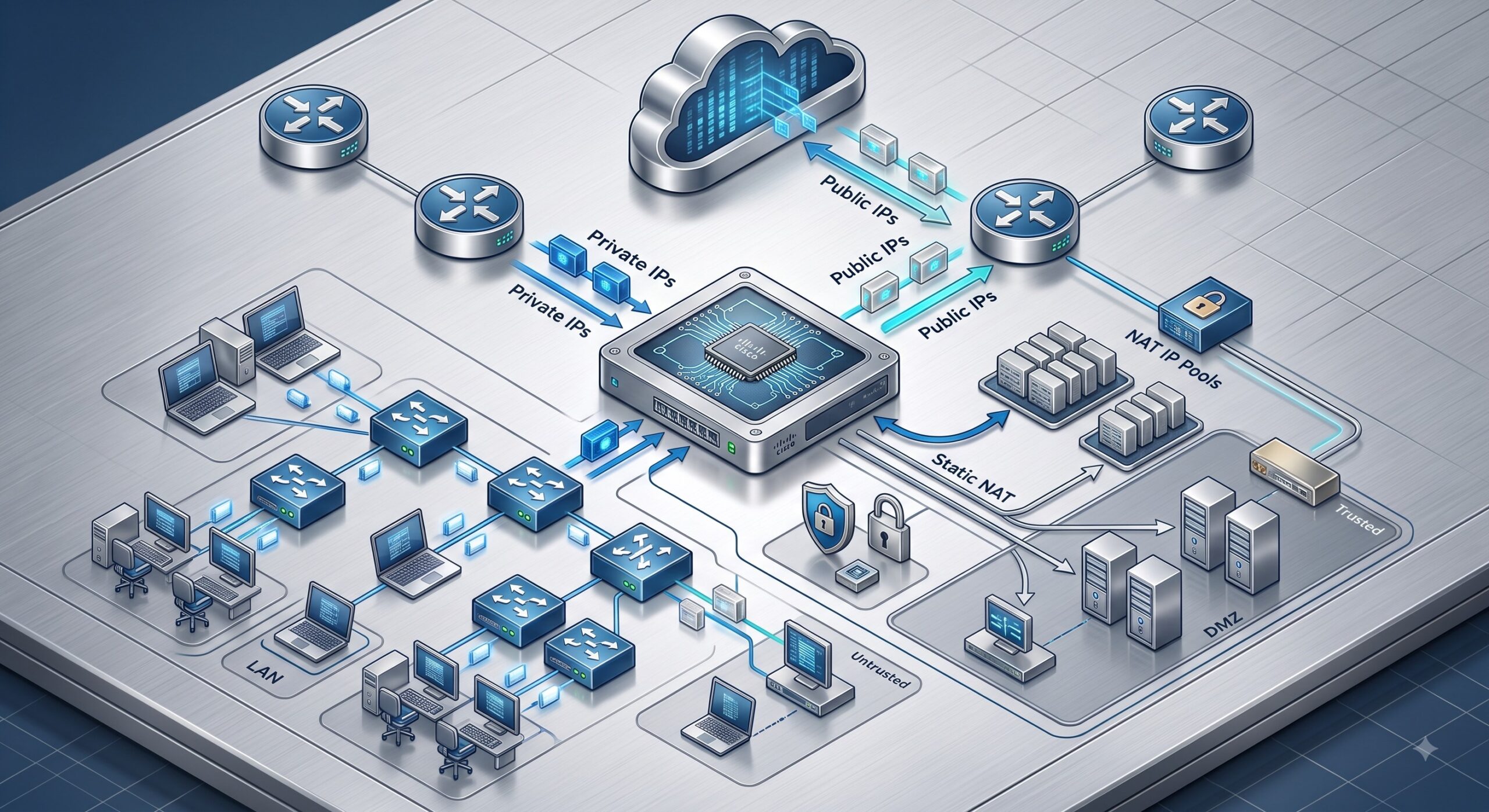

Core Architecture & Hardware Topology of Cisco NAT

The intelligence of NAT on Cisco routers is a function of both software logic and, in high-end platforms, hardware acceleration via specialized ASICs. The fundamental architecture involves classifying interfaces as either NAT inside or NAT outside . The control plane processes translation rules, while the data plane performs the packet header modifications. For instance, on Catalyst 9600 switches and high-end ISR/ASR routers, NAT operations are offloaded to improve throughput, significantly reducing latency and CPU load . Cisco’s implementation supports both static one-to-one mappings and dynamic translations, including the critical Port Address Translation (PAT), often used to conserve public IP addresses.

NAT Types and Their Hardware Implications

Understanding the different NAT types is the first step in a successful deployment .

• Static NAT: Creates a fixed translation between a local and global address, enabling bidirectional traffic initiation. This is resource-light and often used for servers.
• Dynamic NAT: Maps a group of local addresses to a pool of global addresses. Cisco routers handle this with a first-come, first-served basis, utilizing an ACL to define which traffic is translated .
• Dynamic PAT (NAT Overload): The most common deployment, where multiple inside devices are mapped to a single public IP address using different source ports. This maximizes address utilization and is heavily optimized in modern Cisco hardware .
• Identity NAT: Used to exempt specific traffic from translation, often in VPN scenarios, ensuring packets are not modified when traversing the tunnel .

For SD-WAN environments, Cisco has further refined these constructs, introducing features like Service to Transport Static NAT, which facilitates communication between VRFs and is critical for Direct Internet Access (DIA) solutions .

Data-Driven Configuration Best Practices & Operational Limits

Configuration of NAT on Cisco routers follows a well-defined syntax. The most fundamental command is ip nat inside source, which can be paired with a static address, a pool, or an interface for overload. For example, to allow a private subnet 192.168.0.0/24 to access the internet via a single public IP on GigabitEthernet0/1, the configuration is concise:

interface gigabitethernet0/0 ip nat inside
interface gigabitethernet0/1 ip nat outside
access-list 100 permit ip 192.168.0.0 0.0.0.255 any
ip nat inside source list 100 interface gigabitethernet0/1 overload .

However, achieving operational excellence requires adherence to best practices. Avoid overlapping NAT pools and dynamic rules, as this can lead to unexpected behavior and routing table corruption . In VRF-aware environments, ensure that the NAT outside interface is placed in the global VRF, as placing it in a non-default VRF can break translation logic . For high-availability and mission-critical networks, understanding the forwarding limits is key. While entry-level platforms may achieve ~1 Gbps of NAT throughput, high-end routers utilizing ASIC offload can sustain line-rate forwarding at 100 Gbps or more, with a negligible latency increase measured in microseconds .

Troubleshooting and Verification Framework

Effective troubleshooting is a non-negotiable skill. The primary tool for verification is show ip nat translations, which provides real-time insight into the translation table. For advanced troubleshooting, especially on ASA and IOS-XE platforms, the packet-tracer utility is invaluable for simulating traffic flows and identifying configuration errors in the NAT policy table . If you encounter issues where translations fail, first check the ACL to ensure it permits the source traffic, then verify that the routing table contains a path back to the translated network .

Conclusion: Securing Your Network’s Future with NAT

NAT on Cisco routers is far more than a simple address-mapping tool; it is a critical component of the network’s security posture and addressing strategy. Whether you are configuring a small office router or managing a complex SD-WAN fabric, the principles of interface classification, rule ordering, and application-level gateway (ALG) support remain fundamental. As the industry shifts towards IPv6, NAT for IPv4 will continue to be a staple for legacy coexistence. By adhering to the architectural insights and best practices outlined in this guide, you can ensure that your NAT deployments are resilient, performant, and aligned with industry standards for carrier-grade reliability.
