S5731S-S48T4X-A

0 Reviews Write a review
PN02353AJC
Brands
AvailabilityIn Stock
Campus Switch S5731S-S
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5731S-S48T4X-A switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 power unit slots, with 1 AC power module equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5731S-S48T4X-A overview

Huawei S5731S-S48T4X-A switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, which is one of the Huawei S5731S-S series switches.

CloudEngine S5731-S series switches are next-generation standard gigabit switches that provide GE electrical downlink ports and 10GE uplink ports. The CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.



S5731S-S48T4X-A quick spec

48 10/100/1000BASE-T ports

4 10GE SFP+ ports

1 AC power module equipped

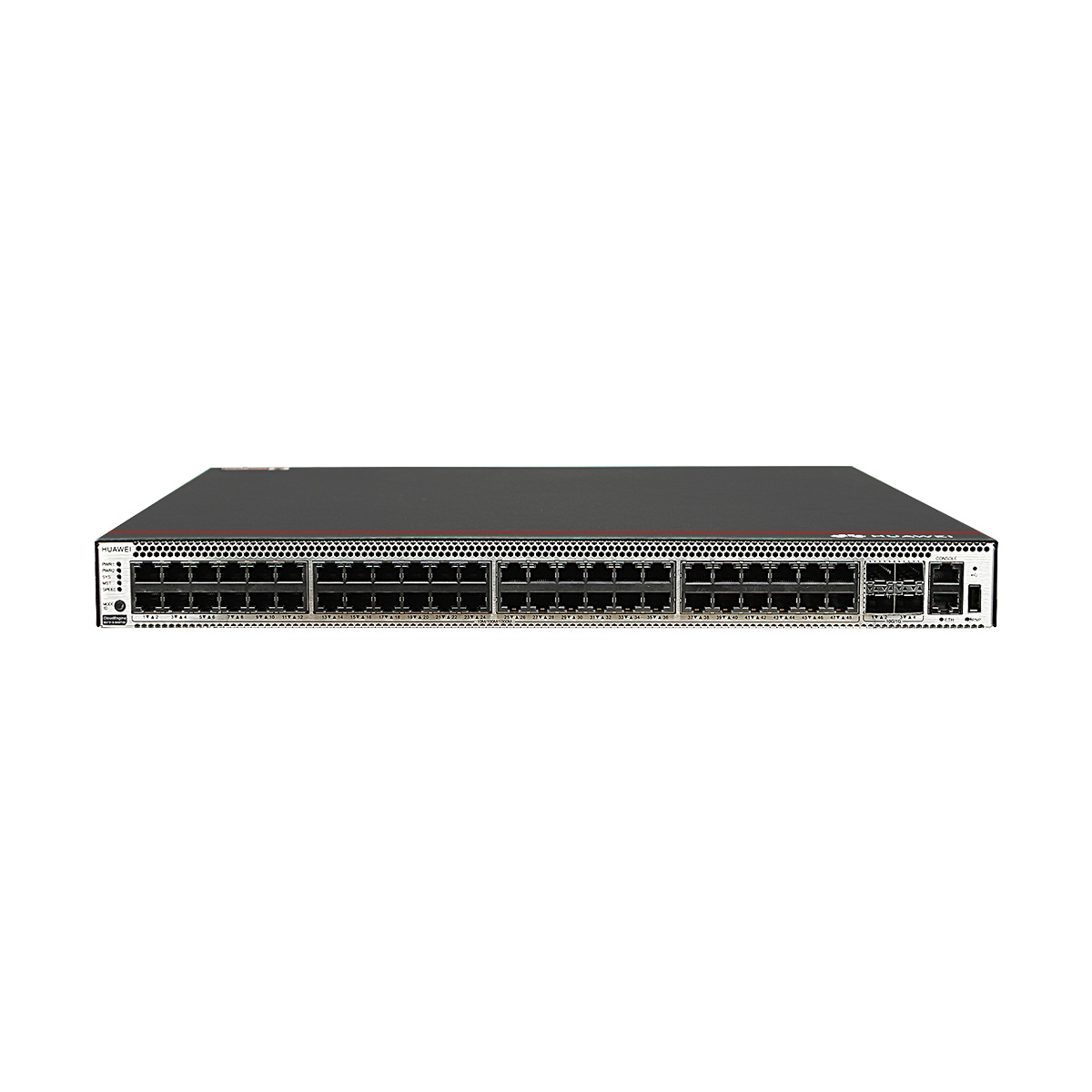

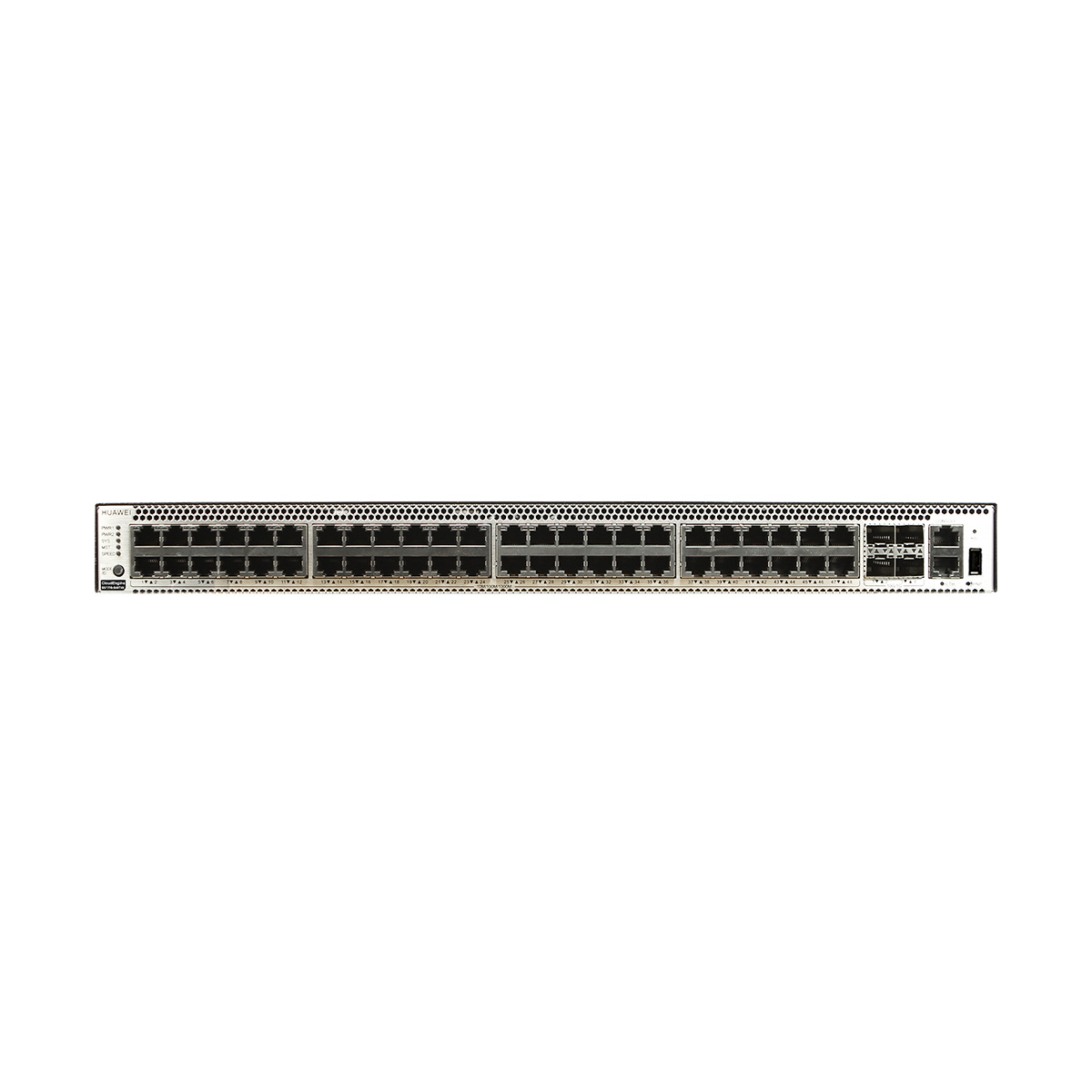

S5731S-S48T4X-A appearance and structure

S5731S-S48T4X-A appearance and structure

1 Forty-eight 10/100/1000BASE-T ports

SFP-1000Base-T

 2 Four 10GE SFP+ ports

OMXD30000 OSX010000
3 One console port 4 One ETH management port
5 One USB port 6 One PNP button
7 Ground screw 8 Fan module slot 1
9 Fan module slot 2 10 Power module slot 1
11 Power module slot 2 – –
Show More Show Less
Item  S5731S-S48T4X-A
Memory (RAM) 4 GB
Flash 1 GB in total. To view the available flash memory size, run the display version command.
Meantime between failures (MTBF) 55.31 years
Meantime to repair (MTtr) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging) 9.5 kg (20.94 lb)
Stack ports 10GE SFP+ ports on the front panel
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 VAC to 290 VAC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 124 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 101 W
Operating temperature -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 57.5 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 02353AJC
02353AJC-003

Additional information

Brand

Huawei
Campus Switch

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item  S5731S-S48T4X-A
Memory (RAM) 4 GB
Flash 1 GB in total. To view the available flash memory size, run the display version command.
Meantime between failures (MTBF) 55.31 years
Meantime to repair (MTtr) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging) 9.5 kg (20.94 lb)
Stack ports 10GE SFP+ ports on the front panel
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 VAC to 290 VAC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 124 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 101 W
Operating temperature -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 57.5 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 02353AJC
02353AJC-003
