Description

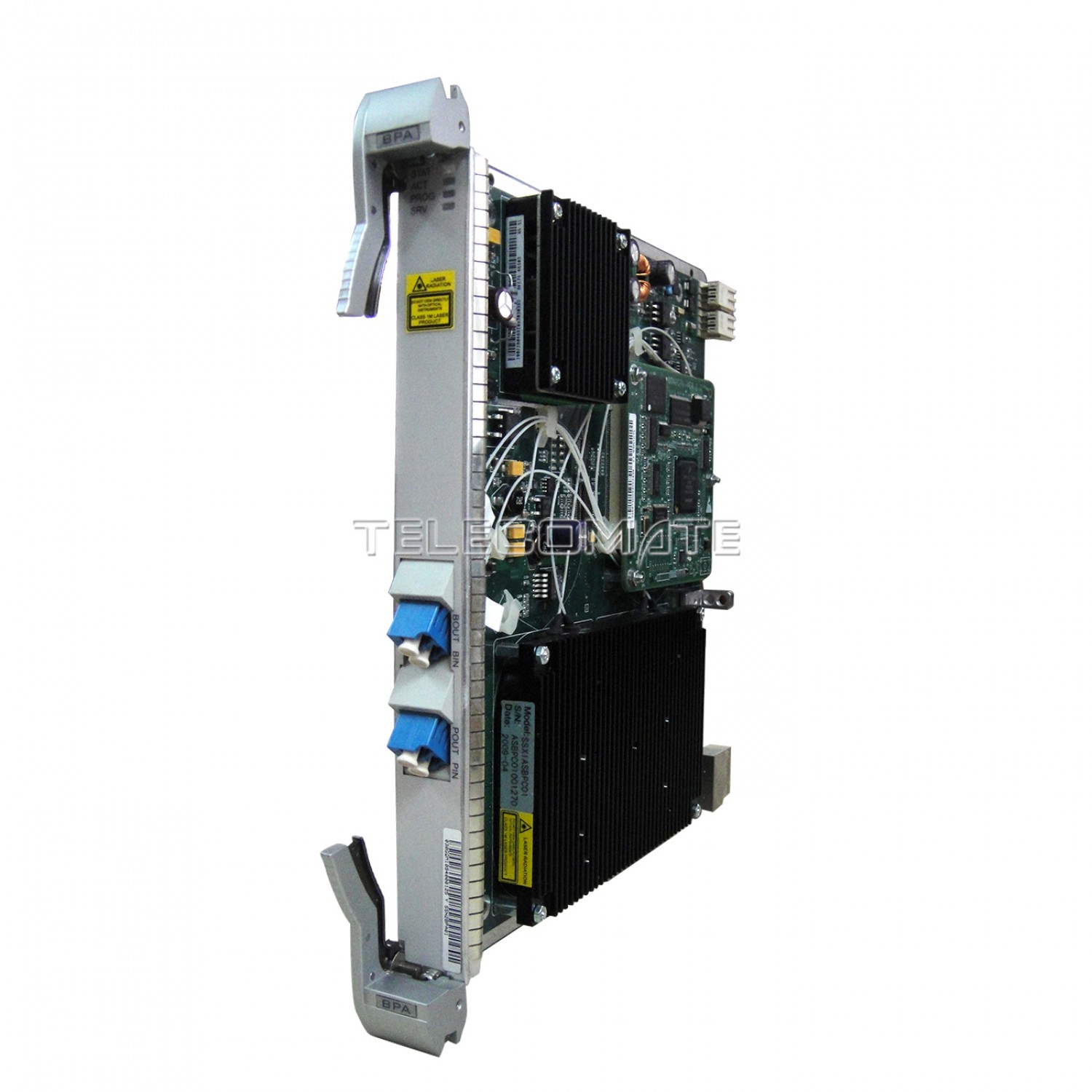

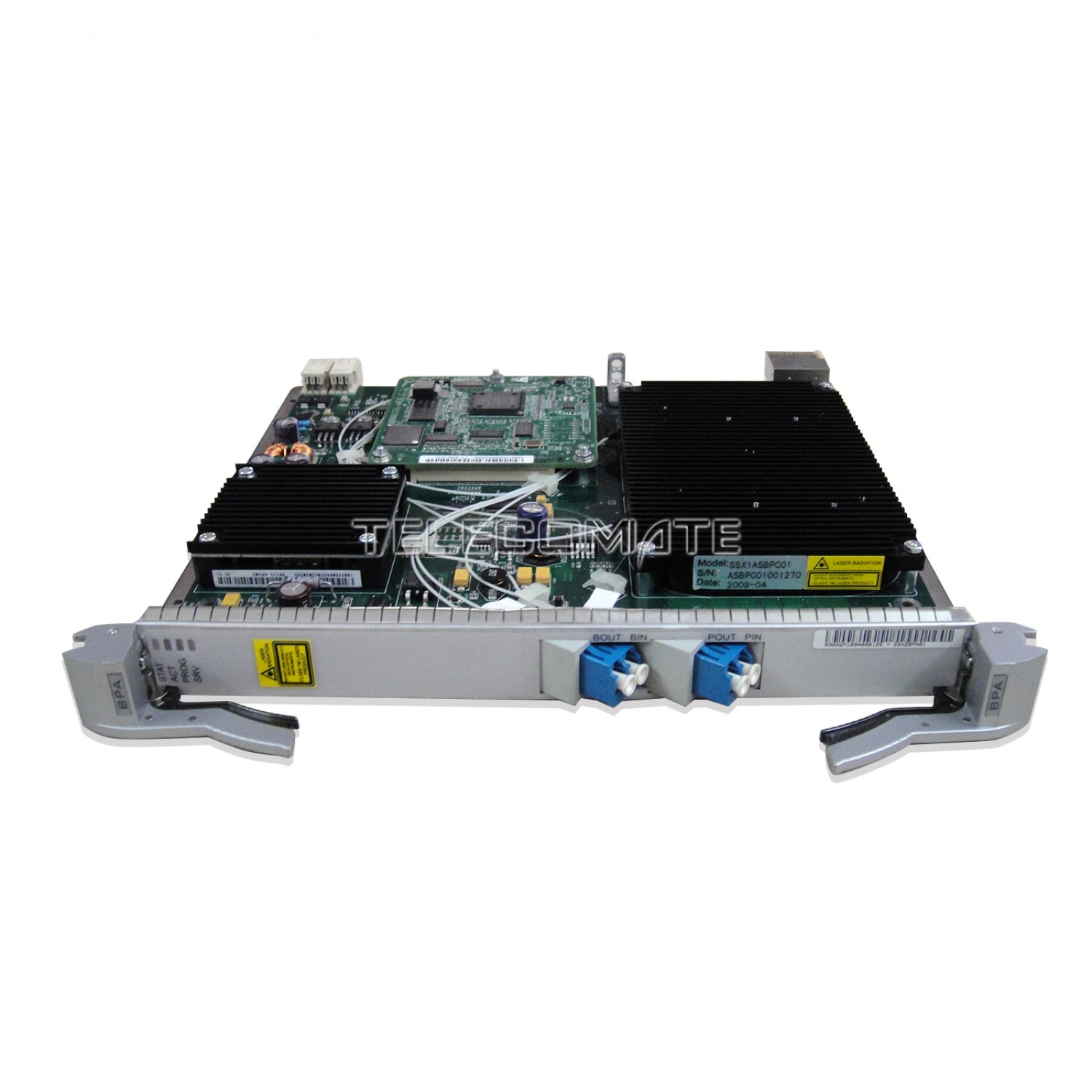

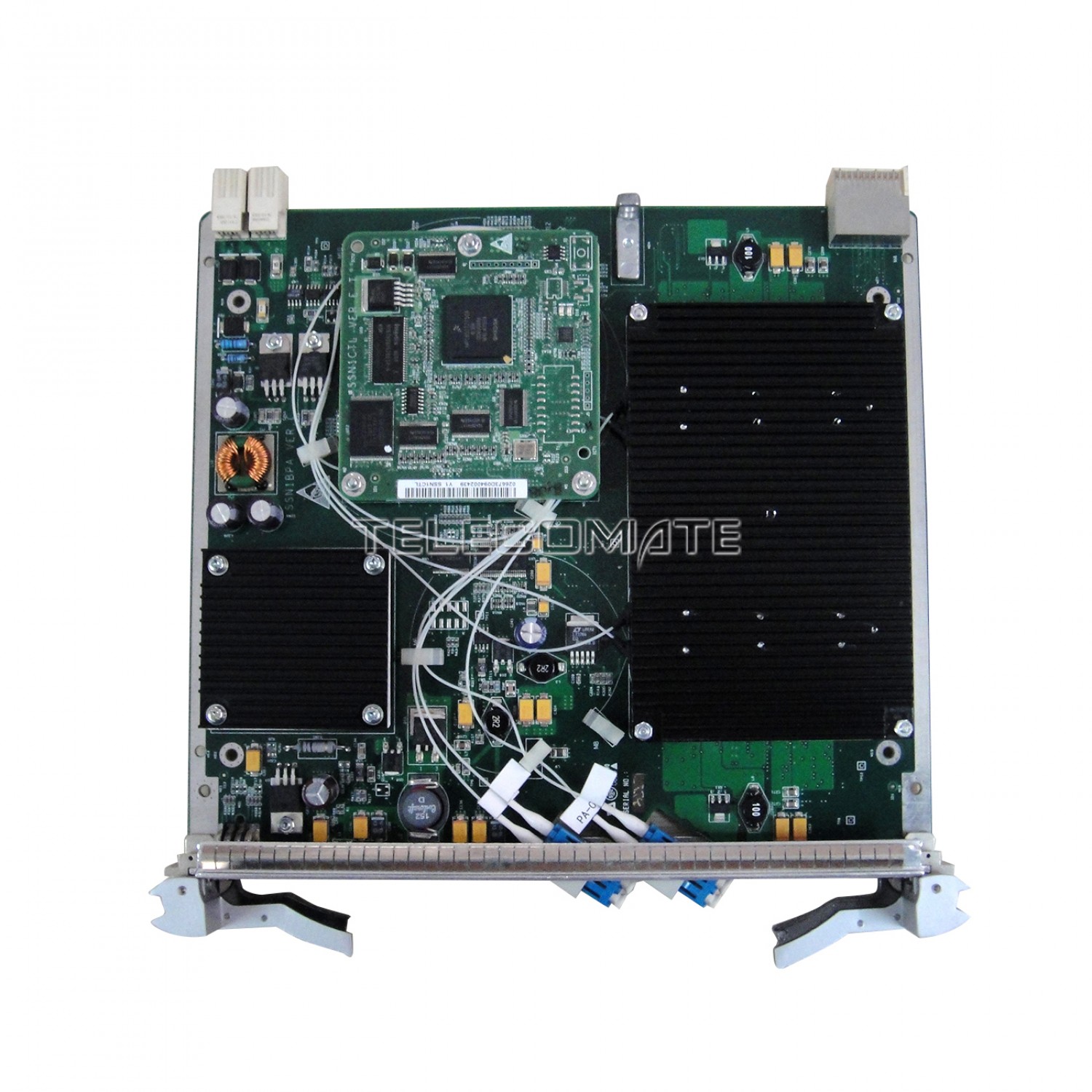

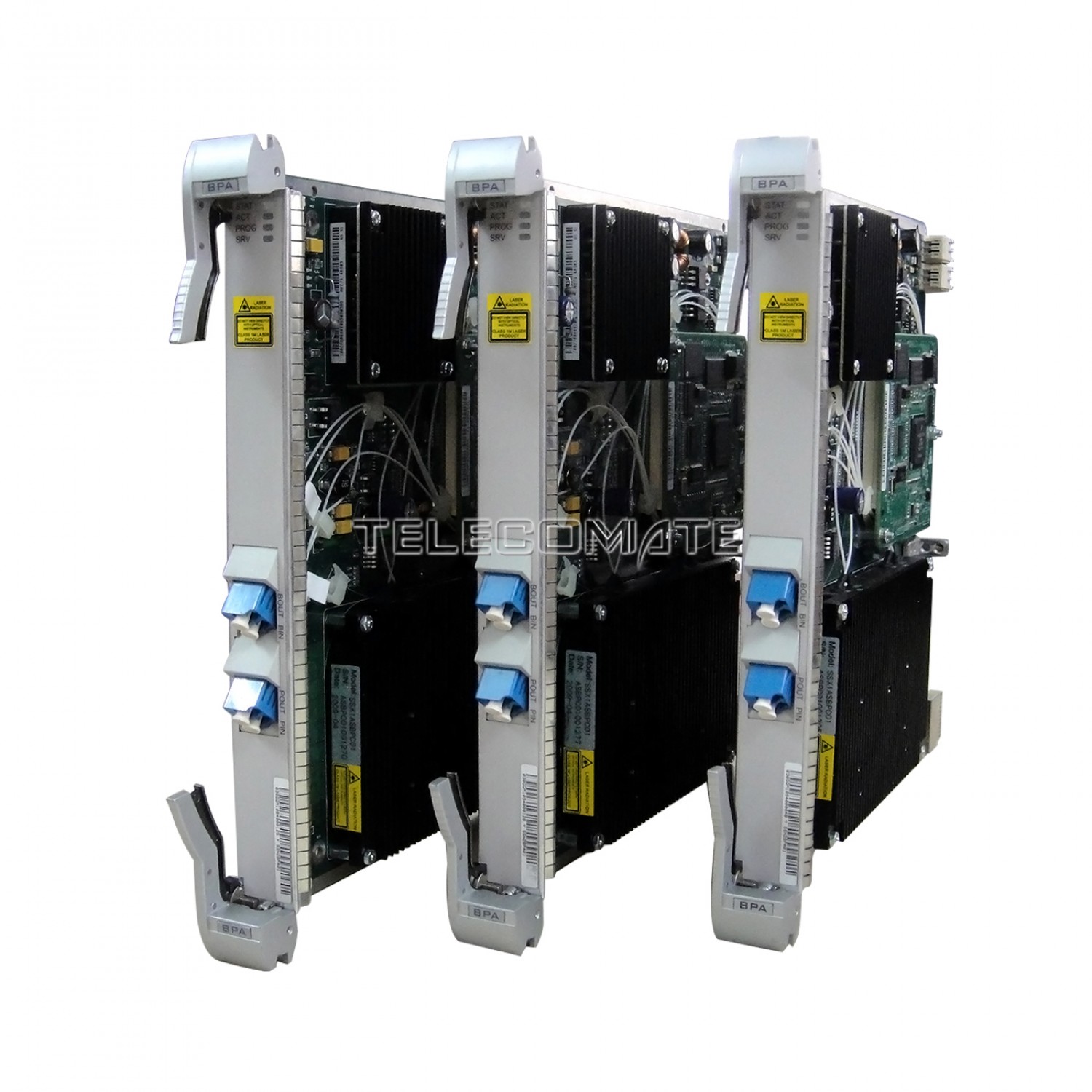

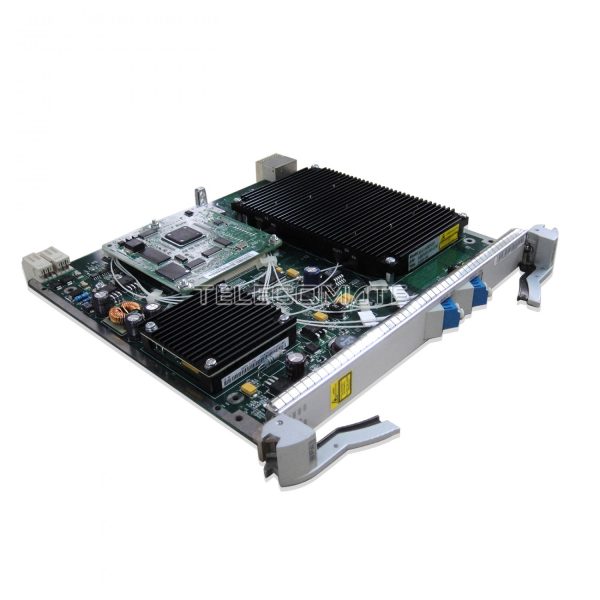

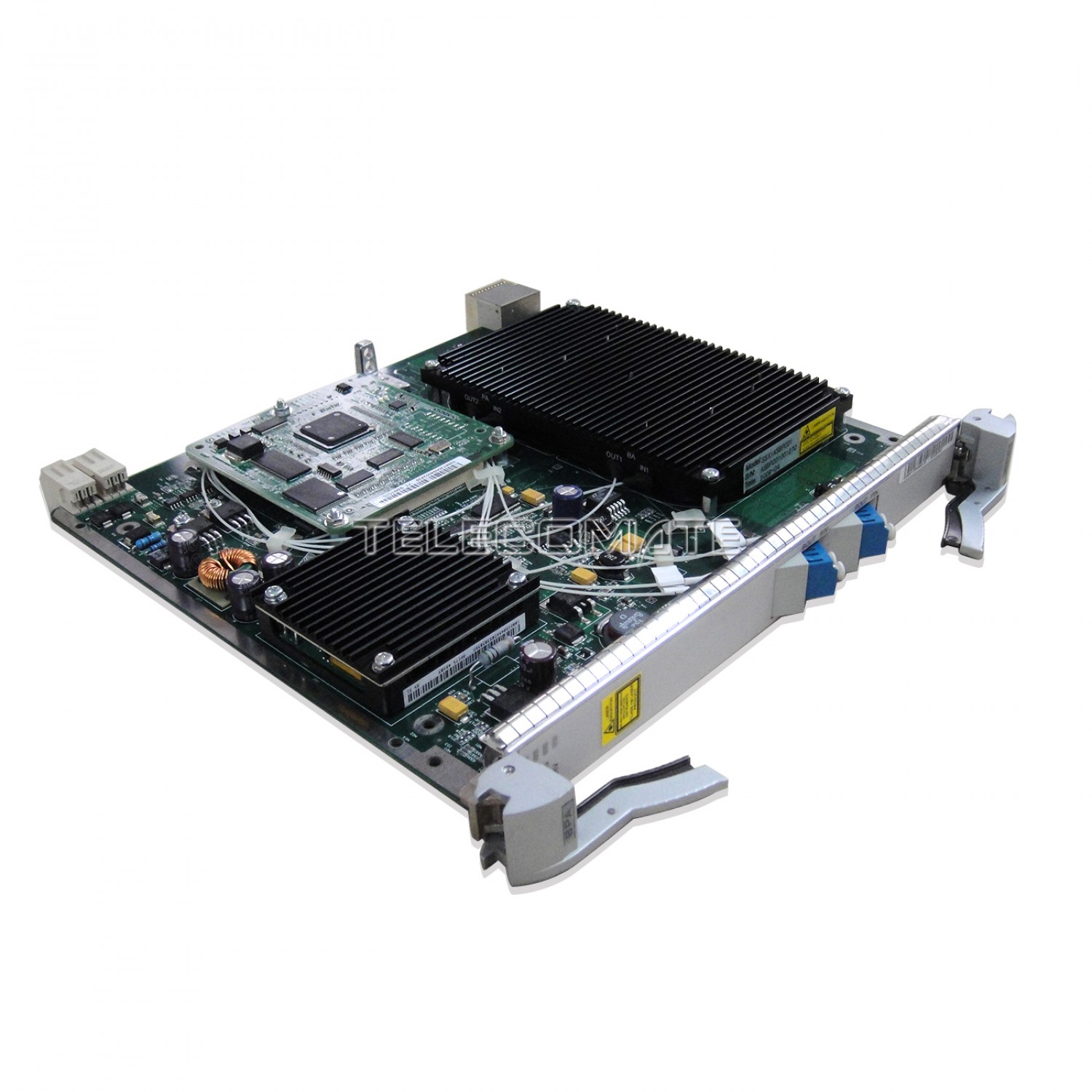

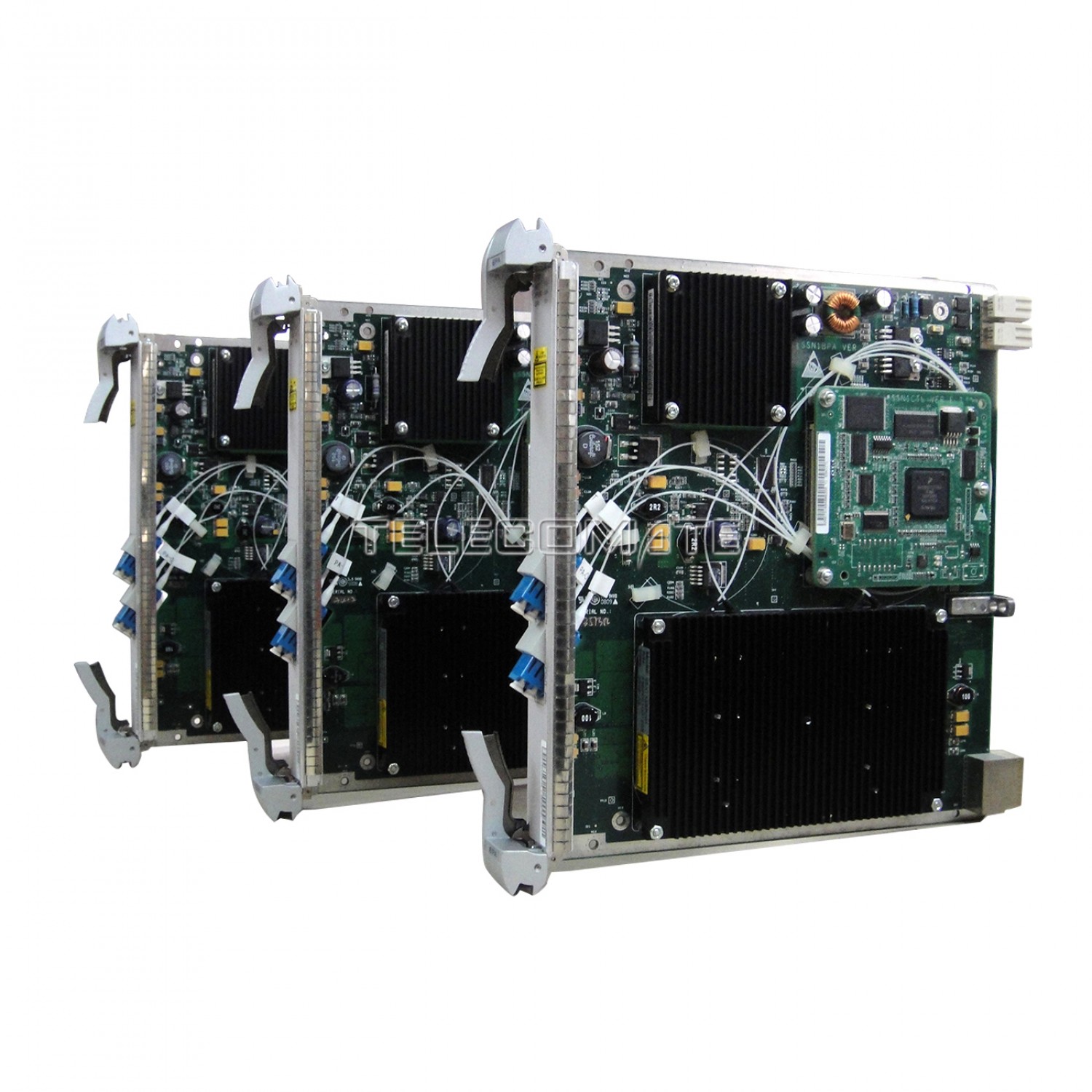

Optical Booster & Pre-amplifier Board(-38dBm~-10dBm,22dB~33dB;-6dBm~+3dBm,14dBm,LC)
| Optical Interface Parameter | ||
| Input wavelength (nm) | BA: 1530 to 1565 PA: 1550.12 |
|
| Input optical power (dBm) | BA: -6 to +3 PA: -44 to -10 |
|
| Output optical power (dBm) | N2BPA: 14 to 14.5 (BA) N2BPA: -22 to +23 (PA) |
|
| Noise figure (dB） | BA: < 6.5 PA: < 6 |
|
| Mechanical Specifications | ||
| Dimensions (mm) | 25.4 (W) x 235.2(D) x 261.4 (H) | |
| Weight (kg) | 1.2 | |
