TN54TSXL01

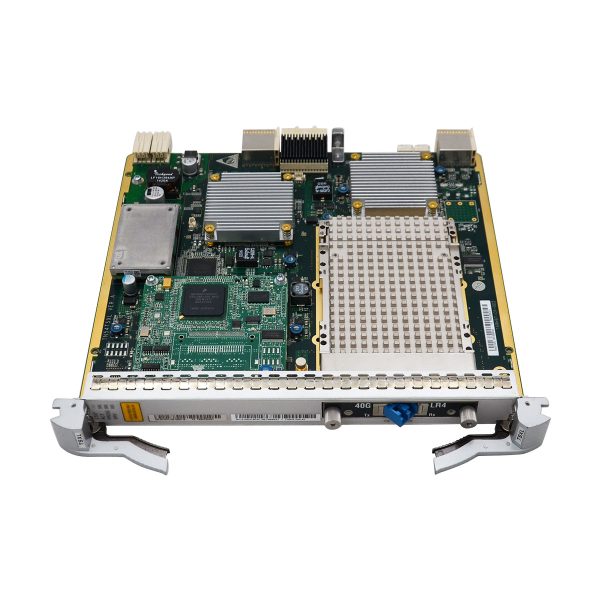

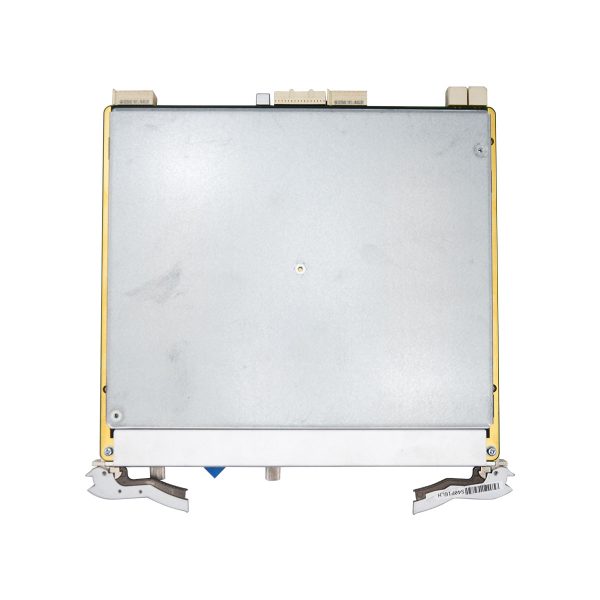

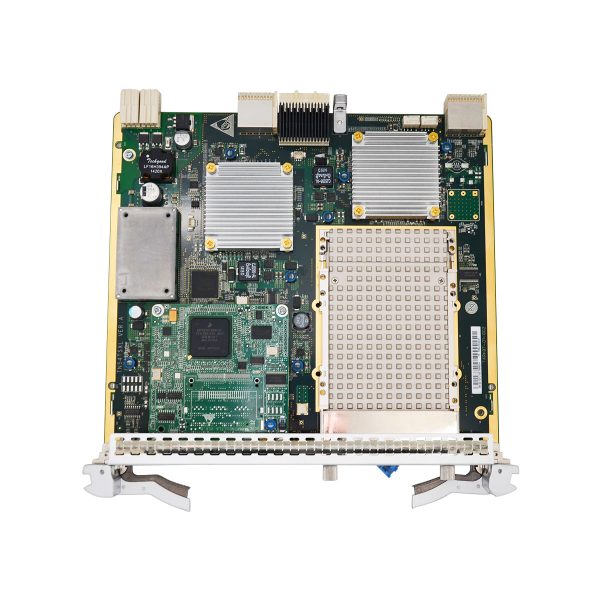

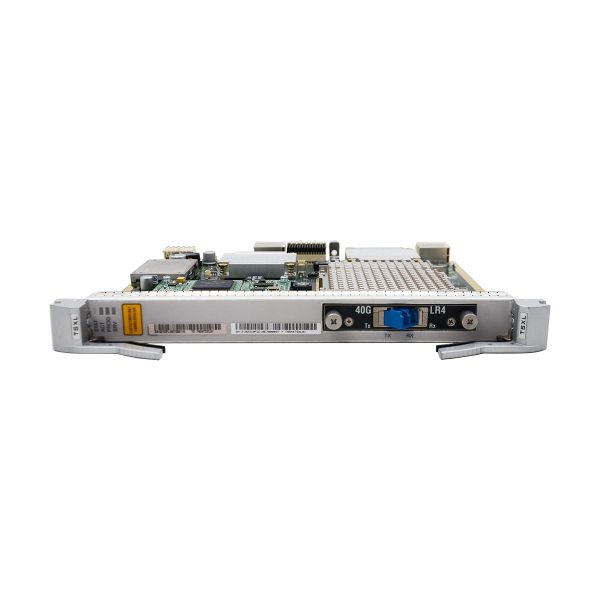

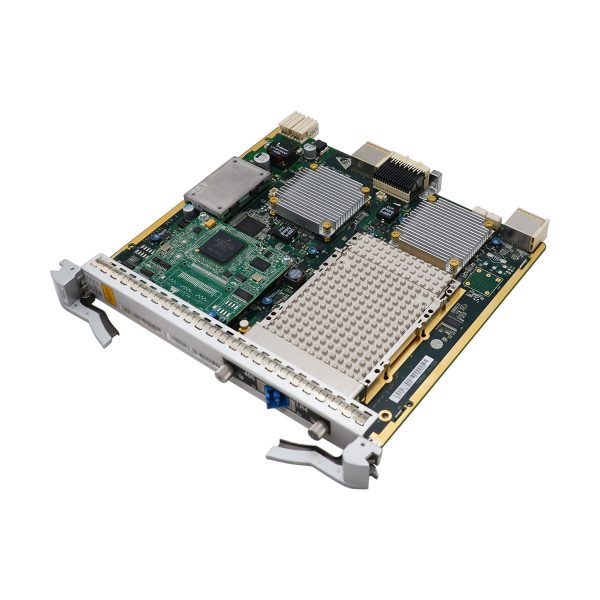

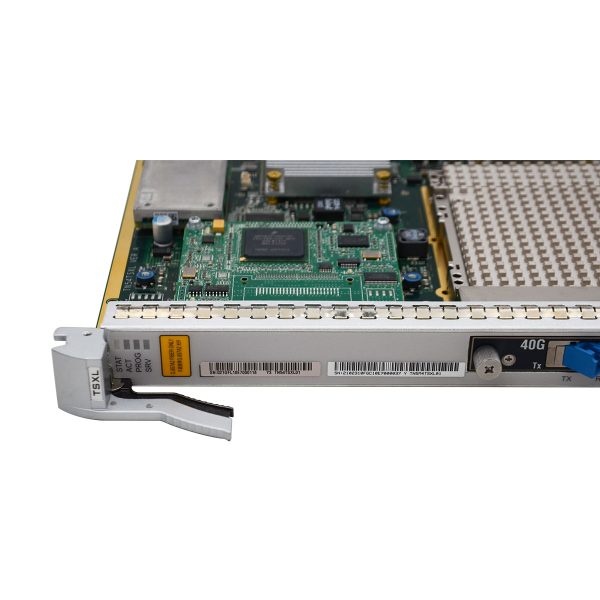

TN54TSXL01 is a Huawei OSN8800 40G Tributary Service Processing Board With 40G BASE-LR4-10km-CFP
Huawei
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Reviews (0)
Description
TN54TSXL01 Overview
As a type of tributary board, the TN54TSXL01 board converts between one channel of 40GE optical signals and one channel of ODU3 electrical signals through cross-connection.
The TN54TSXL01 board is mainly used to achieve cross-connection at the electrical layer.
- 40G Tributary Service Processing Board, apply to Huawei OSN 8800
- Supports the cross-connection of one channel of ODU3 signals between the TN54TSXL and the cross-connect board
- Supports the OTN frame format and overhead processing by referring to the ITU-T G.709. The mapping process is compliant with ITU-T G.709
- Supports PM functions for ODU2
- Supports PM, TCM functions for ODU3
- Supports the ALS function on the client side
- Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing
- Supports Electrical-layer ASON
- Supports client 1+1 protection
- Supports ODUk SNCP
- Supports Inloop/Outloop on the Client side of Loopback
Front Panel
Valid Slot
Enhanced OptiX OSN 8800 T64 subrack | IU1-IU8, IU11-IU42, IU45-IU68 |
Enhanced OptiX OSN 8800 T32 subrack | IU1-IU8, IU12-IU27, IU29-IU36 |
OptiX OSN 8800 T16 subrack | IU1-IU8, IU11-IU18 |
TSXL is available in 3 functional versions, namely, TN11, TN53, and TN54. The mapping between the board and equipment as below:
Board | Initial Version | General 8800 T64 Subrack | Enhanced 8800 T64 Subrack | General 8800 T32 Subrack | Enhanced 8800 T32 Subrack | 8800 T16 Subrack | 8800 Universal Platform Subrack | 6800 Subrack | 3800 Chassis |
TN11TSXL | V100R004C01 | N | N | N | N | N | N | Y | N |
TN53TSXL | V100R005 | Y | Y | Y | Y | Y | N | N | N |
TN54TSXL | V100R006C03 | Y | Y | Y | Y | Y | N | N | N |
Item | TN54TSXL01 |
Parameter | Value |
Optical Module Type | 40G BASE-LR4-10km-CFP |
Line code format | NRZ |
Optical source type | SLM |
Target transmission distance | 10 km (6.2 mi.) |
Transmitter parameter specifications at point S | |
Signaling Speed per Lane(Gbit/s) | 10.3125 |
Signaling Speed Accuracy(ppm) | -100 to 100 |
Total Average Launch Power (Min)(dBm) | -1 |
Total Average Launch Power (Max)(dBm) | 8.3 |
Transmit OMA per Lane (Min)(dBm) | -4 |
Transmit OMA per Lane (Max)(dBm) | 3.5 |
Average Launch Power per Lane (Min)(dBm) | -7 |
Average Launch Power per Lane (Max)(dBm) | 2.3 |
Optical Extinction Ratio (Min)(dB) | 3.5 |
Receiver parameter specifications at point R | |
Receiver type | PIN |
Signaling Speed per Lane(Gbit/s) | 10.3125 |
Signaling Speed Accuracy(ppm) | -100 to 100 |
Average Receiver Power per Lane (Min)(dBm) | -13.7 |
Average Receiver Power per Lane (Max)(dBm) | 2.3 |
Minimum receiver overload (OMA) per Lane(dBm) | 3.5 |
Receiver Sensitivity (OMA) per Lane(dBm) | -11.5 |
Maximum reflectance(dB) | -26 |
Mechanical Specifications | |
Dimensions(mm) | 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.) |
Weight(kg) | 1.4 kg |
