Troubleshooting Rogue ONT FAQ: Configuration, Compatibility & Error Resolving

Overview & Thematic Scope

In a GPON (Gigabit Passive Optical Network), a Rogue Optical Network Terminal (ONT), often referred to as a Rogue ONU, is a critical failure scenario that can disrupt service for an entire PON port. This FAQ provides expert technical guidance for network engineers on identifying, troubleshooting, and resolving Rogue ONT issues. We will cover symptoms, root cause analysis, OLT alarm interpretation, and practical mitigation strategies, bridging both pre-sales deployment planning and post-sales support.

Frequently Asked Questions

Q1: What is a Rogue ONT and how does it affect a GPON network?

A Rogue ONT is a malfunctioning Optical Network Terminal that disrupts the TDMA (Time Division Multiple Access) schedule of a GPON network by transmitting outside its allocated time slot or continuously emitting light. This interference causes a denial of service, preventing other ONTs on the same PON port from communicating with the OLT. As a result, normal ONTs may fail to go online or frequently go offline, leading to massive service outages for multiple subscribers.

Q2: What are the clear symptoms and alarms indicating a Rogue ONT issue on an OLT?

The primary symptoms are multiple ONUs failing to go online or going offline intermittently. On the OLT, look for specific alarms such as ‘0x2e314021 There are illegal incursionary rogue ONTs under the port’ or ‘0x2e314022 The ONT is rogue ONT’ . You might also observe a sudden increase in ‘ONU LOS’ alarms or see the ‘Last down cause’ for normal ONTs as being impacted by a rogue device.

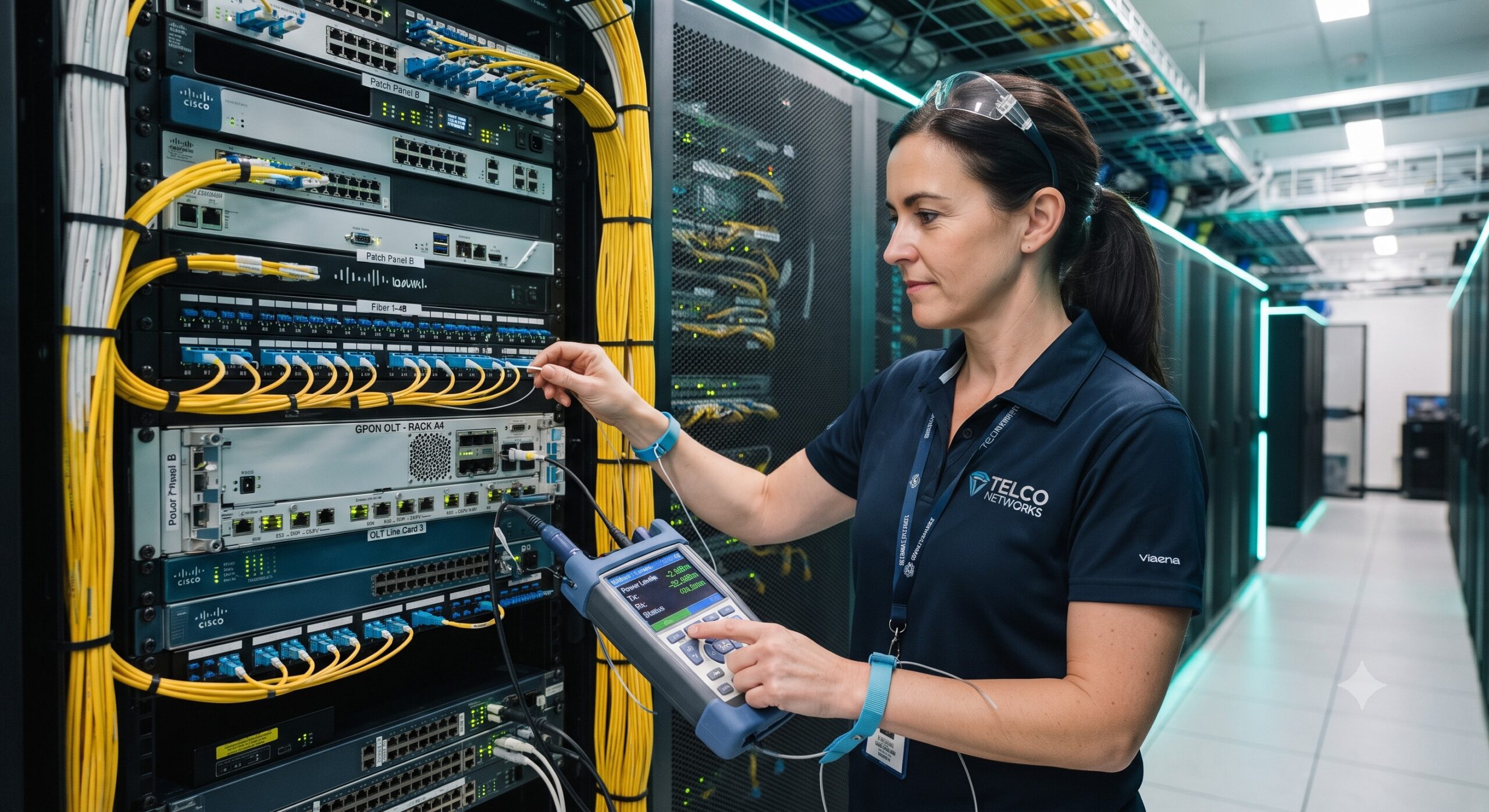

Q3: What is the most effective method to physically confirm the presence of a Rogue ONT?

The most definitive method is a physical test using an optical power meter on the PON port . To confirm, disconnect the fiber from the suspect OLT port and connect it to the power meter. If the meter shows a reading, it confirms the presence of a rogue ONU that is continuously emitting light. **Caution:** This procedure interrupts all services on that PON port and should ideally be performed during a maintenance window.

Q4: What are the common root causes of an ONT becoming a Rogue ONT?

A Rogue ONT is typically caused by hardware failures such as a faulty optical transceiver (SFP) that fails to turn off its laser, a damaged ONT controller, or corrupted firmware. In less common scenarios, a misconfigured ONT could also attempt to transmit outside its designated timeslot. To isolate the issue, you should replace the suspected ONT with a known-working unit; if the problem resolves, the original ONT is confirmed as the source of the fault.

Q5: How can I isolate the specific Rogue ONT when it’s not immediately obvious?

When multiple ONTs are offline, the rogue may be one that is still online. The most effective isolation procedure involves a systematic halving search . You can manually disconnect the optical fiber from the suspected ONTs one by one while monitoring the OLT alarms and the online status of other ONTs. When the rogue unit is disconnected, the alarms clear and the other ONTs will begin to register and come online.

Q6: What steps should be taken to prevent Rogue ONT issues during new deployments?

Prevention starts with robust quality control for ONT hardware and ensuring compatibility with the OLT. It’s critical to implement OLT-level rogue ONT detection features, such as RSSI monitoring or background process detection, which are available in many modern OLTs . Configuring the OLT to automatically shut down ports where a rogue condition is detected can provide a first line of defense, isolating the problem before it impacts other users.

Q7: What is the recommended process for replacing a confirmed Rogue ONT?

After isolating the Rogue ONT, the recommended process is to physically disconnect and replace it with a new, pre-configured unit . Ensure the new ONT has the correct authentication credentials (SN, PLOAM password, or LOID) to register with the OLT. After replacement, the OLT should automatically discover and register the new ONT, and the service for all other ONTs on the PON port should stabilize.
