Home/GPON Network/Huawei ONT/EG8247W
EG8247W5
EG8247W5-1
EG8247W5-2
EG8247W5-3
EG8247W5-4
EG8247W5-5
EG8247W5-6
Categories:

EG8247W

4 Reviews Write a review
SKU2009180
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $30.00.Current price is: $30.00.

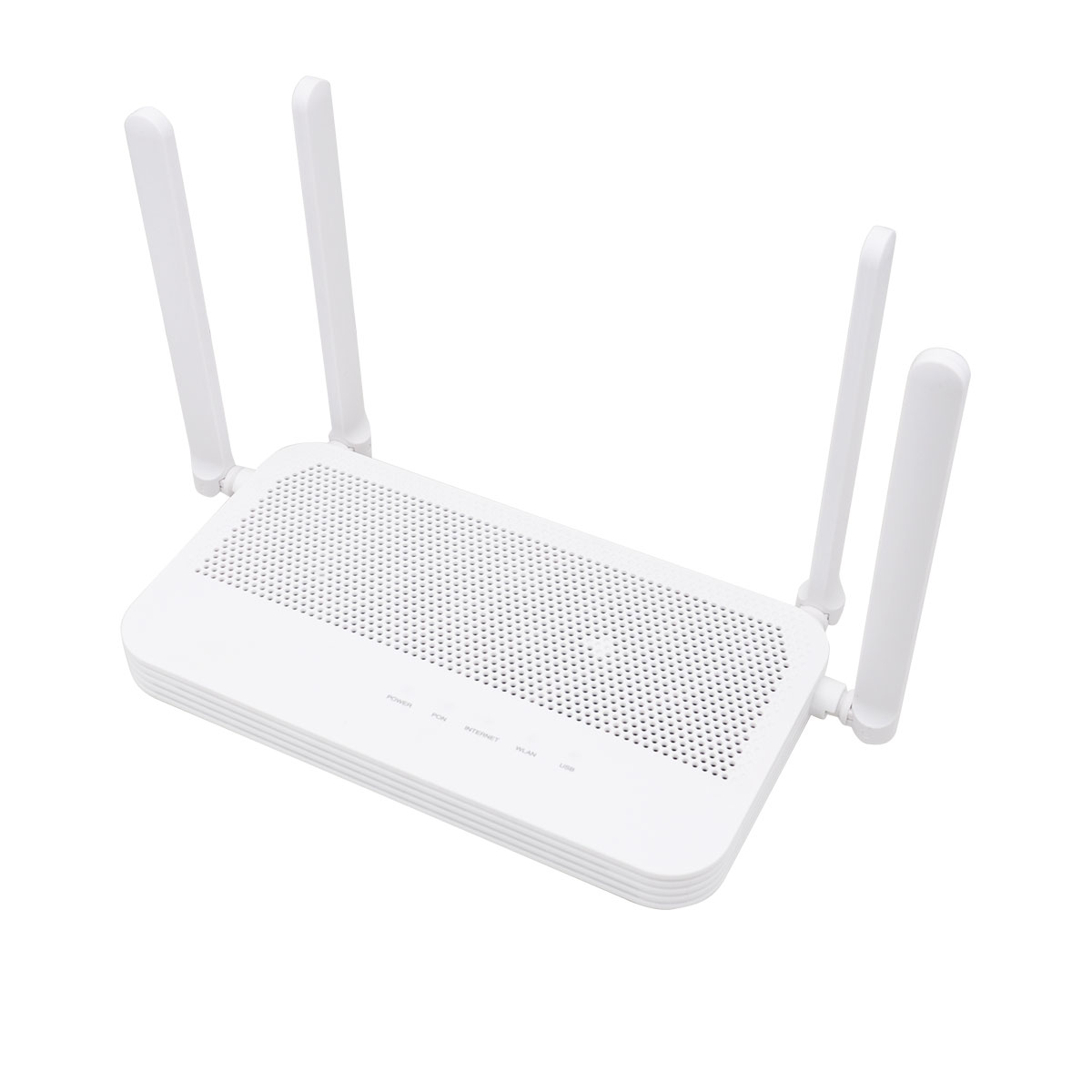

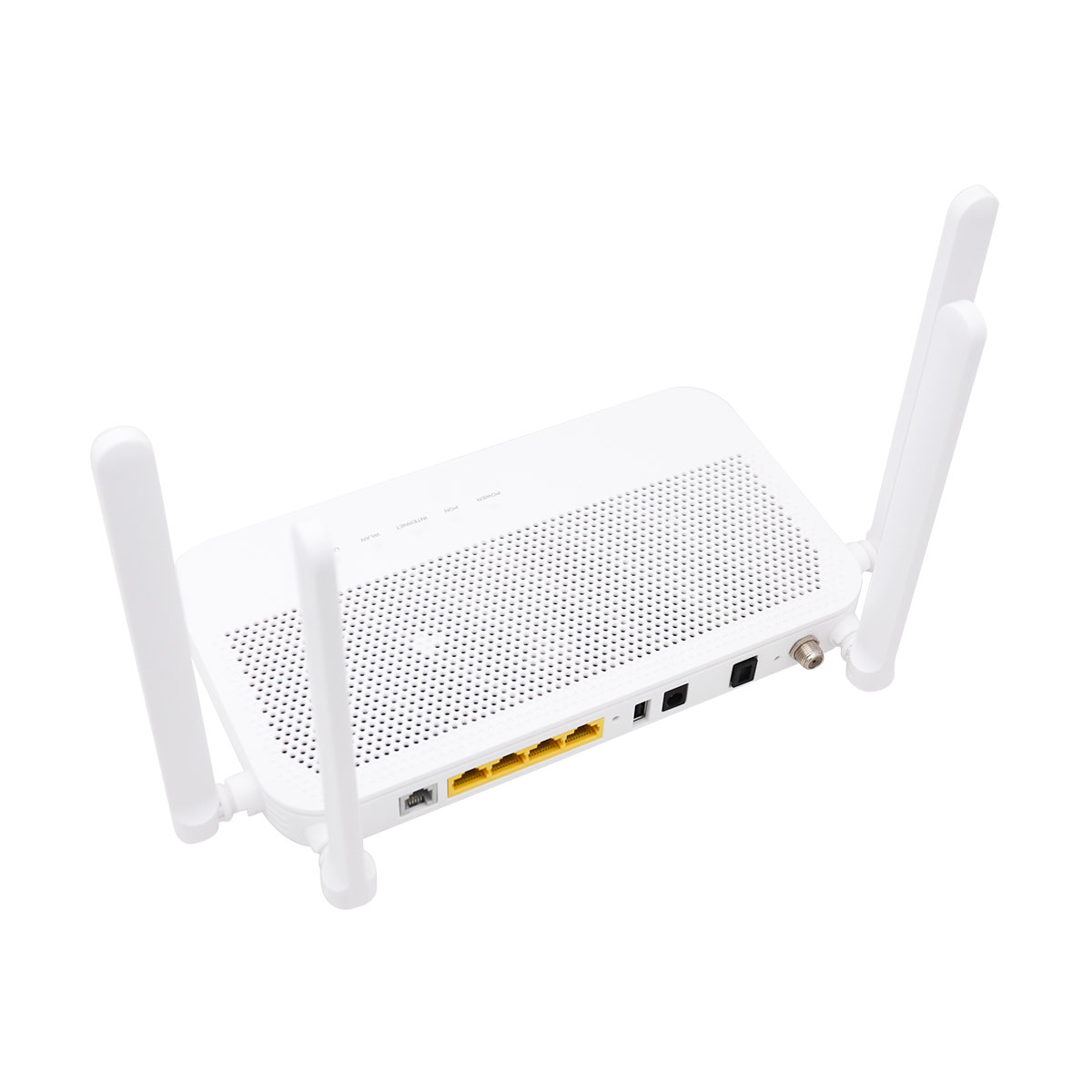

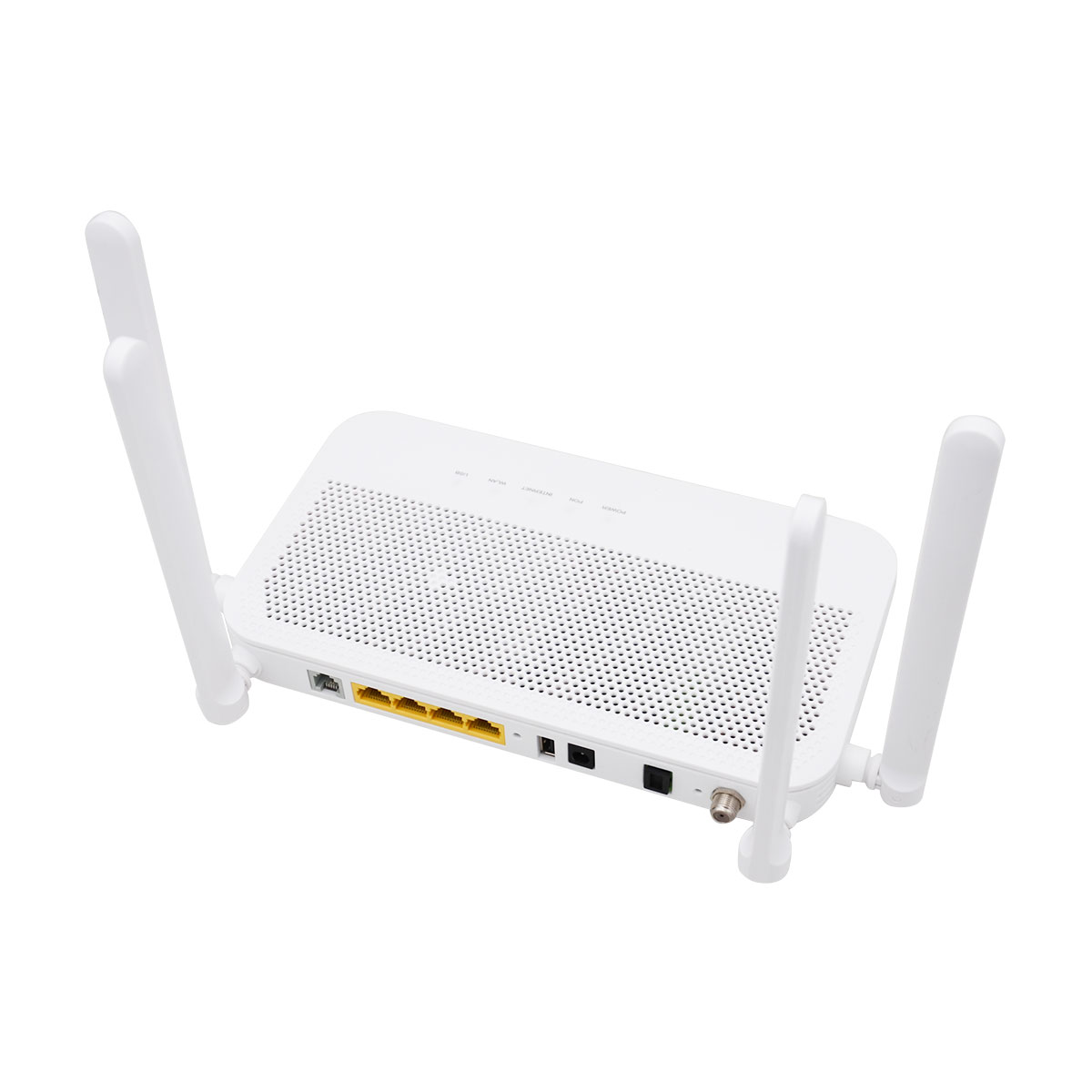

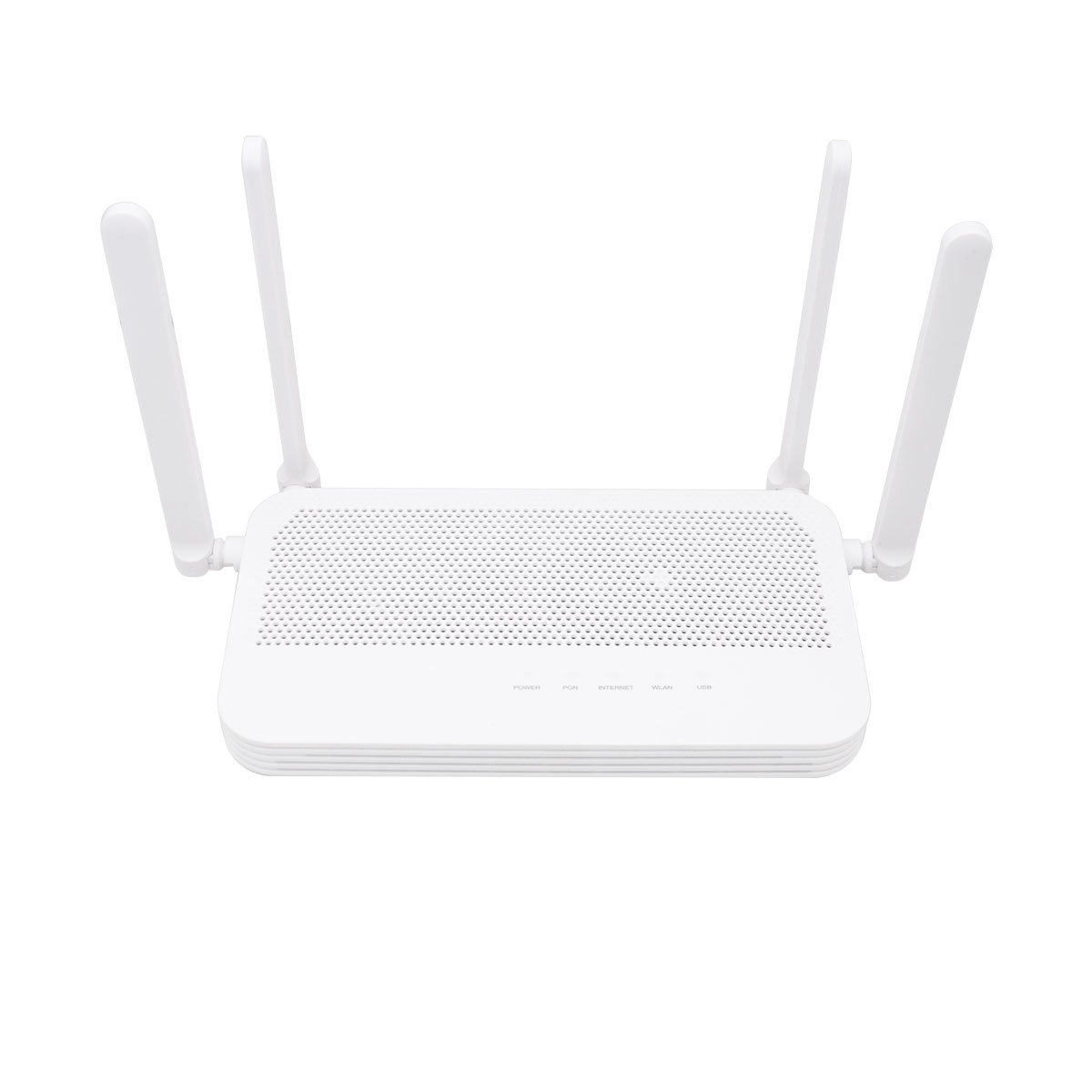

EG8247W GPON Terminal with 4*GE+2*POTS+CATV+1*USB+2.4G/5G WIFI with 4*5dBi antennas

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

EG8247W overview

The EG8247W is a routing-type ONT in the Huawei all-optical access solution. It uses GPON technology to implement ultra-broadband access for users.

It provides 4 GE ports, 2 POTS port, CATV,  1 USB port, and 1 2.4G&5G WiFi port. The high forwarding performance ensures the user experience of voice, data, and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.



This GPON Terminal with 4*GE+2*POTS+CATV+1*USB+2.4G/5G Wifi with 4*5dBi antennas, which is similar to EG8145V5

  • Smart service
  • Smart interconnection
  • Smart O&M
  • Compatible with Huawei OLT
  • ENG firmware, ENG interface, ENG indicator
  • Can be configured by OLT or Web or NMS





Item EG8247W
Dimensions (H x W x D) 184 mm x 295 mm x 82 mm
Weight About 690 g
Operating temperature 0°C to 40°C
Operating humidity 5% RH to 95% RH (non-condensing)
Power adapter input 100–240 V AC, 50/60 Hz
System power supply 11–14 V DC, 3 A
Static power consumption 8 W
Maximum power consumption 32 W

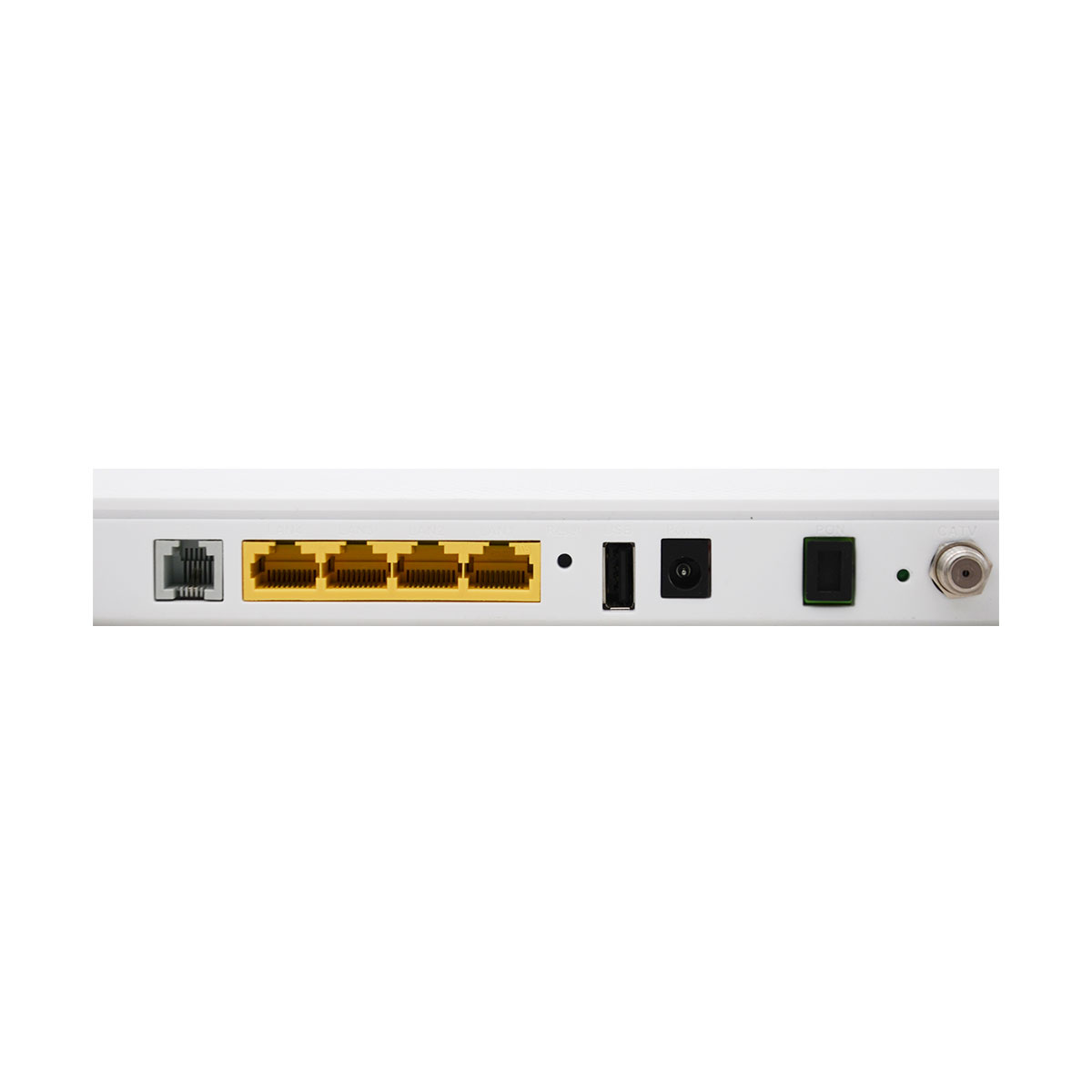

Ports 2POTS+4GE+USB+CATV+2.4G Wi-Fi/5G Wi-Fi
Indicators Power/PON/LOS/TEL/LAN/CATV/WLAN/ WPS/USB
Interface Parameters
GPON Port • Class B+ • Receiver sensitivity: -27 dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA
Ethernet Port •Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQVLAN • Limit on the number of learned MAC addresses • MAC address learning
POTS Port • Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)
USB Port • USB2.0 • FTP-based network storage • File/Print sharing based on SAMBA • DLNA function
CATV Port • Bandwidth 54-870 MHz • Output resistance 75 ohms
USB Port • USB 3.0 • FTP-based network storage • File/Print sharing based on SAMBA • DLNA DMS/UPnP AV (media server)
WLAN • IEEE 802.11 b/g/n (2.4G) • IEEE 802.11 a/n/ac (5G) • 3 x 3 MIMO (2.4G) • 4 x 4 MIMO (5G) • MU-MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS • DFS • Beamforming • Band Steering • Air Time Fairness • Air interface rate: 450 Mbps (2.4G); 1733 Mbps (5G)
Product Function
Smart interconnection •Smart Wi-Fi coverage • SIP/H.248 auto-negotiation • Any port any service •Parental control •L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
Smart service •Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing • Association of one account with two POTS ports
Smart O&M • IPTV video quality diagnosis •Variable-length OMCI messages •Active/Passive rogue ONT detection and isolation •Call emulation, and circuit test and loop-line test •PPPoE/DHCP simulation testing •WLAN emulation
Layer 3 Features •PPPoE/Static IP/DHCP •NAT/NAPT •Port forwarding •ALG, UPnP •DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite •Static/Default routes •Multiple services on one WAN port
Multicast •IGMP v2/v3 proxy /snooping •MLD v1/v2 snooping •Multicast services through Wi-Fi
QoS •Ethernet port rate limitation •802.1p priority •SP/WRR/SP+WRR •Broadcast packet rate limitation
Common O&M •OMCI/Web UI/TR069 •Dual-system software backup and rollback
Security •SPI firewall •Filtering based on MAC/IP/URL addresses
Power Saving • Indicator power saving •Scheduled Wi-Fi shutdown • COC V5

Dual-band ONT Comparation
Model EG8145X6 HG8245Q2 HS8546V5 HS8145V5 HS8145V HS8546V EG8145V5 EG8247W
GE port(s) 4 4 4 4 4 4 4 4
USB port(s) 2 2 1 1 1 1 2 1
POTS port(s) 1 1 1 1 1 1 1 2
Antenna 2*5dBi Built-in, 5dBi 2*5dBi 2*5dBi 2*5dBi 2*5dBi 2*5dBi 4*5dBi
WiFi6 supported Yes No No No No No No No

Additional information

Ship From

Shenzhen Warehouse
Lead Time

In Stock

Reviews

  1. Osark –

    EG8247W is a new model to replace Huawei EG8145V5, with 4 antennas!

  2. Tomas –

    I bought one EG8247W for testing, I like 4 antennas, better Wi-Fi performance.

  3. Kothaw –

    Best choice for 2.4G&5G Wi-Fi ONT!

  4. kaleb –

    Buy one for testing, nice. I will purchase 500 units later.
