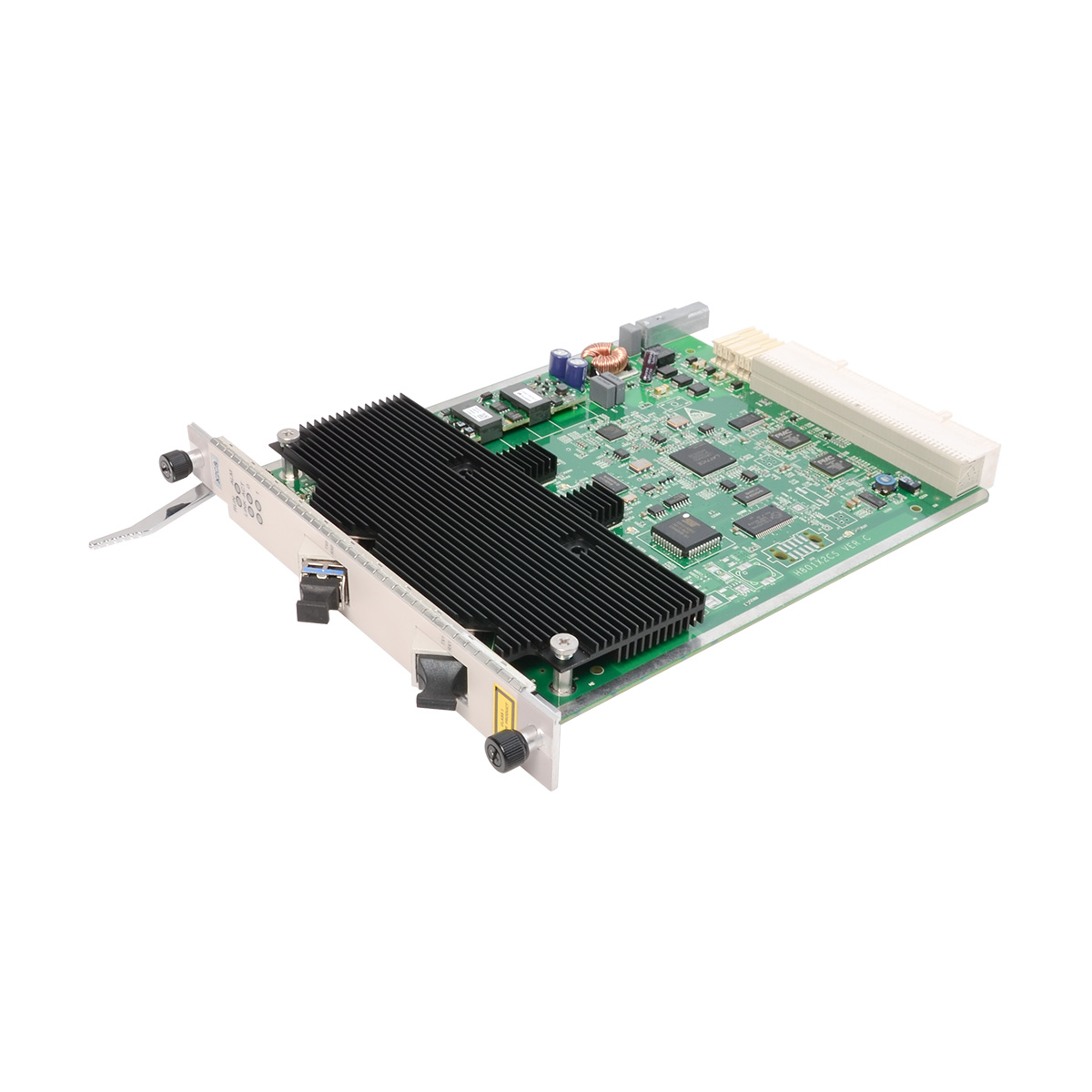

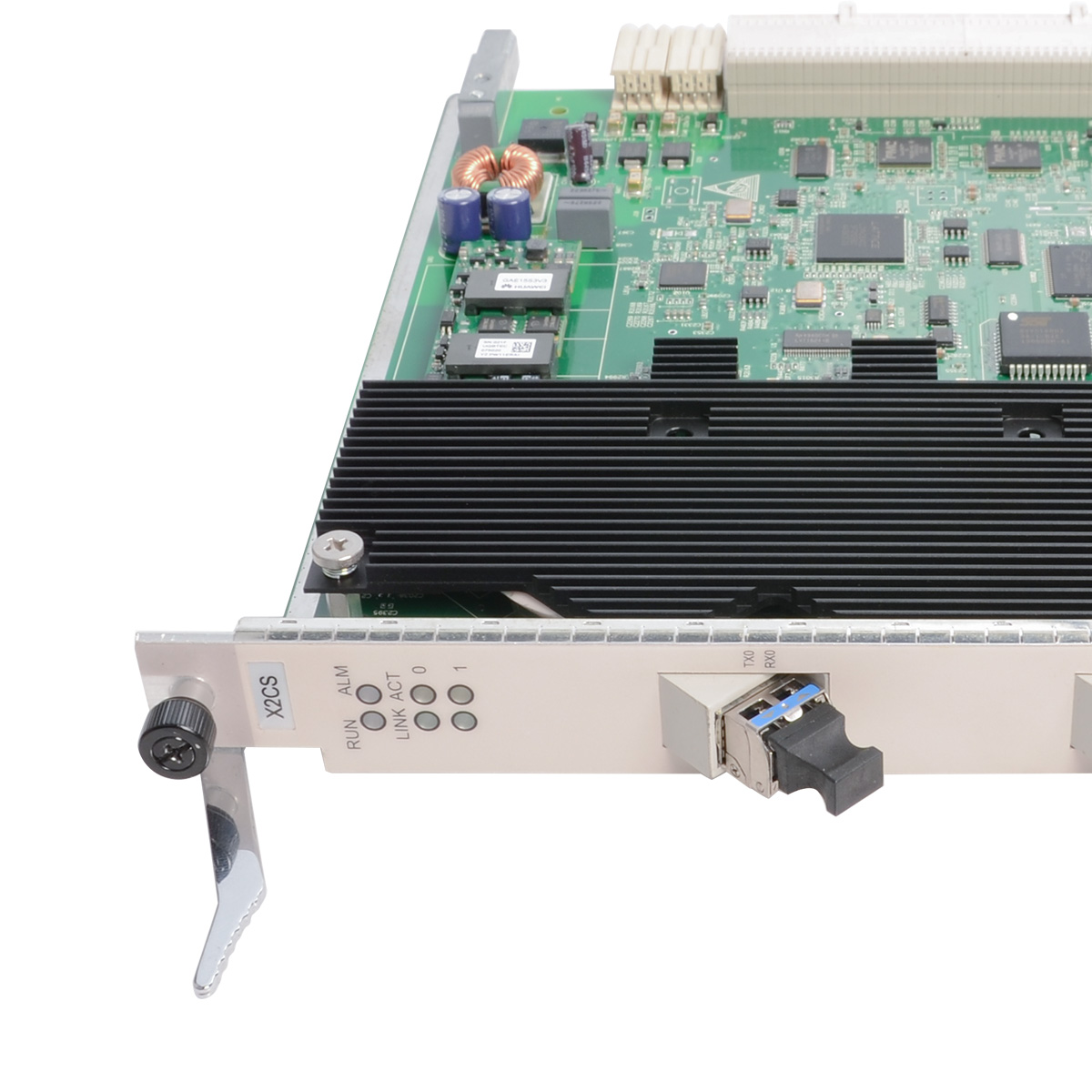

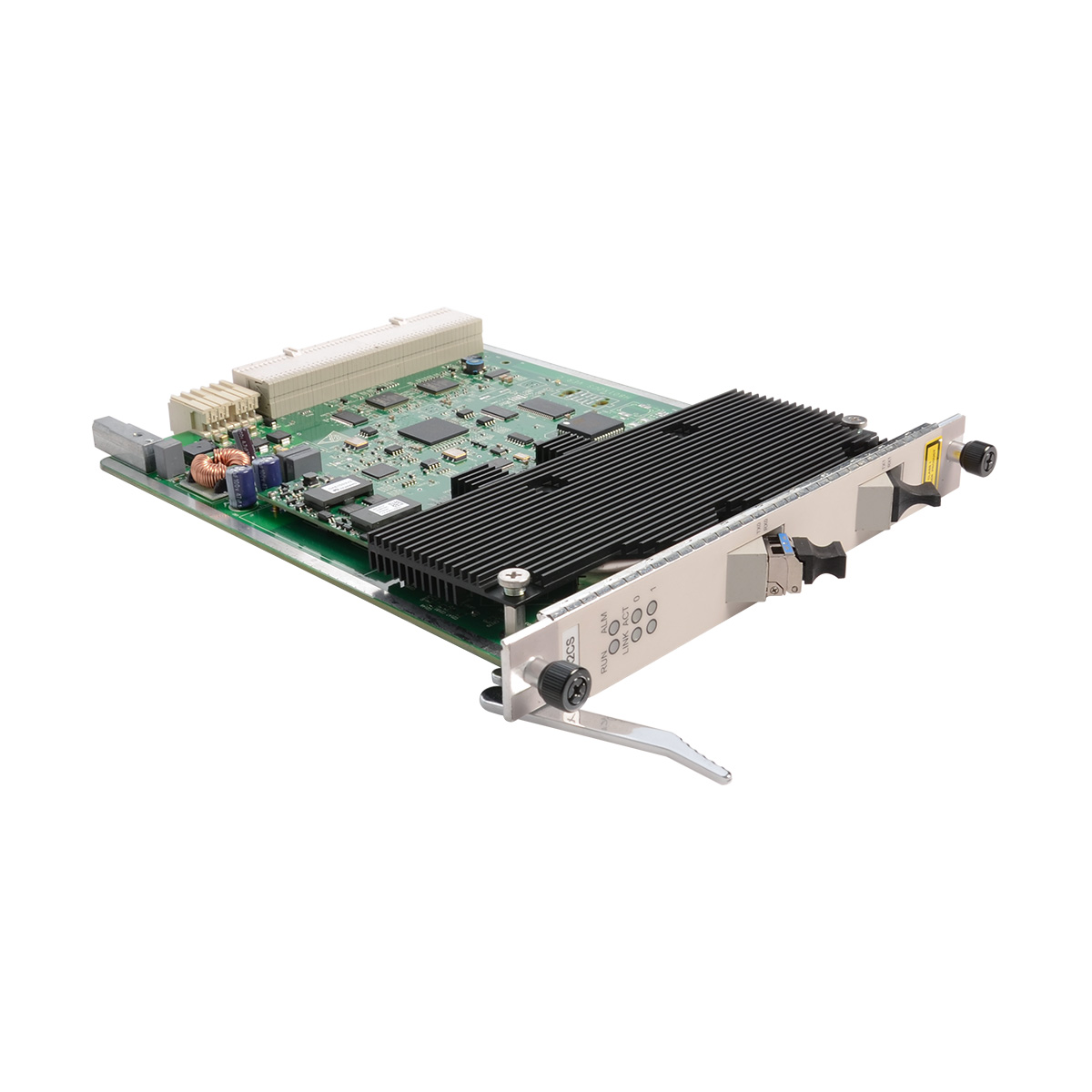

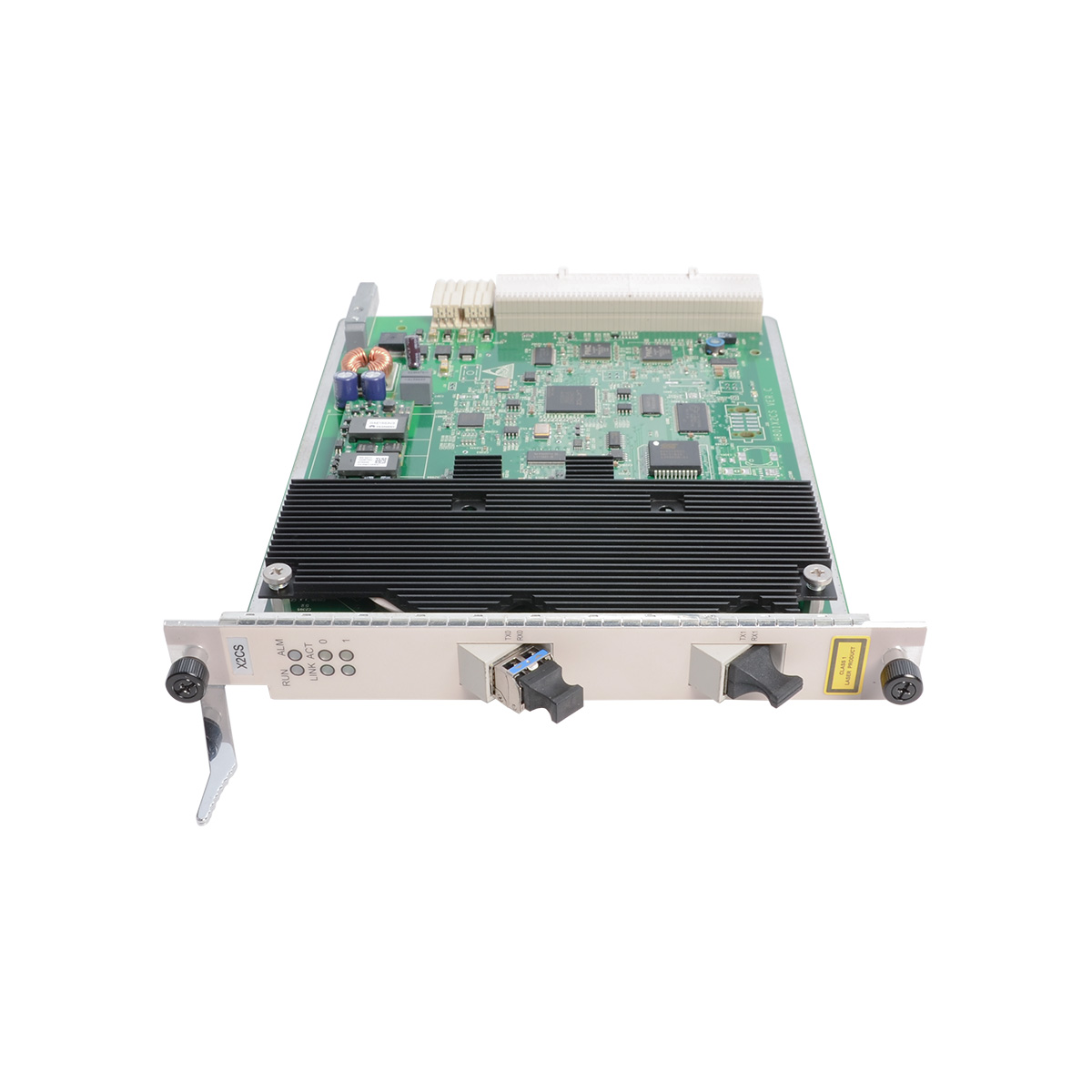

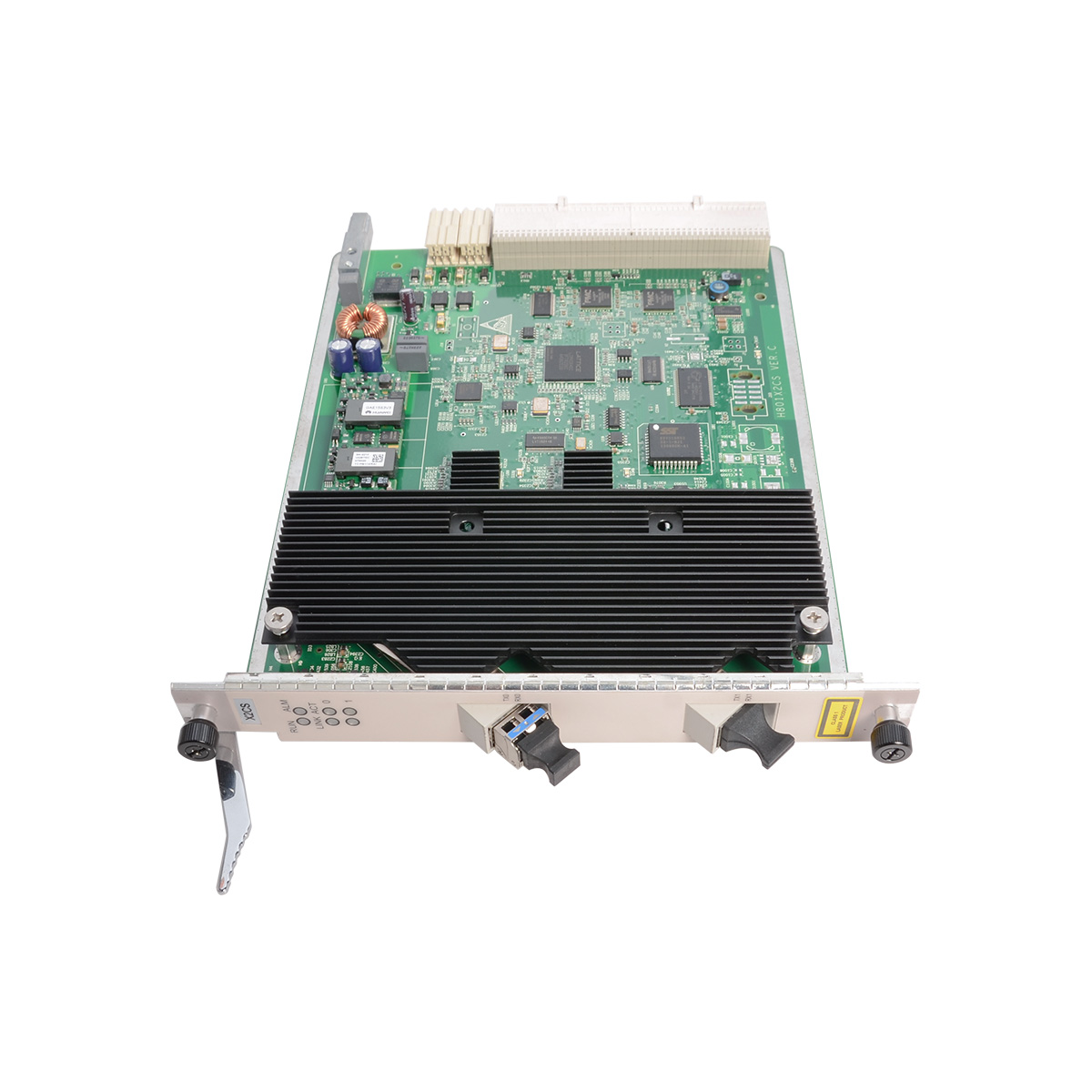

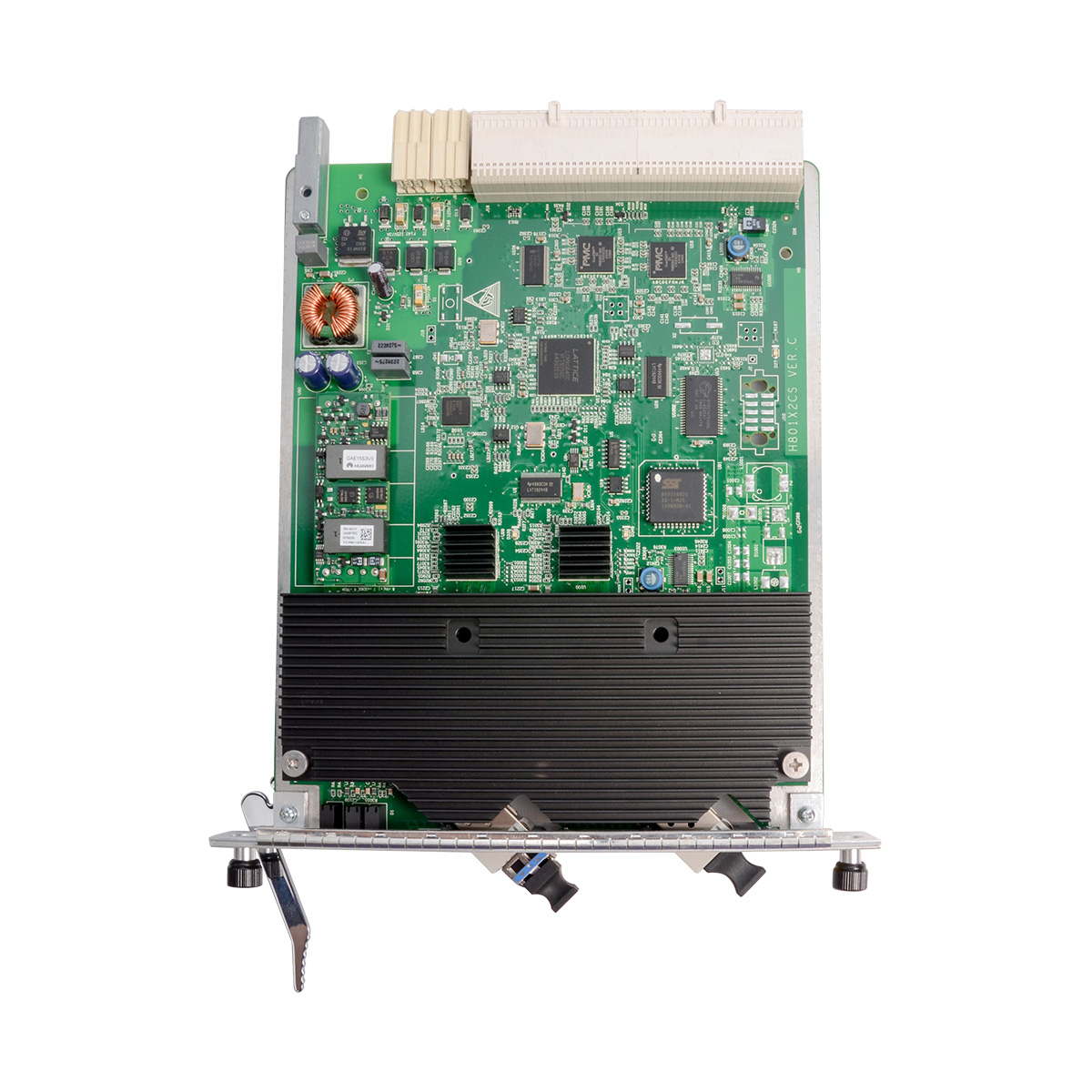

Huawei H801X2CS 2-port GE/10GE optical uplink board without SFP+ Module, apply to Huawei MA5680T/MA5683T
The H801X2CS board is a 2-port GE/10GE uplink board, which provides two GE/10GE upstream or cascading optical ports, can be used in the Huawei MA5600T series OLTs: MA5683T MA5680T.
This board comes without any optical transceivers, it is supposed to work with 10GE SFP+ modules: 10GE 0.3km SFP+ , 10GE 10km SFP+.
| Item | H801X2CS |
| Port | 2 GE/10GE Uplink Ports |
| Pluggable Module | SFP+ Module |
| Corresponding Control Board | SCUF/SCUN/SCUL/SCUH |
| Dimensions (mm) | 25.40 (W) x 237.00 (D) x 197.20 (H) |
| Power Consumption | Static: 17.6 W Maximum: 18 W |
| Maximum Frame Size | 2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported |
| Operating temperature | -25°C to +65°C |
| Board | Clock Feature | Port | Whehter the Port Supports Pluggable Module | |
| Optical Module | Electrical Module | |||
| H801GICF | × | Two GE ports | √ (SFP) | √ (SFP) |
| H801GICG | × | Two GE electrical ports | × | × |
| H801GICK | GE synchronous Ethernet | Two GE ports | √ (SFP) | × |
| H801GSCA | GE synchronous Ethernet | Four GE ports | √ (SFP) | × |
| H801X1CA | × | One 10GE port | √ (XFP) | × |
| H801X2CA | × | Two 10GE ports | √ (XFP) | × |
| H801X2CS | 10GE synchronous Ethernet | Two 10GE ports | √ (SFP+) | × |
| H802P2CA | × | Two PON ports | √ (SFP) | × |
| Weight | 2.5000 kg |
|---|---|
| Dimensions | 34.0000 × 25.5000 × 10.0000 cm |
| MA5600T | |
| Lead Time | 3-5 days |
| Brand | Huawei |
| Ship From | Shenzhen Warehouse |
.svg)
.svg)
Javier Gonzales –
I wanna get the diference between the H801X2CS and H802X2CS, the account manager of Telecomate.com told me that H802X2CS board supports Pluggable Electrical Module, but the H801 one no, which help us a lot in the procurement process.
Crystal –
Fast delivery. Happy with the product and service all the time. This board works well with my OLT.
