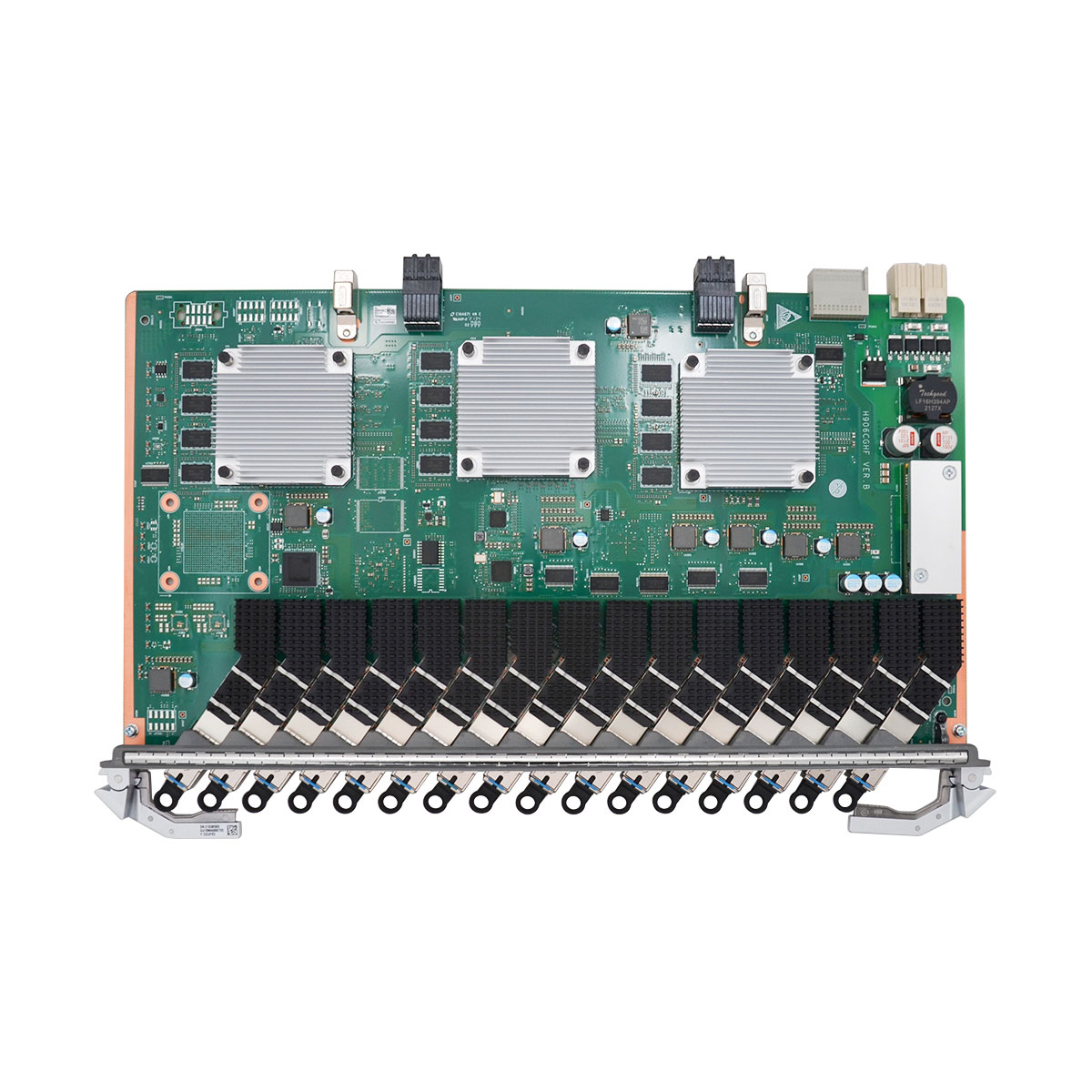

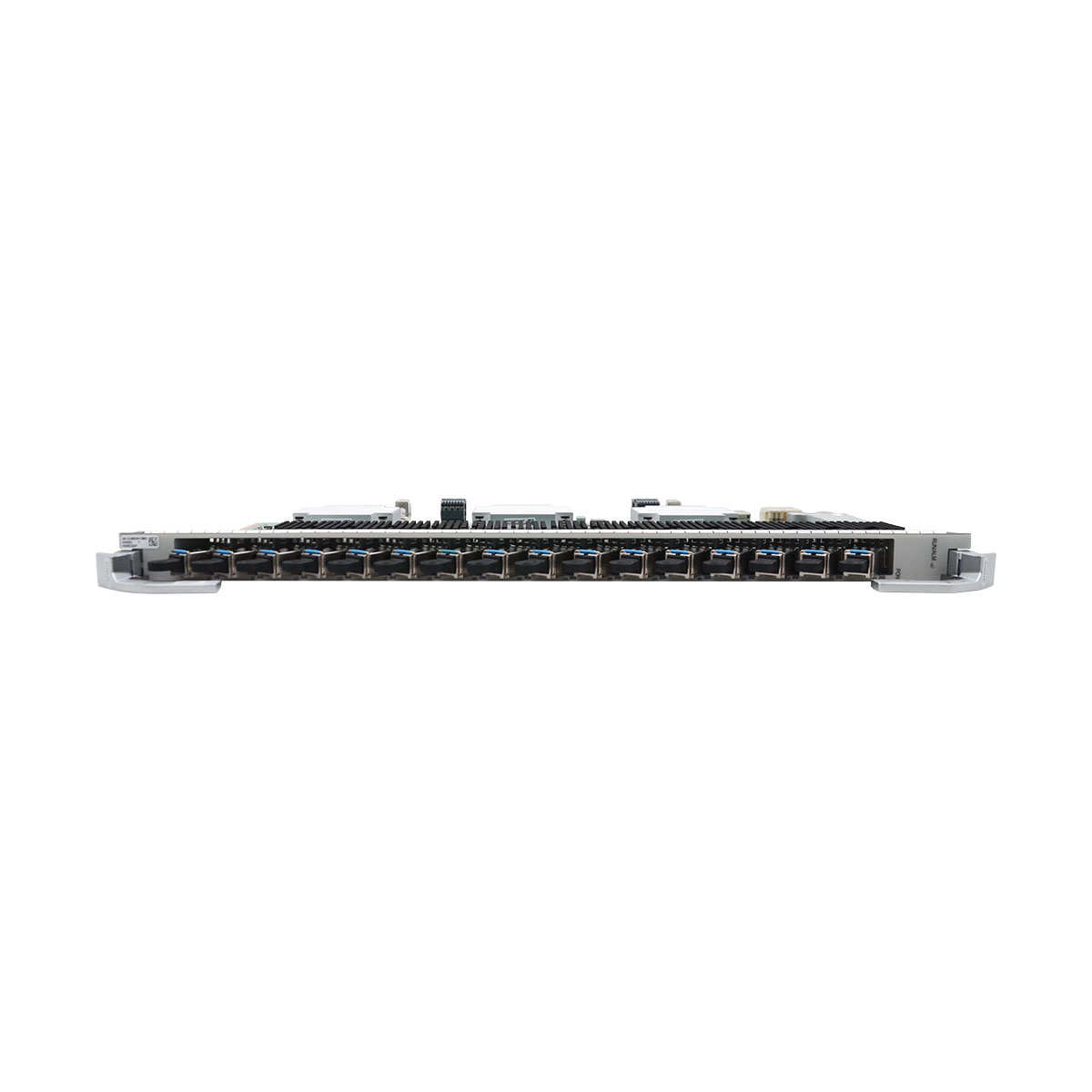

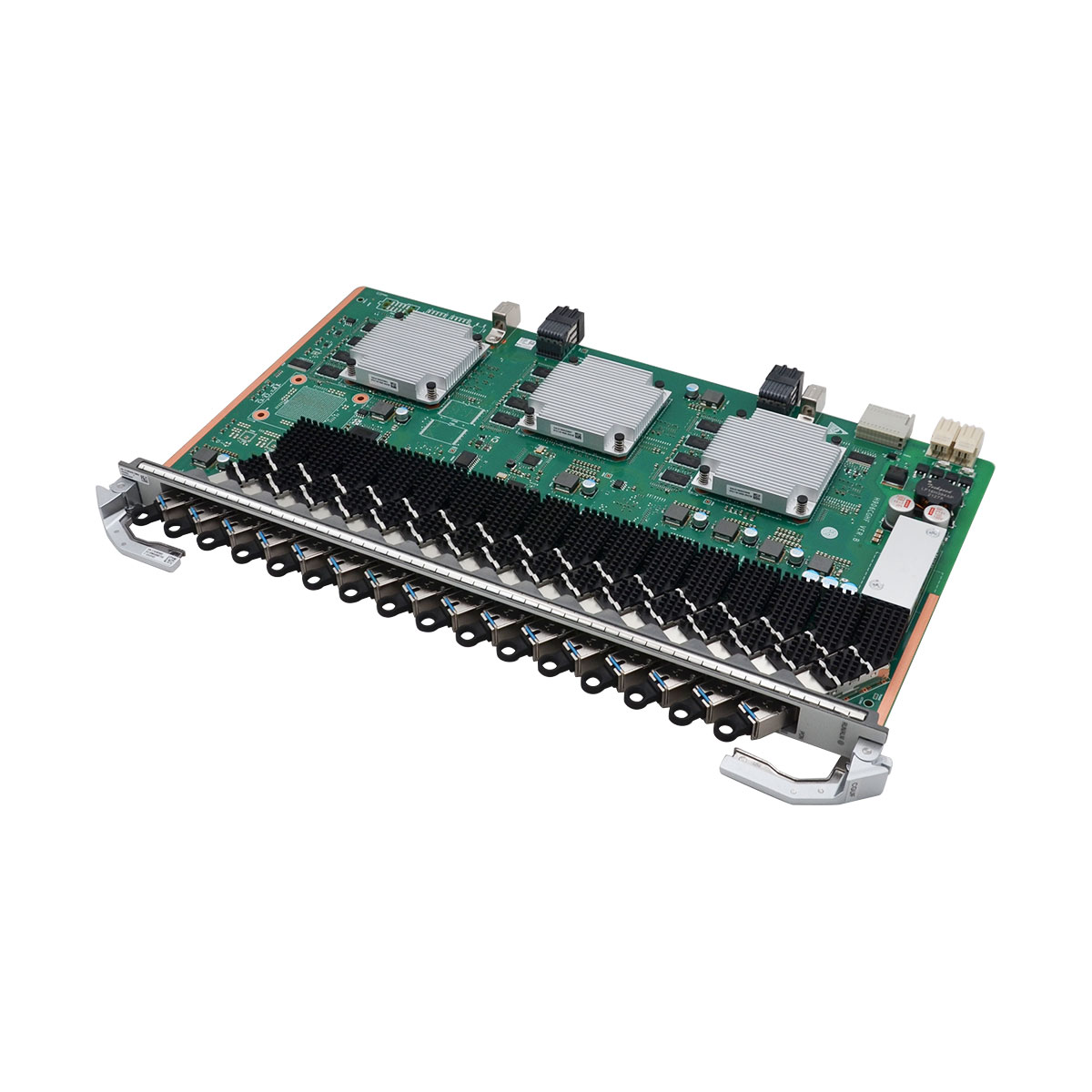

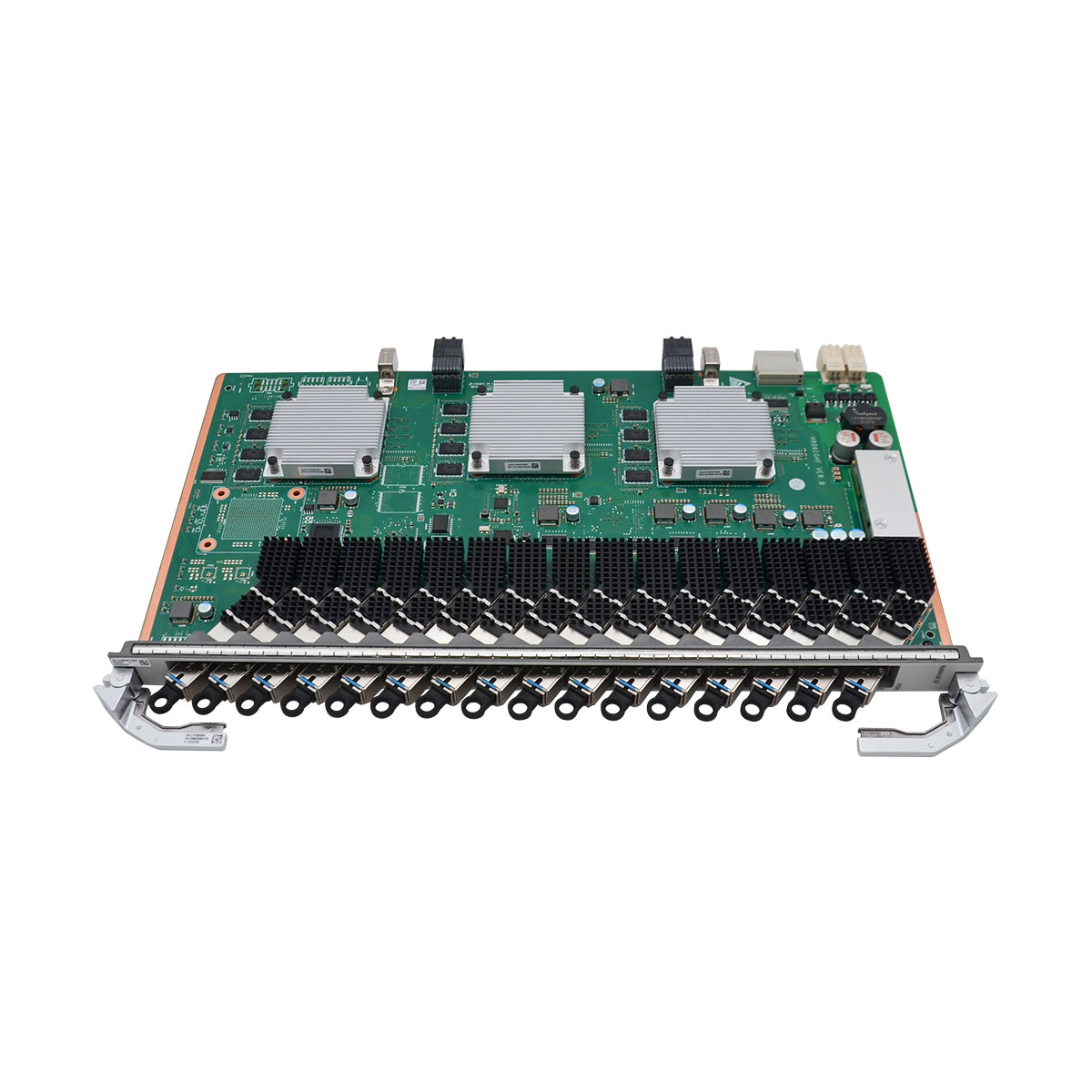

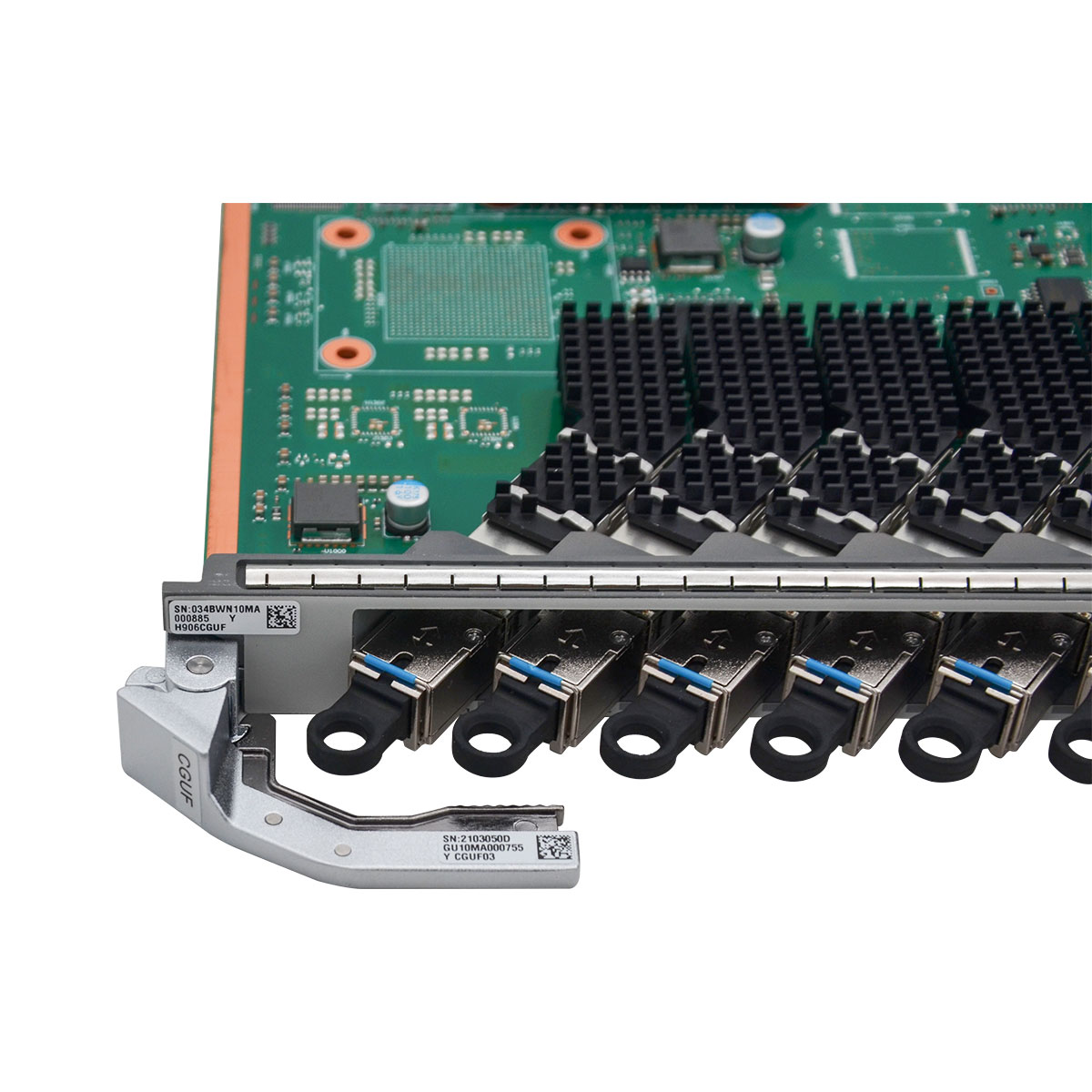

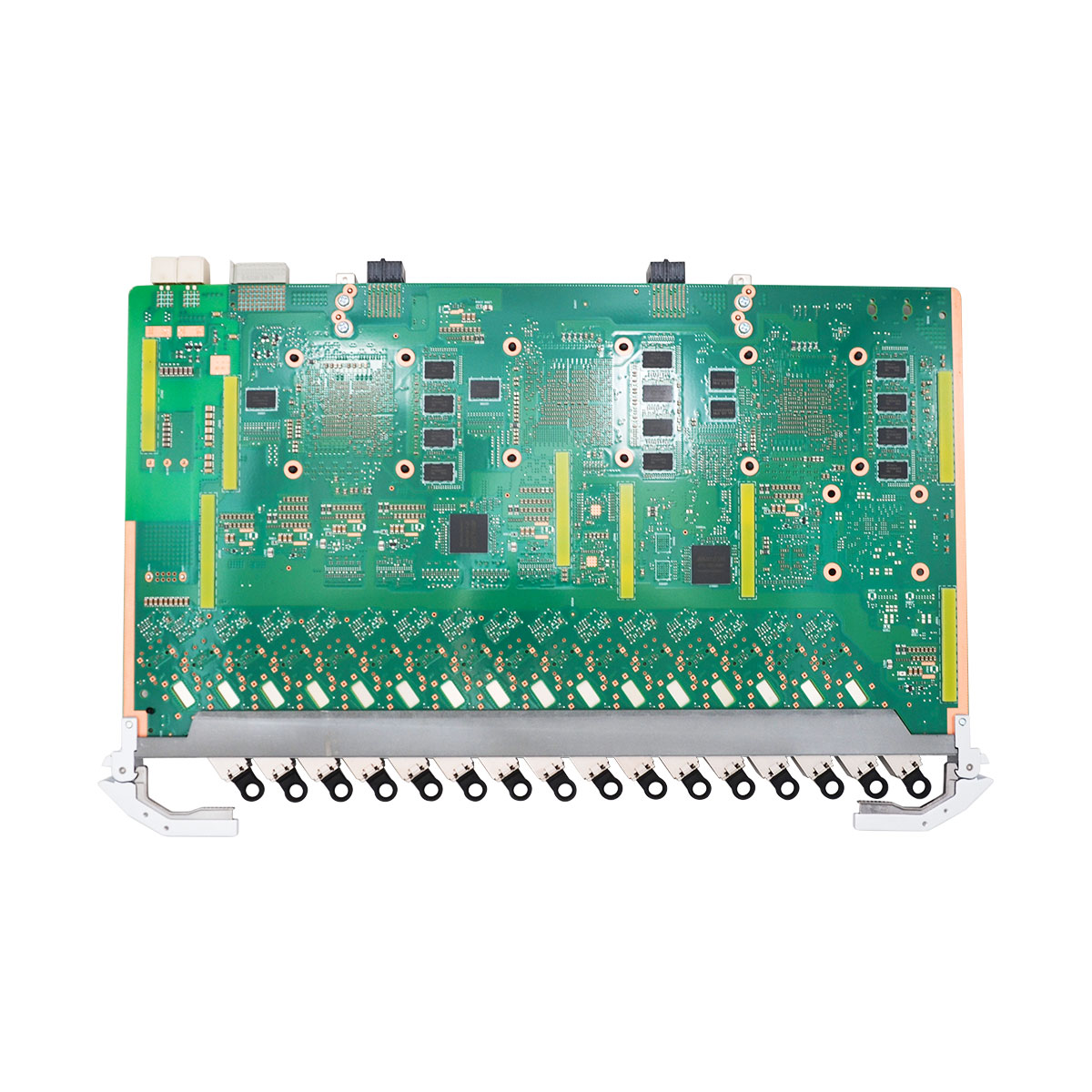

Huawei MA5800 series 16-port 10G GPON and GPON combo OLT Interface Board with XGPON & GPON N2a, C+ Optical Module
Huawei H906CGUF is a 16-port 10G GPON and GPON combo OLT Interface Board with XGPON & GPON C+ Optical Module, which applies to Huawei MA5800-X2, X7, X15, X17 NG OLT system. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.
There are H906CGHF and H902CGHF for your choice.
Max split radio: 1:256
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s
XG-PON channel: Tx: 9.95Gbit/s, Rx: 2.49Gbit/s
Interface Type: SC
| Item | H906CGUF |
| Service ports | |
| GPON Port | 16 XG-PON & GPON ports |
| GPON SFP+ Module Specification | |
| Type | One-fiber bi-directional optical module, N2a,C+ |
| Operating Wavelength | GPON channel:Tx: 1490 nmRx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm |
| Encapsulation Type | SFP+ |
| Port Rate | GPON channel: |
| Tx: 2.488 Gbit/s | |
| Rx: 1.244 Gbit/s | |
| XG-PON channel: | |
| Tx: 9.953 Gbit/s | |
| Rx: 2.488 Gbit/s | |
| Minimum Output Optical Power | GPON channel: 3 dBm |
| XG-PON channel: 4 dBm | |
| GPON channel: 3 dBm | |
| XG-PON channel: 5 dBm | |
| Maximum Output Optical Power | GPON channel: 7 dBm |
| XG-PON channel: 8 dBm | |
| GPON channel: 7 dBm | |
| XG-PON channel: 8 dBm | |
| Maximum Receiver Sensitivity | GPON channel: -32 dBm |
| XG-PON channel: -29.5 dBm | |
| GPON channel：-32dBm | |
| XG-PON channel：-30.5dBm | |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | GPON channel: -12 dBm |
| XG-PON channel: -9 dBm | |
| Extinction Ratio | 8.2 dB |
| Function | |
| Forwarding capability | 200 Gbit/s |
| Rate mode | Asymmetric rate |
| T-CONTs per PON port | GPON: 1024 |
| XG-PON: 2048 | |
| Service flows per PON board | 16352 |
| Maximum frame size | 2052 bytes |
| Maximum number of MAC addresses | 131072 |
| Maximum distance difference between | 40 km |
| two ONUs under the same PON port | |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 48 W |
| Maximum: 106 W | |
| Operating temperature | -40°C to +65°C |
| Weight | 3 kg |
|---|---|
| Dimensions | 2.33 × 25.79 × 39.92 cm |
| Brand | Huawei |
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| MA5800 |
| Item | H906CGUF |
| Service ports | |
| GPON Port | 16 XG-PON & GPON ports |
| GPON SFP+ Module Specification | |
| Type | One-fiber bi-directional optical module, N2a,C+ |
| Operating Wavelength | GPON channel:Tx: 1490 nmRx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm |
| Encapsulation Type | SFP+ |
| Port Rate | GPON channel: |
| Tx: 2.488 Gbit/s | |
| Rx: 1.244 Gbit/s | |
| XG-PON channel: | |
| Tx: 9.953 Gbit/s | |
| Rx: 2.488 Gbit/s | |
| Minimum Output Optical Power | GPON channel: 3 dBm |
| XG-PON channel: 4 dBm | |
| GPON channel: 3 dBm | |
| XG-PON channel: 5 dBm | |
| Maximum Output Optical Power | GPON channel: 7 dBm |
| XG-PON channel: 8 dBm | |
| GPON channel: 7 dBm | |
| XG-PON channel: 8 dBm | |
| Maximum Receiver Sensitivity | GPON channel: -32 dBm |
| XG-PON channel: -29.5 dBm | |
| GPON channel：-32dBm | |
| XG-PON channel：-30.5dBm | |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | GPON channel: -12 dBm |
| XG-PON channel: -9 dBm | |
| Extinction Ratio | 8.2 dB |
| Function | |
| Forwarding capability | 200 Gbit/s |
| Rate mode | Asymmetric rate |
| T-CONTs per PON port | GPON: 1024 |
| XG-PON: 2048 | |
| Service flows per PON board | 16352 |
| Maximum frame size | 2052 bytes |
| Maximum number of MAC addresses | 131072 |
| Maximum distance difference between | 40 km |
| two ONUs under the same PON port | |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 48 W |
| Maximum: 106 W | |
| Operating temperature | -40°C to +65°C |
