HG8546M 5dBi

HG8546M 5dBi

$13.00

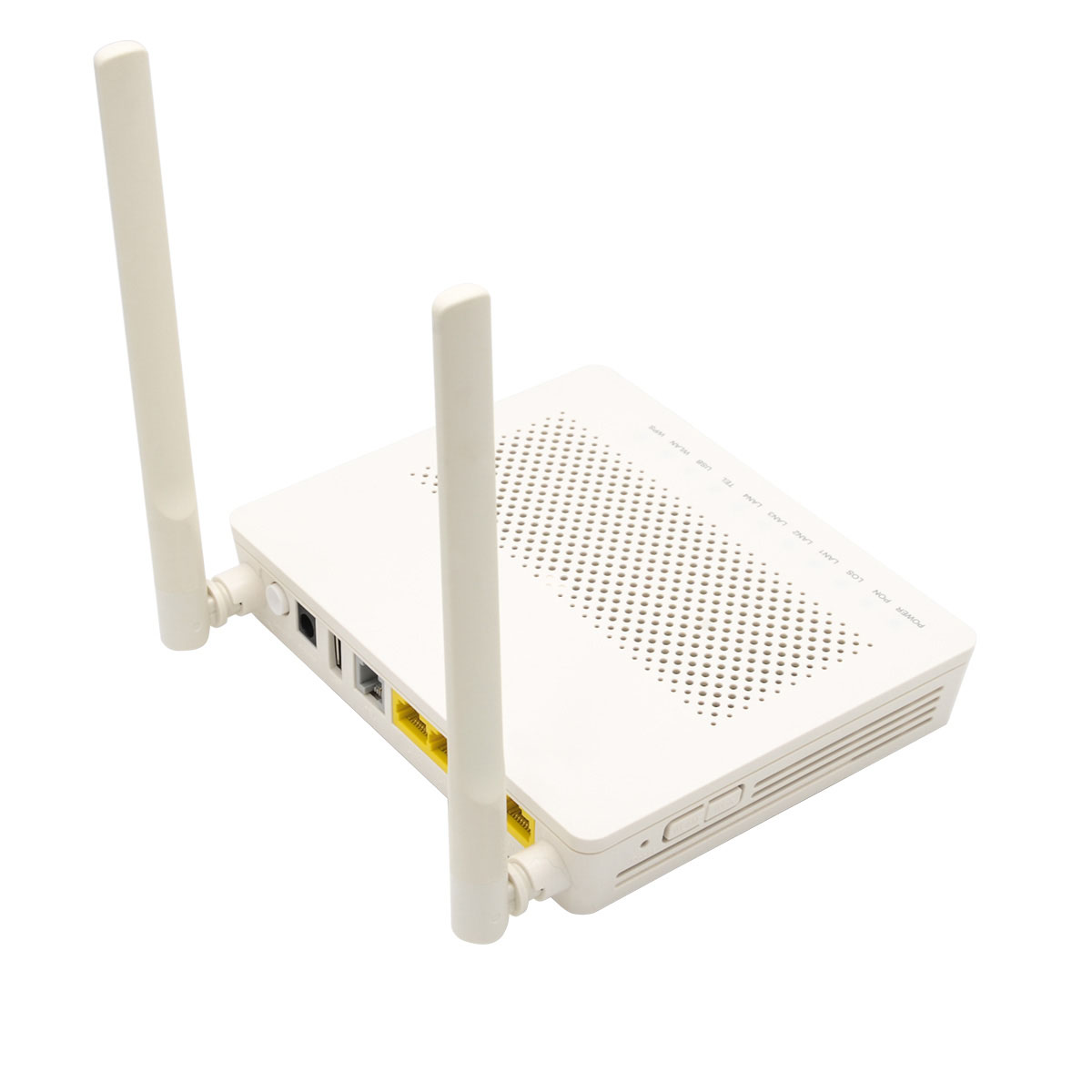

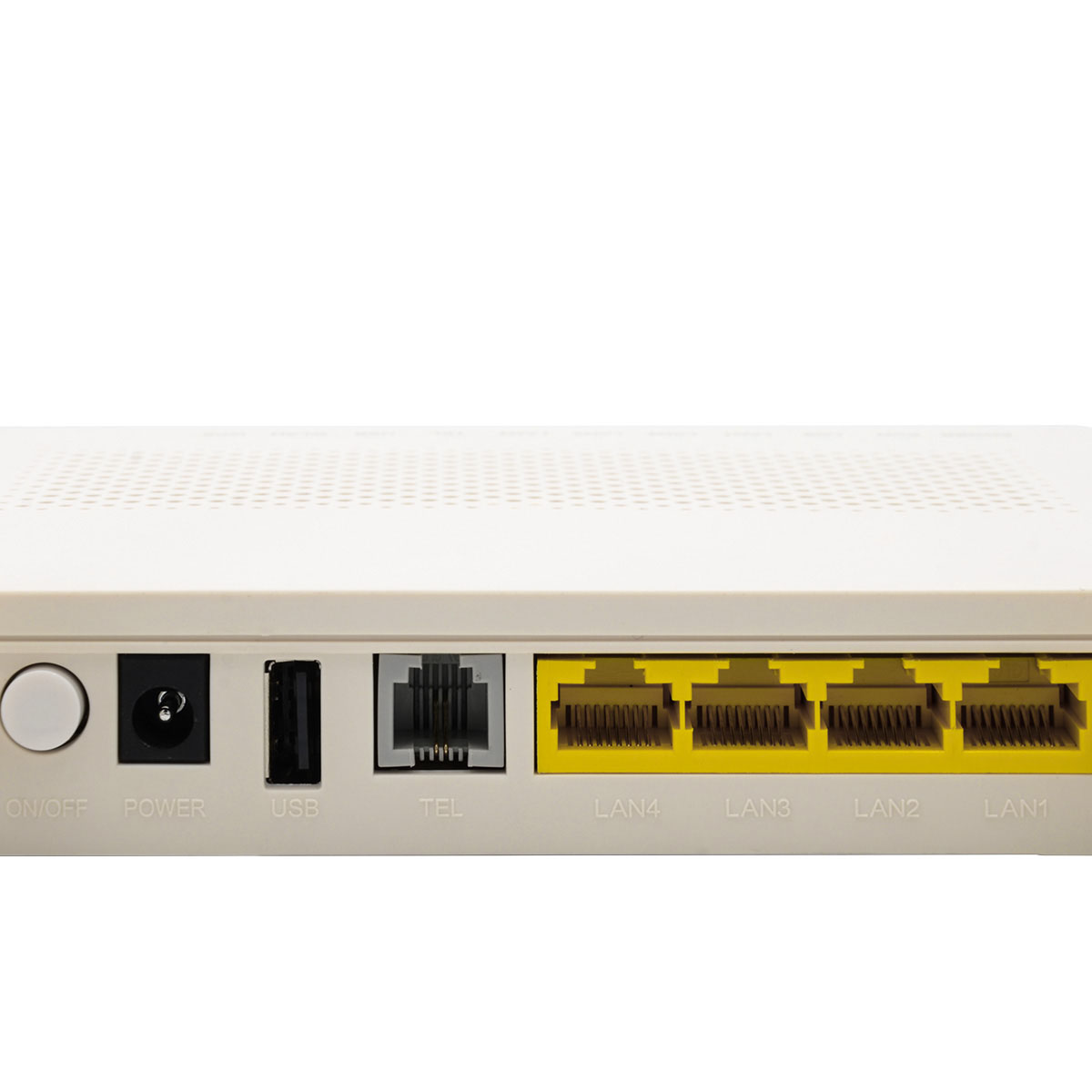

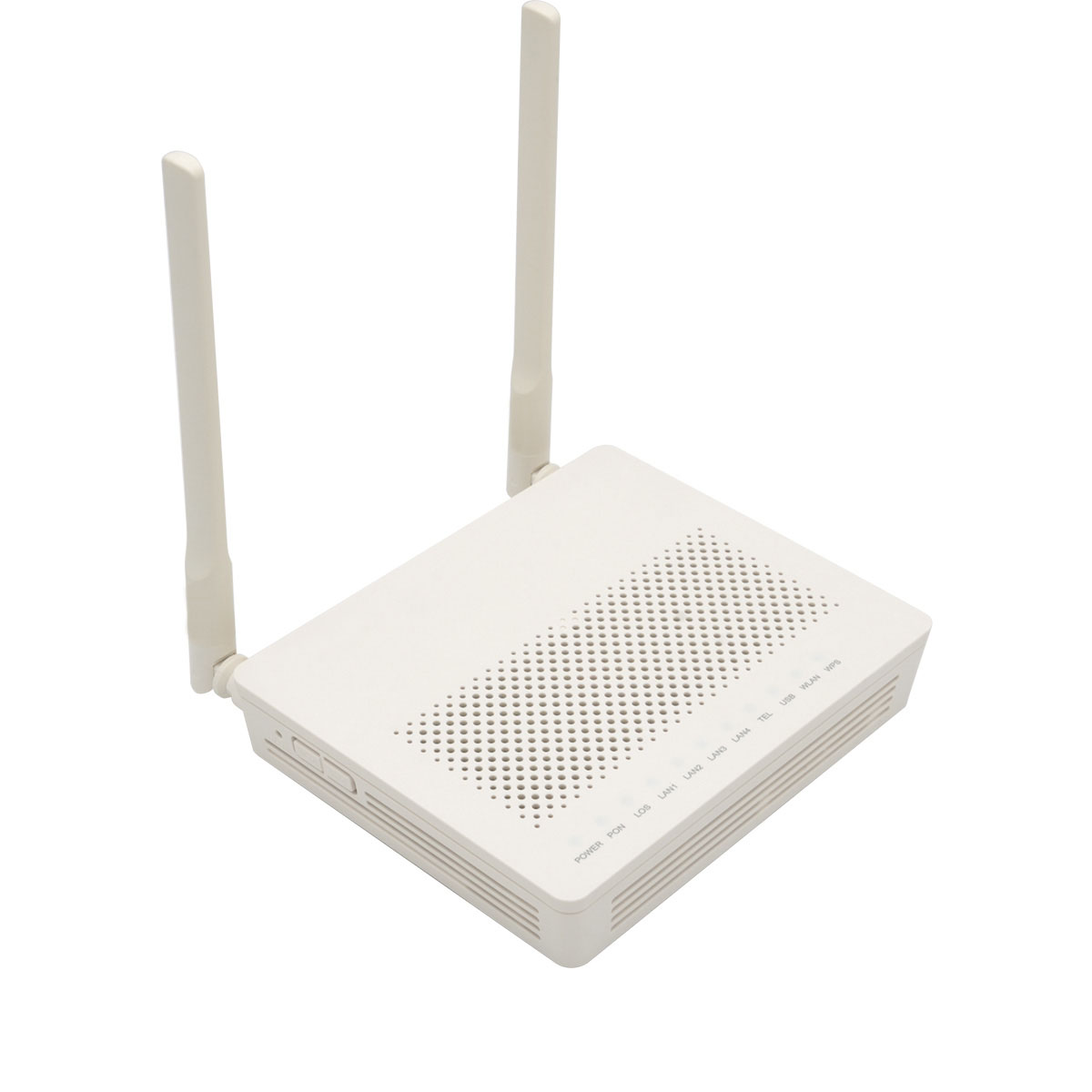

Huawei OLT compatible HG8546M 5dBi GPON Optical Network Terminal with 1*GE+3*FE+1*POTS+1*USB+WIFI, 5dBi, with English firmware, English indicator, English interface description

3-5 days

Shenzhen Warehouse

SKU: 2003006 Categories: ,
View cart

Description

Huawei OLT compatible HG8546M 5dBi GPON Optical Network Terminal with 1*GE+3*FE+1*POTS+1*USB+WIFI, 5dBi. It can be configured by OLT or Web or NMS. H8546M provides ideal terminal solution and support for future FTTH implementation.

  • IEEE 802.11 b/g/n standard.
  • Maximum wireless transmission capacity is 300 Mbps
  • WiFi network transmission in 2.4 GHz
  • GPON SC/UPC port
  • More similar models: EG8141A5,HS8545M5



HG8546M 5dBi 11

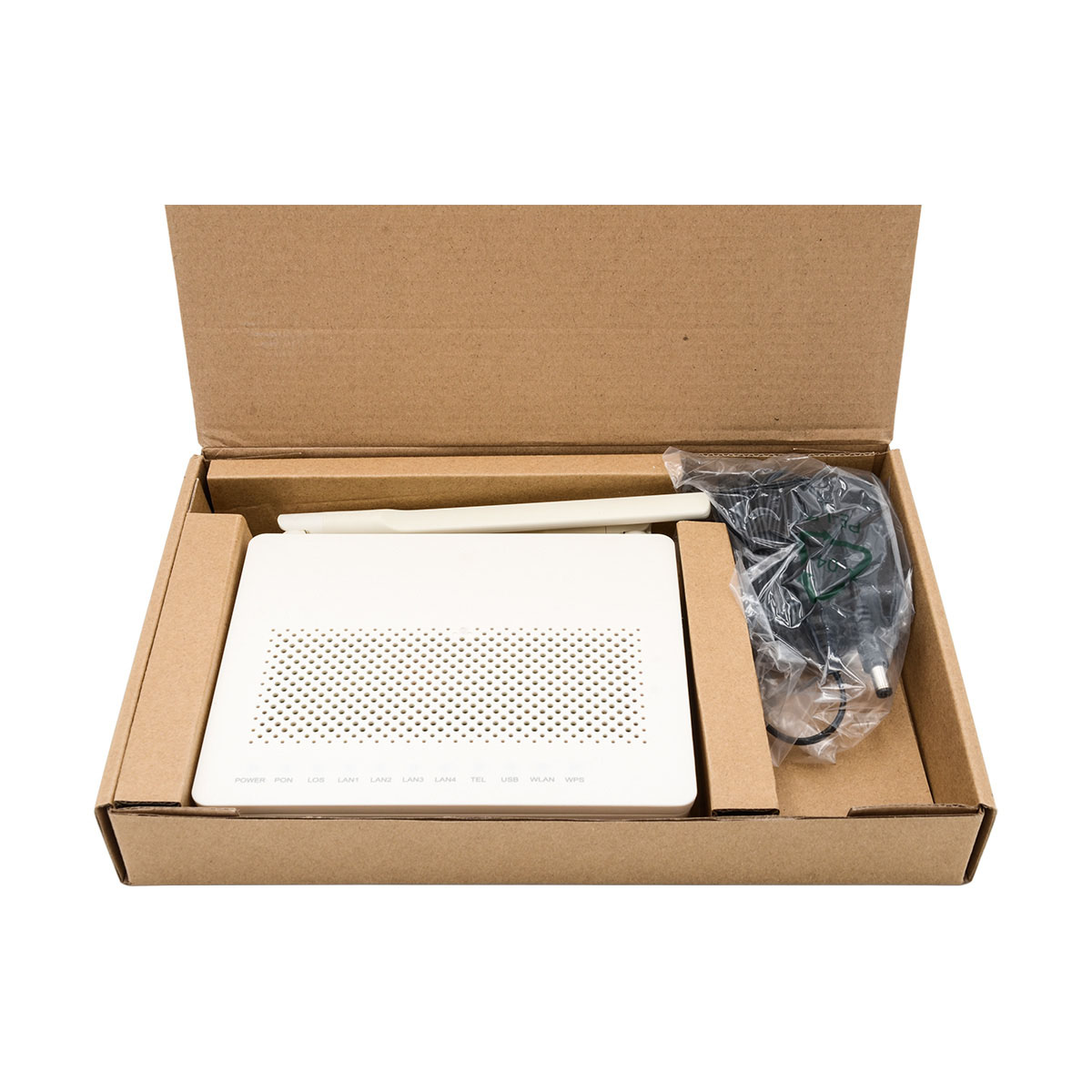

1. Huawei OLT compatible HG8546M 5dBi brand new single box.

2. Huawei OLT compatible HG8546M 5dBi brand new package for 30pcs/CTS, 13kg, 58cm*39cm*28cm.

3. 1A multi-standard high quality power, EU/ CN/ US/ AU… for choice.

4. New shell with English firmware, English indicator, English interface description.



Item HG8546M 5dBi
Working environment Operating temperature: 0ºC to 40ºC
Environment humidity: 5% to 95% (noncondensing)
Pressure environment: 0 to 106 kPa
Altitude: 3000 m
Power consumption Static power: 6 W
Maximum power consumption: 14 W
Power specifications Power adapter input: 180 to 240 V AC, 50–60 Hz
System power supply: 11–14 VDC, 1 A
Security MAC/IP/URL Filter
GPON port B+ class Module
Network-side port GPON(SC/UPC)
Antenna gain 5dBi
Dimensions
(length x width x height)
176 mm x 138.5 mm x 28 mm
Weight About 0.5 Kg

Model Name HG8546M 5DBI HG8245C ZXHN F660 V7.1 ZXHN F660 V9.0 G-140W-MH
Brand Huawei Huawei ZTE ZTE Nokia
UNI(User Network Interface) 1*GE+3*FE+1*POTS+1*USB  1*GE+3*FE+1*POTS 1*GE+3*FE+1*POTS+WIFI 1*GE+3*FE+1*POTS+WIFI+USB 1GE+3FE+1POTS+1USB+WIFI
Operating temperature 0ºC to 40ºC 0ºC to 40ºC 0ºC to 40ºC 0ºC to 40ºC Operating temperature: 0ºC to 40ºC
Environment humidity  5% to 95% (noncondensing) 5% to 95% (noncondensing) 5% to 95% (noncondensing) 5% to 95% (noncondensing) 5% to 95% (noncondensing)
System power supply 11–14 VDC, 1 A 11–14 V DC, 2 A 11–14 VDC, 1 A 12 V DC, 1 A 12 VDC,1 A
Antenna gain 5dBi 5dBi 5dBi 5dBi 2dBi
Weight About 0.5 kg About 0.5 kg About 0.5 kg About 0.5 kg About 0.5 kg



Q: Can HG8546M replace EG8141A5?

A: Yes, both models have the same ports, 1*GE+3*FE+1*POTS+1*USB.



Q: I want to buy an ONT with CATV function, which model is recommended?

A: EG8247H5 and EG8143A5 are available, both with CATV and controllable.



Q: Does this ONT support 5G WIFI?

A: No, only 2.4G WIFI is supported.



Q: Is this model compatible with the Huawei OMCI protocol?

A: Yes, this ONT is compatible with the Huawei OMCI.
