HN8546X6 Overview

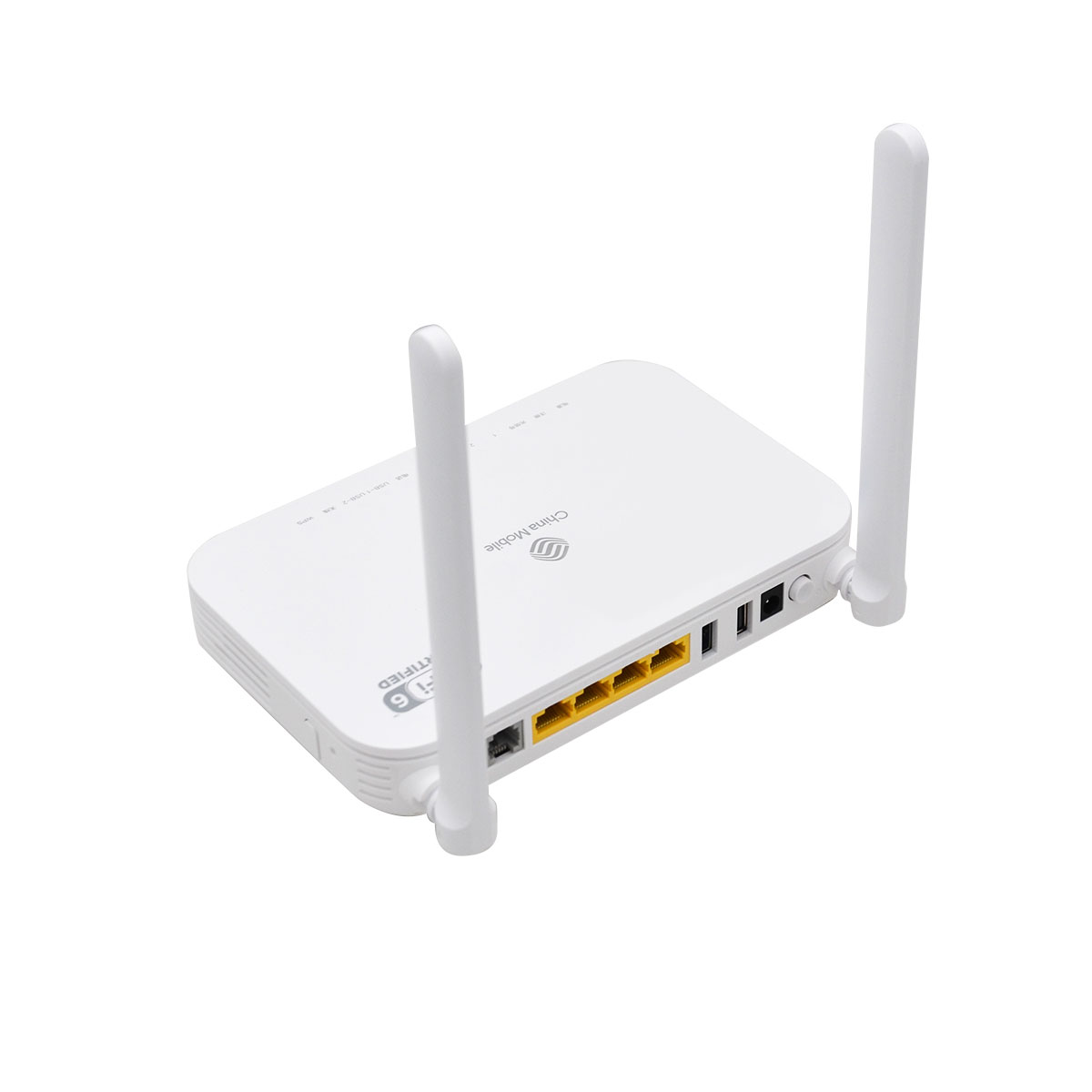

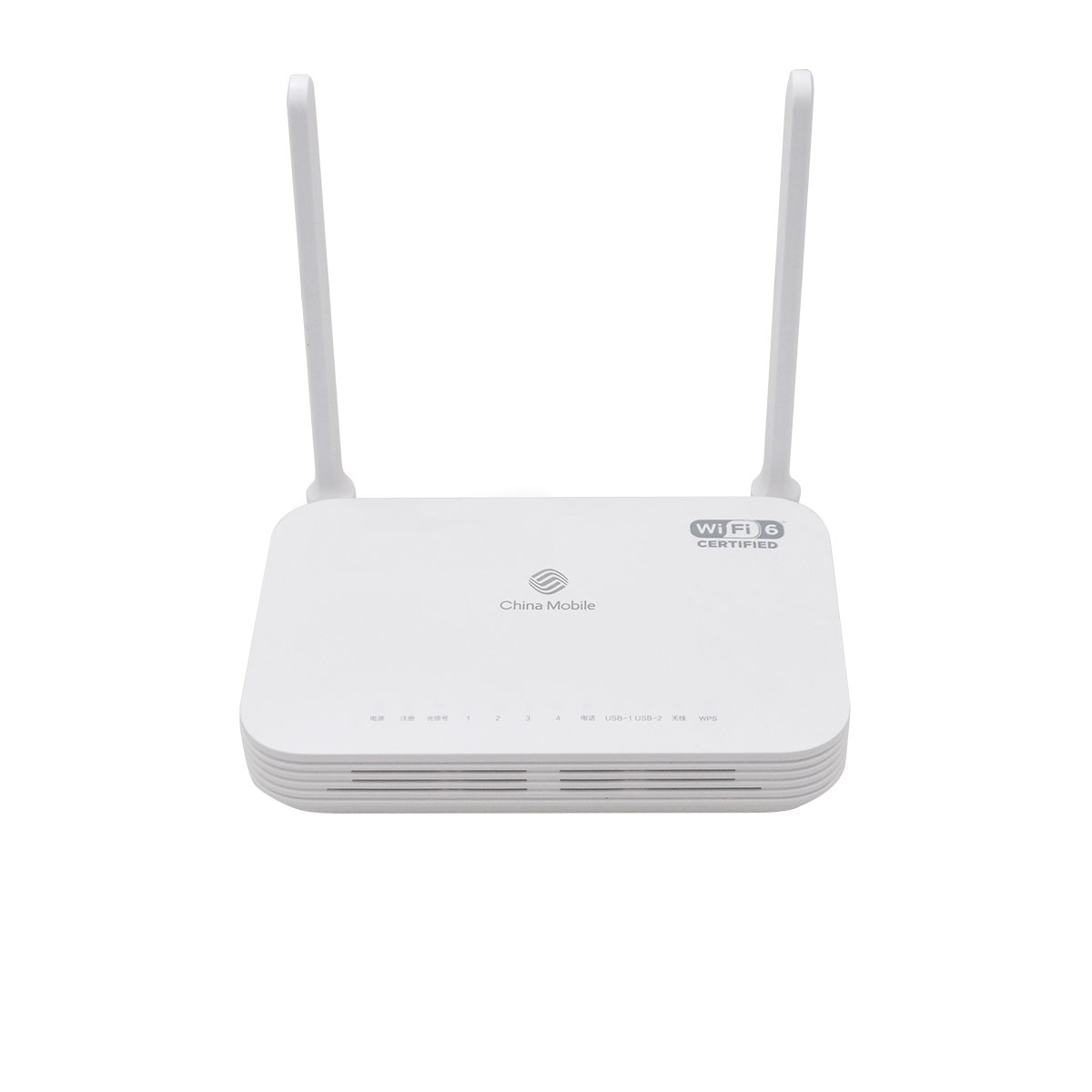

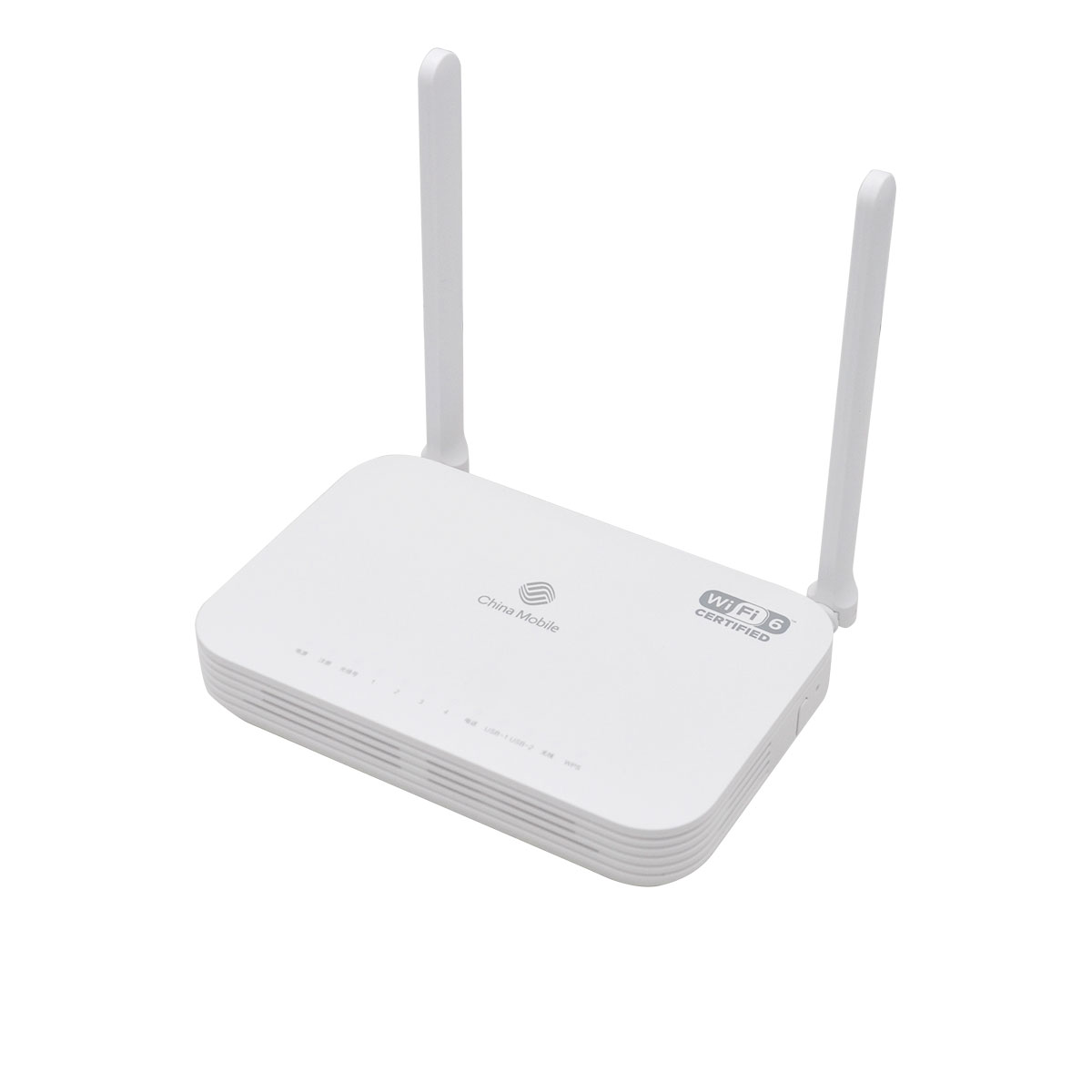

The HN8546X6 is an XG-PON and Wi-Fi 6 routing-type ONT. It is a routing-type Optical Network Terminal (ONT) that uses 10-Gigabit-capable Passive Optical Network (XG-PON) technology to offer ultra-broadband access, high performance, and wide coverage for users. With high forwarding performance guaranteeing a high-quality experience for both voice and data services — plus future-oriented service support capabilities — HN8546X6 helps enterprises deploy competitive all-optical access solutions.

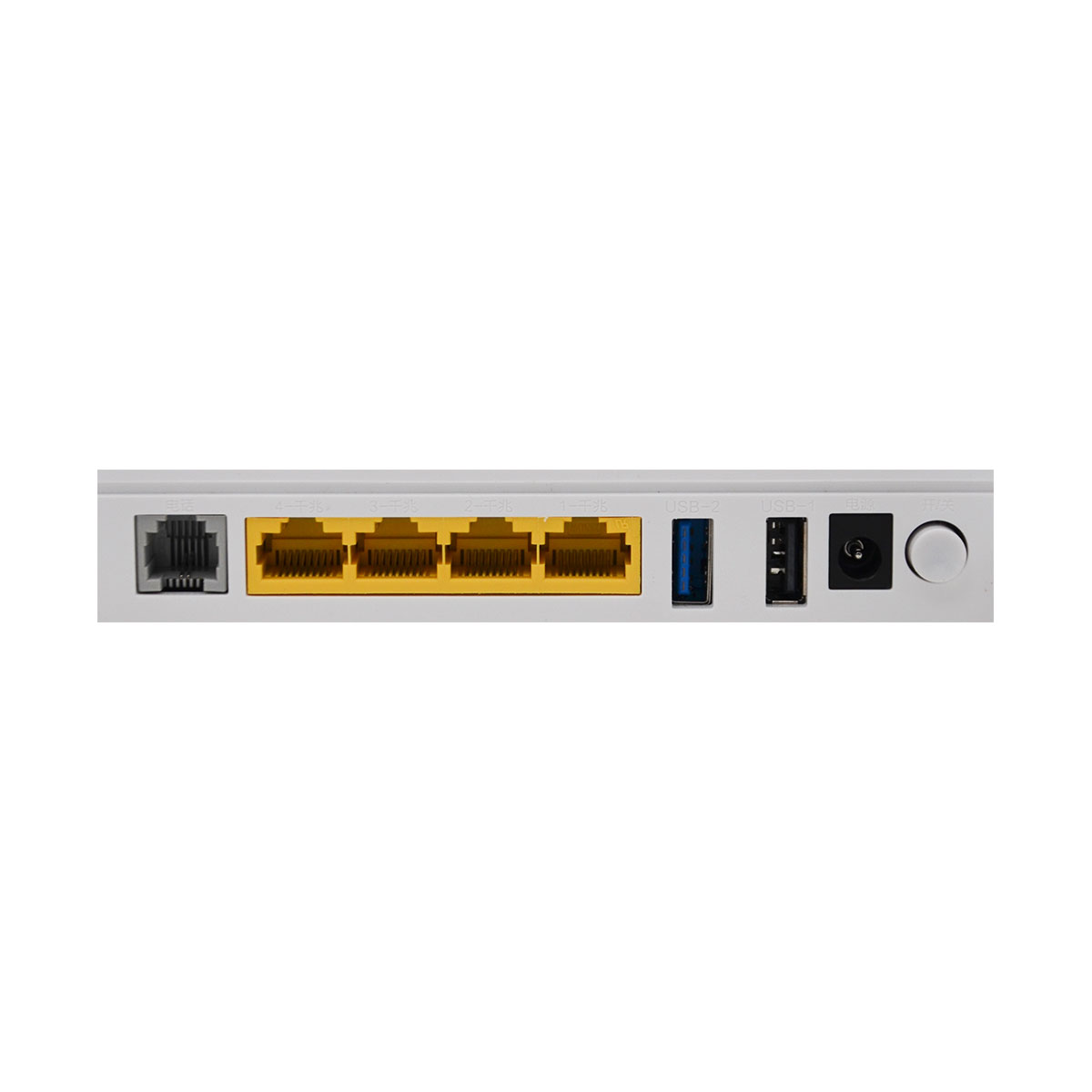

The device features four GE ports, one POTS port, two USB ports, and 2.4G and 5G Wi-Fi 6 connectivity.
HN8546X6 Fast Spec
Next-Generation Wi-Fi 6
- IEEE 802.11 b/g/n/ax (2.4G)
- IEEE 802.11 a/n/ac/ax (5G)
- 2 x 2 MIMO (2.4G and 5G)
- Antenna gain: 5 dBi
- Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G)
Smart Services
- Scheduled Wi-Fi shutdown scheduling
- Smart Wi-Fi sharing: Portal/802.1X authentication, and SoftGRE-based sharing
Smart O&M
- IPTV video quality diagnosis
- MDI
- Rogue ONT detection and self-regulation
- Call emulation, circuit test, and loop-line test
- PPPoE/DHCP simulation testing
- WLAN emulation
The user-side rate of a 10G PON ONT can reach up to 1000 Mbit/s, meeting the requirements of home users on bandwidth-hungry services such as 4K/8K HD video, AR/VR, home cloud, and video calls. It can also provide private line access services of up to 10 Gbit/s.
Mainstream products:HN8546X6, HN8145V, HN8145XR, HN8346V5.
HN8346V5 is a very cost-effective 10G ONT, which supports 2.4G and 5G dual-band WIFI. And HN8546X6 supports WIFI6. HN8145V is a 10G EPON&XG-PON routing gateway device for China Telecom's gigabit fiber smart home solution, providing 1 POTS voice interface, 3 GE adaptive Ethernet ports, 1 iTV port and dual-band Wi-Fi ( 2.4GHz&5GHz), flexible application, support plug, and play, remote diagnosis, green energy saving, and other features. HN8145V supports 10G EPON technology to realize ultra-broadband access for home users in FTTH networking scenarios. Huawei OptiXstar
