Description
PAC600S12-CF Overview

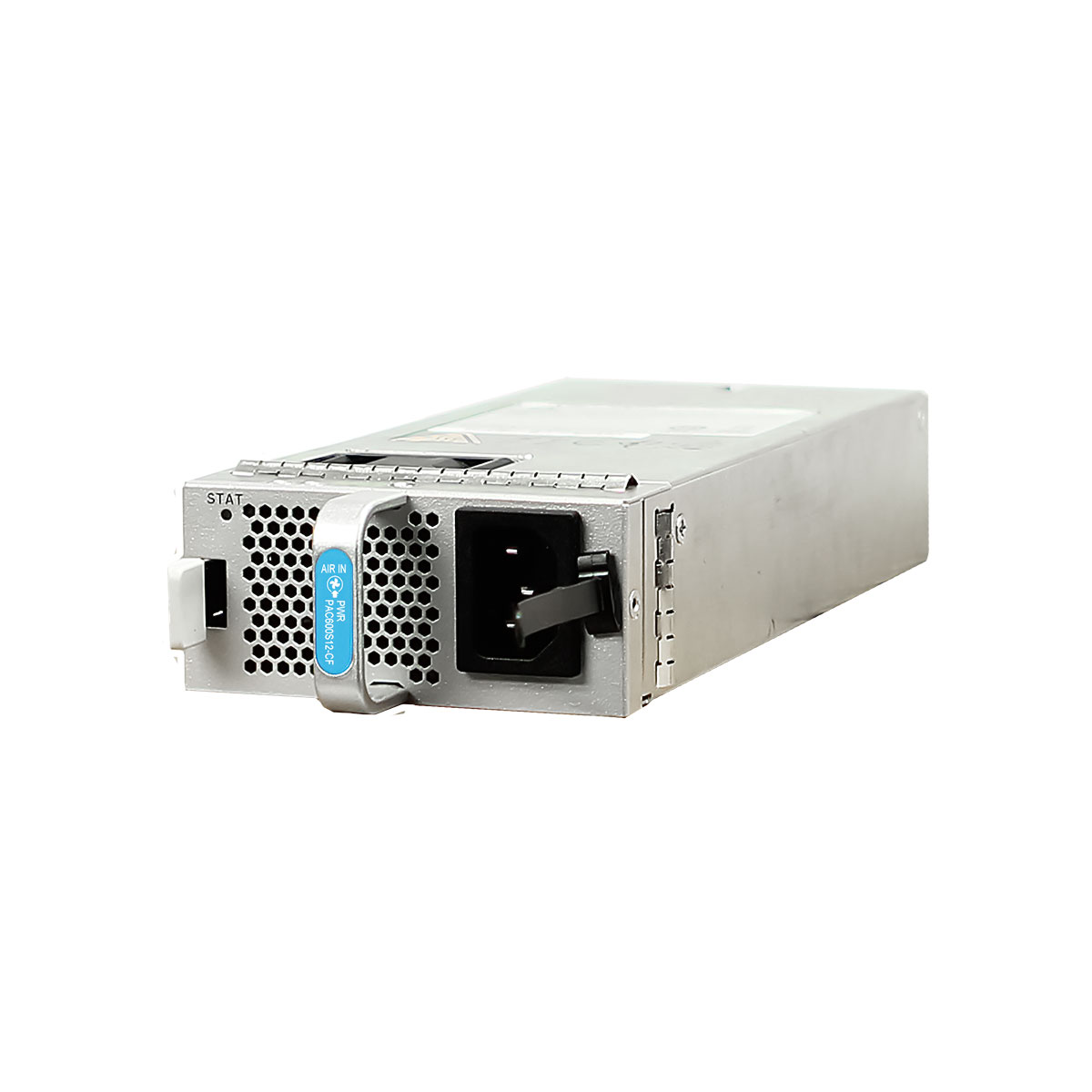

Huawei PAC600S12-CF with 600W AC Power Module apply to Huawei CE6800 series switches
Mappings between PAC600S12-CF and product models
| Product | Product Model | First Supported Version |
|---|---|---|
| CloudEngine 6800 | CE6866-48S8CQ-P | V300R020C00 |
| CloudEngine 6800 | CE6866-48S8CQ-K | V300R020C00 |
| CloudEngine 6800 | CE6860-SAN | V300R020C10SPC200 |
| CloudEngine 6800 | CE6820H-48S6CQ | V300R021C00SPC100 |

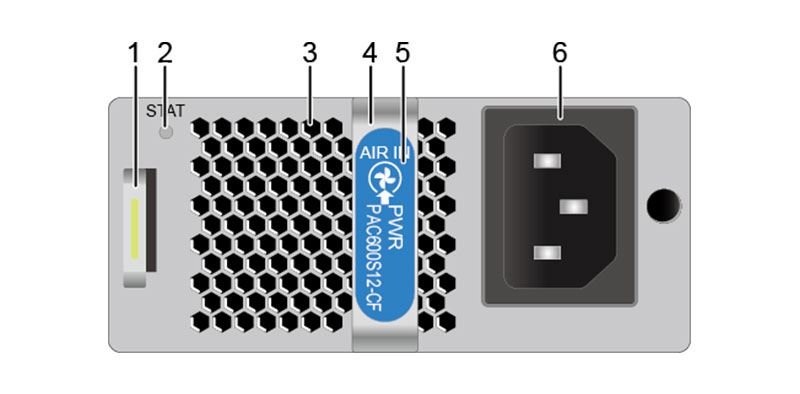

Front Panel
Functions of the PAC600S12-CF
| Function | Description |
|---|---|
| Input overvoltage protection and undervoltage protection | In either of the two protection states, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply. |
| Input overcurrent protection | In this protection state, the power module stops supplying power and cannot automatically resume power supply when the input current restores to the normal range. |
| Output overvoltage protection | In this protection state, the power module stops supplying power intermittently. When the system recovers from output overvoltage, the power module automatically resumes power supply. |
| Output overcurrent protection | In this protection state, the power module supplies power intermittently. When the output current is limited within a range, the power module automatically resumes power supply. |
| Output short-circuit protection | In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module automatically resumes power supply. |
| Overtemperature protection | When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
| Heat dissipation | front-to-back airflow |
