S5731S-S48S4X-A
Huawei S5731S-S48S4X-A switch supports 48 GE SFP ports, 4 10GE SFP+ ports, with AC power supply
- Description
- DATASHEET
- Download
- Reviews (0)
Description
S5731S-S48S4X-A overview

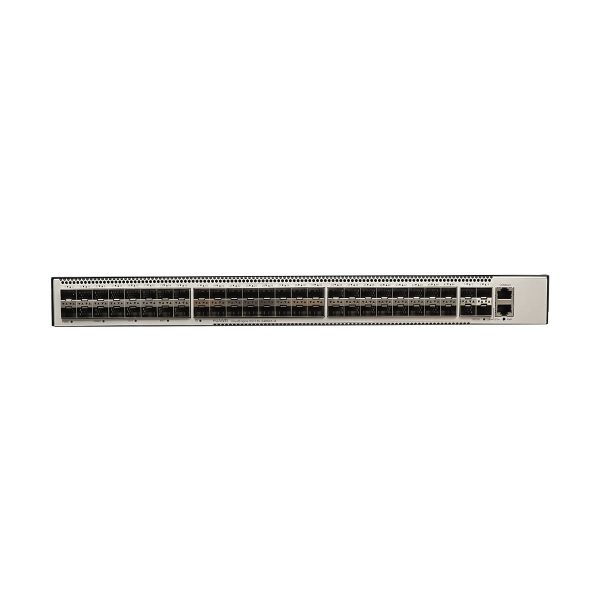

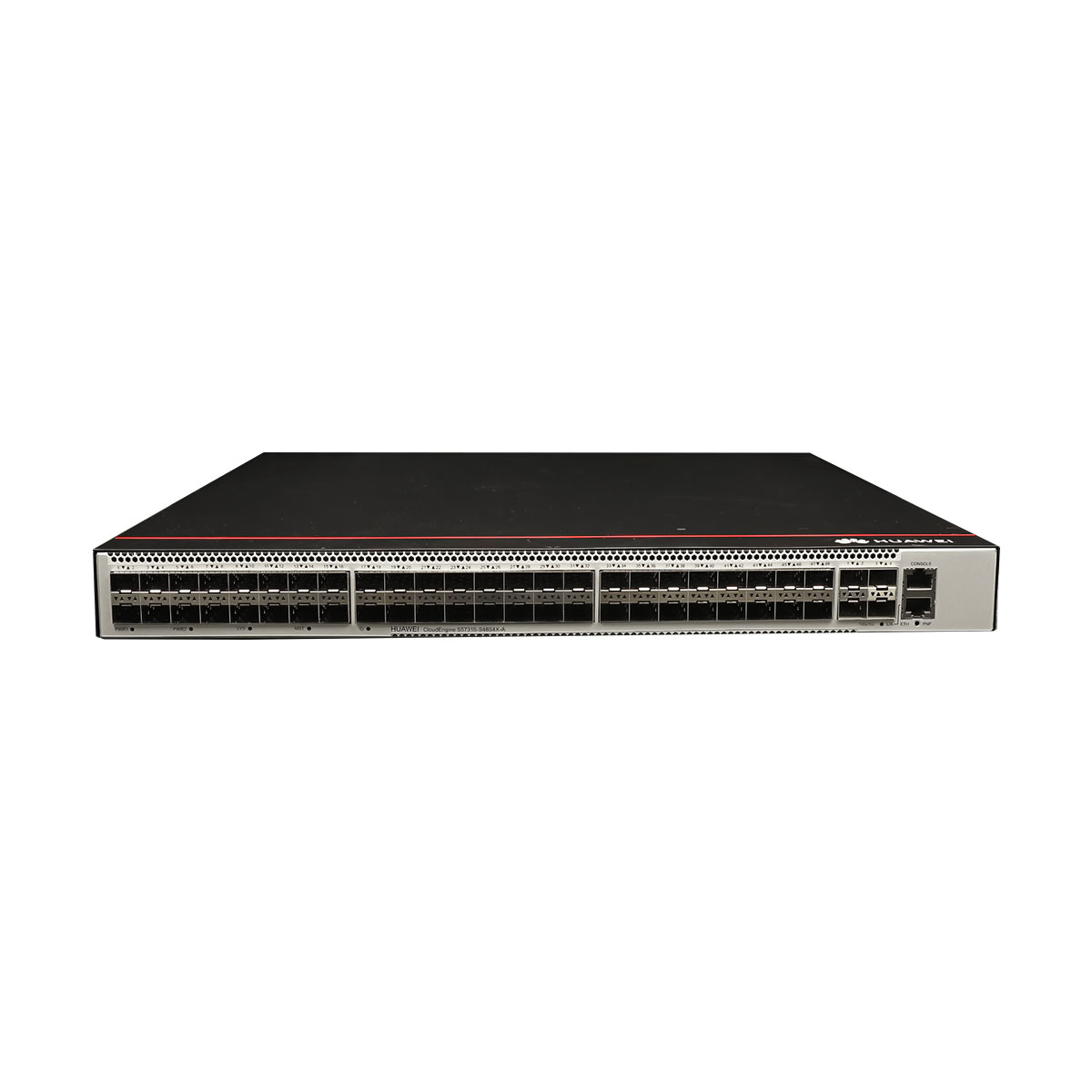

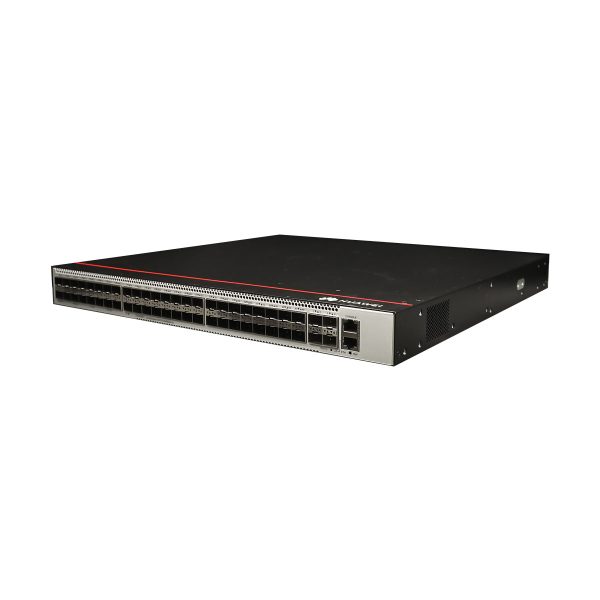

This Huawei switch comes with 48 GE SFP ports, 4 10GE SFP+ ports, with AC power supply
Cloud Engine S5731S-S series switches are standard gigabit access switches tailored for the channel distribution market, with all-GE electrical downlink ports and fixed 10 GE uplink ports.
Cloud Engine S5731S-S series switches are next-generation gigabit access switches. Built on Huawei’s unified Versatile Routing Platform (VRP), Cloud Engine S5731S-S switches provide enhanced Layer 3 features, simple O&M, Intelligent Stack (iStack), flexible Ethernet networking, and mature IPv6 features. These feature-rich switches are widely used in scenarios such as enterprise campus access and aggregation, as well as data center access.
S5731S-S48S4X-A quick spec
48 GE SFP ports
4 10GE SFP+ ports
1 AC power supply
RTC supported

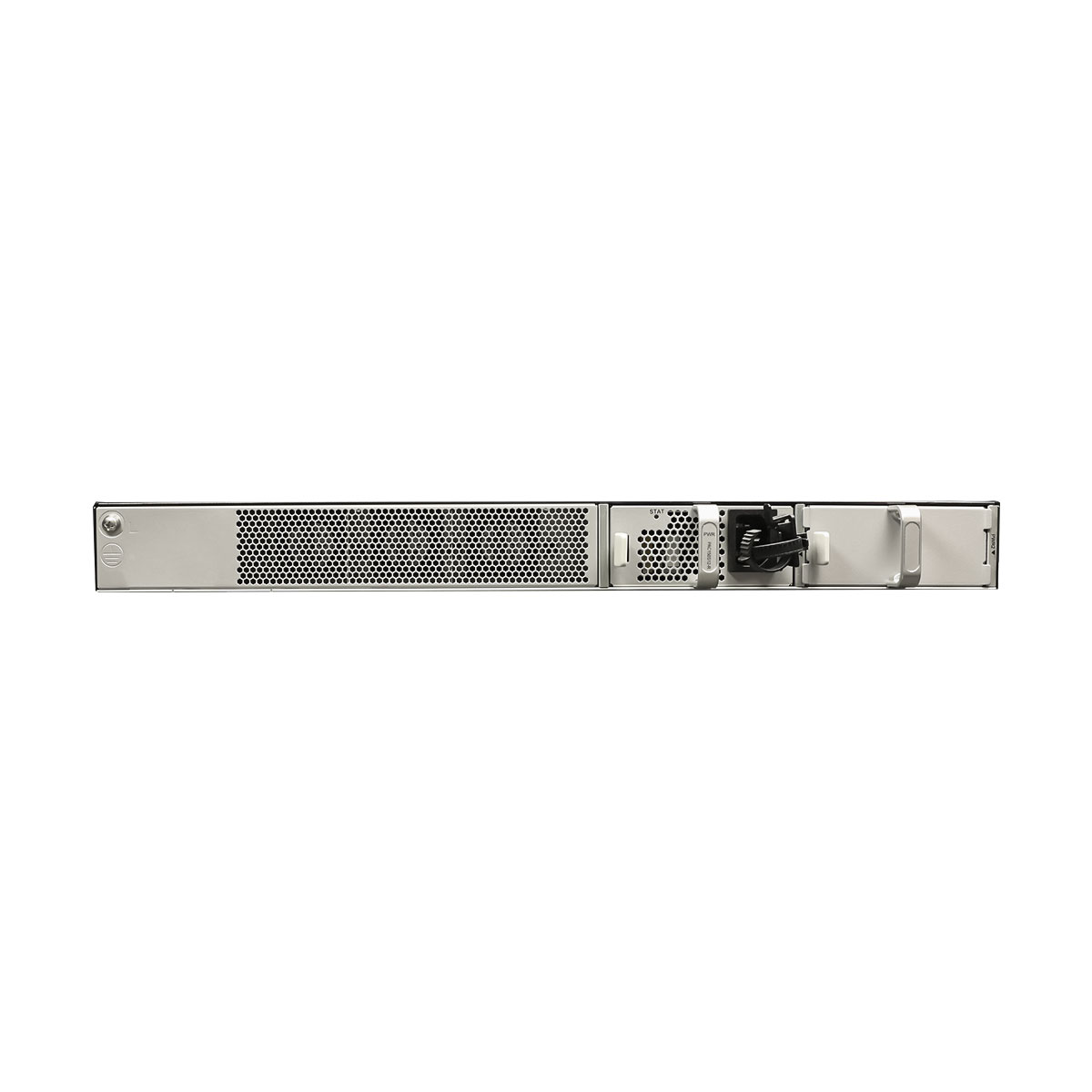

S5731S-S48S4X-A appearance and structure
1 | Forty-eight 100/1000BASE-X ports |
2 | Four 10GE SFP+ ports |
3 | One console port |
4 | One ETH management port |
5 | One PNP button |
6 | Ground screw |
7 | Power module slot 1 |
8 | Power module slot 2 |
Item | S5731S-S48S4X-A |
Memory | 2 GB |
Flash memory | The physical space is 1 GB. You can run the display version command to view the actual available space. |
Console port | RJ45 |
Eth Management port | RJ45 |
USB | Not supported |
RTC | Supported |
RPS input | Not supported |
Service port surge protection [kV] | – |
Power supply surge protection [kV] | Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode |
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode | |
Types of fans | Built-in |
Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
Airflow direction | Air intake from left,front and right, air exhaustion from behind |
PoE | Not supported |
Certification | EMC certification |
Safety certification | |
Manufacturing certification |
